Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLPC450

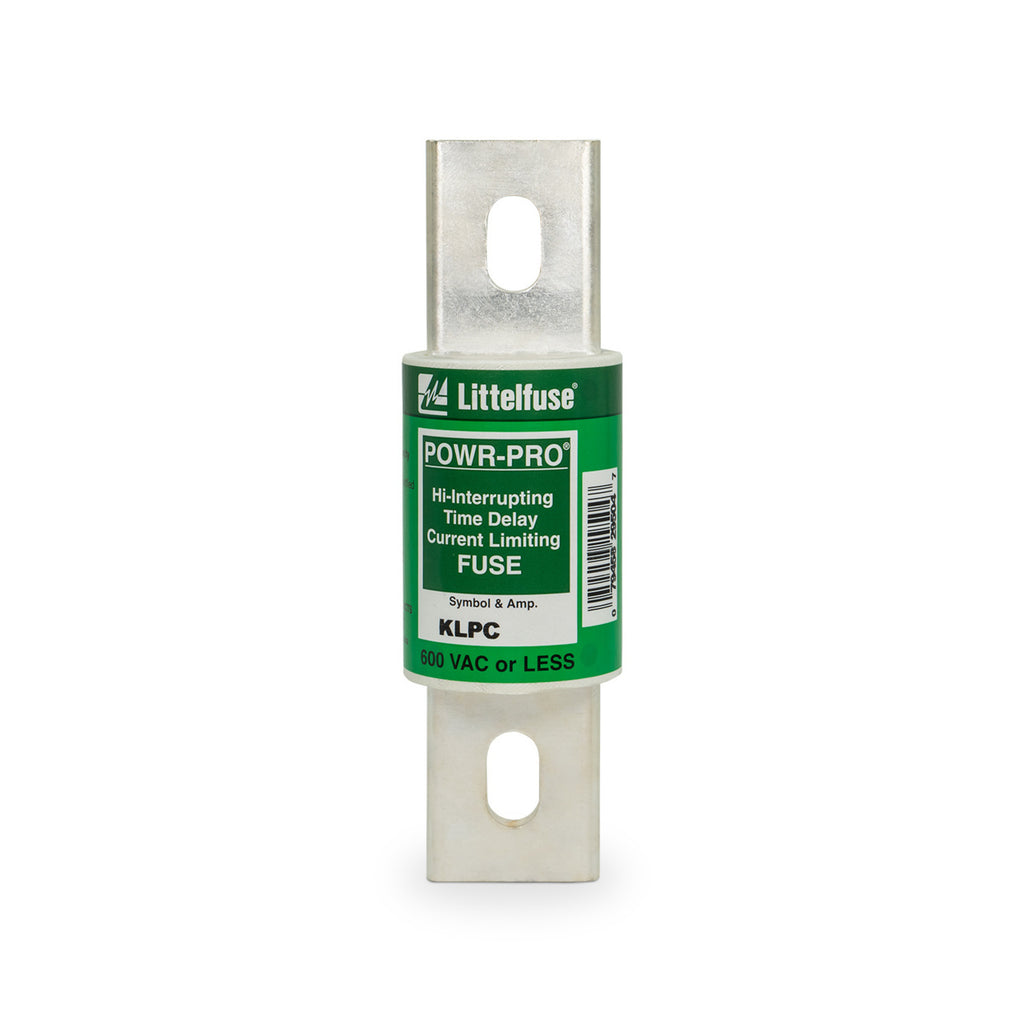

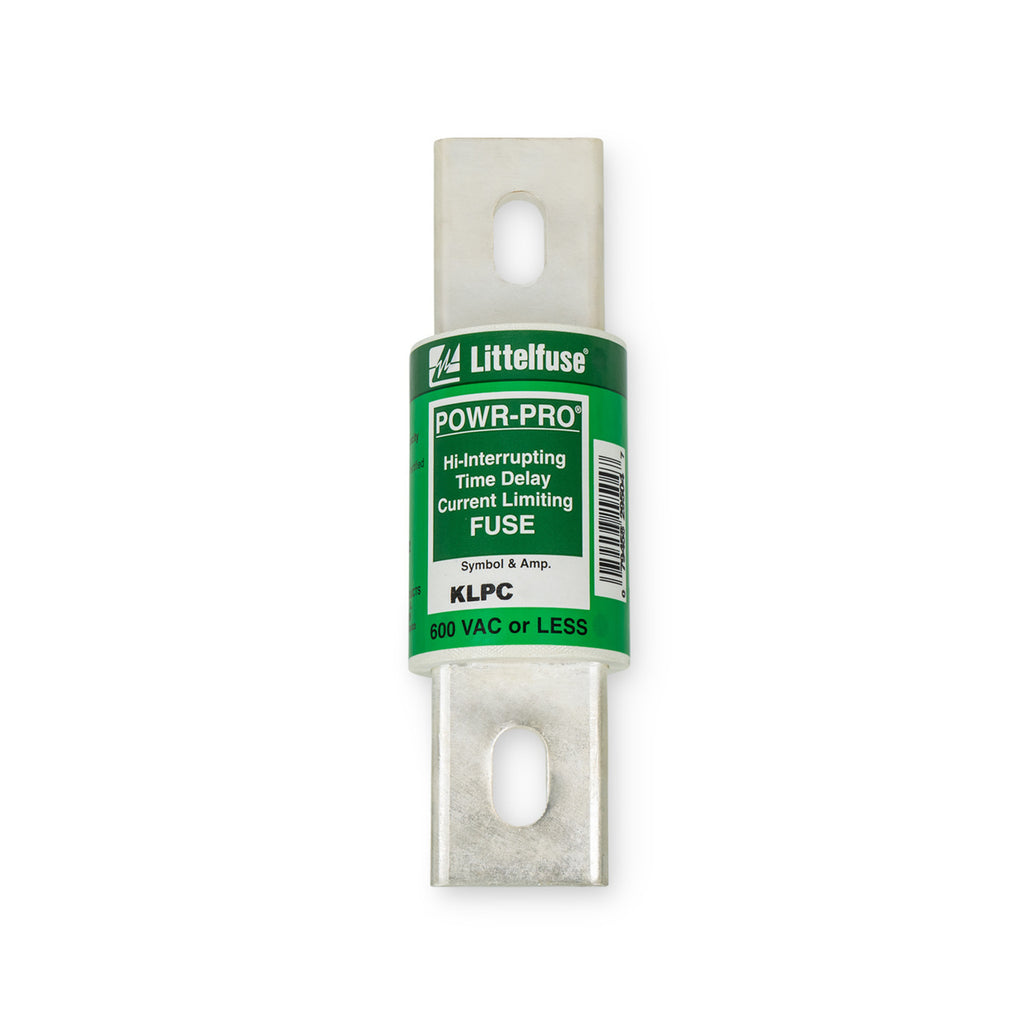

KLPC450 is a Littelfuse Class L time-delay fuse rated for 450 amperes and 600 volts AC, designed for reliable circuit protection.This KLPC series fuse features a 450 amp rating with a 600 VAC and 480 VDC voltage rating. It is a time-delay type fuse with a 300 kA AC interrupting rating and 20 kA DC interrupting rating. The fuse has a bolt-in mounting style and is constructed with silver links, glass-reinforced melamine bodies, and O-ring seals for durability and performance. It meets UL 248-10, CSA, and CE certifications.
- Key Specifications
- Amperage: 450 A
- Voltage Rating: 600 VAC / 480 VDC
- Interrupt Rating: 300 kA AC / 20 kA DC
- Fuse Class: Class L
- Time-Delay (Slow Blow) Type
- Mounting Type: Bolt-In
- Dimensions: 2-1/2 inch diameter, 8-5/8 inch length
- Construction: Silver links, glass-reinforced melamine body
- Certifications: UL 248-10, CSA, CE
- Series: KLPC POWR-PRO®
- Part Number: KLPC450
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : KLPC
- Voltage : 600
- Amperage : 450
- AIC rating : 300kA@600V
- Connection : Bolt-In
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
- Clip Center : 6.75
- UPC : 079458295054
- GTIN : 00079458295054
- Weight : 2
