KLPC3000 - Littelfuse 3000A 600V AC Class L Time Delay Fuse

KLPC3000

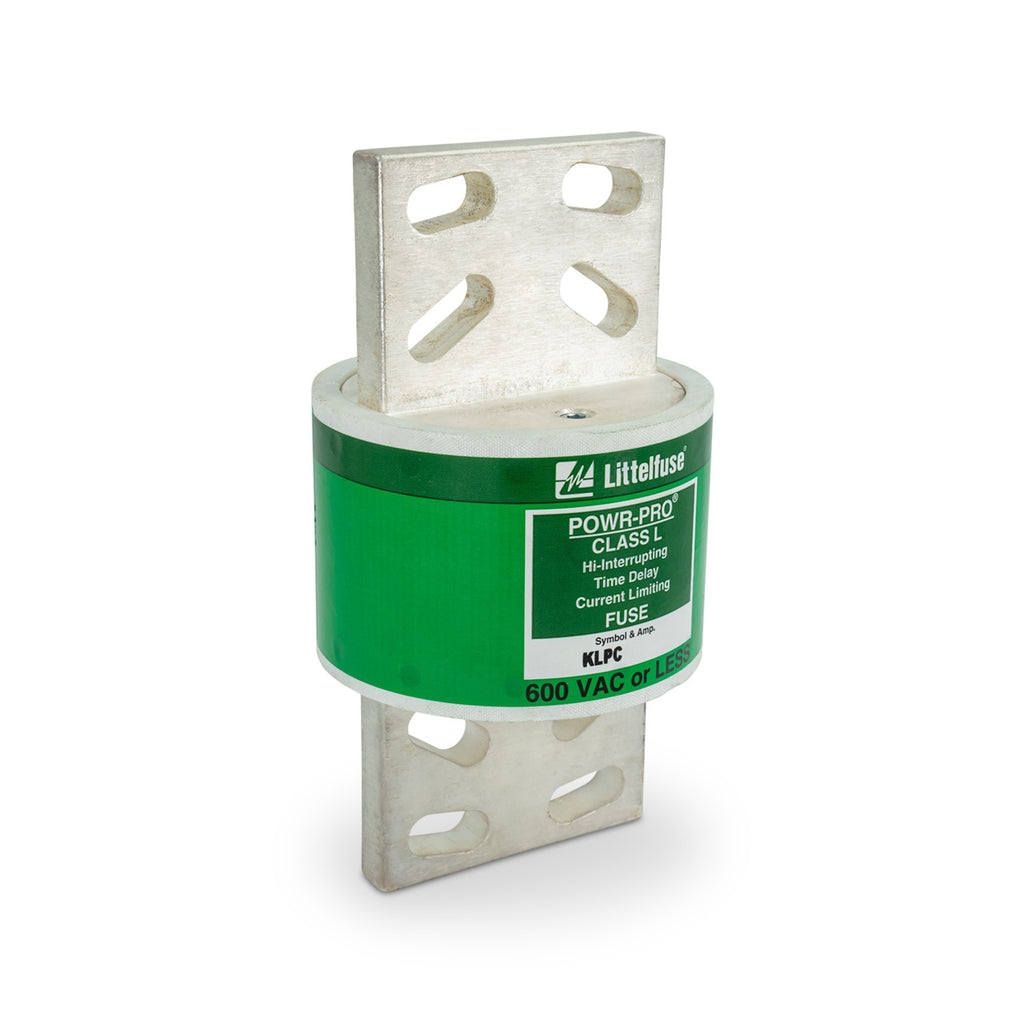

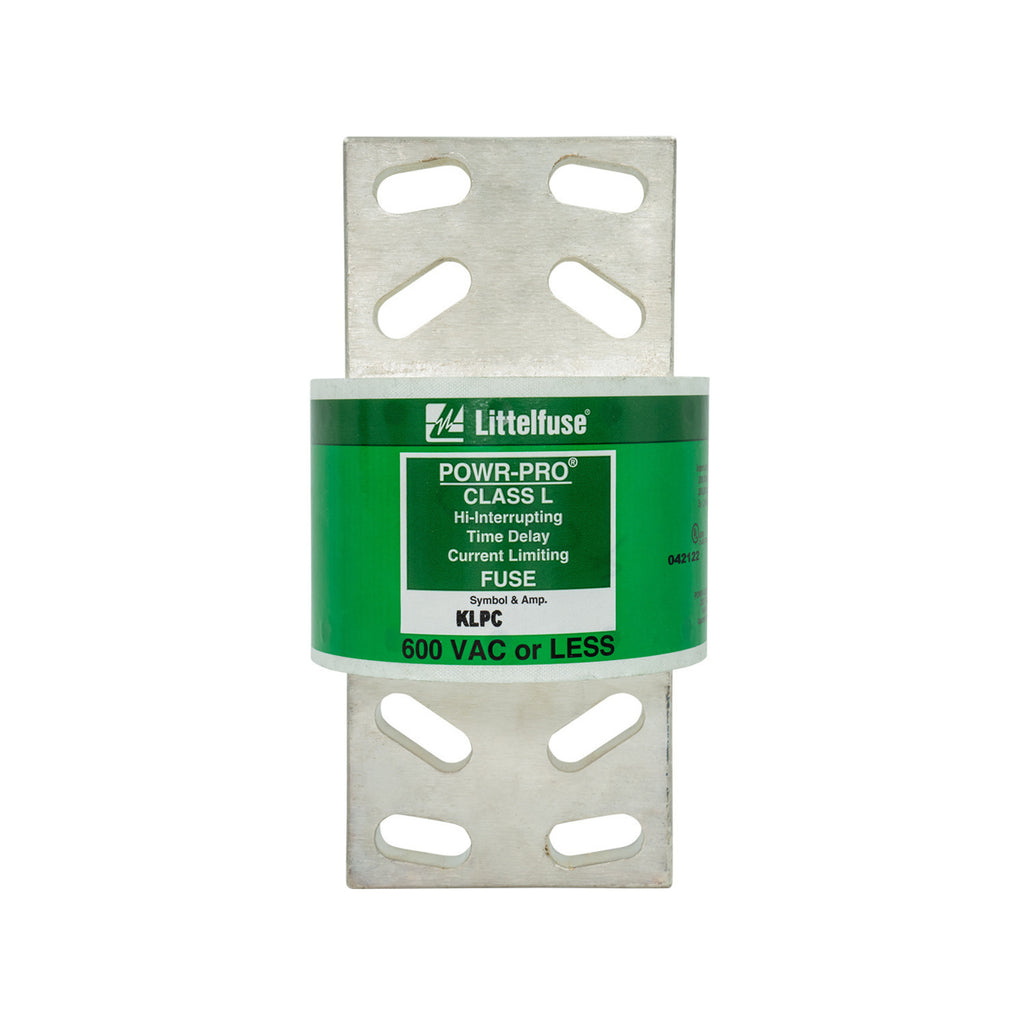

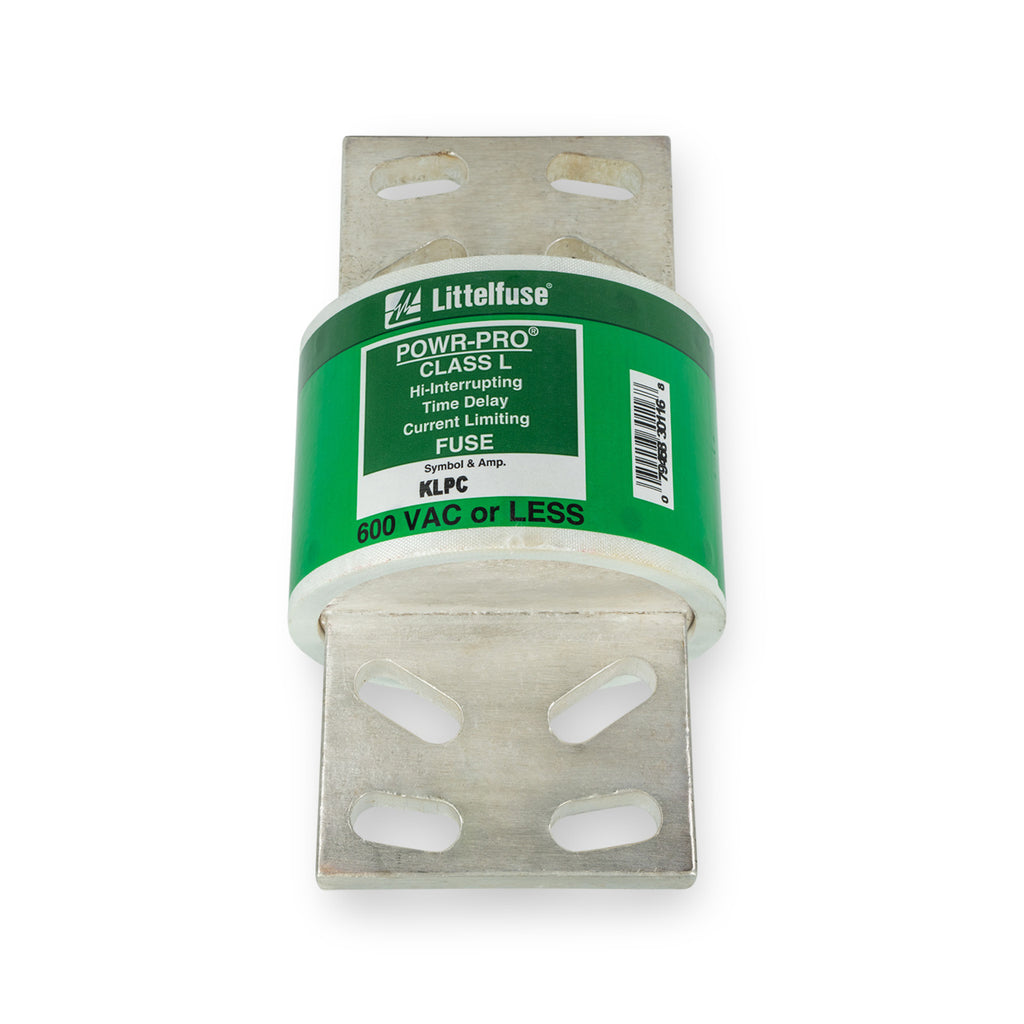

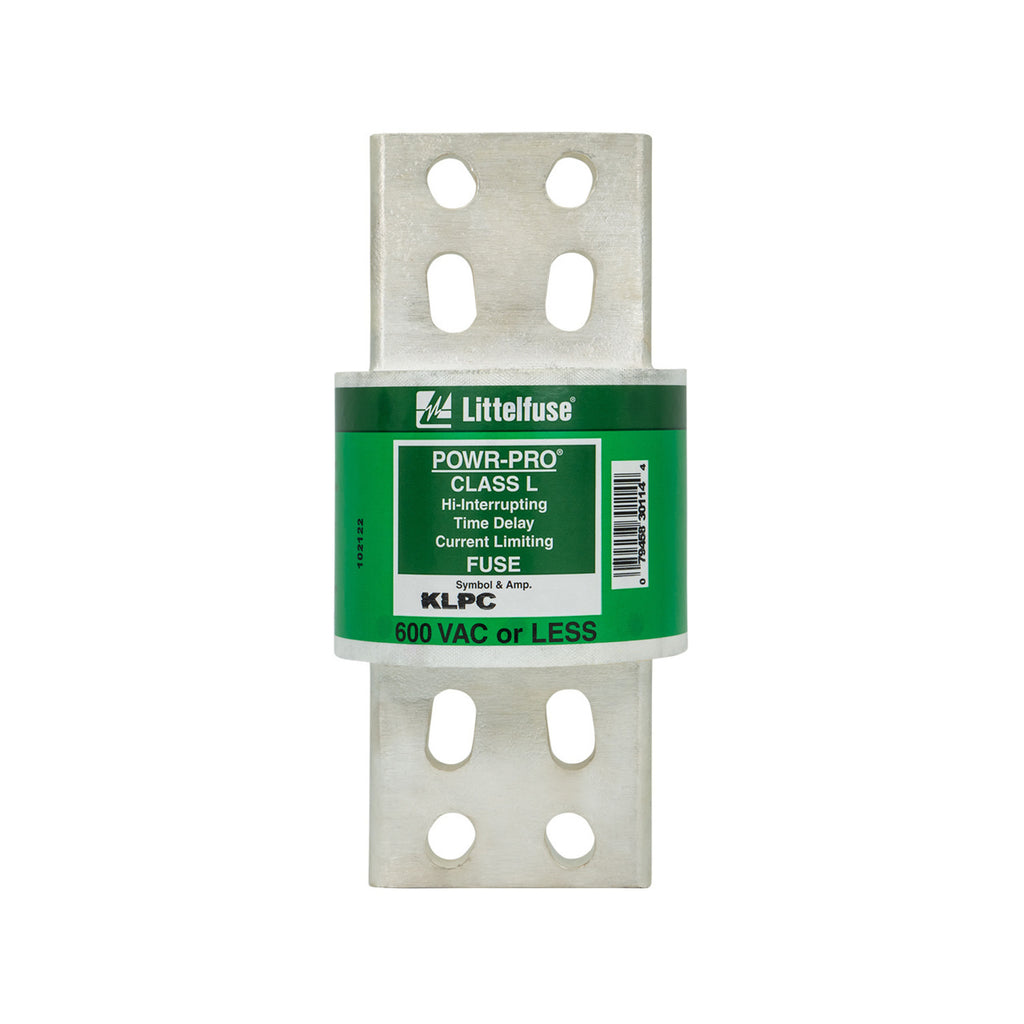

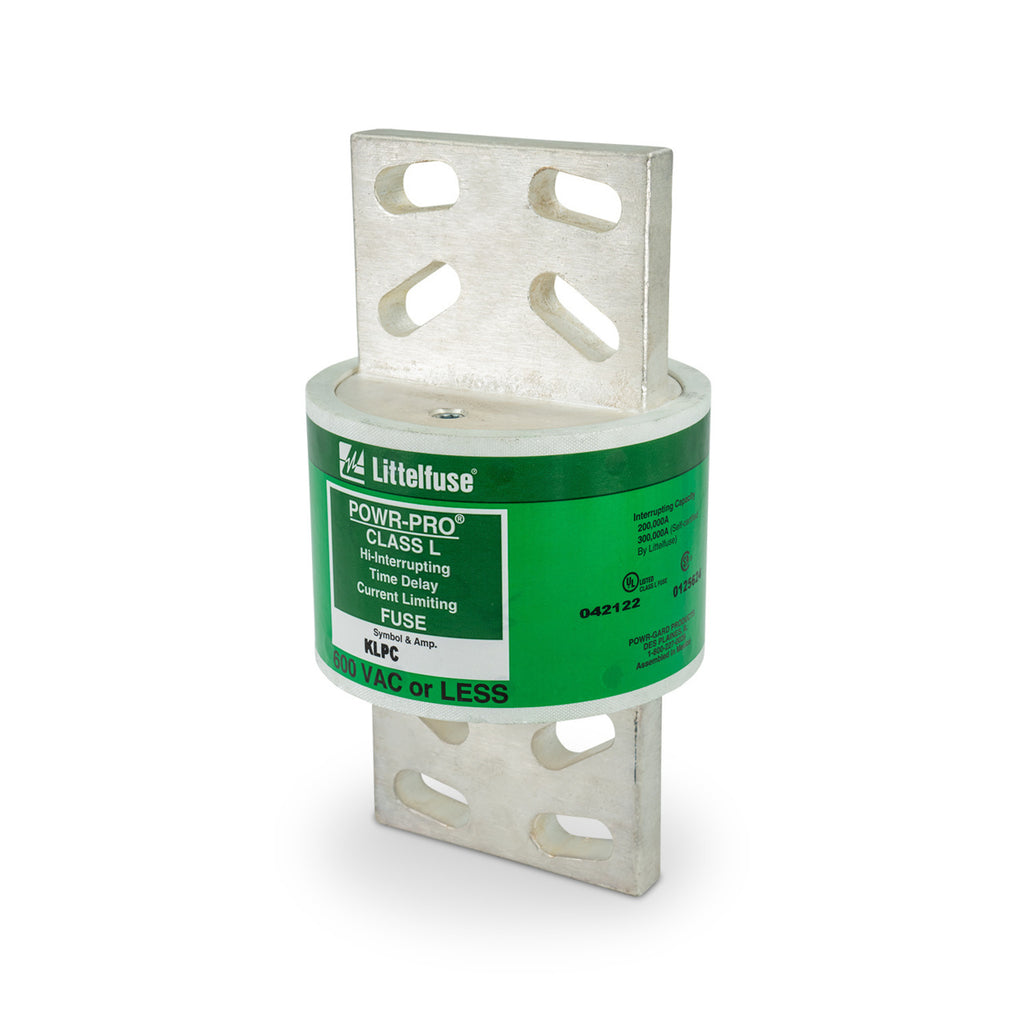

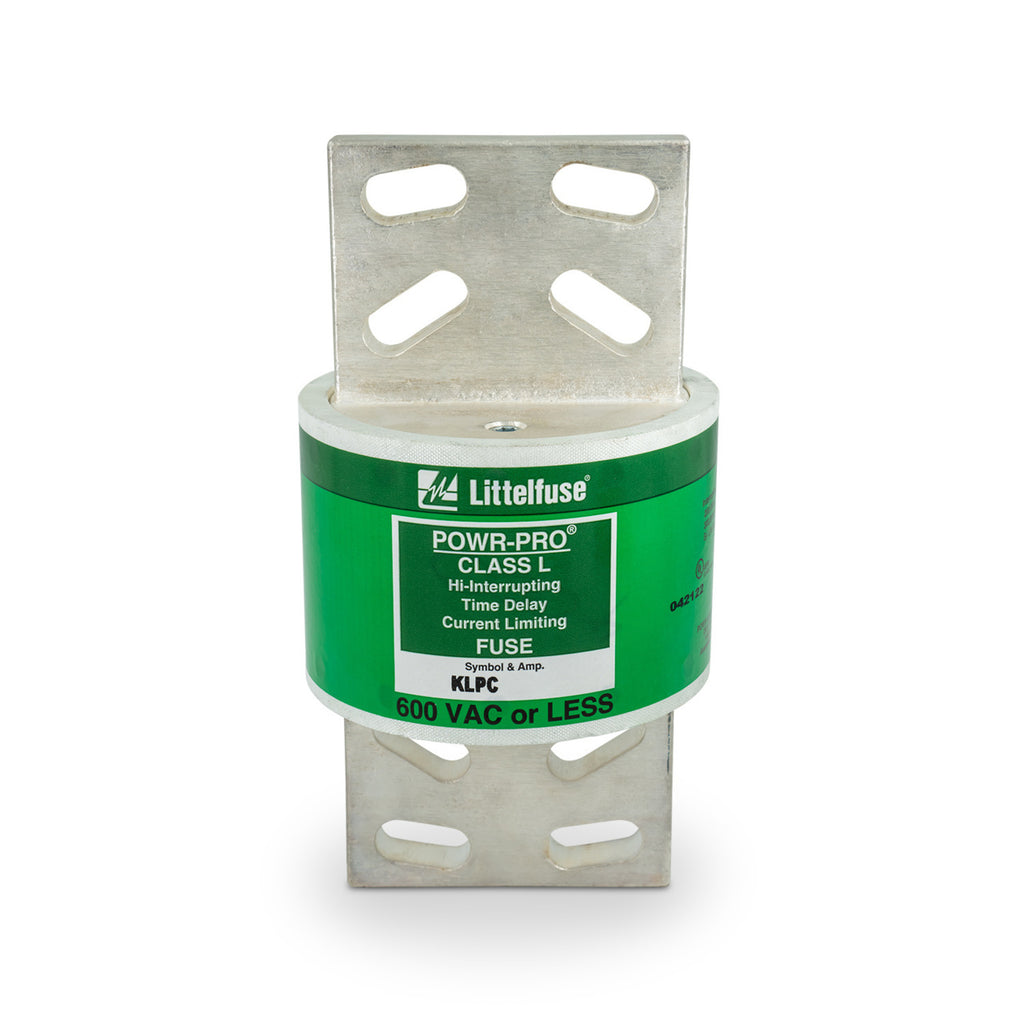

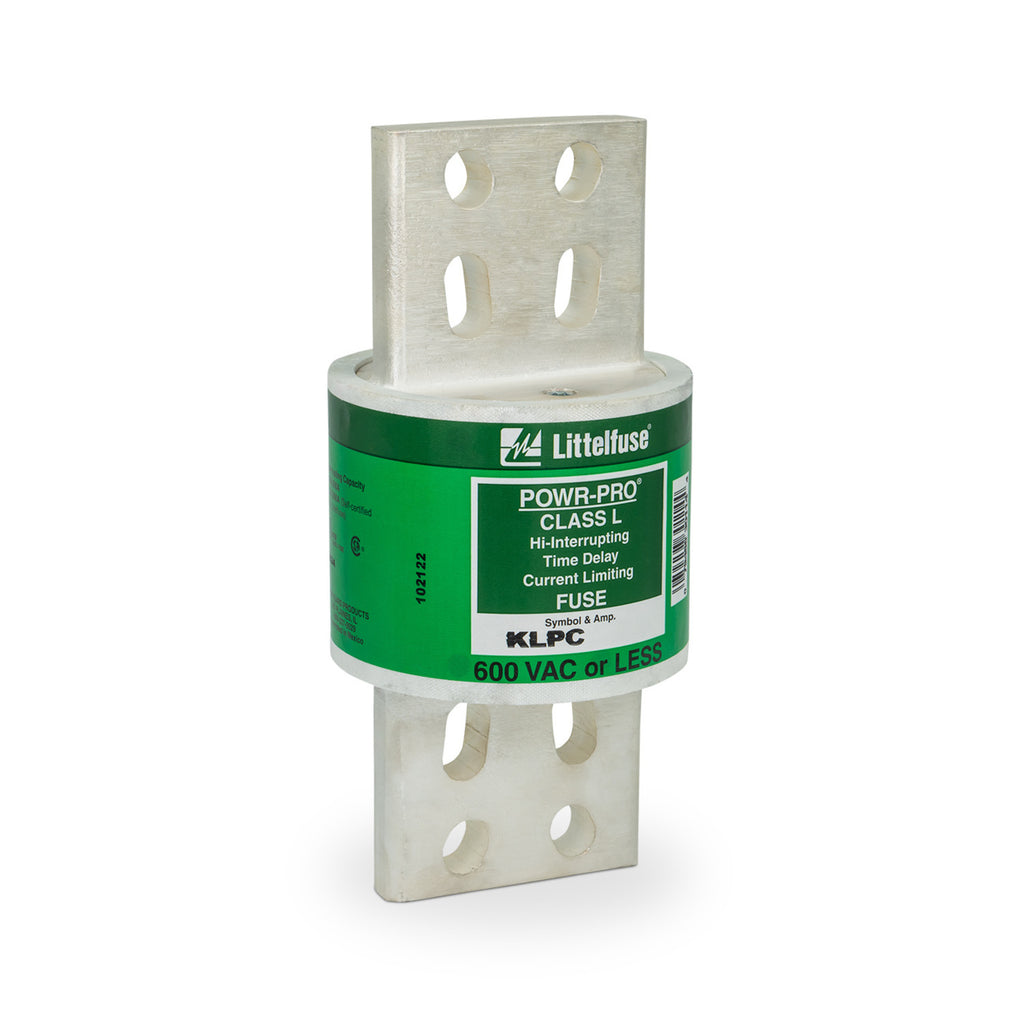

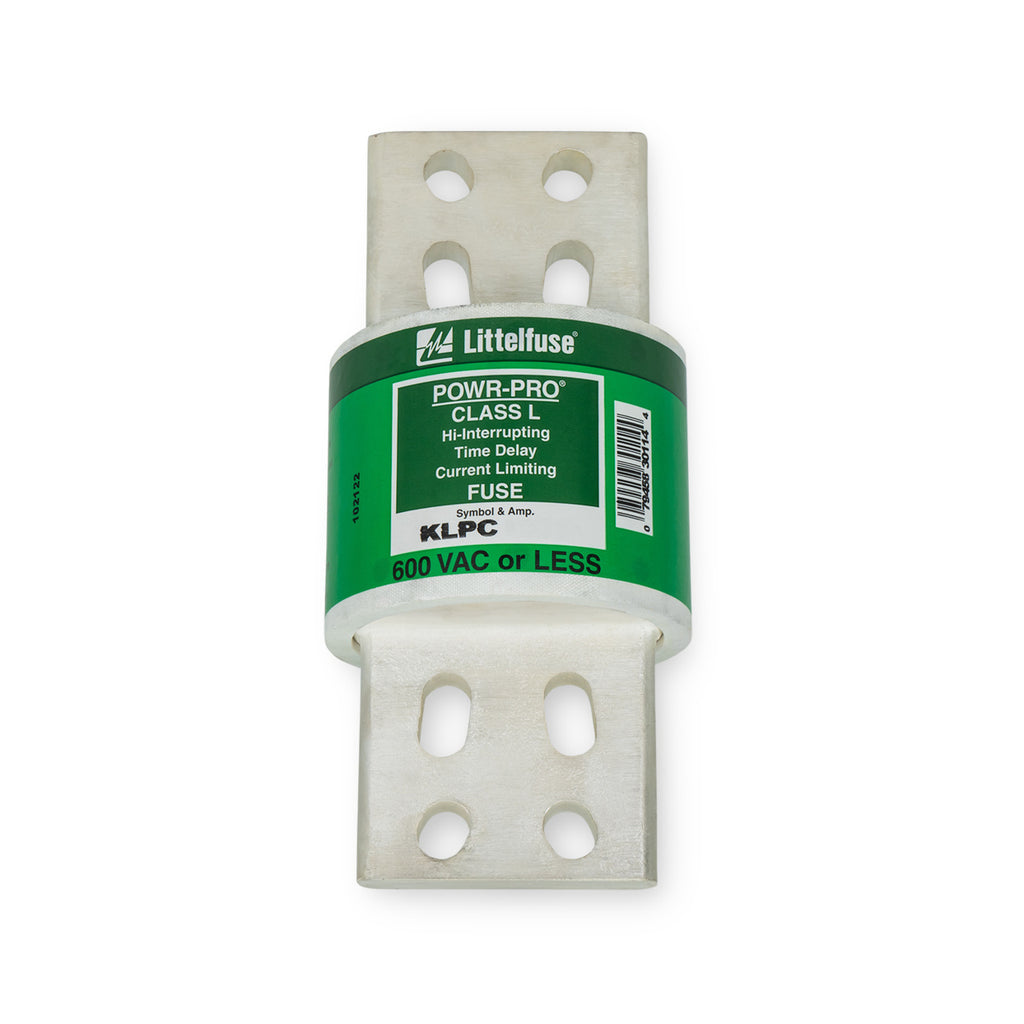

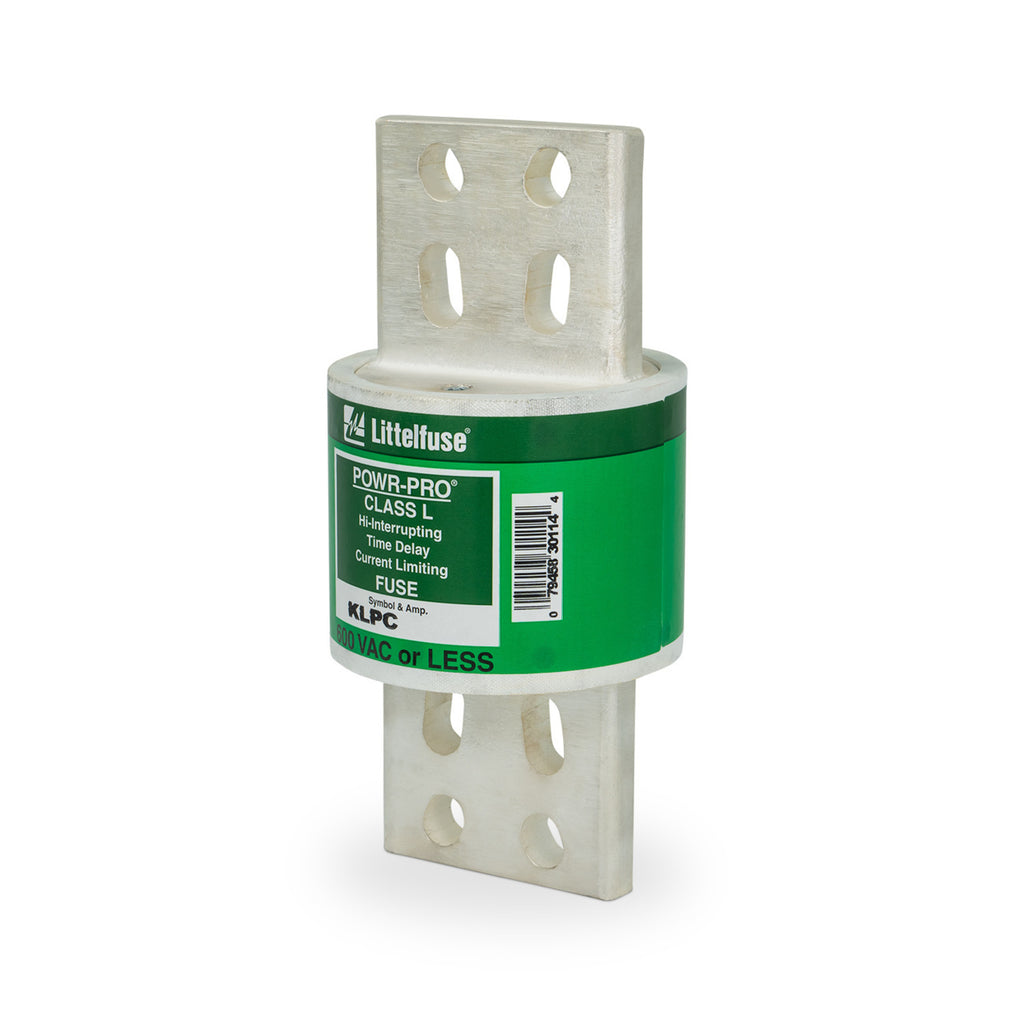

KLPC3000 is a Littelfuse 3000 Amp, 600 Volt AC Class L time delay fuse designed for high-performance circuit protection.This fuse features a time delay and current limiting design with a 200,000 AIC interrupt rating at 600 VAC and 20,000 AIC at 500 VDC. It has a glass reinforced melamine body with silver links and silver plated copper end bells, measuring 5 inches in diameter and 10 3/4 inches in length. The KLPC3000 is UL listed and CSA certified, suitable for service switches, switchboard mains, motor control centers, and transformer protection.

Key Specifications
• Amperage: 3000 Amps
• Voltage Rating: 600 VAC, 480 VDC
• Fuse Class: UL Class L
• Time Delay: Yes
• Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 500 VDC
• Physical Size: 5" diameter x 10 3/4" length
• Body Material: Glass Reinforced Melamine
• End Bells: Silver Plated Copper
• Current Limiting: Yes
• Certifications: UL Listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KLPC3000
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLPC
• Type : KLPC
• Voltage : 600
• Amperage : 3000
• AIC rating : 300kA@600V
• Connection : Bolt-On
• Diameter : 5
• Class Rating : L



Product Data

• UPC : 079458301144
• GTIN : 00079458301144
• Weight : 18.21
