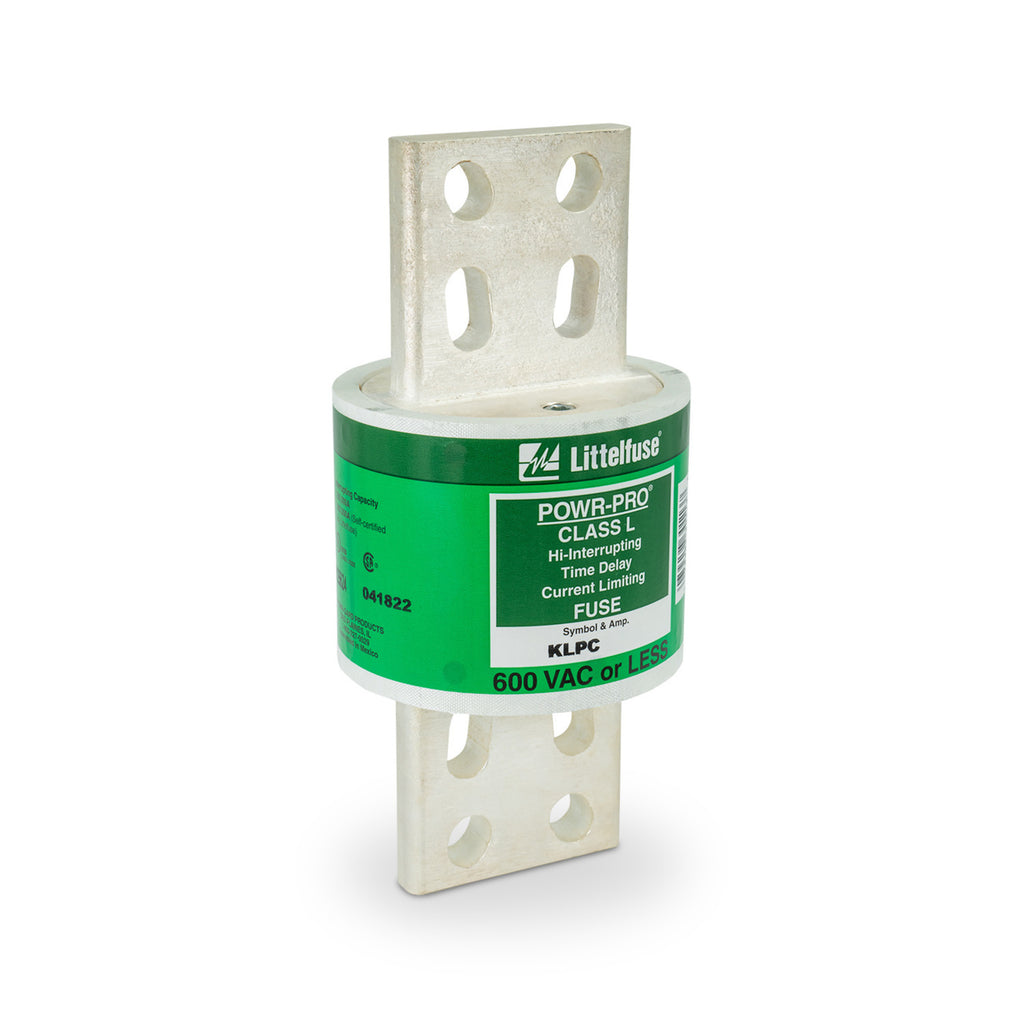

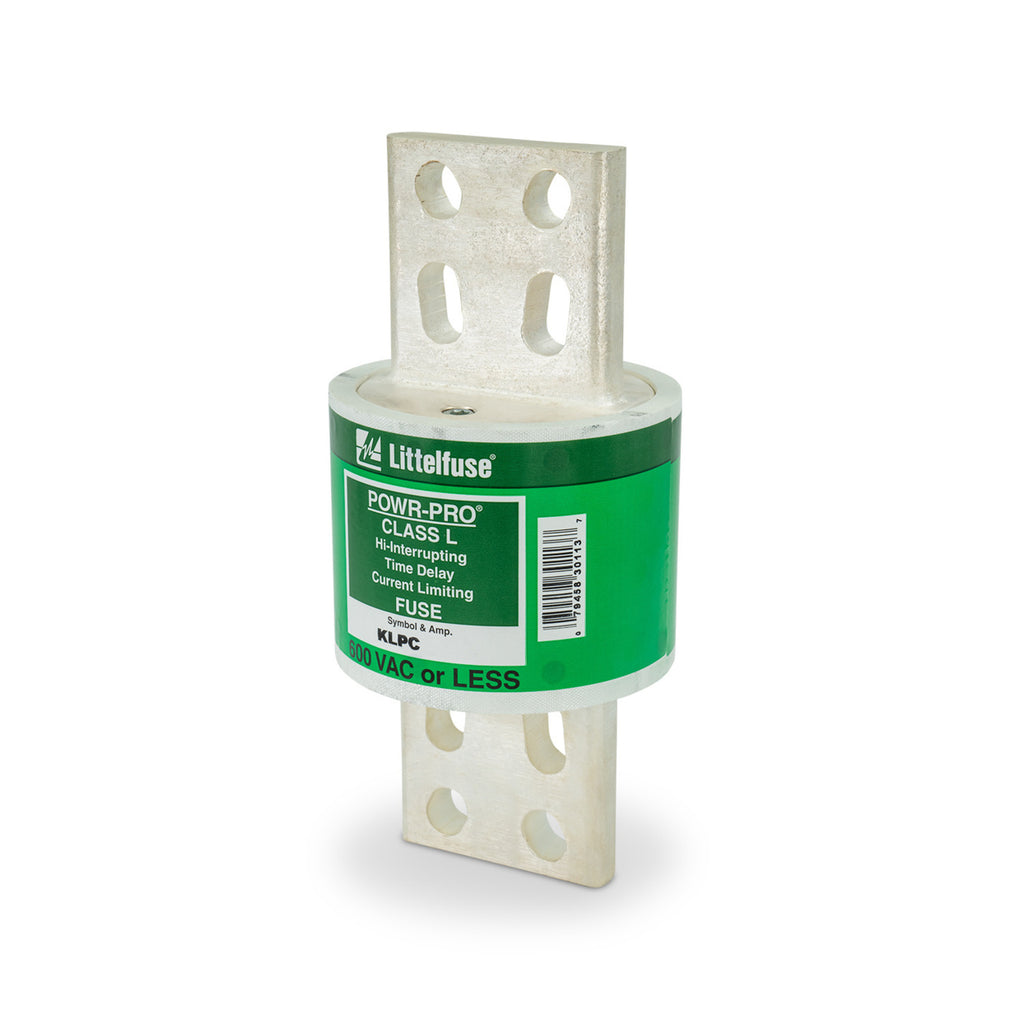

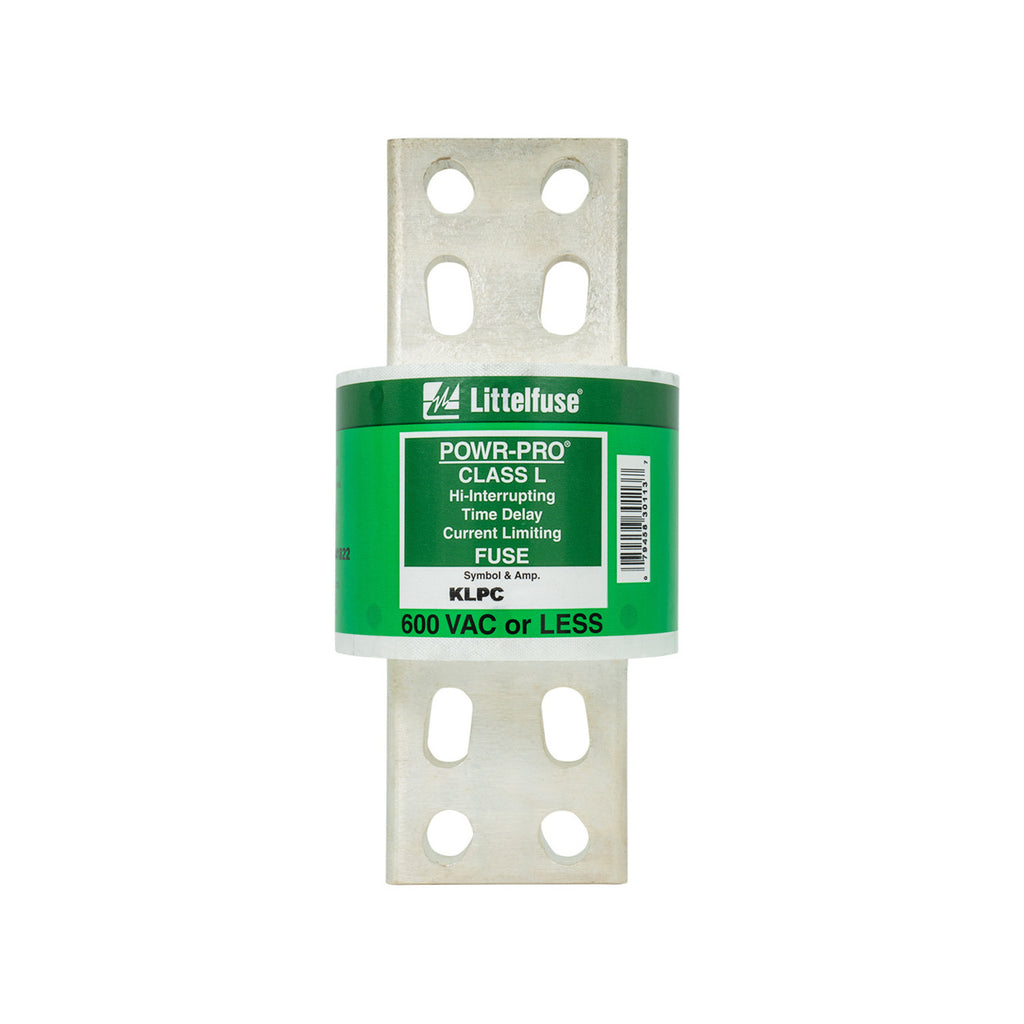

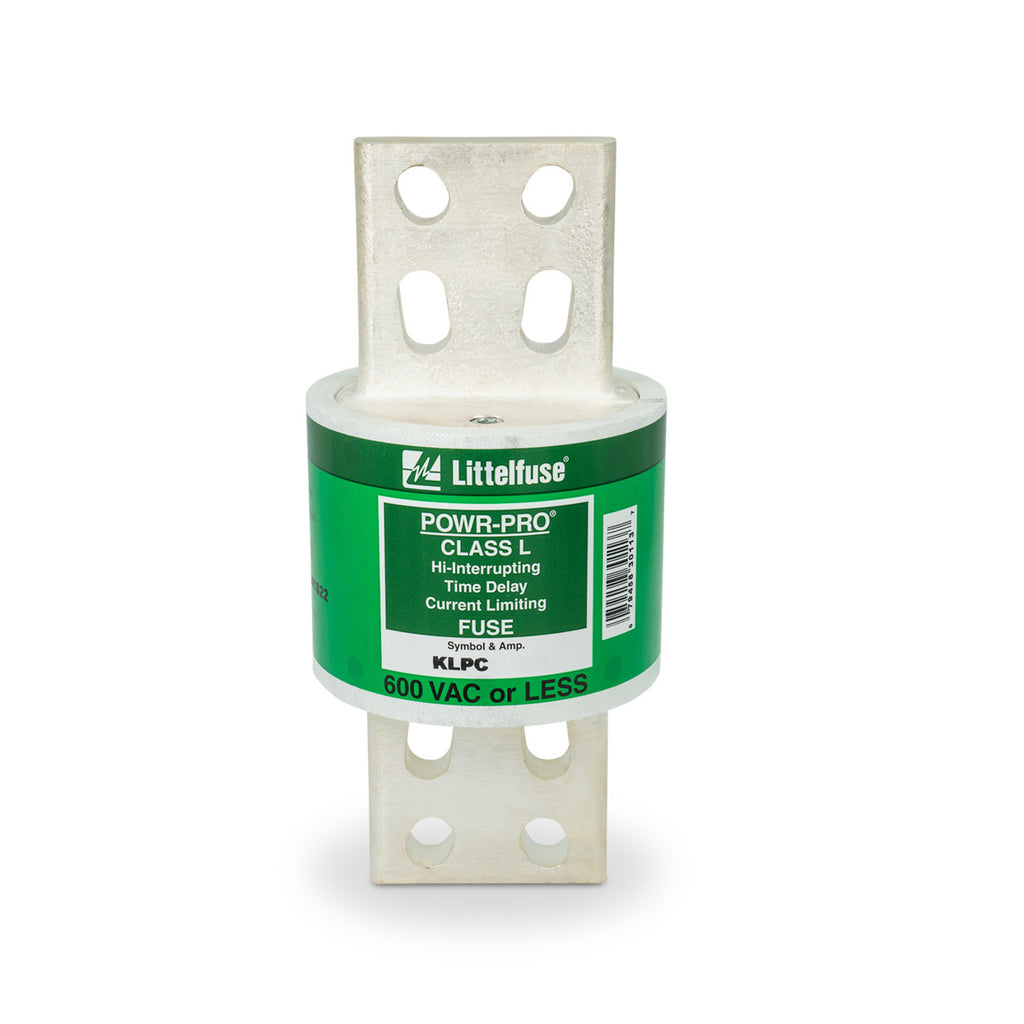

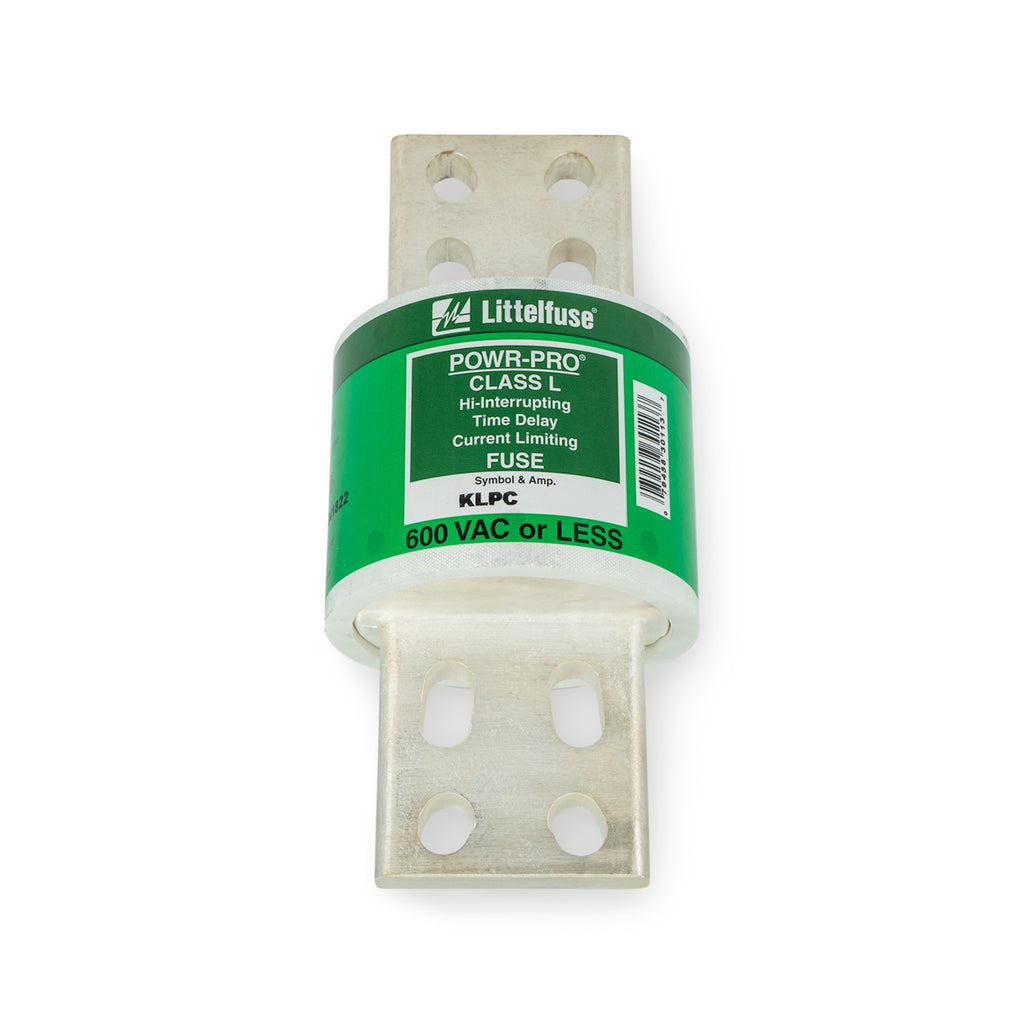

KLPC2500 - Littelfuse 2500A 600V Class L Time-Delay Fuse, Bolt-In, 200kA Interrupt Rating

KLPC2500

KLPC2500 is a Littelfuse 2500 amp, 600 volt Class L time-delay fuse designed for high-performance circuit protection.This KLPC series fuse features a bolt-in mounting type with blade connections and a glass-reinforced melamine body. It offers a 200,000 amp interrupting rating at 600 VAC and 20,000 amps at 480 VDC, making it suitable for service switches, motor control centers, switchboard mains, and large motor branch circuits. The fuse provides best-in-class time-delay withstand and current-limiting capabilities, with UL and CSA certifications.

Key Specifications
• Amperage Rating: 2500 A
• Voltage Rating: 600 V AC / 480 V DC
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 480 VDC
• Fuse Class: Class L
• Mounting Type: Bolt-In
• Connection Type: Blade
• Body Material: Glass Reinforced Melamine
• Dimensions: Approx. 3.5" x 10.75" (W x L)
• Series: KLPC POWR-PRO
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLPC2500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLPC
• Type : KLPC
• Voltage : 600
• Amperage : 2500
• AIC rating : 300kA@600V
• Connection : Bolt-On
• Diameter : 5
• Class Rating : L

Product Data

• UPC : 079458301137
• GTIN : 00079458301137
• Weight : 17.42
