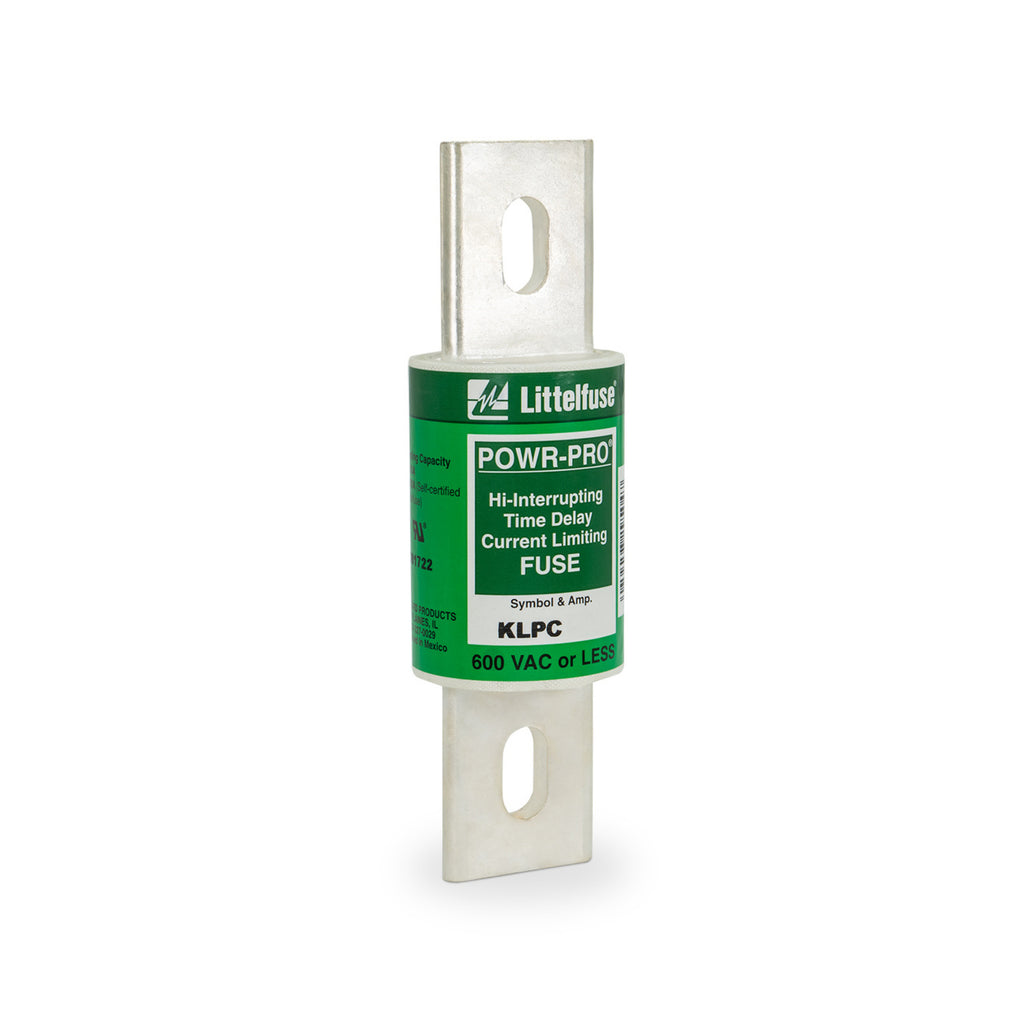

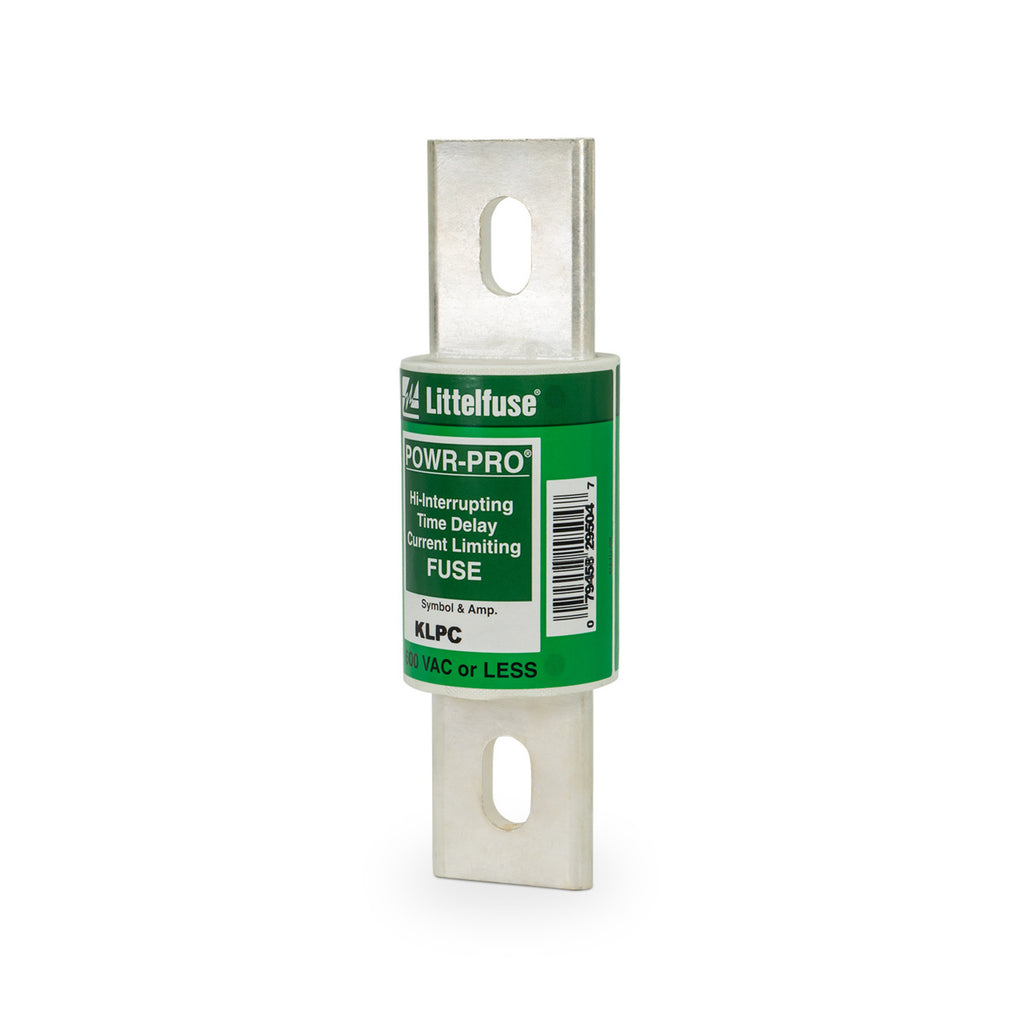

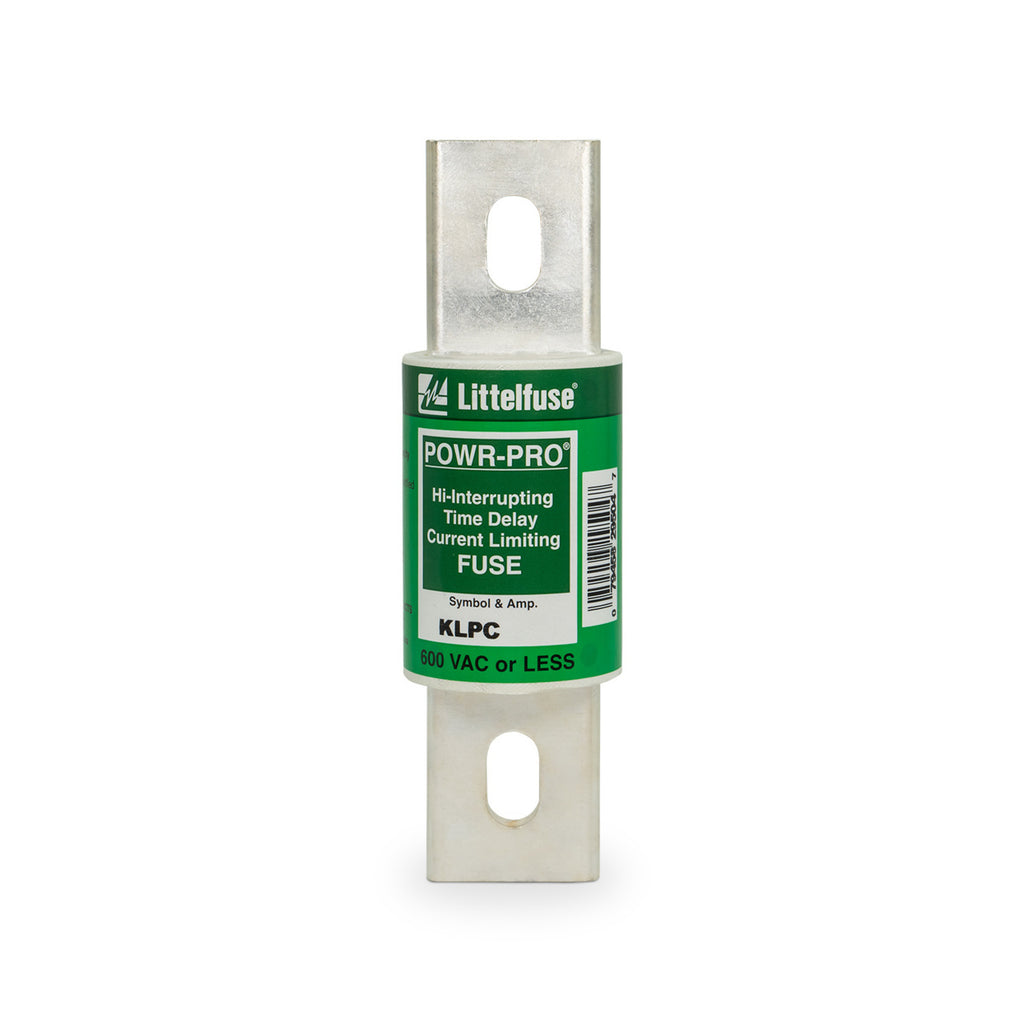

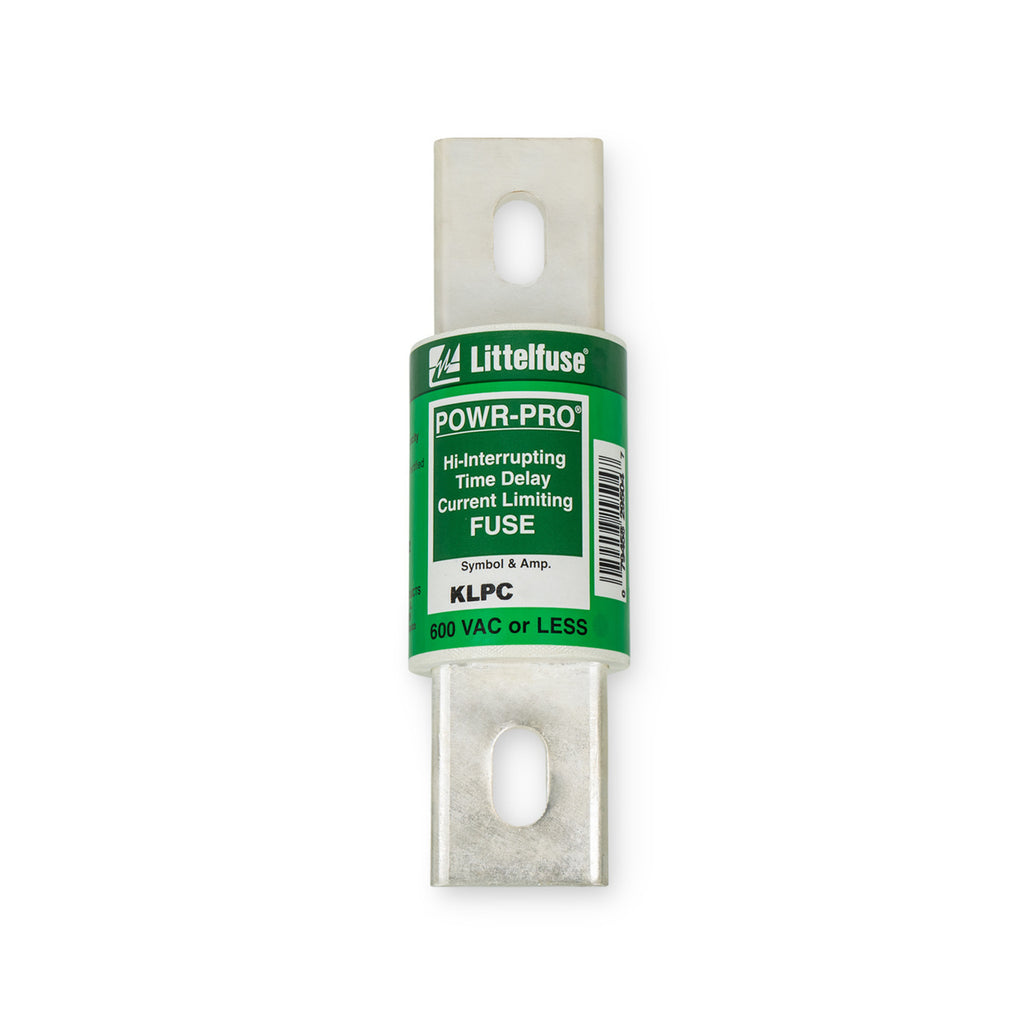

KLPC200 - Littelfuse 200 Amp 600V Class L Time-Delay Low Voltage Fuse with 300kA Interrupt Rating

KLPC200

KLPC200 is a Littelfuse 200 Amp Class L low voltage fuse designed for reliable circuit protection.The KLPC200 fuse features time-delay and current-limiting properties, rated for 200A at 600 VAC and 480 VDC. It offers a high interrupting rating of 300 kA AC and 20 kA DC, making it suitable for switchboard mains, motor control centers, and large motor branch circuits. The fuse has a 2.5 inch diameter cartridge design with silver links, silver-plated copper end bells, and a glass-reinforced melamine body for durability. It is UL and CSA certified.

Key Specifications
• Amperage: 200 Amps
• Voltage Rating: 600 VAC / 480 VDC
• Interrupting Rating: 300 kA AC / 20 kA DC
• Fuse Class: Class L
• Speed: Time-Delay (Slow Blow)
• Mounting Type: Cartridge
• Diameter: 2.5 inches
• Certifications: UL, CSA, CE

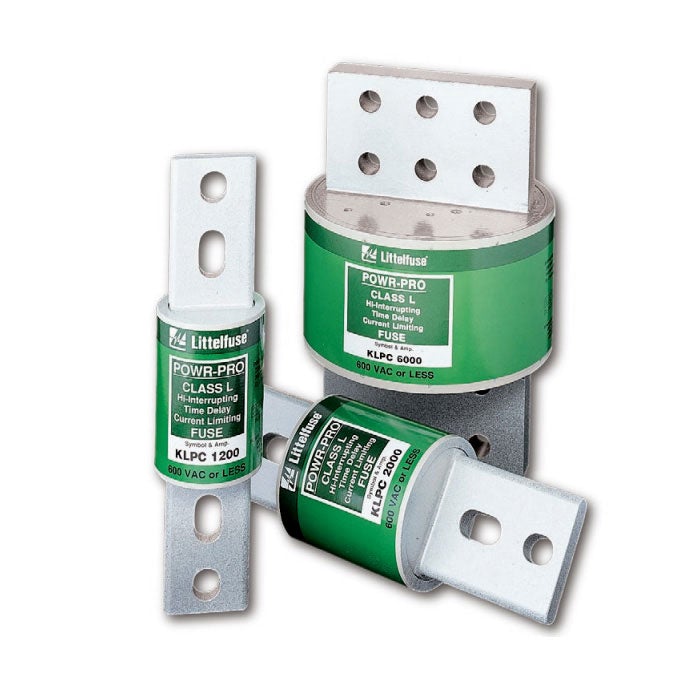

• Series: POWR-PRO® KLPC
• Construction: Silver links, silver-plated copper end bells, glass-reinforced melamine body
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KLPC200
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLPC
• Type : KLPC
• Voltage : 600
• Amperage : 200
• AIC rating : 300kA@600V
• Connection : Bolt-In
• Diameter : 2.5
• Class Rating : L
• Barrels : 1
• Clip Center : 6.75



Product Data

• UPC : 007945829501
• GTIN : 00079458295016
• Weight : 2
