Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLPC1600

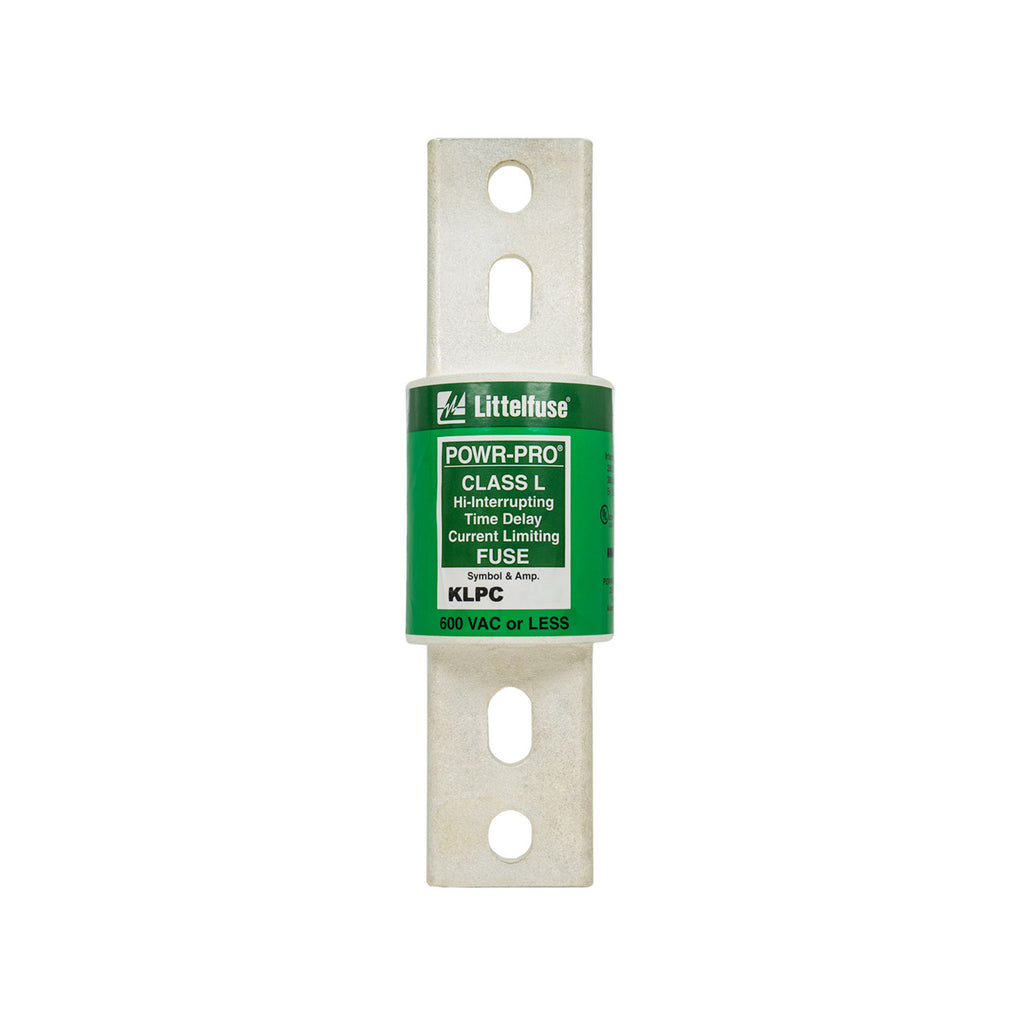

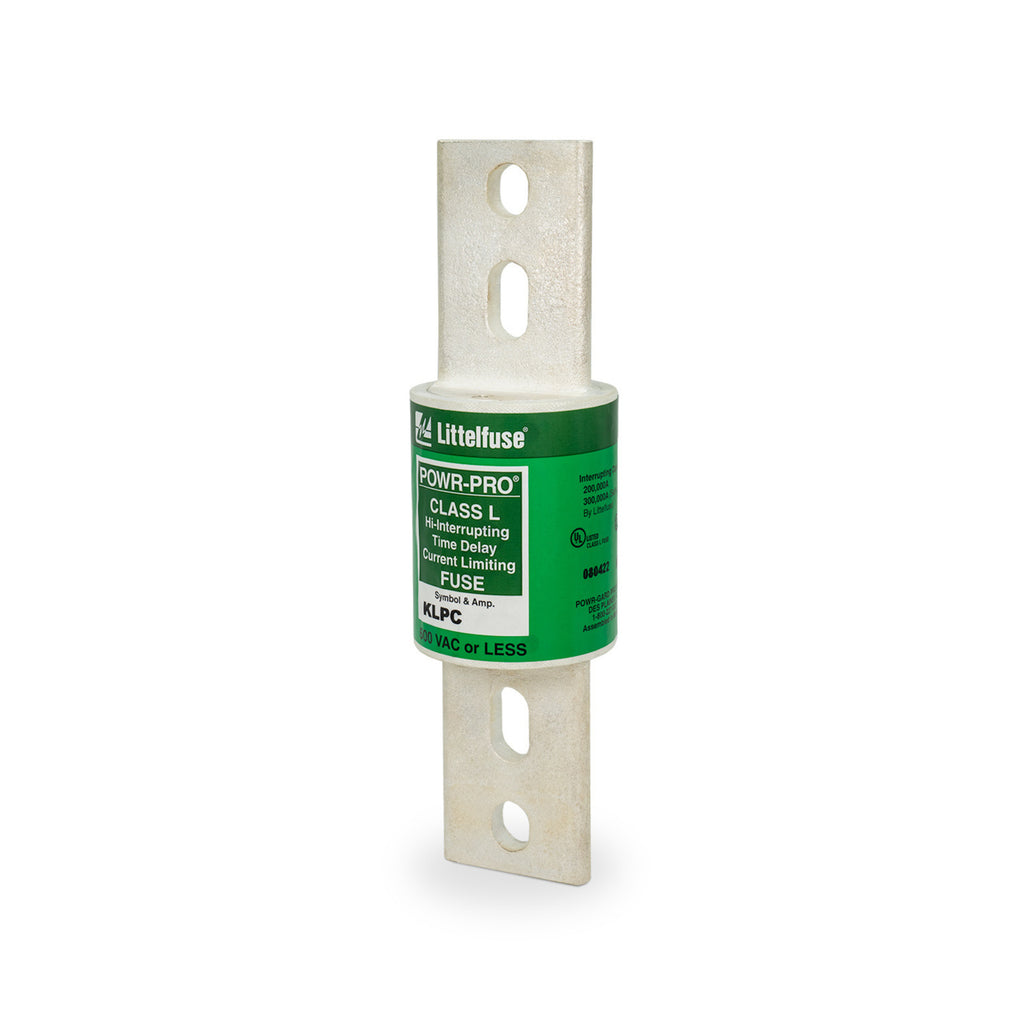

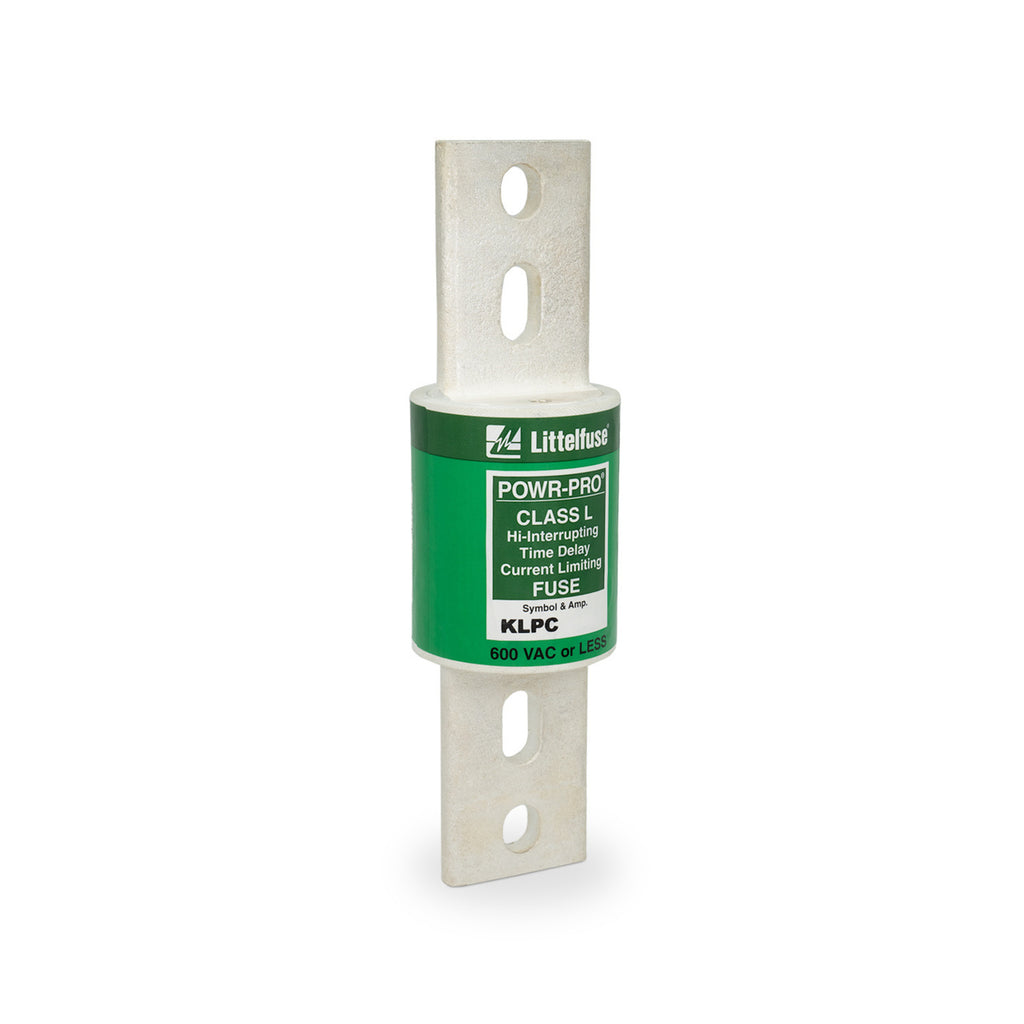

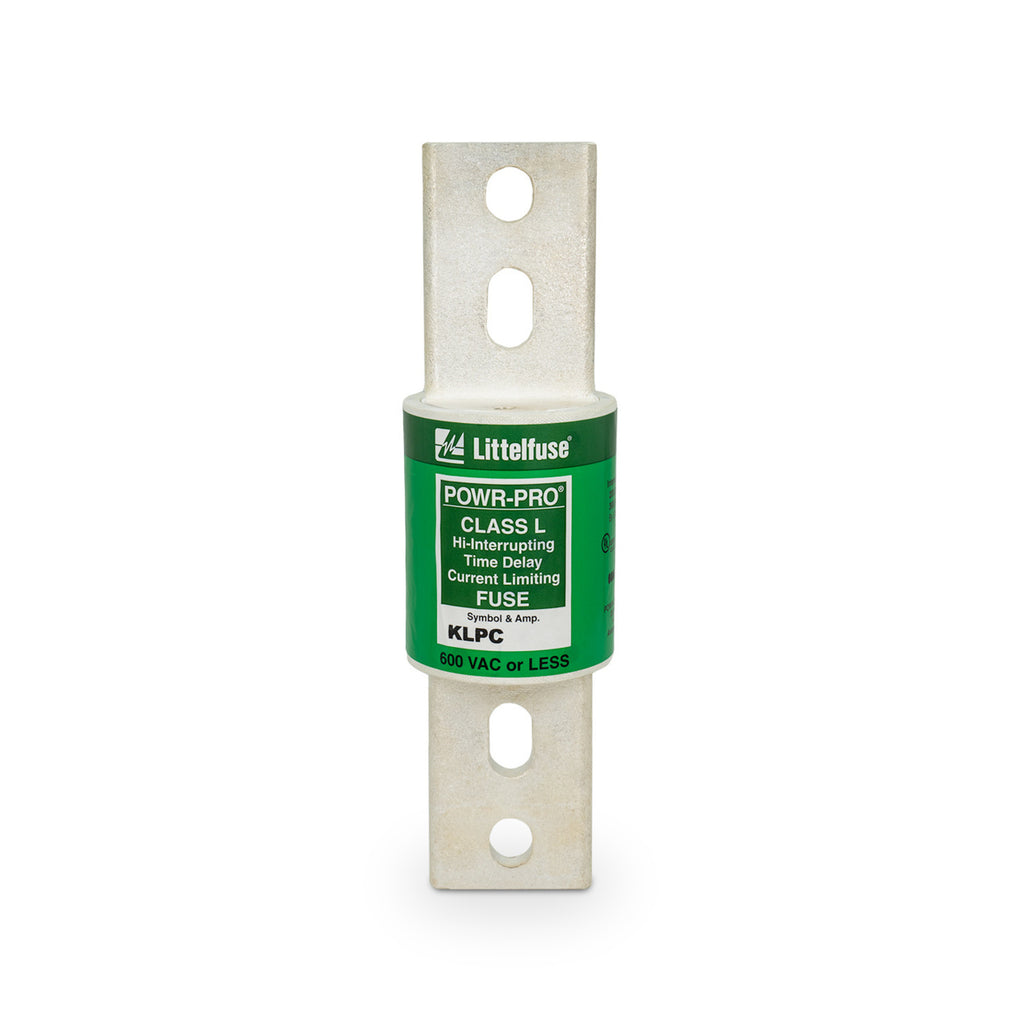

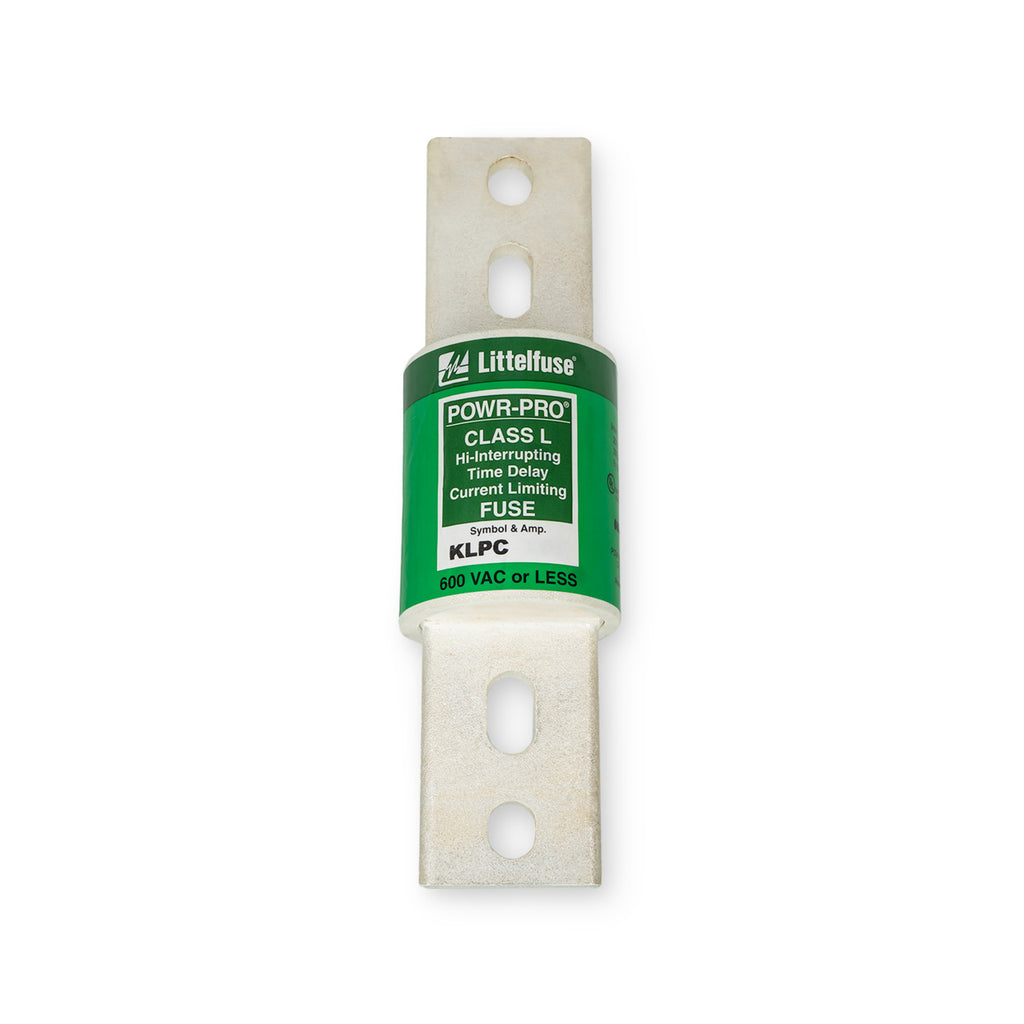

KLPC1600 is a Littelfuse POWR-PRO Class L fuse designed for high-amperage circuits requiring robust overcurrent protection. This fuse features a 1600A current rating and a 600VAC/480VDC voltage rating, making it suitable for switchboard mains, motor control centers, and large motor branch circuits. It is a time-delay, current-limiting fuse with a bolt-in mounting style and silver-plated copper end bells for reliable performance. The KLPC1600 fuse is UL Class L rated and meets or exceeds stringent project specifications. It is ideal for applications where coordination with other system components is critical, such as protection of power circuit breakers and transformers. The fuse body is constructed with glass-reinforced melamine and granular quartz fillers for enhanced durability and safety.
- Part Number: KLPC1600
- Manufacturer: Littelfuse
- Amperage: 1600A
- Voltage Rating: 600VAC / 480VDC
- Interrupting Rating: 200kA AC / 20kA DC
- Mounting Type: Bolt-In
- Series: POWR-PRO
- Class: UL Class L
- Time Delay: Yes
- Current Limiting: Yes
- End Bells: Silver Plated Copper
- Certifications: UL, CSA, CE
Specifications
- Part Number: KLPC1600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLPC
- Type : KLPC
- Voltage : 600
- Amperage : 1600
- AIC rating : 300kA@600V
- Connection : Bolt-On
- Diameter : 3
- Class Rating : L
Product Data
- UPC : 079458301106
- GTIN : 00079458301106
- Weight : 5
