KLPC1500 - Littelfuse 1500 Amp 600V Low Voltage Class L Bolt-In Fuse, 300kA Interrupt, Powr-Pro Series, UL/CSA Certified

KLPC1500

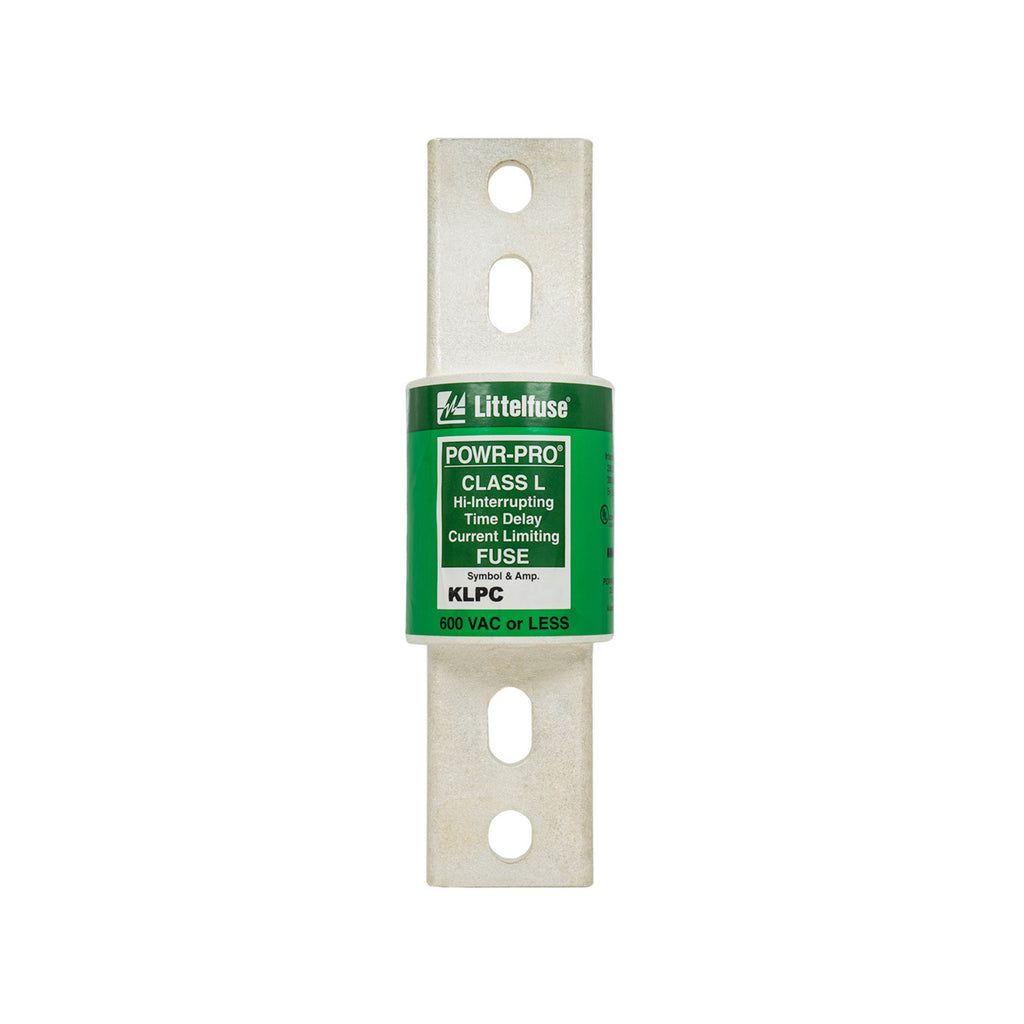

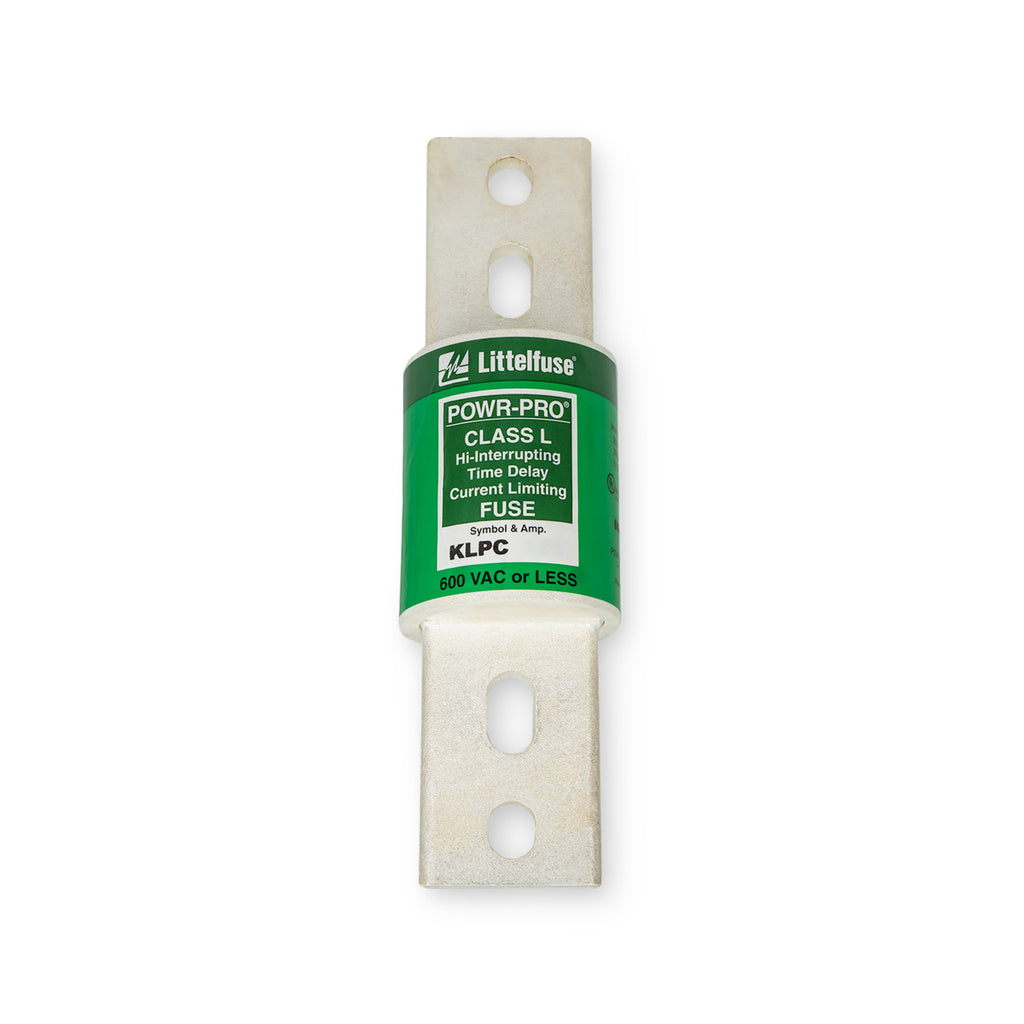

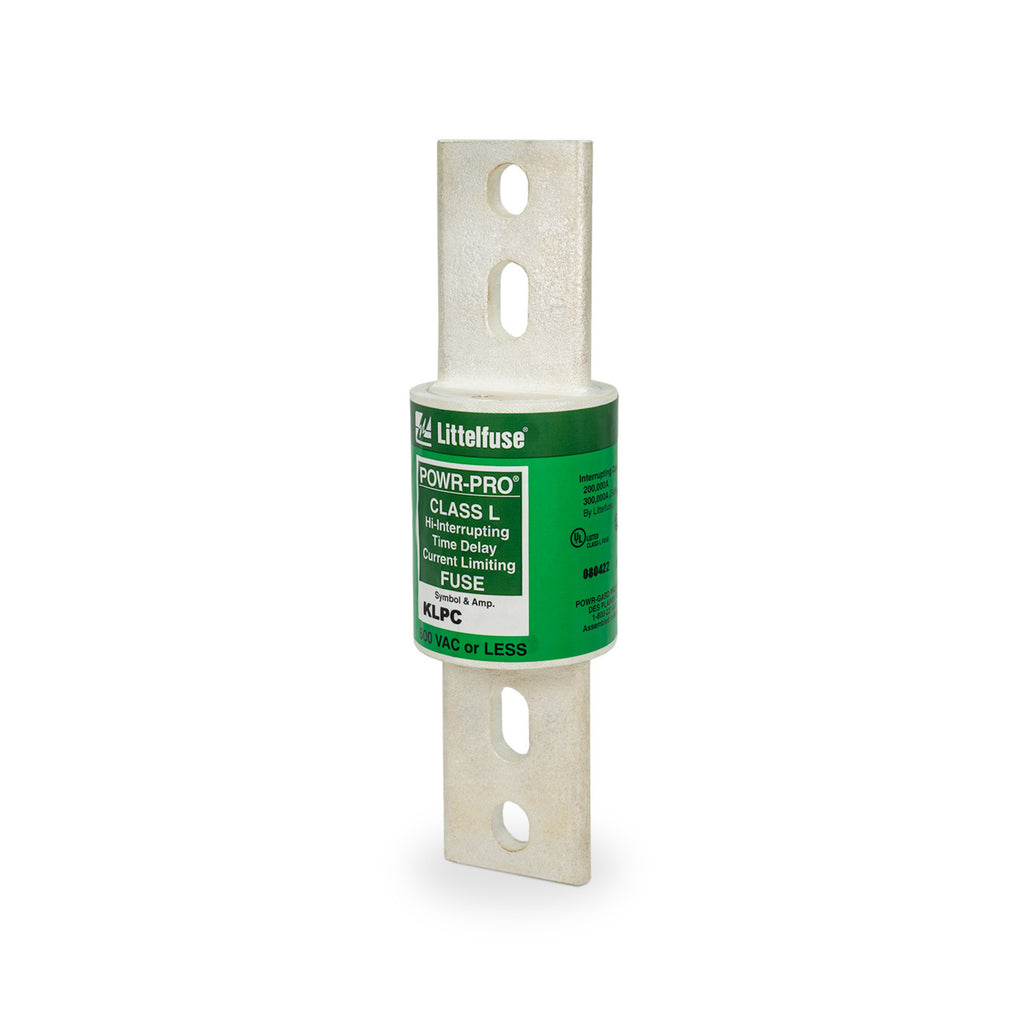

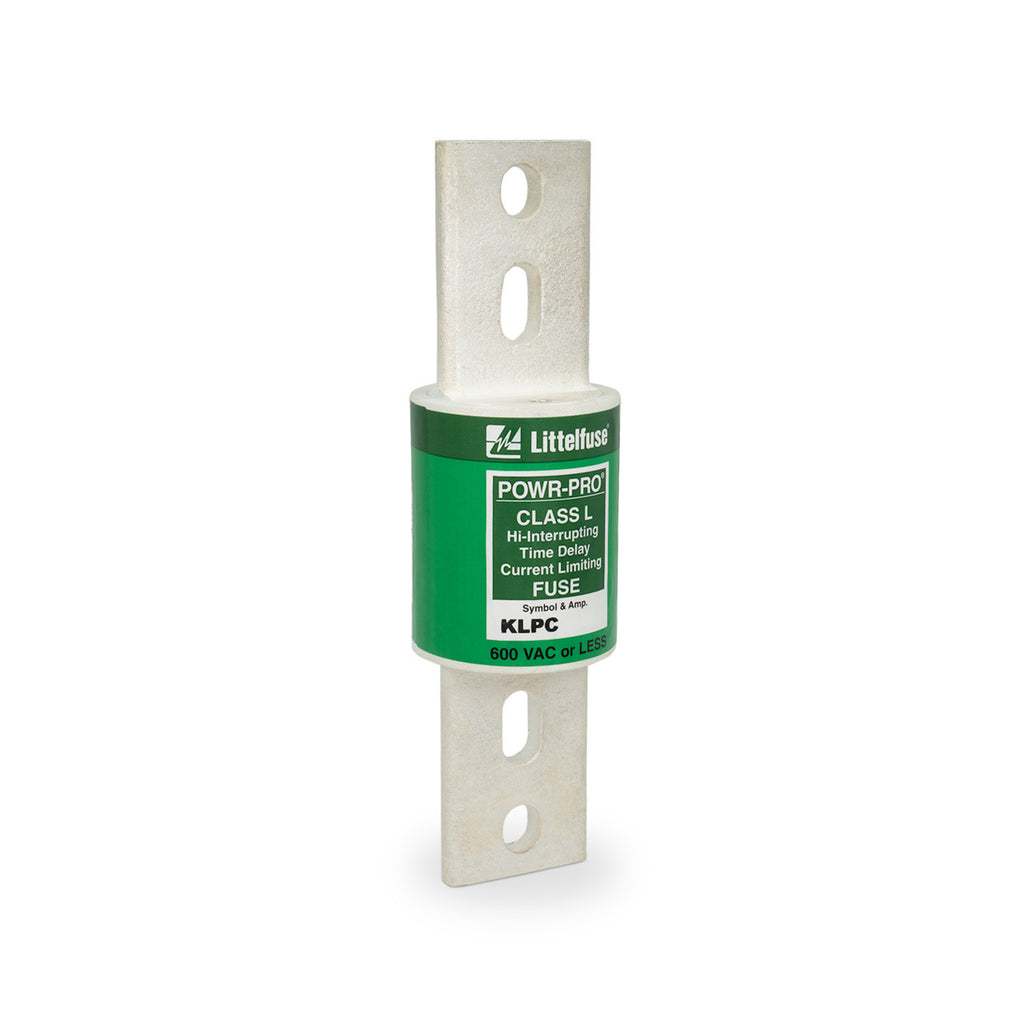

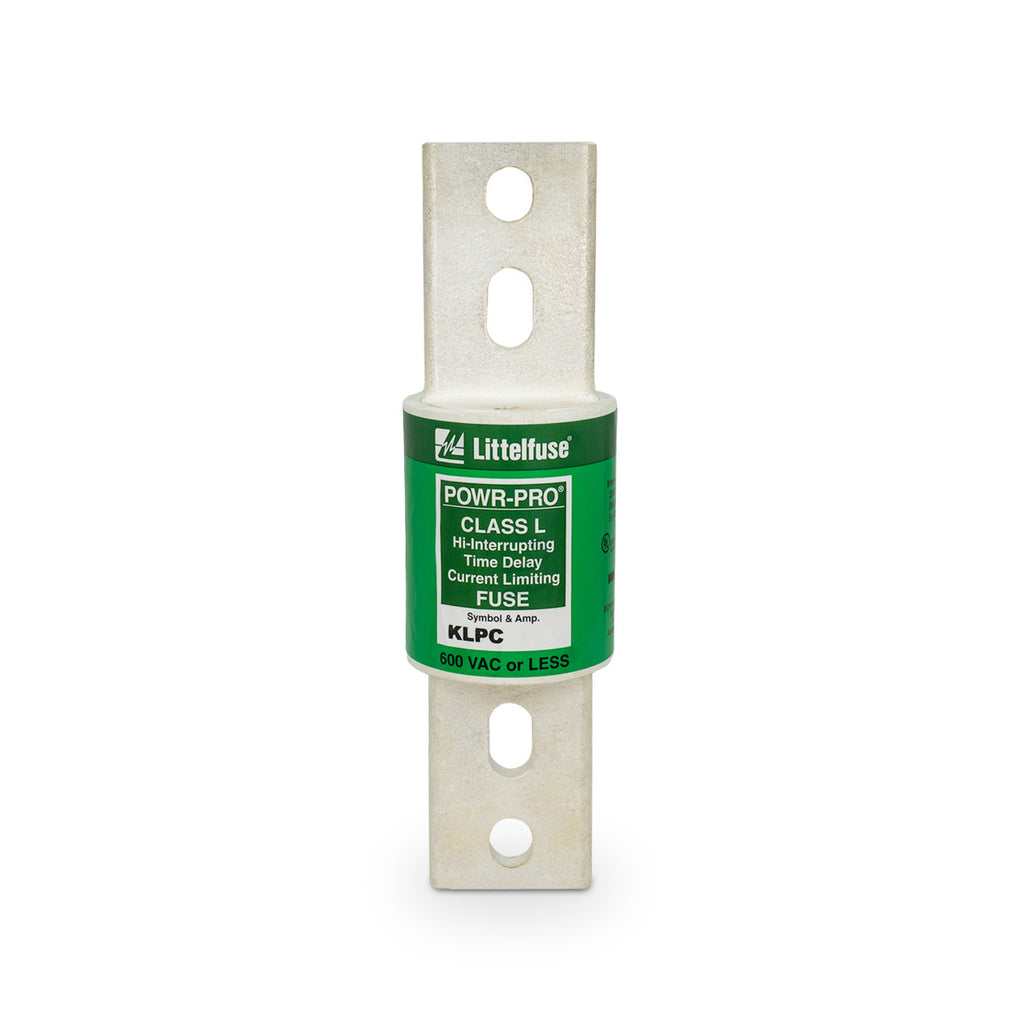

KLPC1500 is a Littelfuse Powr-Pro Class L low voltage fuse designed for robust overcurrent protection in demanding electrical applications.

This fuse features a 1500 Amp continuous current rating, 600V AC/480V DC voltage rating, and a 300kA interrupting capacity at 600V AC. It is a bolt-in, cartridge-type fuse with a 3" diameter and 10-3/4" length, engineered for switchboard mains, motor control centers, and large motor branch circuits. The KLPC1500 offers both time-delay and current-limiting characteristics, with construction including 99.9% pure silver links, silver-plated copper end bells, and granular quartz filler for reliable performance. It is UL and CSA certified, meeting UL 248-10 and CSA standards.

Key Specifications

• Amperage: 1500A
• Voltage: 600V AC / 480V DC
• Poles: Single
• Mounting Type: Bolt-In
• Interrupt Rating: 300kA @ 600V AC, 20kA @ 480V DC
• Series/Frame: Powr-Pro, Class L
• Trip Unit: Time-Delay (Slo-Blo), Current-Limiting
• Certifications: UL Listed, CSA Certified
• Construction: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine body, O-ring seals
• Size: 3" diameter x 10-3/4" length
• Application: Switchboard mains, motor control centers, large motor branch circuits
• Indicating: No

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLPC1500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLPC
• Type : KLPC
• Voltage : 600
• Amperage : 1500
• AIC rating : 300kA@600V
• Connection : Bolt-On
• Diameter : 3
• Class Rating : L

Product Data

• UPC : 07945830109
• GTIN : 00079458301090
• Weight : 6.04
