Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLPC1350

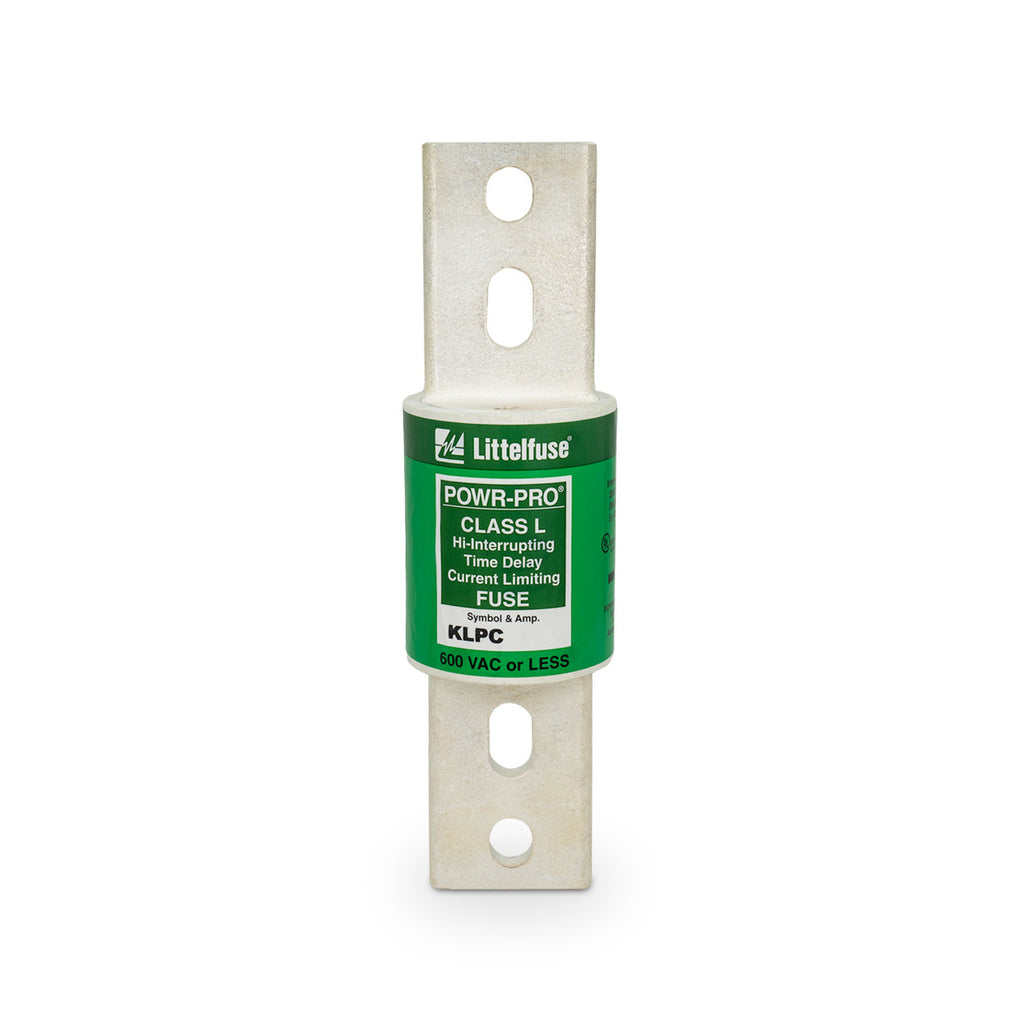

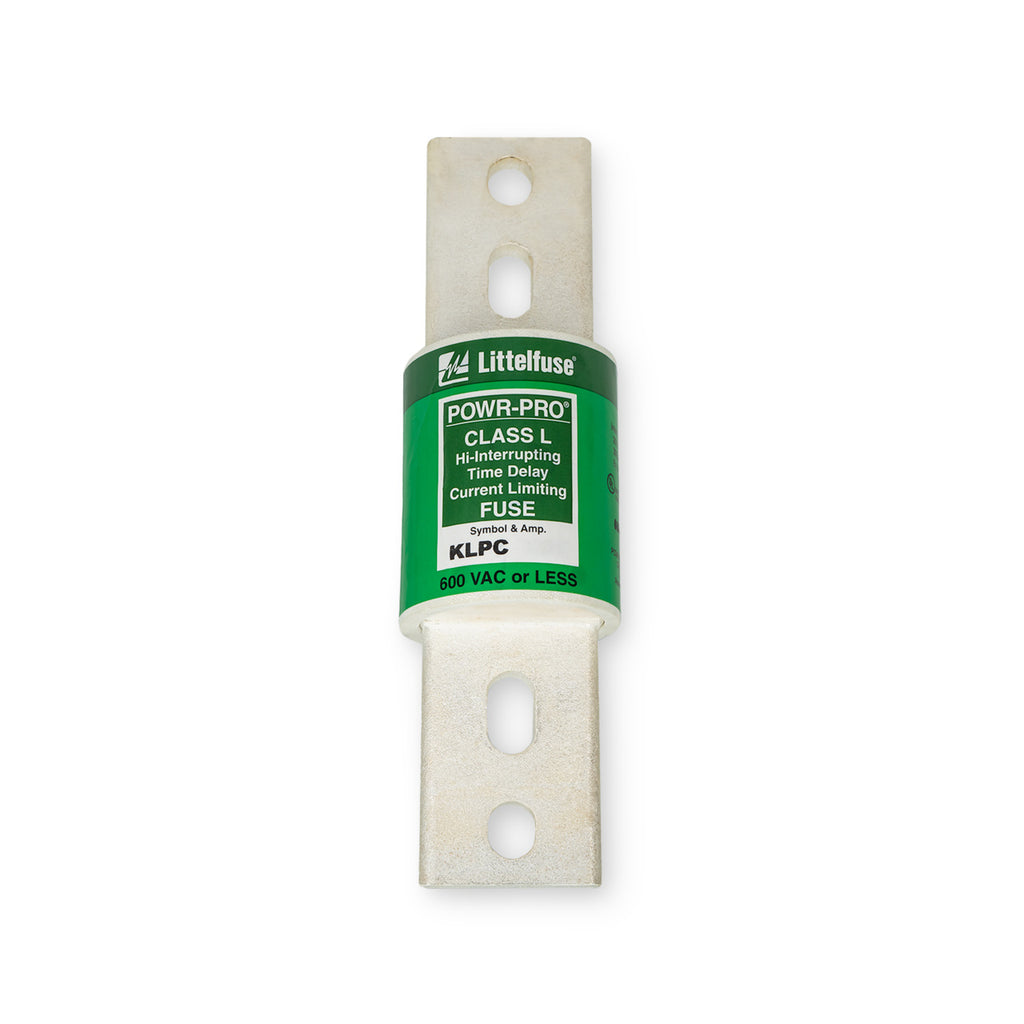

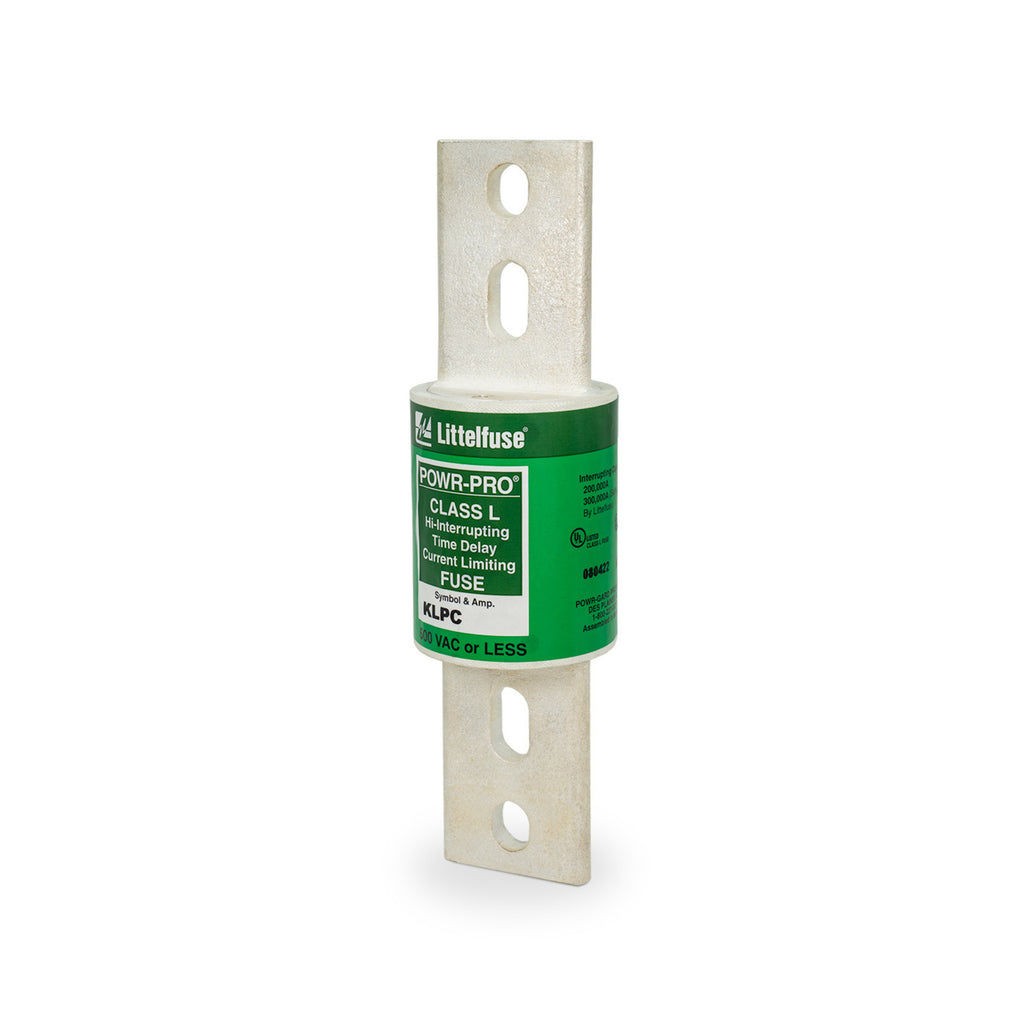

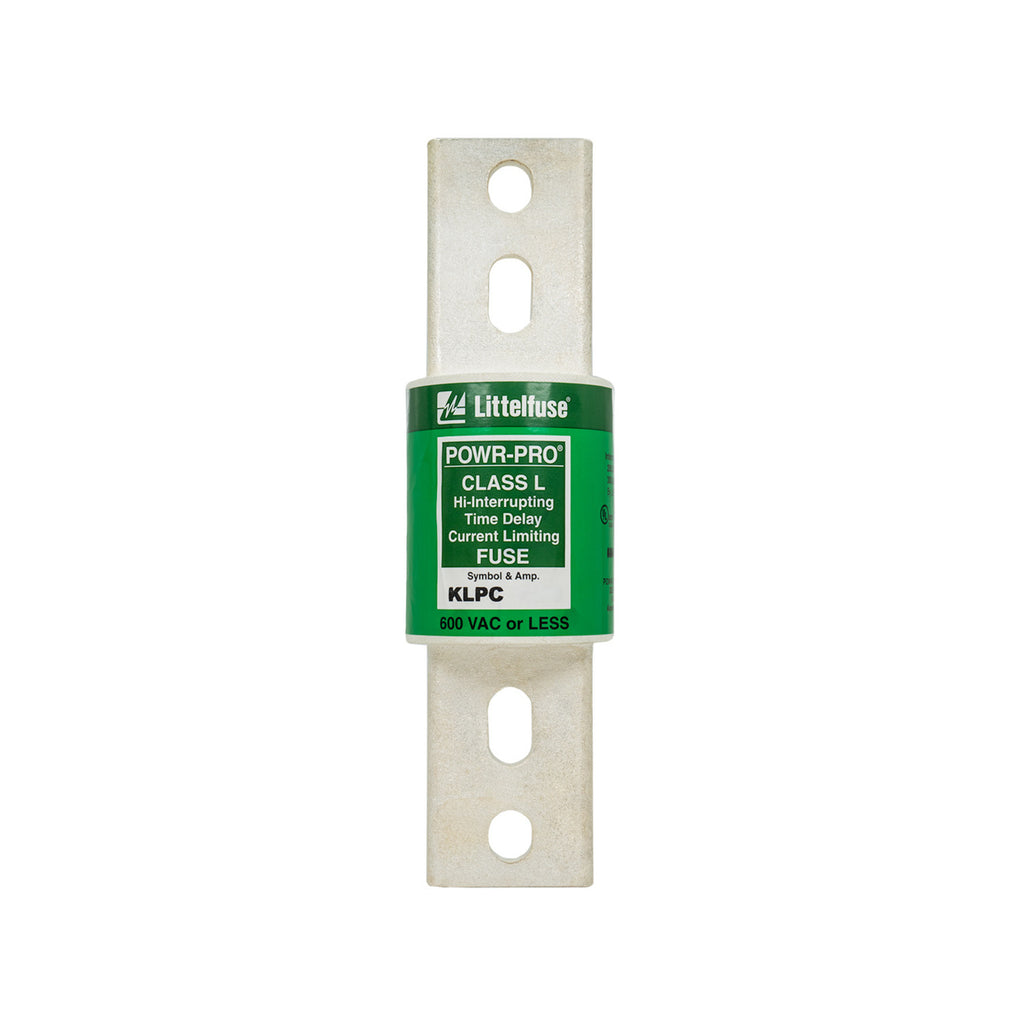

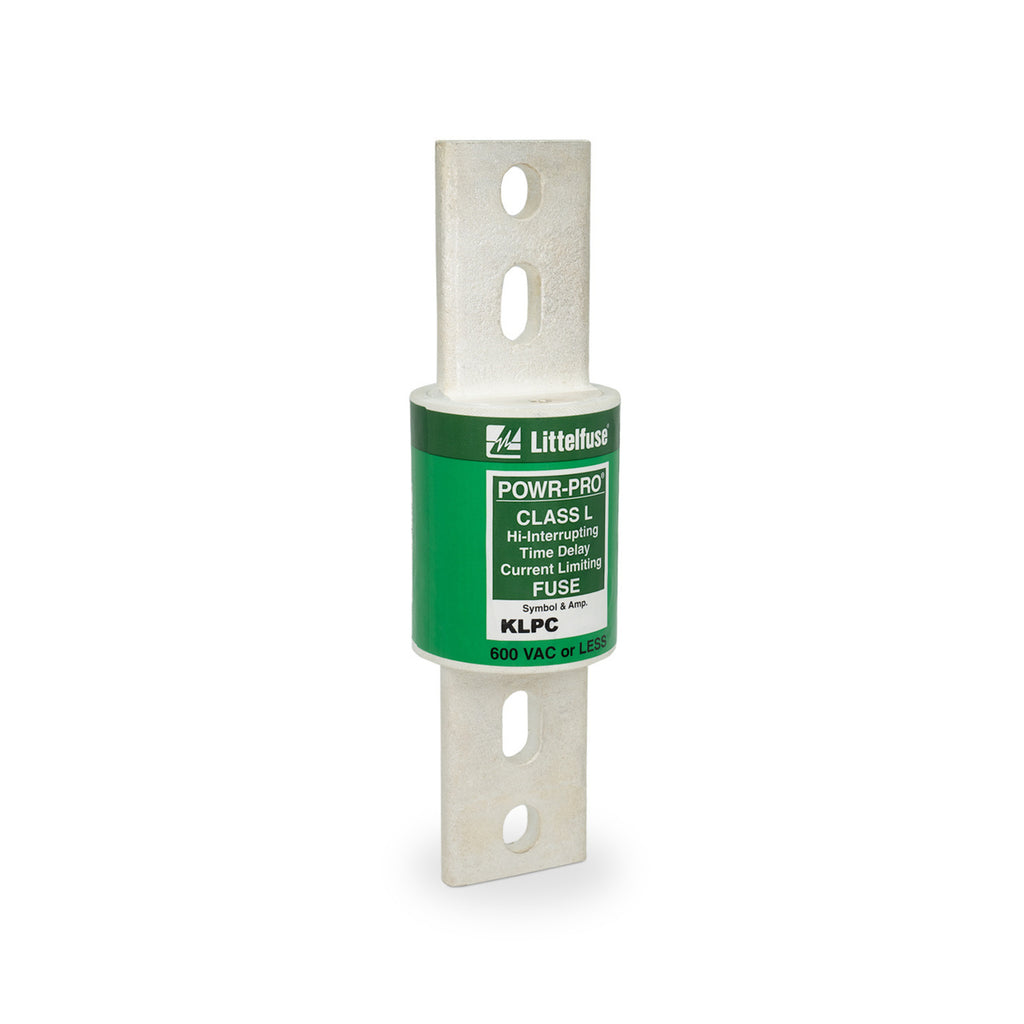

KLPC1350 is a Littelfuse Class L time-delay fuse designed for high-current circuit protection.KLPC1350 features a 1350 ampere rating with 600 volts AC and 480 volts DC voltage ratings. It offers a high interrupt rating of 200,000 amps at 600 VAC and 20,000 amps at 480 VDC. This cartridge fuse uses bolt mounting for secure installation and provides current limiting protection with a time-delay (slow blow) characteristic.
- Key Specifications
- Amperage: 1350 Amps
- Voltage Rating: 600 VAC, 480 VDC
- Interrupt Rating: 200,000 A at 600 VAC, 20,000 A at 480 VDC
- Fuse Class: UL Class L
- Fuse Type: Cartridge, Time-Delay (Slow Blow)
- Mounting Type: Bolt Mount
- Physical Size: Approximately 2-3/8" x 10-3/4"
- Current Limiting Protection
- Silver Links with Silver Plated Copper Ends
- At
Essential Parts
- , we offer
fast shipping
- ,
lowest price
- , and
expert support
- to help you get the right product every time.
Specifications
- Part Number: KLPC1350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : KLPC
- Voltage : 600
- Amperage : 1350
- AIC rating : 300kA@600V
- Connection : Bolt-On
- Diameter : 3
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 079458301076
- GTIN : 00079458301076
- Weight : 5
