KLPC1200 - Littelfuse 1200A 600V Class L Time Delay Current Limiting Fuse

KLPC1200

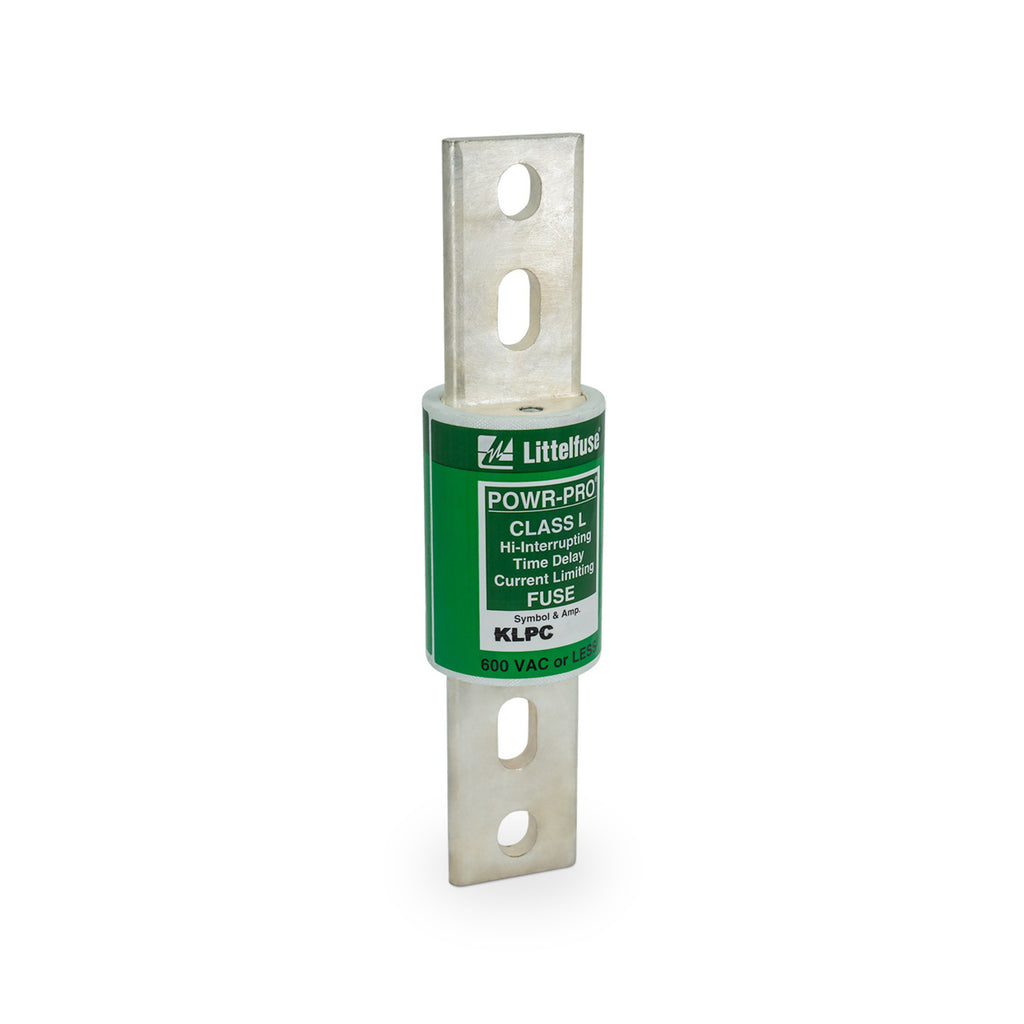

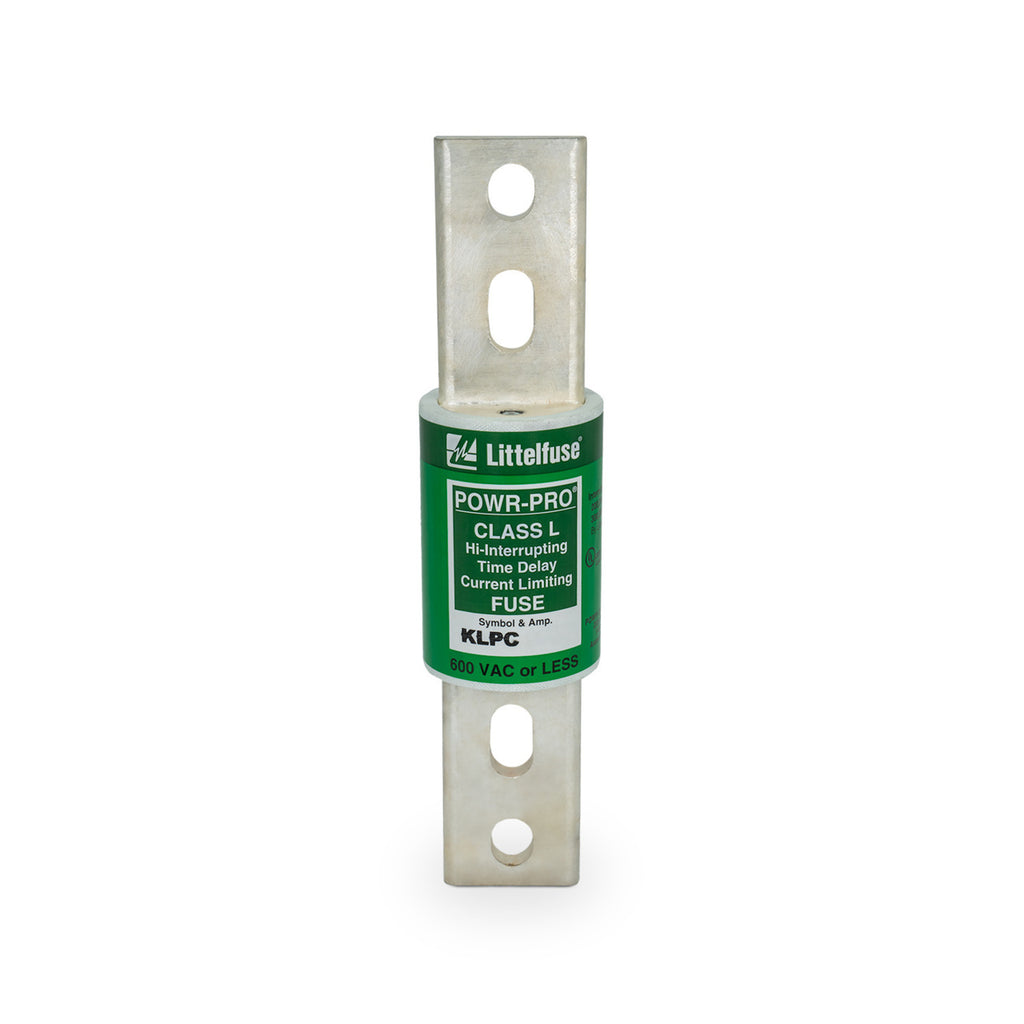

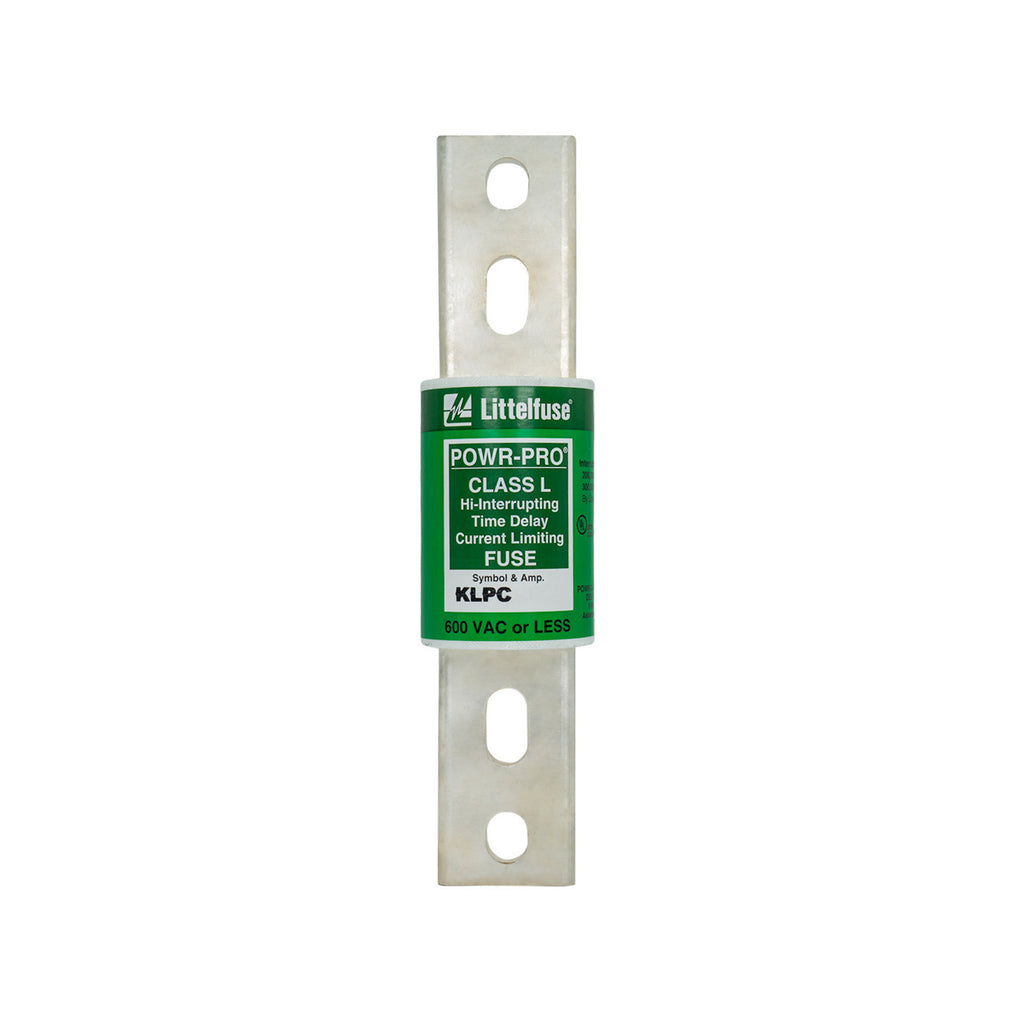

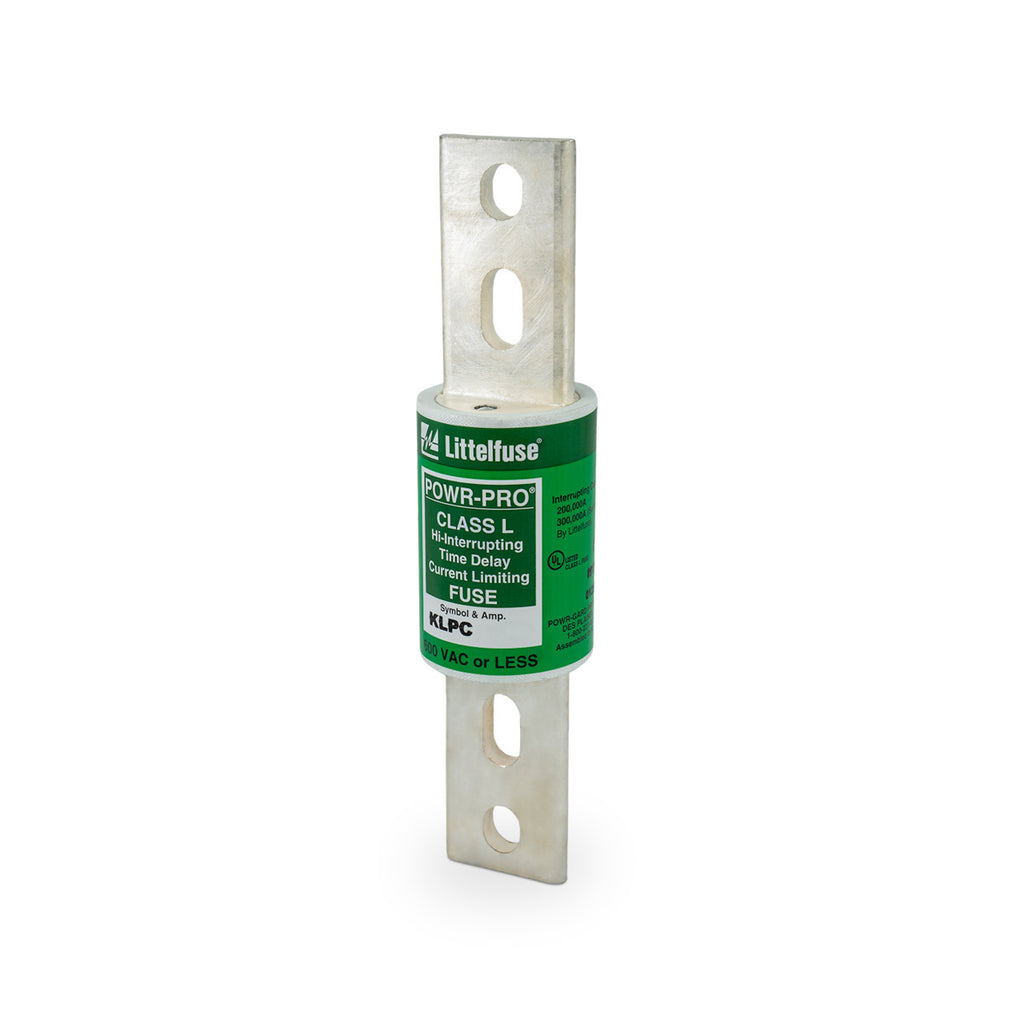

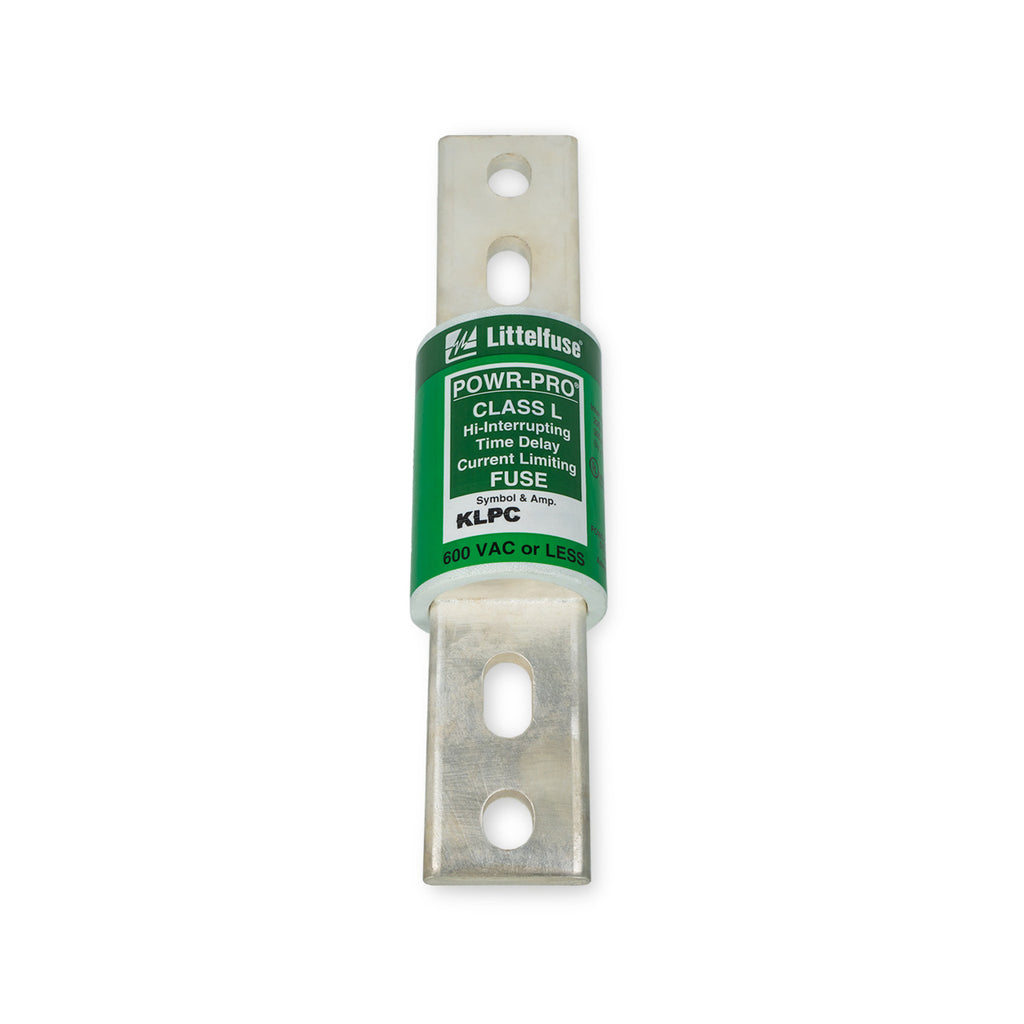

KLPC1200 is a Littelfuse 1200 Amp, 600 Volt AC Class L time delay current limiting fuse designed for reliable circuit protection.This fuse features a cylindrical glass reinforced melamine body with silver links and silver plated copper end bells. It offers a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 500 VDC. The KLPC1200 is UL listed and CSA certified, providing best-in-class time-delay withstand and POWR-PRO performance. It is suitable for service switches, switchboard mains, motor control centers, and transformer protection.

Key Specifications
• Amperage: 1200A
• Voltage Rating: 600 VAC / 480 VDC
• Fuse Class: Class L
• Time Delay: Yes
• Current Limiting: Yes
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 500 VDC
• Physical Size: 2" diameter x 10 3/4" length
• Mounting Type: Bolt-In
• Body Material: Glass Reinforced Melamine
• End Bells: Silver Plated Copper
• Certifications: UL Listed, CSA Certified
• Series: POWR-PRO

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLPC1200
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLPC
• Type : KLPC
• Voltage : 600
• Amperage : 1200
• AIC rating : 300kA@600V
• Connection : Bolt-On
• Diameter : 2.5
• Class Rating : L

Product Data

• UPC : 079458301069
• GTIN : 00079458301069
• Weight : 4.04
