Product Info
- Manufacturer:Littelfuse
Description
KLPC-500

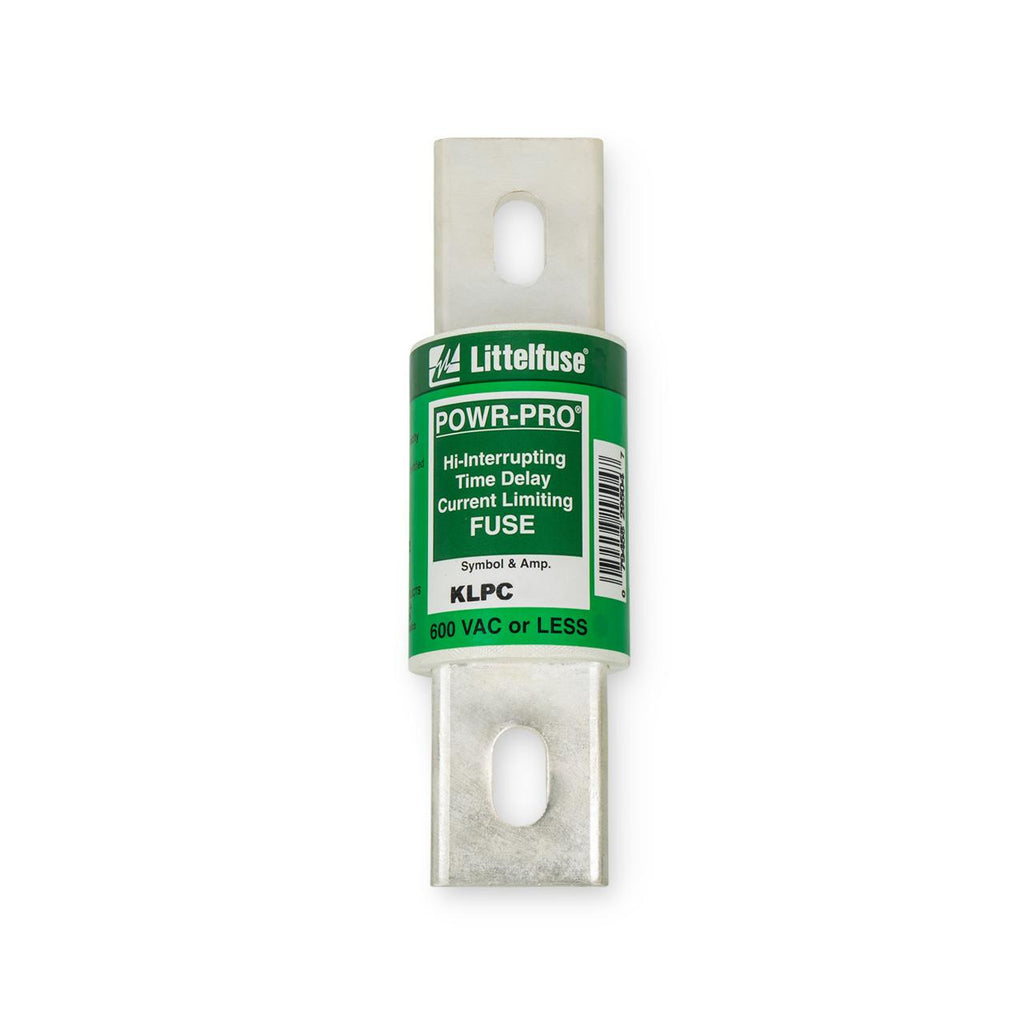

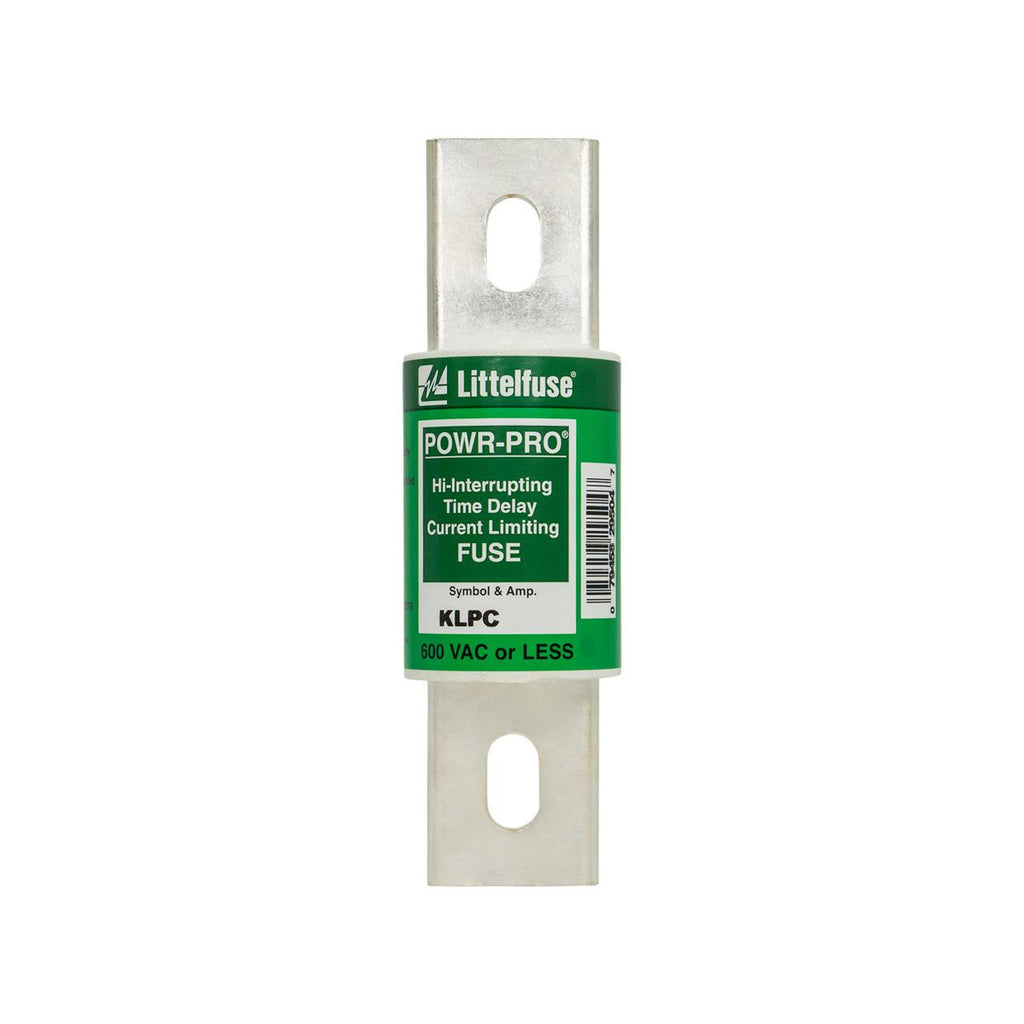

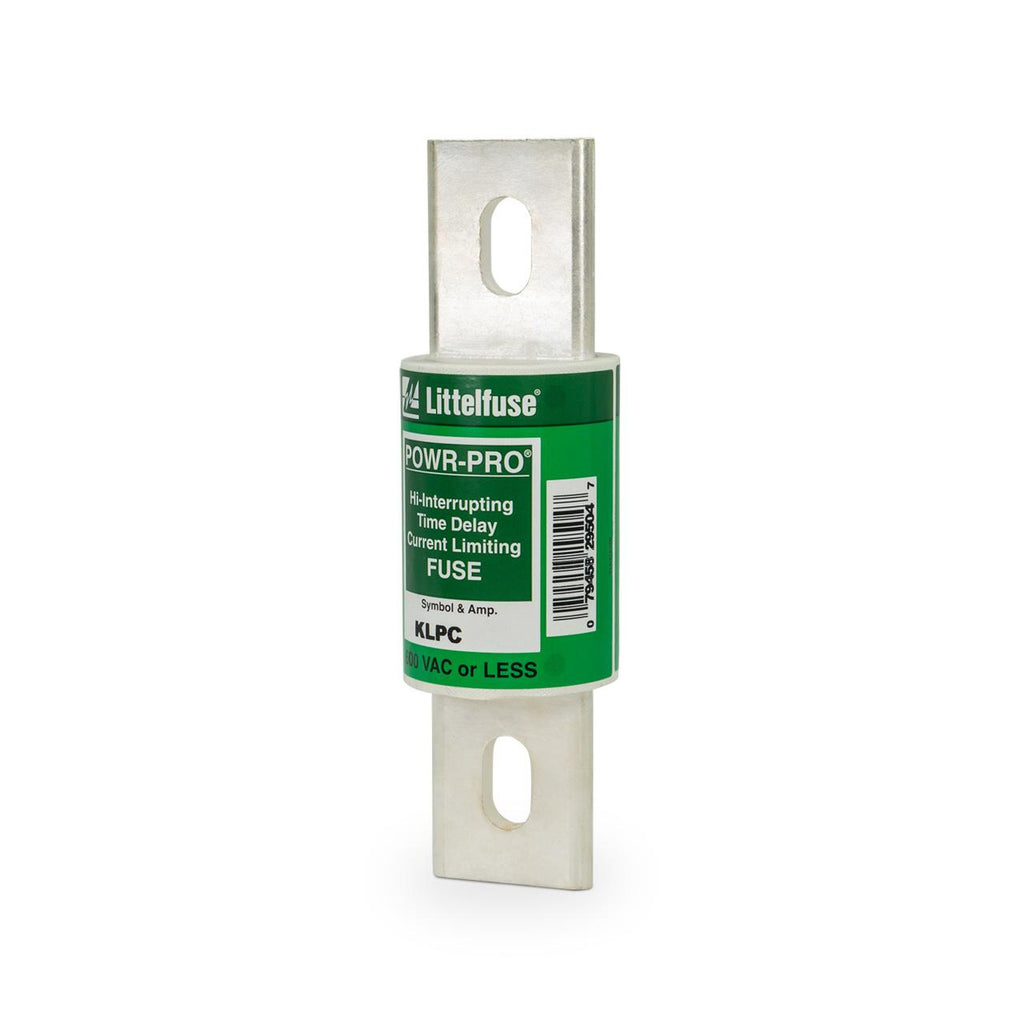

KLPC-500 is a Littelfuse POWR-PRO Series Class L fuse designed for robust overcurrent protection in demanding electrical applications.
This 500 Amp, 600VAC/480VDC fuse features a time-delay (slo-blo) characteristic, current-limiting performance, and a bolt-in mounting type. It is constructed with 99.9% pure silver links, silver-plated copper end bells, a glass-reinforced melamine body, O-ring seals, and granular quartz filler for maximum reliability and safety. The KLPC-500 is ideal for switchboard mains, motor control center mains, large motor branch circuits, and protection of power circuit breakers.
-
Key Specifications
- Amperage: 500A
- Voltage: 600VAC, 480VDC
- Poles: 1
- Mounting Type: Bolt-In
- Interrupt Rating: 200kA AC (300kA self-certified), 20kA DC
- Series/Frame: POWR-PRO KLPC
- Trip Unit: Time-Delay (Minimum 10 seconds at 500% rated current)
- Certifications: UL Listed, CSA
- Body Material: Glass-reinforced melamine
- Connection: Silver-plated copper end bells
- Dimensions: 2" x 8-5/8"
- Weight: 3.64 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLPC-500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Voltage : 600
- Amperage : 500
- AIC rating : 300kA@600V
- Connection : Bolt-In
Product Data
- UPC : 007945829506
- GTIN : 00079458295061
- Weight : 3.64
