Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLPC-4000

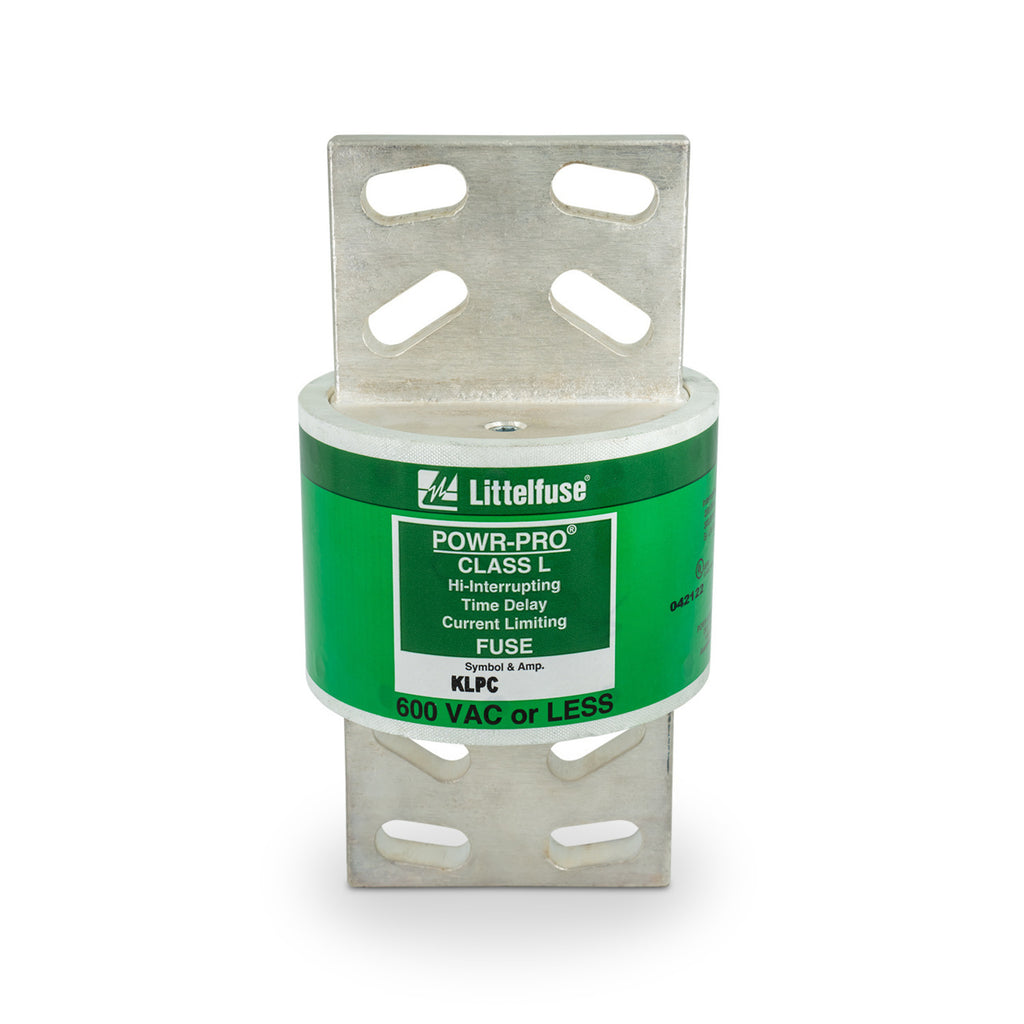

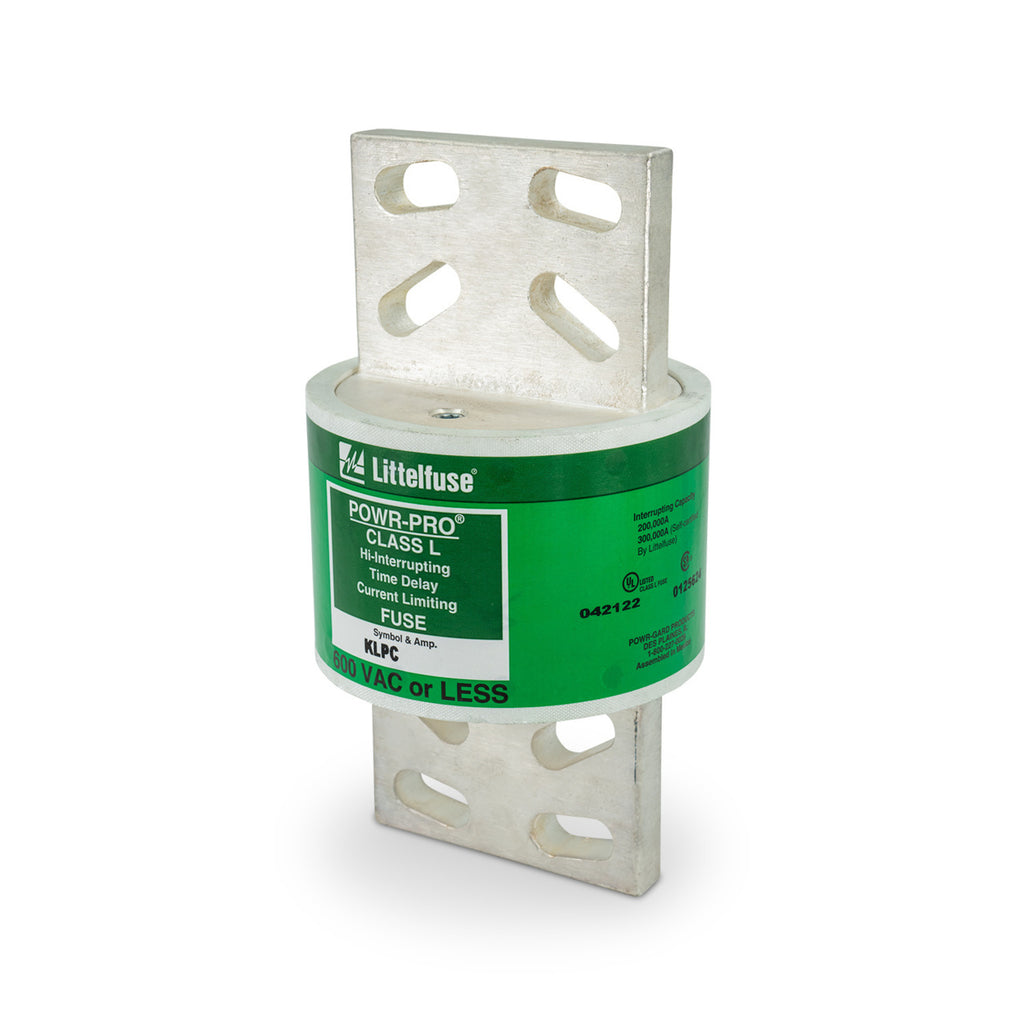

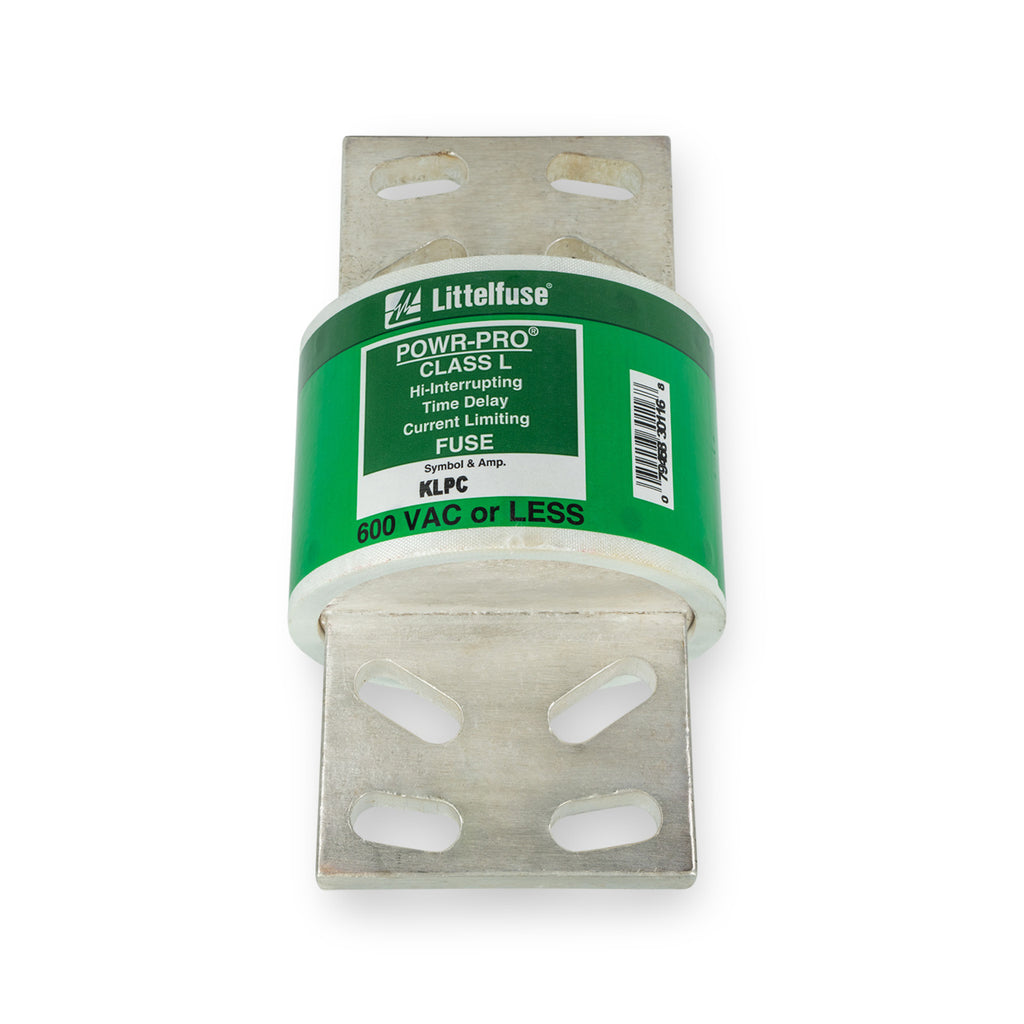

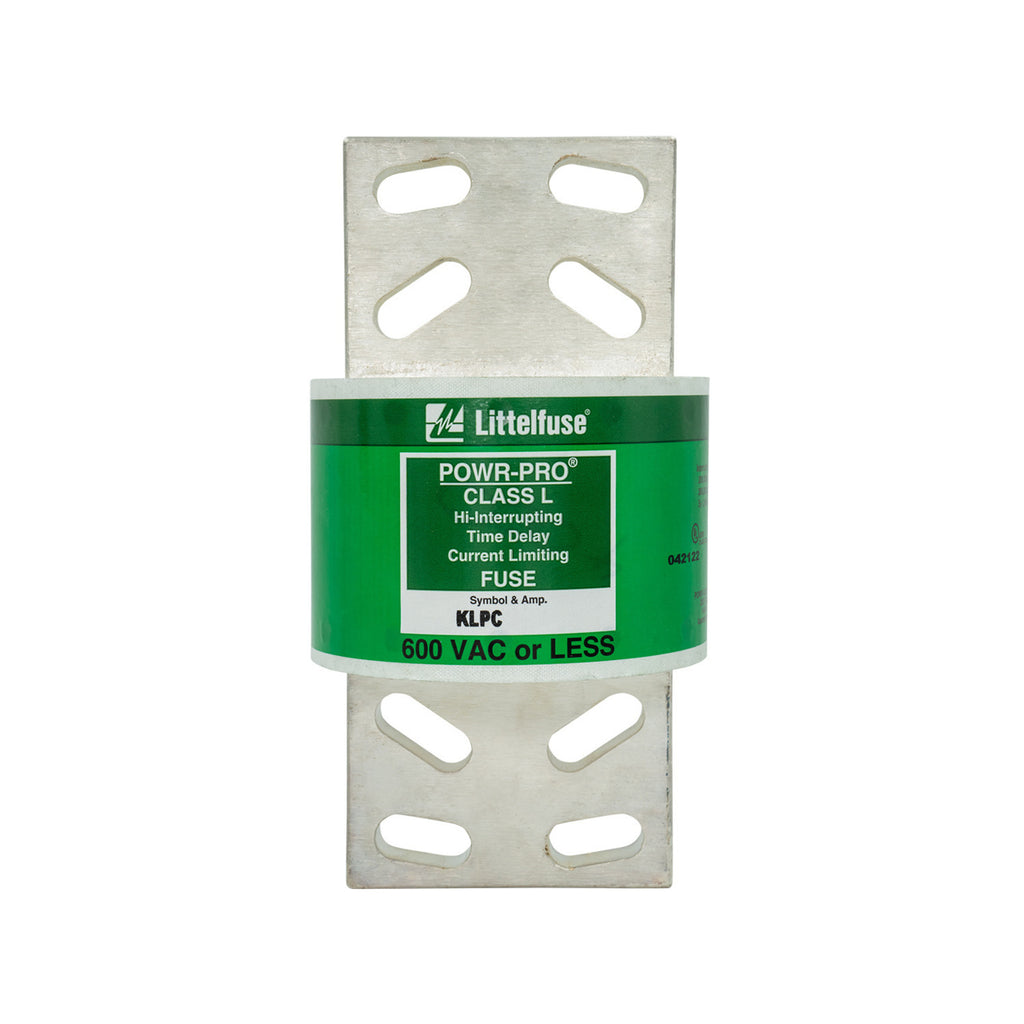

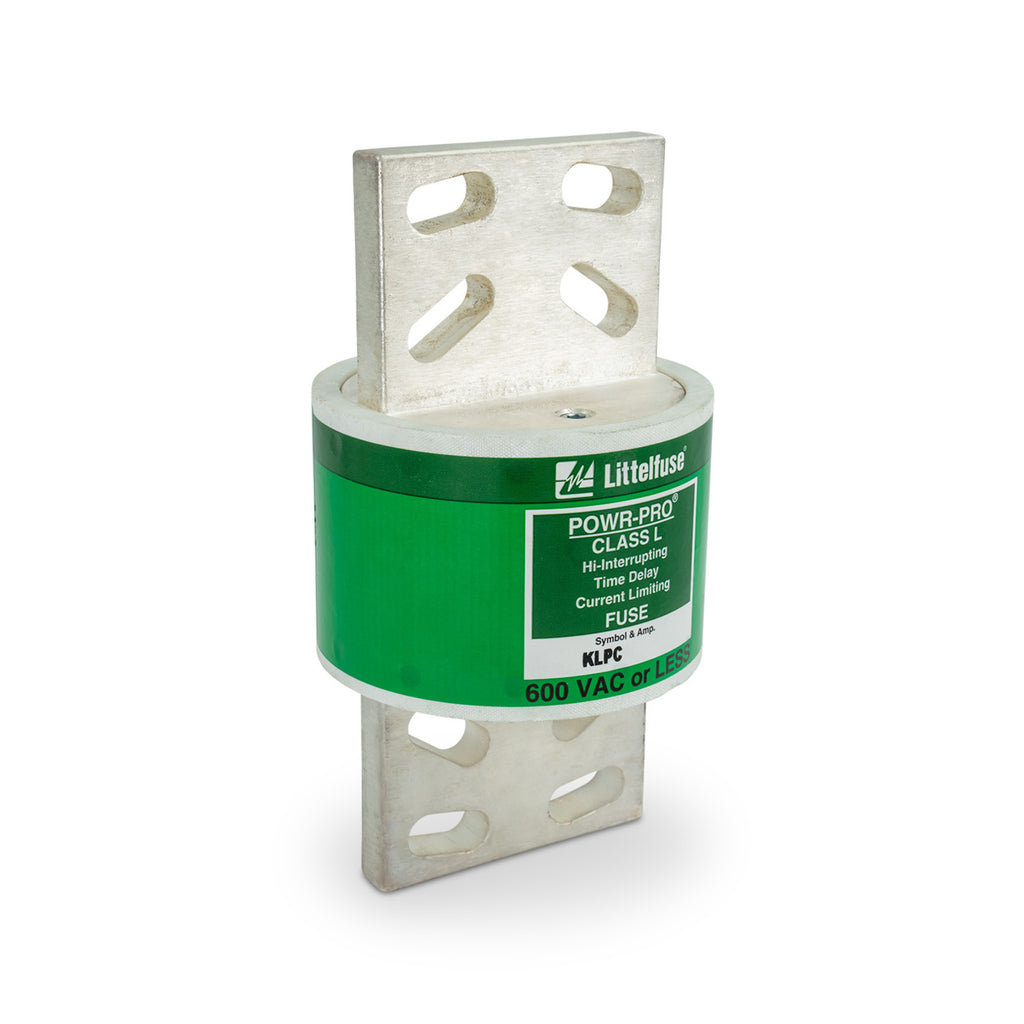

KLPC-4000 is a Littelfuse Class L time-delay fuse designed for high-current circuit protection up to 4000 amperes at 600 volts AC and 480 volts DC.This POWR-PRO® KLPC series fuse features current-limiting and time-delay characteristics, with a bolt-in mounting type. It offers a high interrupting rating of 200 kA AC rms symmetrical and 20 kA DC, making it suitable for switchboard mains, motor control centers, and large motor branch circuits. The fuse meets UL 248-10, CSA, and CE certifications, ensuring reliable and safe operation.
- Amperage: 4000 A
- Voltage Rating: 600 V AC / 480 V DC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: Class L
- Speed: Time-Delay (Slo-Blo)
- Mounting Type: Bolt-In
- Series: POWR-PRO® KLPC
- Certifications: UL Listed, CSA, CE
- Construction: Silver links, silver-plated copper end bells, glass-reinforced melamine body
- Applications: Switchboard mains, motor control centers, power circuit breaker protection
Specifications
- Part Number: KLPC-4000
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 5
- Class Rating : L
Product Data
- UPC : 007945830116
- GTIN : 00079458301168
- Weight : 3.5
