Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLPC-400

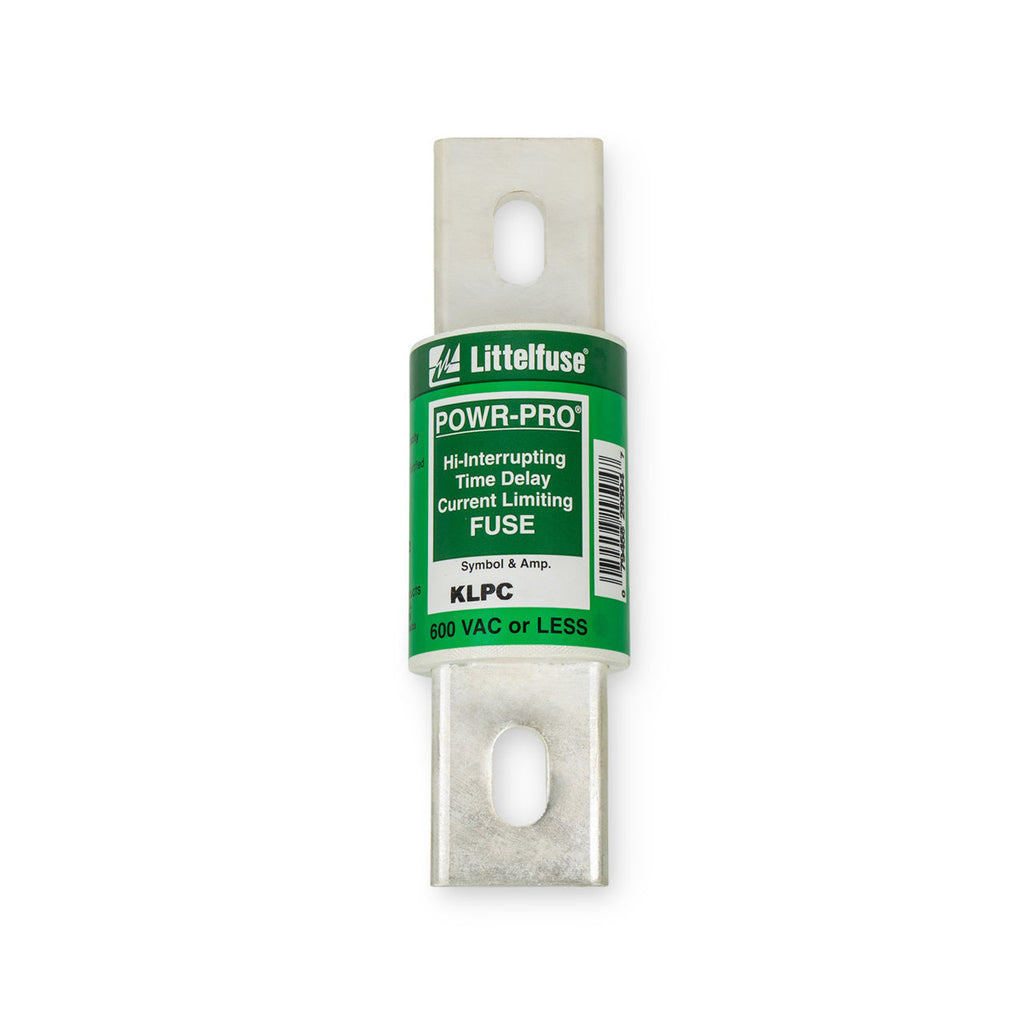

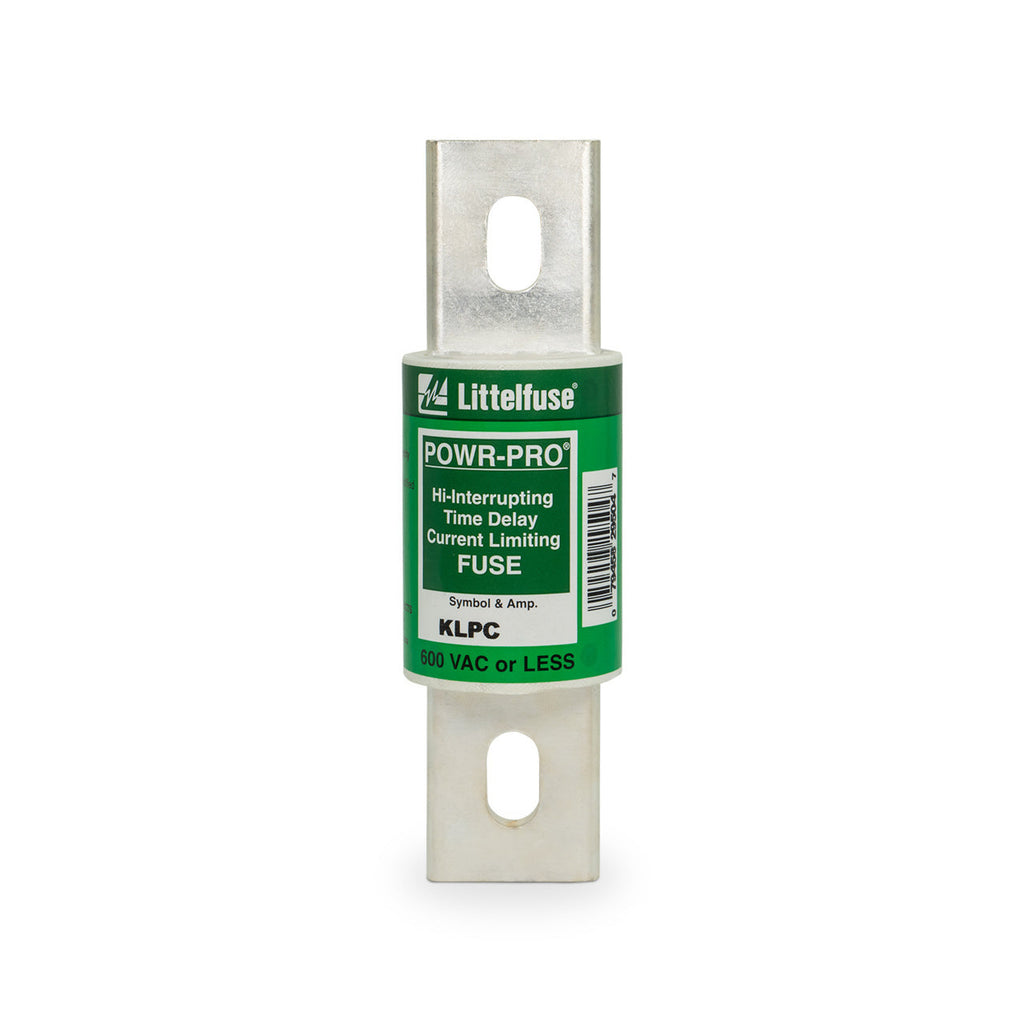

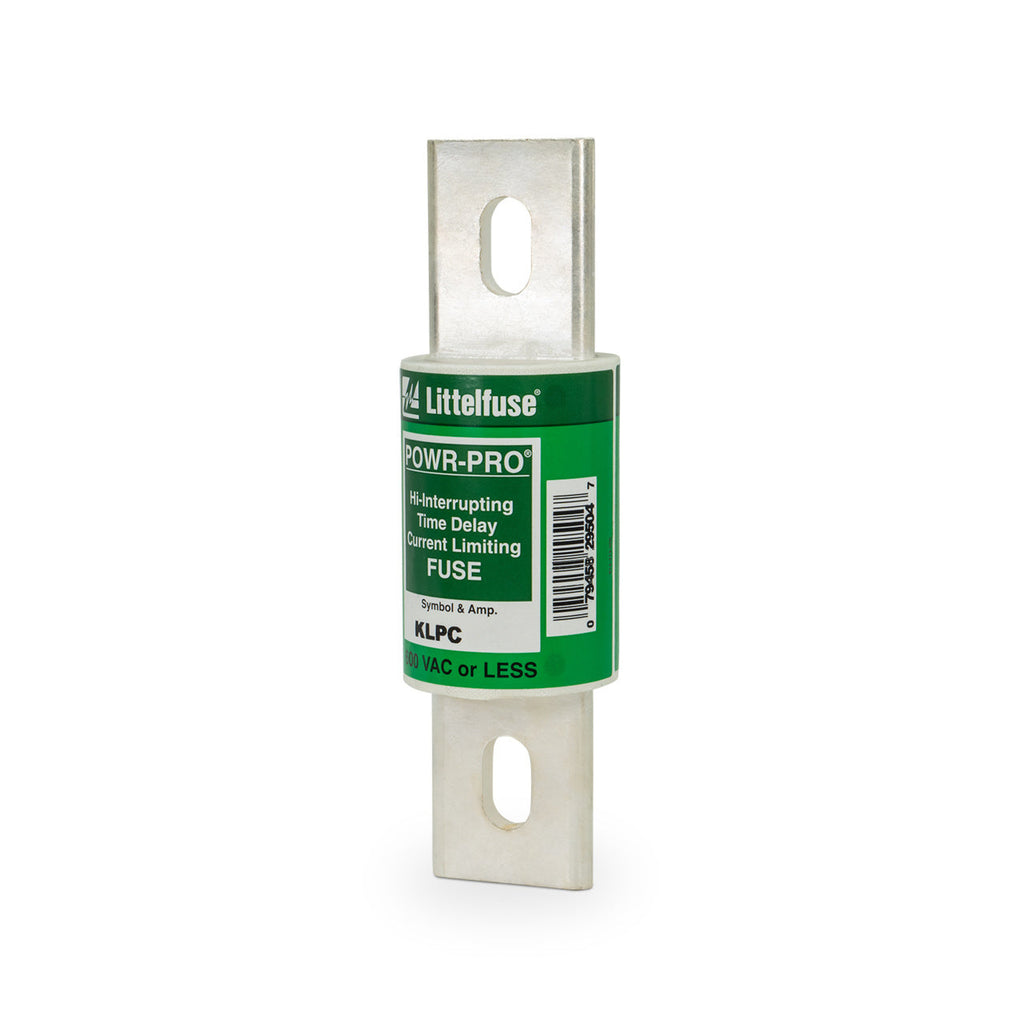

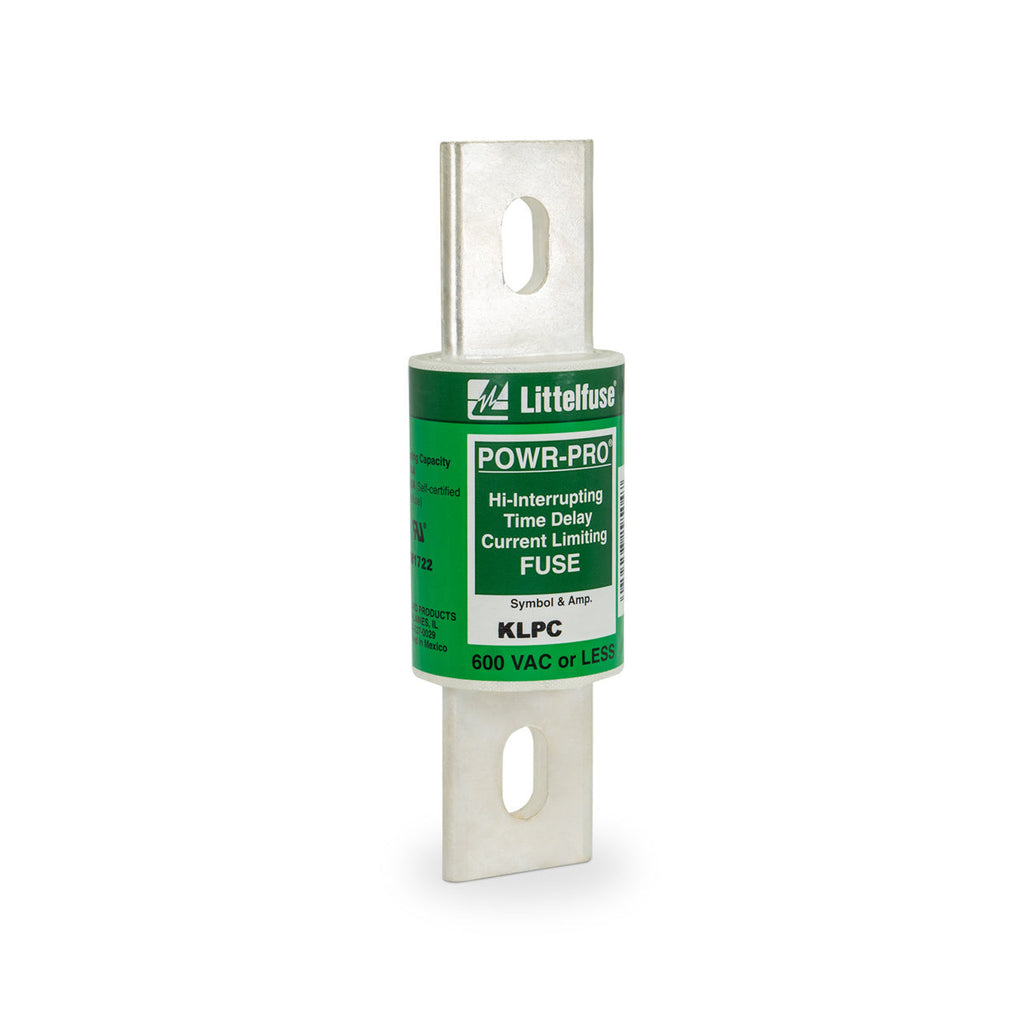

KLPC-400 is a Littelfuse 400 Amp, 600 Volt AC Class L time-delay fuse designed for reliable overcurrent protection in industrial applications.This KLPC-400 fuse features POWR-PRO performance with current-limiting capability and best-in-class time-delay withstand. It has a bolt-in mounting type with silver links and silver-plated copper end bells housed in a glass-reinforced melamine body. Rated for 600 VAC and 480 VDC, it offers an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 500 VDC. The fuse is UL listed and suitable for switchboard mains, motor control centers, and large motor branch circuits.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 600 VAC, 480 VDC
- Fuse Class: UL Class L
- Time-Delay Type
- Current Limiting
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 500 VDC
- Mounting Type: Bolt-In
- Physical Size: 2" x 8 5/8"
- Body Material: Glass Reinforced Melamine
- Silver Links and Silver-Plated Copper End Bells
- Certifications: UL Listed, CSA, CE
Specifications
- Part Number: KLPC-400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 5
- Class Rating : L
Product Data
- UPC : 007945829504
- GTIN : 00079458295047
- Weight : 1.2
