Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLPC-1500

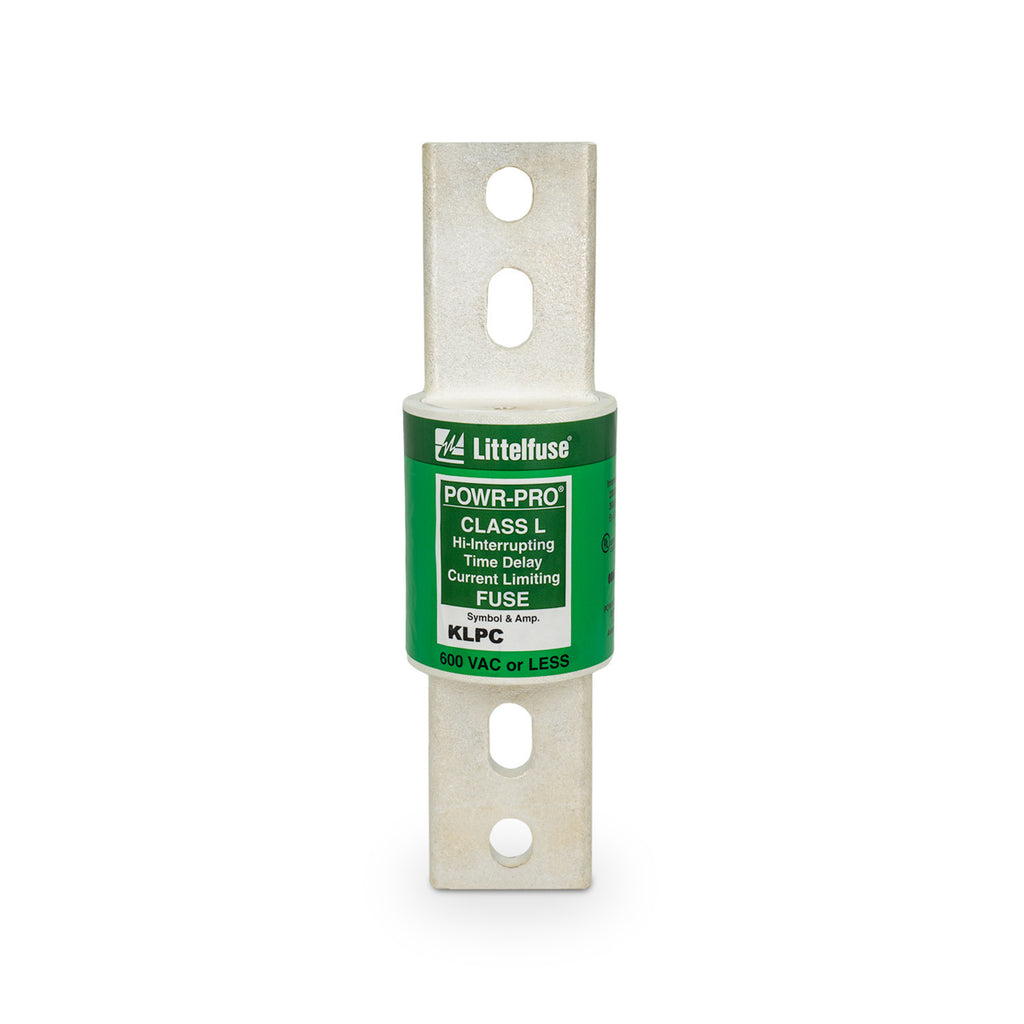

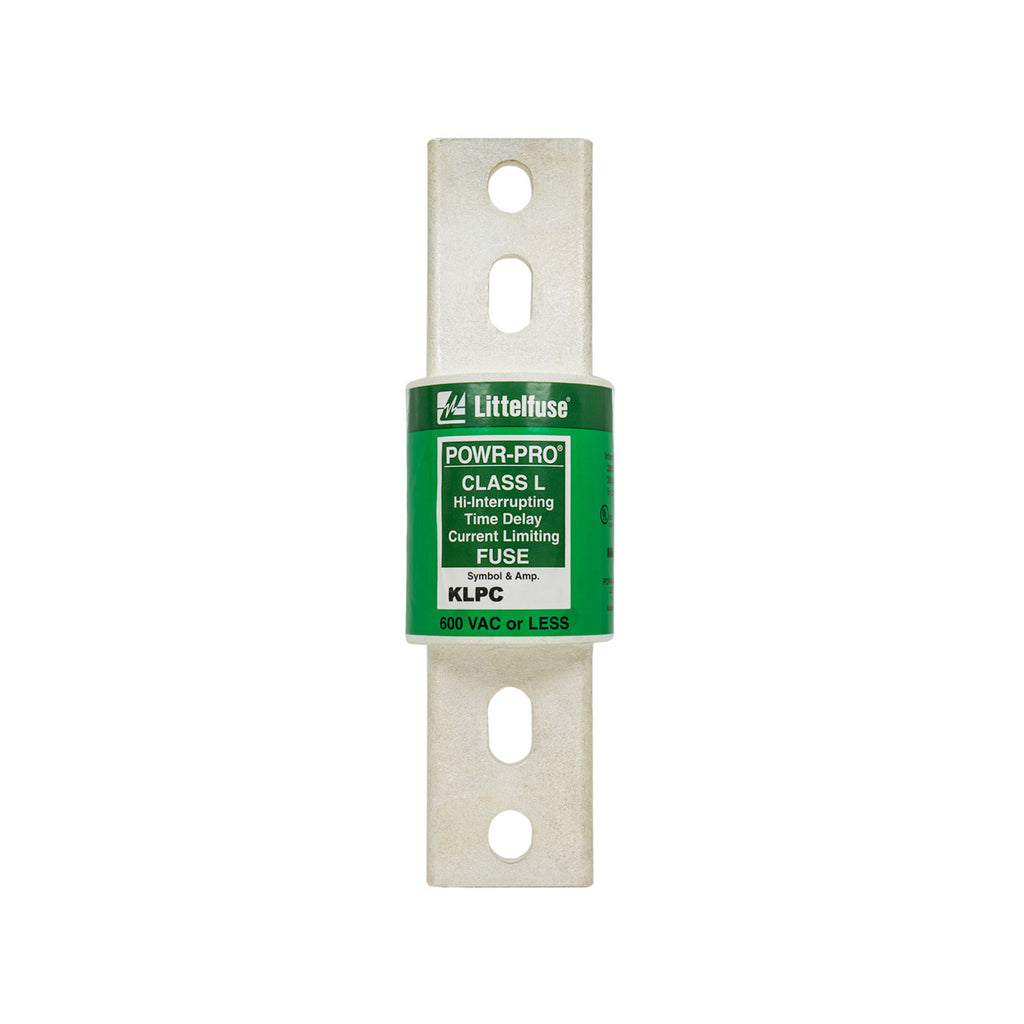

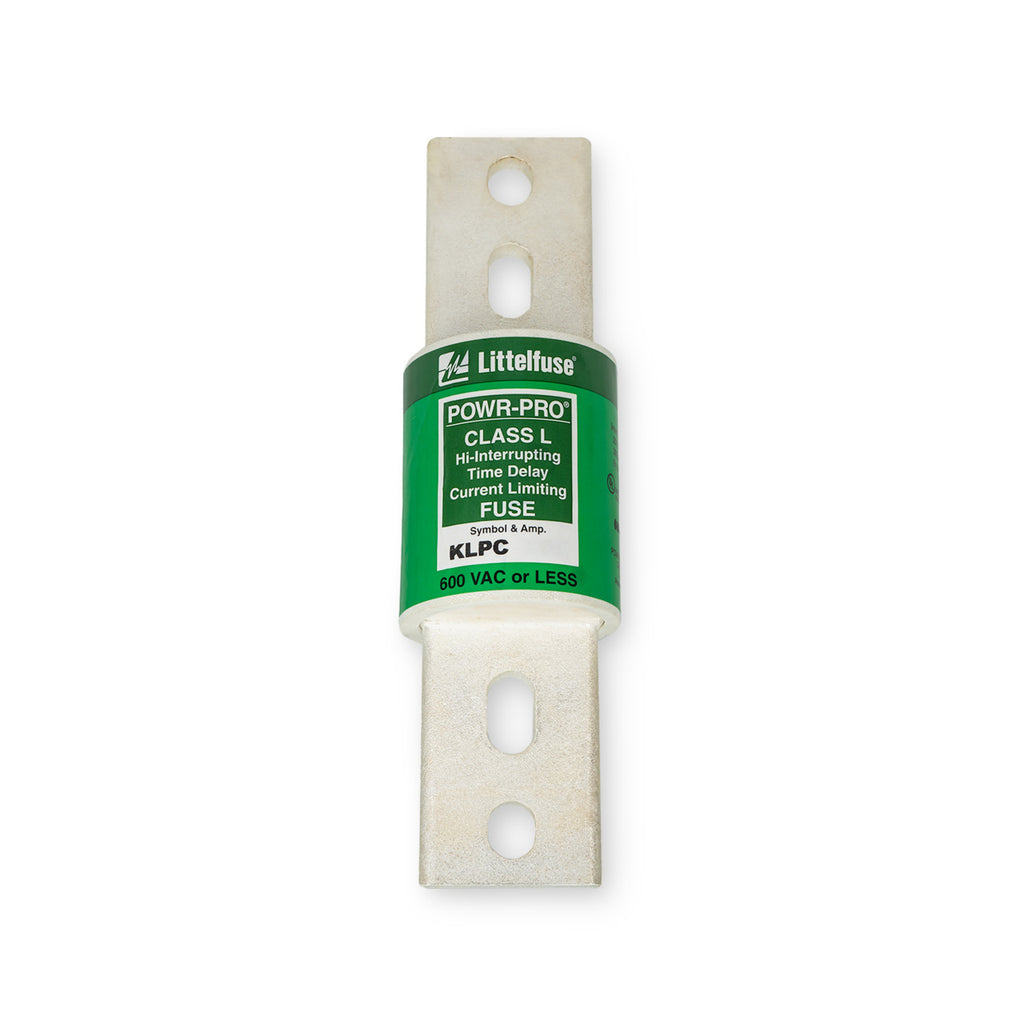

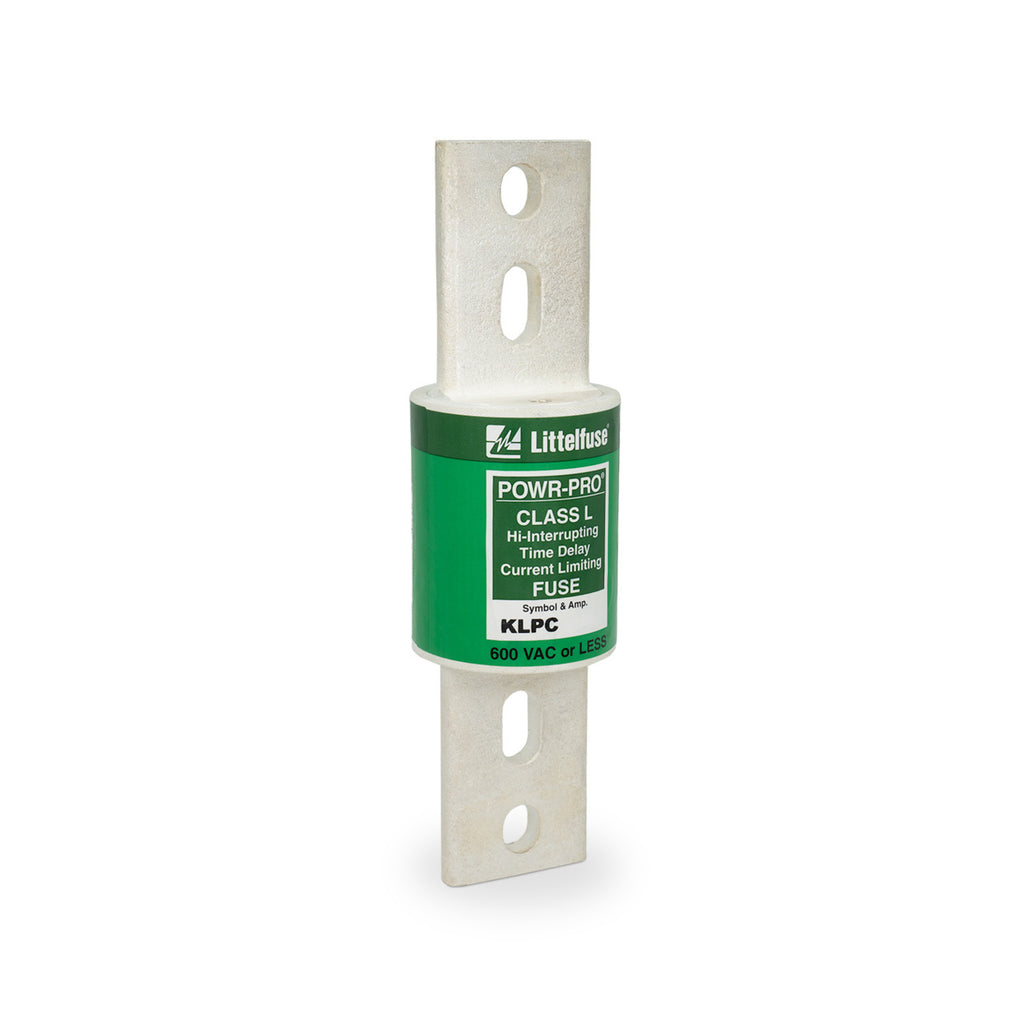

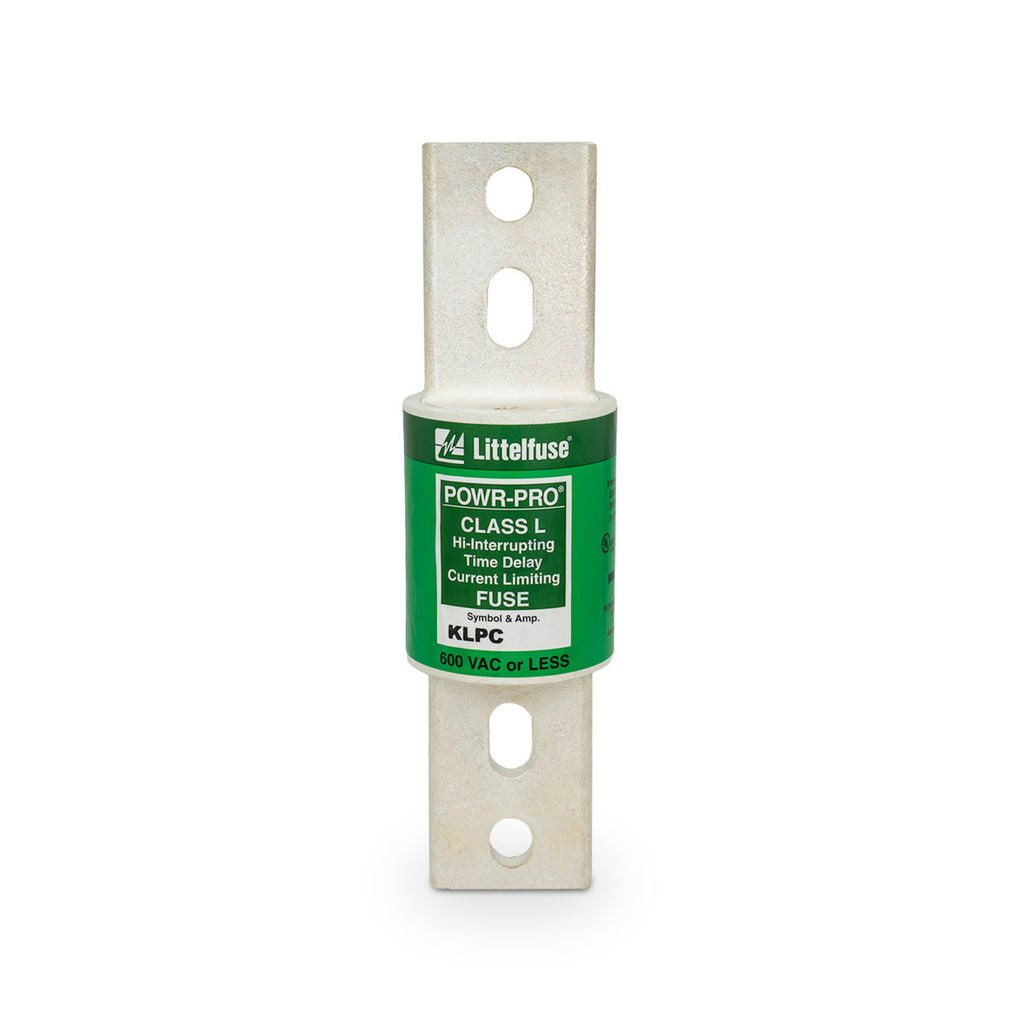

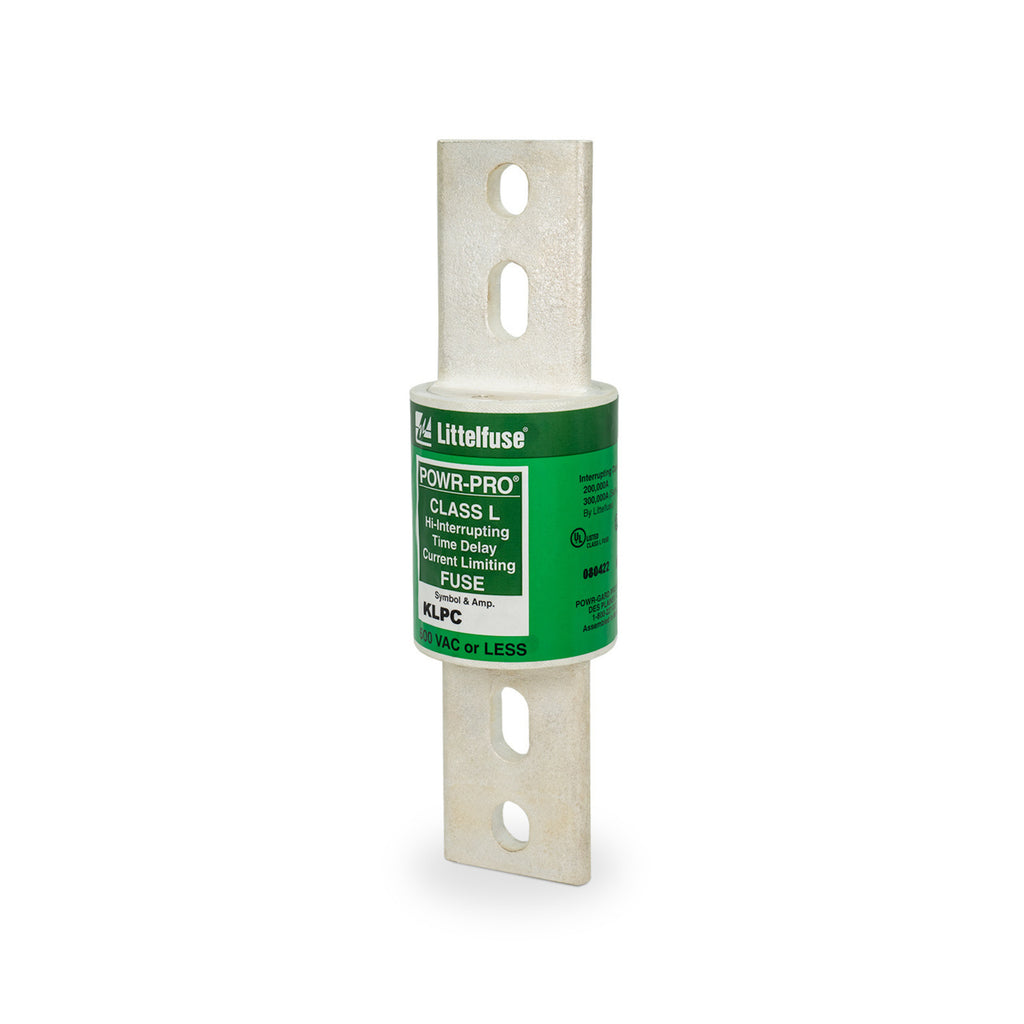

KLPC-1500 is a Littelfuse Class L time-delay fuse rated for 1500 amps at 600 volts AC and 480 volts DC with bolt-in mounting.The KLPC-1500 fuse features POWR-PRO® specification-grade construction with silver links, silver-plated copper end bells, glass-reinforced melamine body, and O-ring seals. It provides current-limiting protection with a 10-second time delay at 500% rated current and a high interrupting rating of 300kA AC at 600V and 20kA DC at 480V. Certified by UL and CSA, it is suitable for switchboard mains, motor control centers, and large motor branch circuits.
- Key Specifications
- Current Rating: 1500 Amps
- Voltage Rating: 600 VAC / 480 VDC
- Fuse Class: UL Class L
- Mounting Type: Bolt-In
- Interrupting Rating: 300kA AC @ 600V, 20kA DC @ 480V
- Time Delay: 10 seconds at 500% rated current
- Construction: Silver links, silver-plated copper end bells, glass-reinforced melamine body
- Certifications: UL, CSA
- Size: Approximately 3 inch diameter
- Series: POWR-PRO® KLPC
Specifications
- Part Number: KLPC-1500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 3
- Class Rating : L
Product Data
- UPC : 007945830109
- GTIN : 00079458301090
- Weight : 5.19
