Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLPC-1400

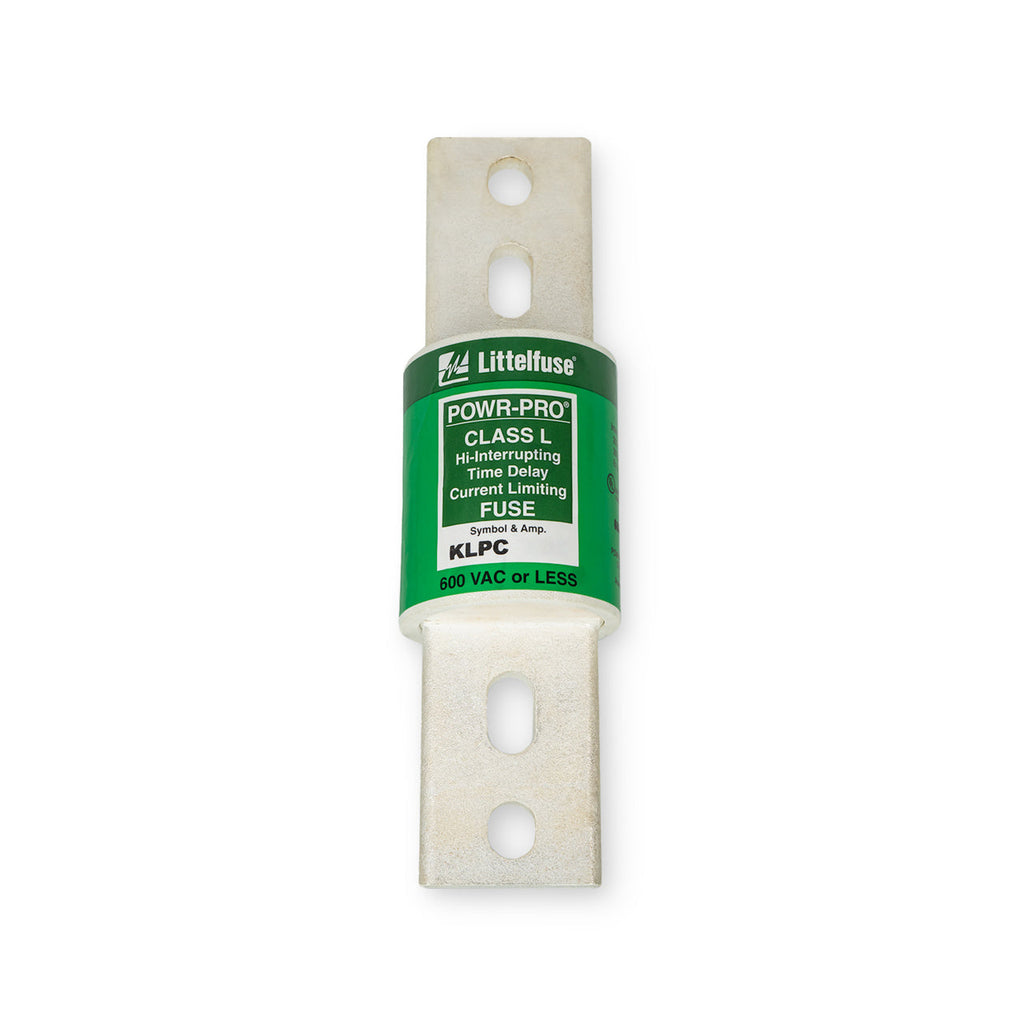

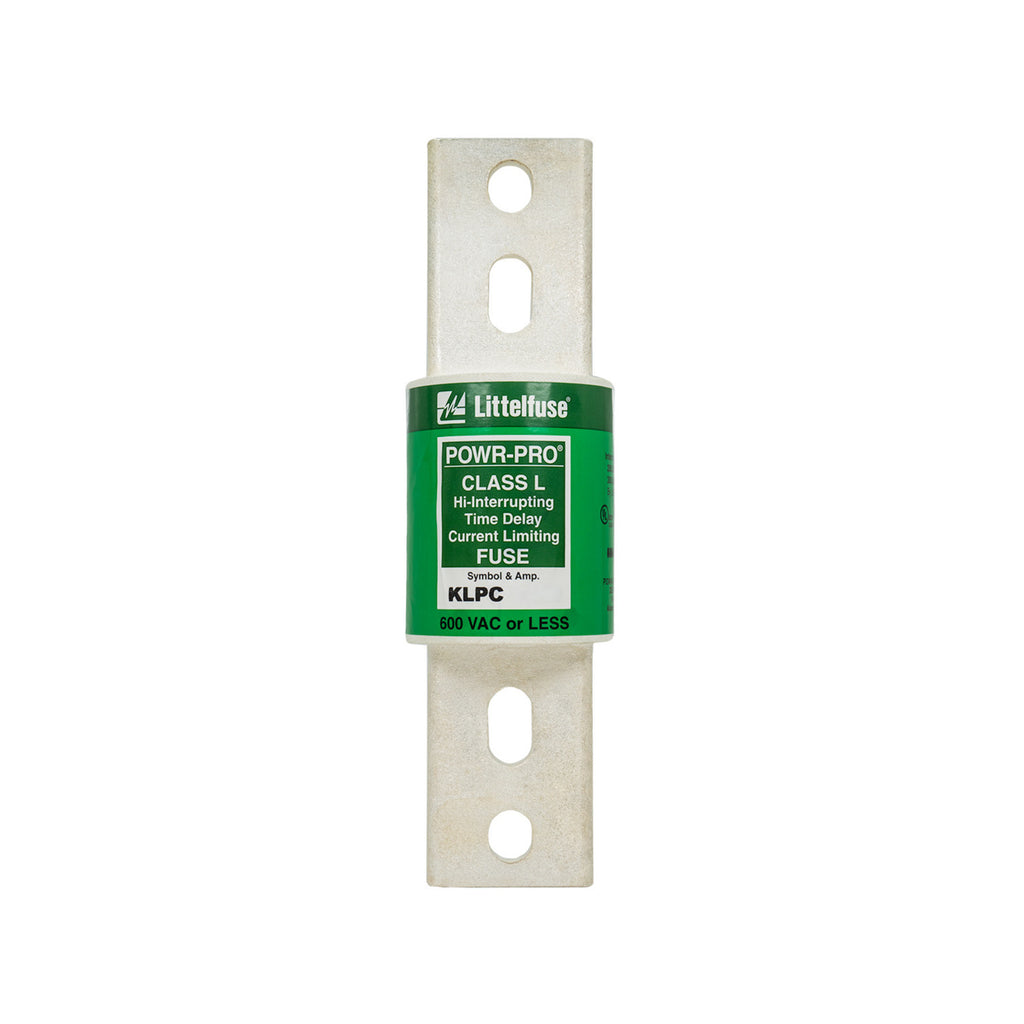

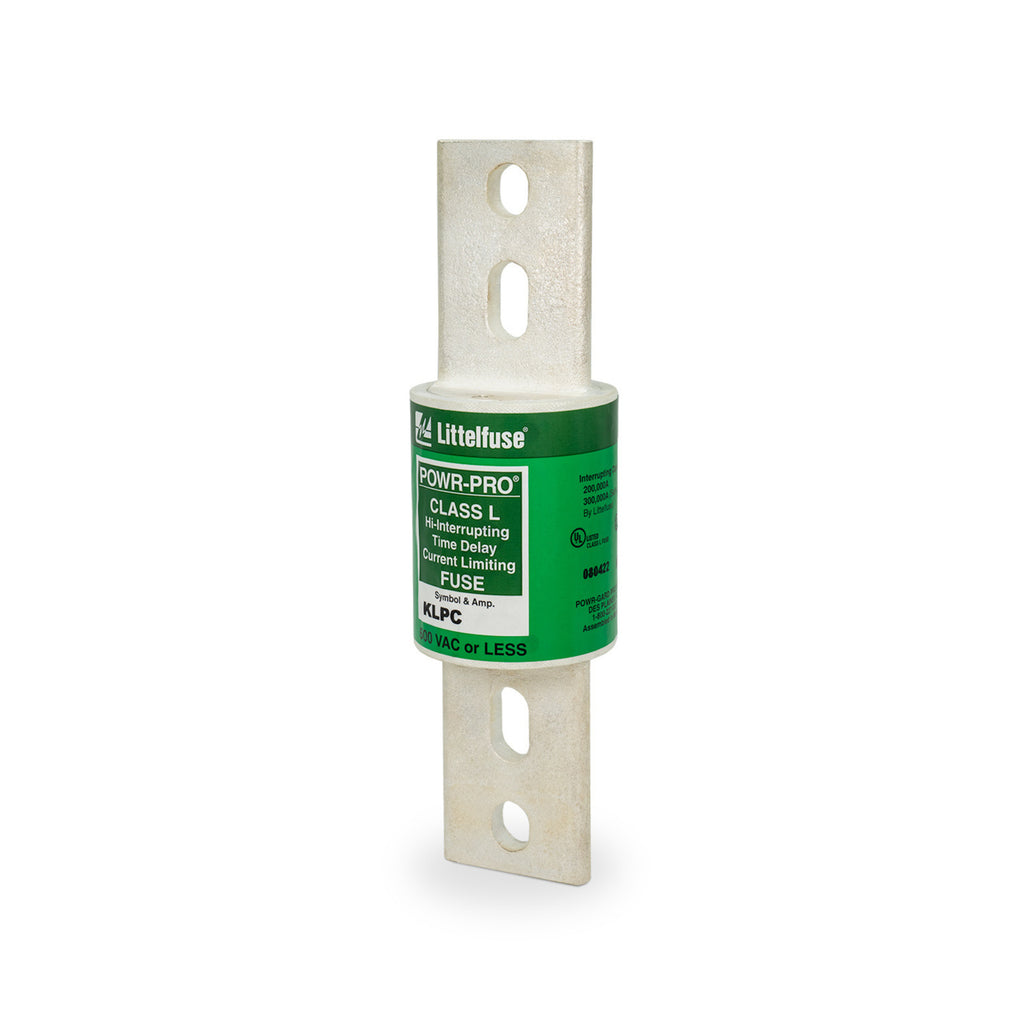

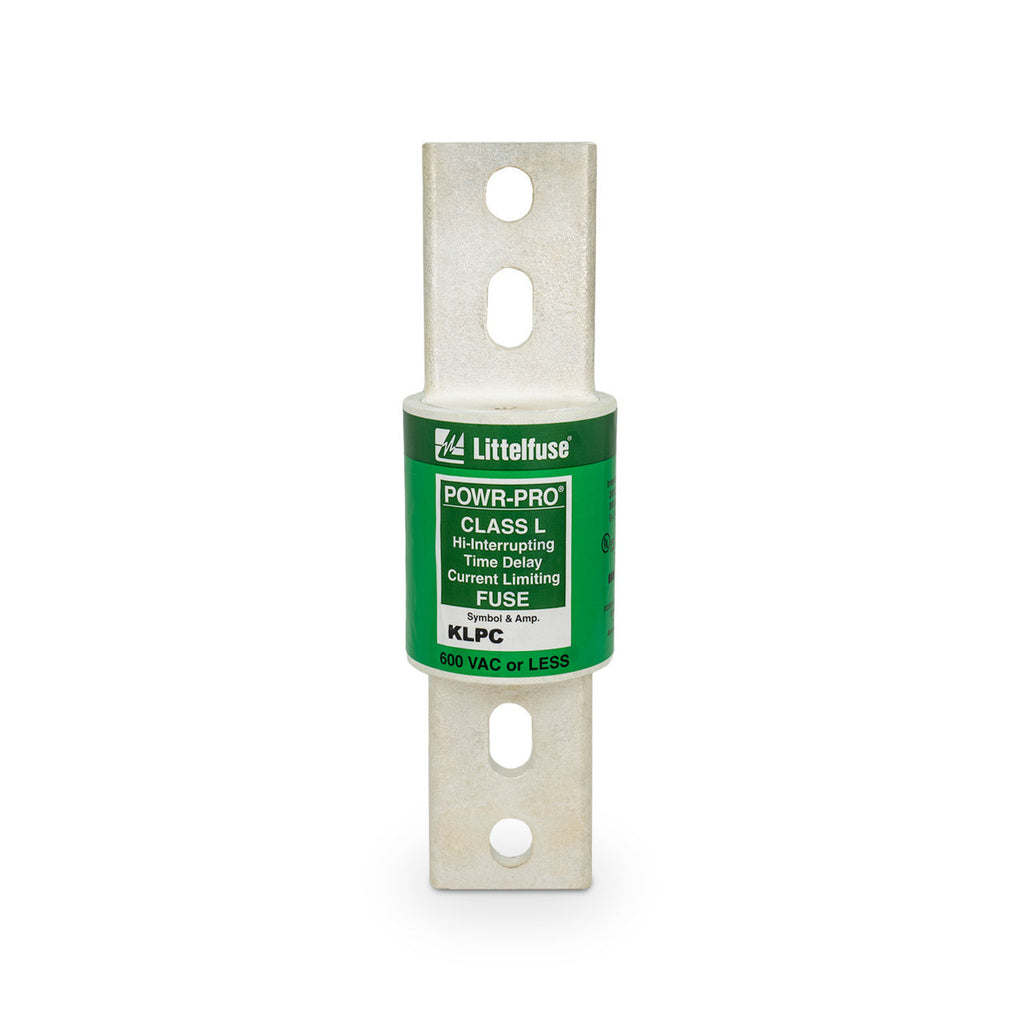

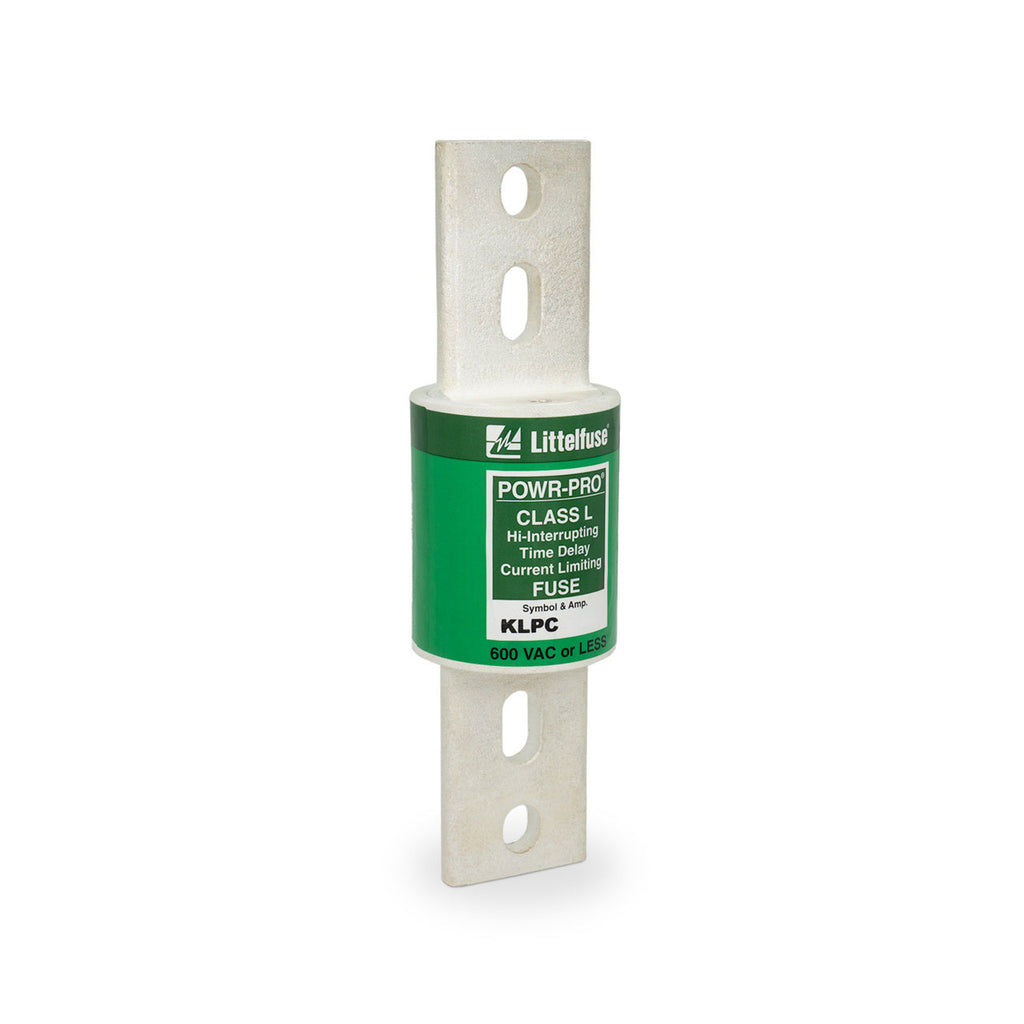

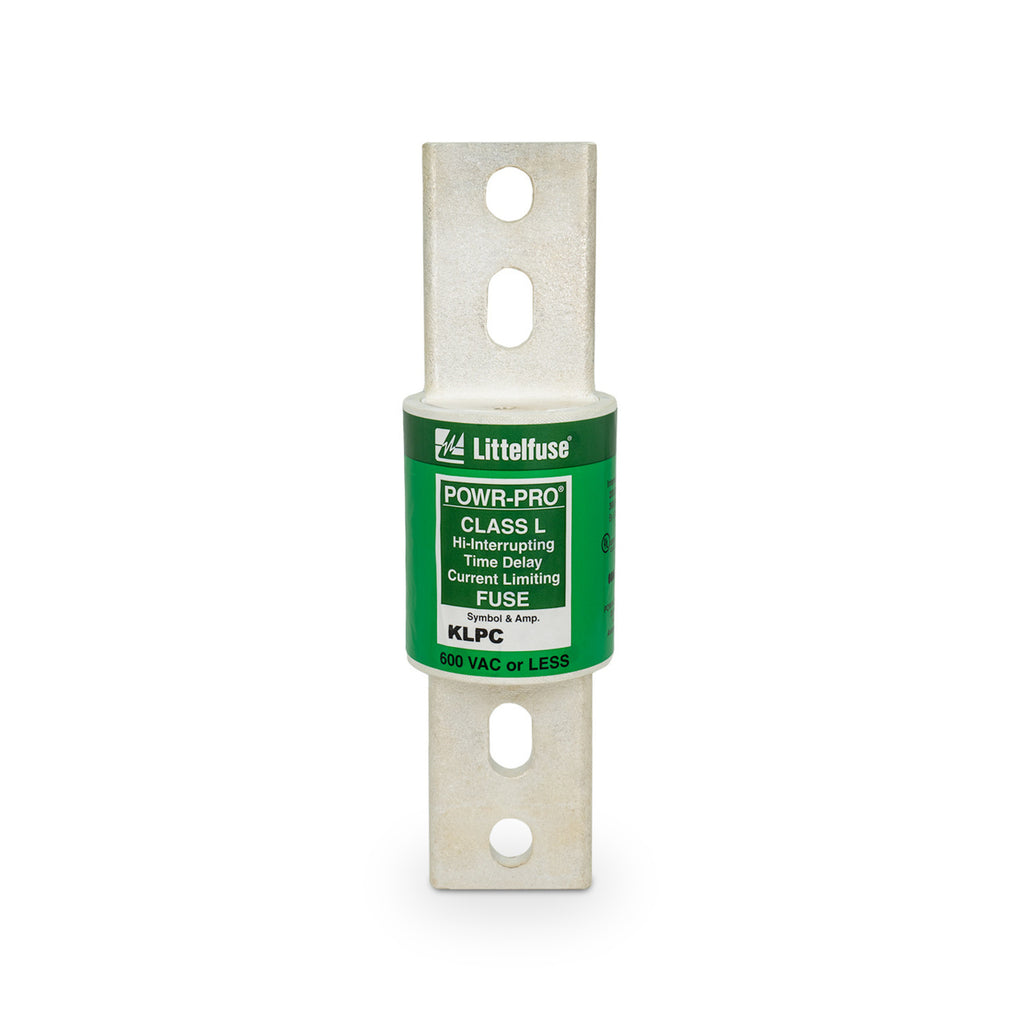

KLPC-1400 is a Littelfuse Class L time-delay fuse rated for 1400 Amps and 600 Volts AC, designed for reliable overcurrent protection in industrial applications.This KLPC series POWR-PRO® fuse features current-limiting capability, silver links with silver-plated copper end bells, and a glass-reinforced melamine body. It offers best-in-class time-delay withstand and is UL listed with a 200,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 480 VDC. The fuse measures 2 3/4" x 10 3/4" and is suitable for switchboard mains, motor control centers, and large motor branch circuits.
- Key Specifications
- Amperage: 1400 A
- Voltage Rating: 600 V AC, 480 V DC
- Fuse Class: Class L
- Time Delay: Yes
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 480 VDC
- Mounting Type: Bolt-In
- Body Material: Glass Reinforced Melamine
- End Bells: Silver Plated Copper
- Dimensions: 2 3/4" diameter x 10 3/4" length
- Certifications: UL Listed, CSA, CE
- Series: POWR-PRO® KLPC
- Part Number: KLPC-1400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 3
- Class Rating : L
- UPC : 007945830108
- GTIN : 00079458301083
- Weight : 3.5
