2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLNR200

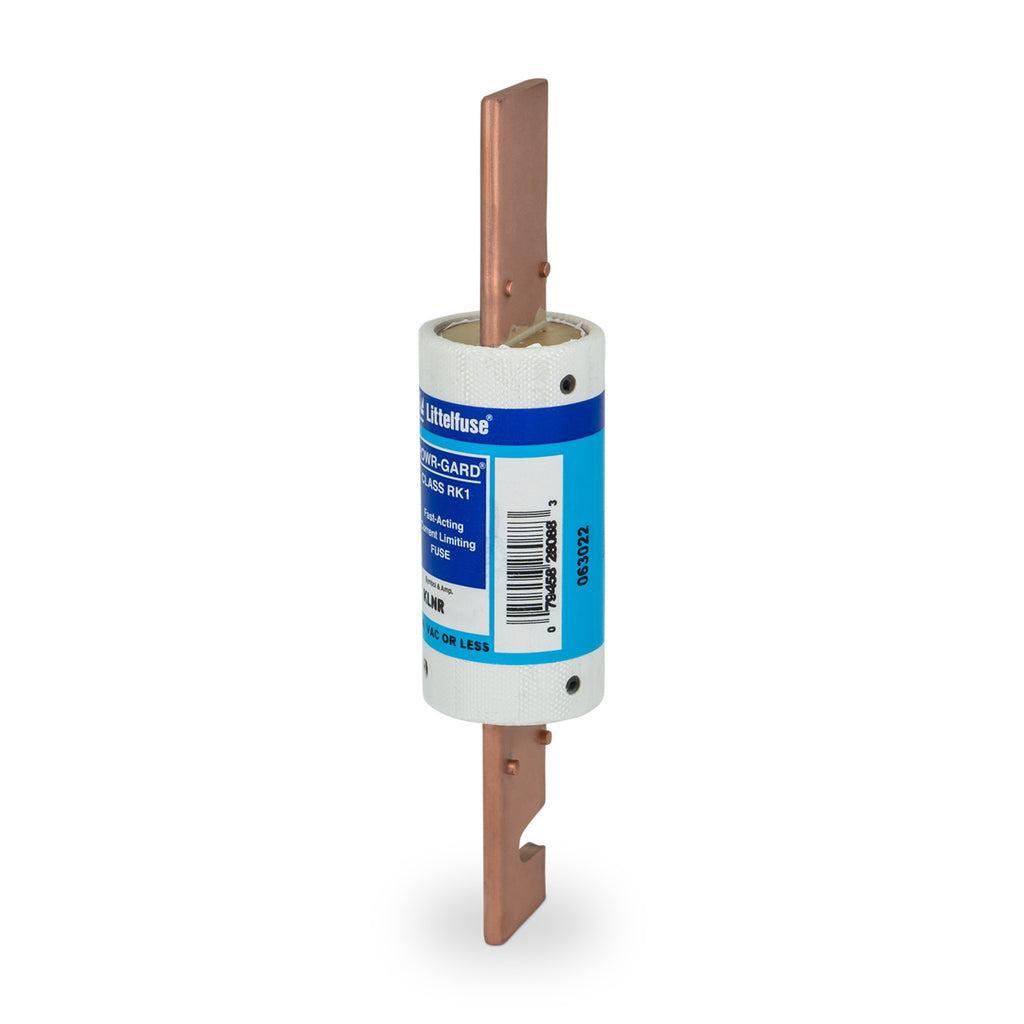

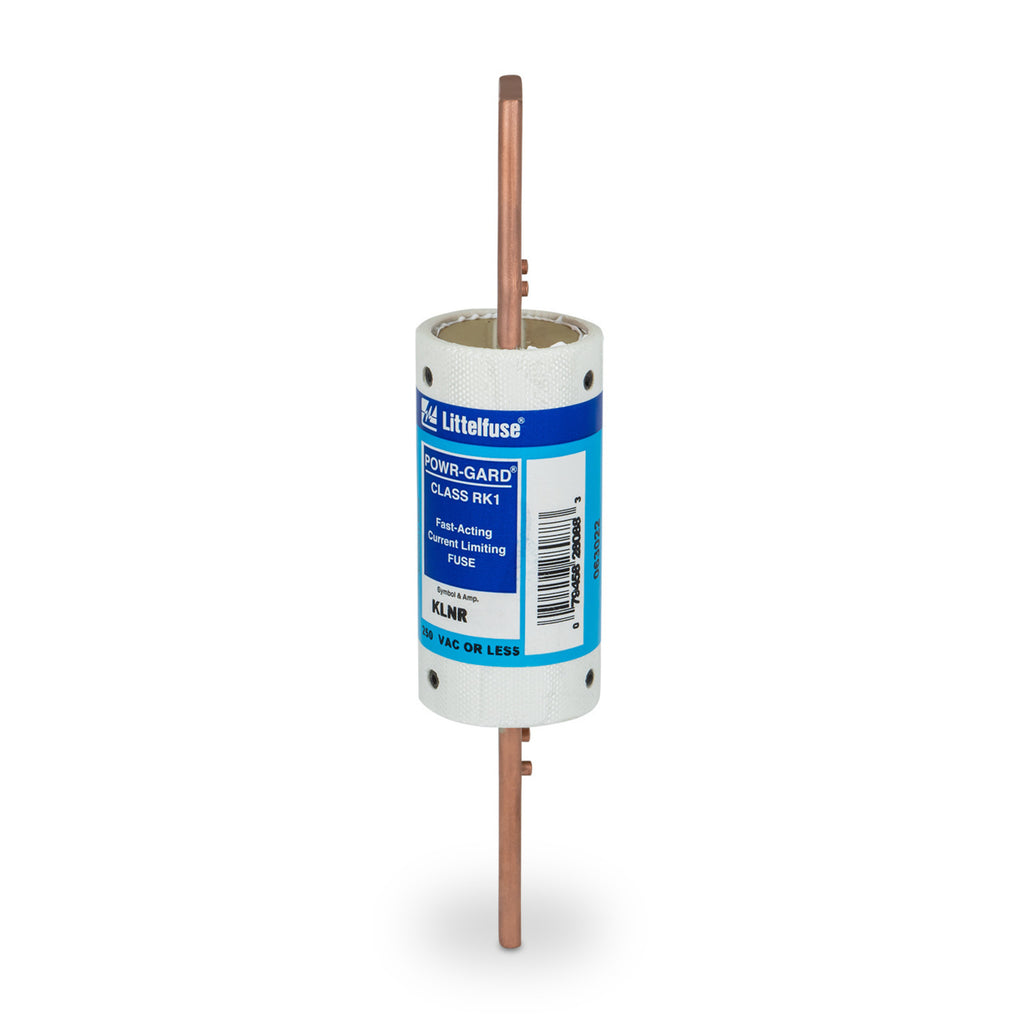

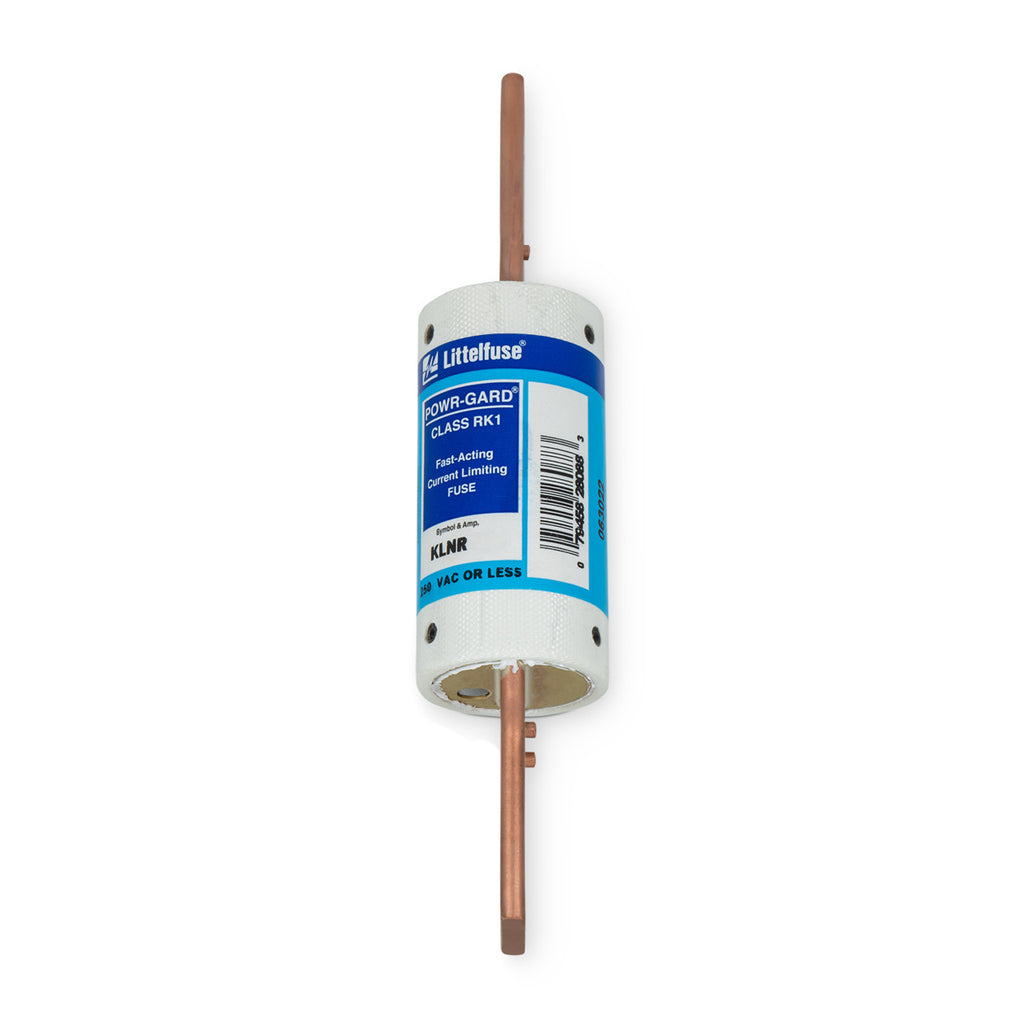

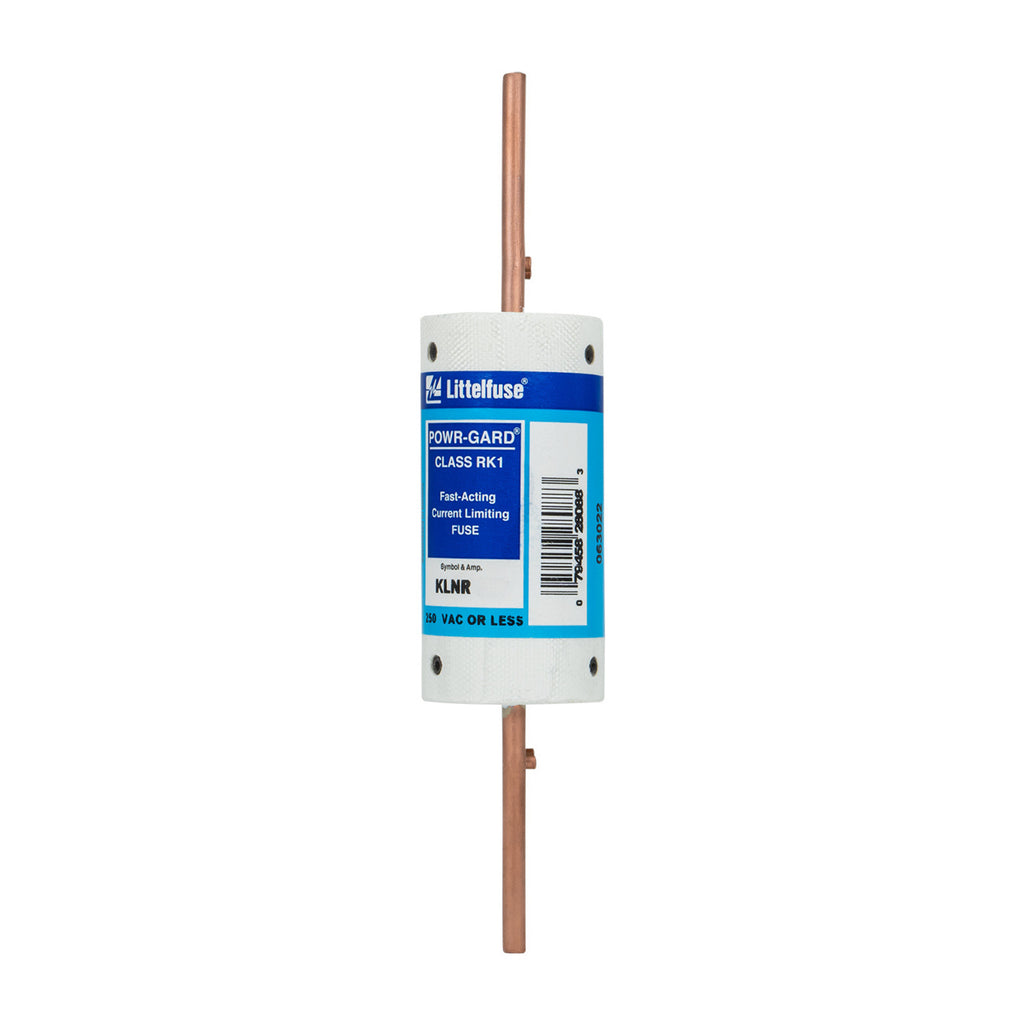

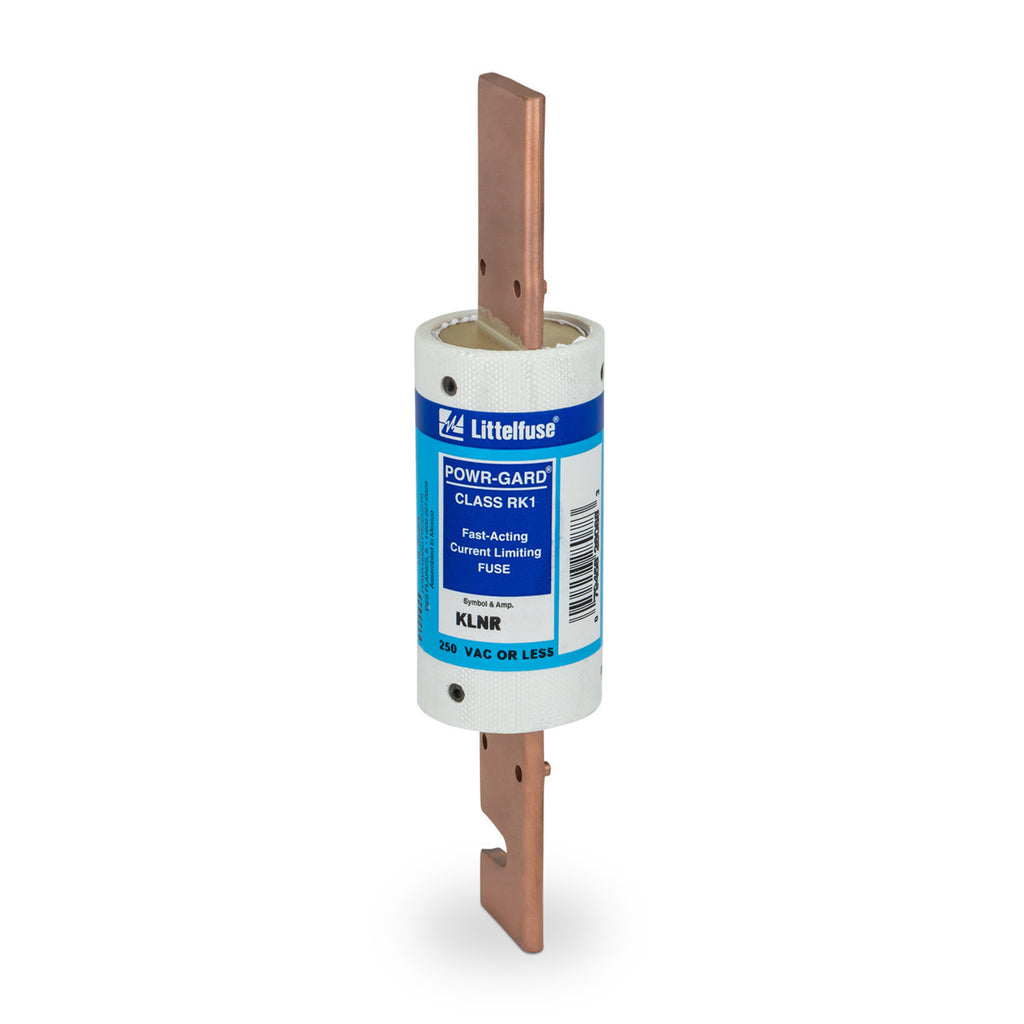

KLNR200 is a Littelfuse UL Class RK1 fast-acting fuse rated for 200 amps and 250 volts AC.This KLNR series fuse features a 200 ampere rating with a 250 volt AC voltage rating and a fast-acting trip characteristic. It has a physical size of approximately 1-19/32 inch diameter by 7-1/8 inch length and an interrupting rating of 200,000 amperes. The fuse is designed for non-inductive load protection and complies with UL 248-12, CSA, and CE certifications.
- Key Specifications
- Amperage: 200 Amps
- Voltage Rating: 250 Volts AC / 125 Volts DC
- Fuse Class: UL Class RK1
- Fuse Type: Fast-Acting
- Interrupting Rating: 200,000 Amperes (200kAIC)
- Physical Size: 1-19/32 inch diameter x 7-1/8 inch length
- Mounting Type: Cartridge Fuse
- Certifications: UL 248-12, CSA, CE
- Series: KLNR
- Part Number: KLNR200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLNR
- Type : KLNR
- Voltage : 250
- Amperage : 200
- AIC rating : 200kA@250V
- Diameter : 1.59
- Class Rating : RK1
- Barrels : 1
- UPC : 07945828088
- GTIN : 00079458280883
- Weight : 1
