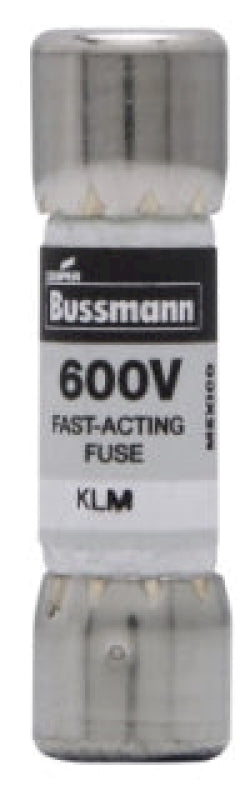

KLM-6 - Eaton Bussmann 6A 600V Fast Acting Midget Fuse, Non-Indicating, 100kA Interrupt Rating

KLM-6

KLM-6 is a fast-acting midget fuse from Eaton Bussmann series designed for supplemental circuit protection.This 6 amp fuse features a melamine tube with nickel-plated bronze ferrule ends, rated for 600 volts AC and DC. It has a high interrupting rating of 100,000 AIC at 600 VAC and 50,000 AIC at 600 VDC, ensuring reliable protection in demanding electrical applications. The fuse is non-indicating and complies with RoHS and CE standards.

• Amperage: 6 A
• Voltage Rating: 600 VAC / 600 VDC
• Interrupting Rating: 100 kA at 600 VAC, 50 kA at 600 VDC
• Fuse Type: Fast Acting
• Construction: Melamine tube with nickel-plated bronze endcaps
• Connection: Ferrule end x ferrule end
• Non-indicating fuse
• Size: Approximately 0.41" diameter x 1.5" length
• Series: Bussmann KLM
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLM-6
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLM Series
• Type : KLM
• Voltage : 600
• Amperage : 6
• AIC rating : 100kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712695138
• GTIN : 00051712695138
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.18
• Certification : CE, CSA, UL Listed
