Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

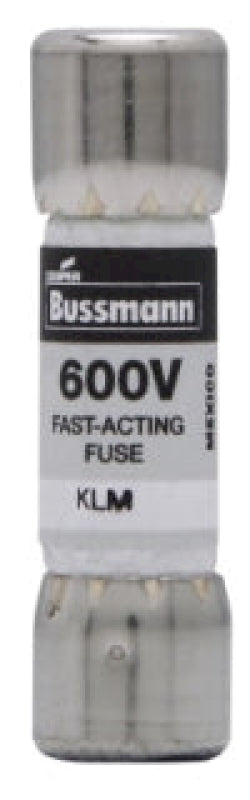

KLM-30
KLM-30 is a fast-acting supplemental midget fuse from the Eaton Bussmann Series KLM, designed for reliable circuit protection in demanding applications.
This fuse features a 30A amperage rating, 600VAC/VDC voltage rating, and a high interrupting rating of 100kAIC at 600VAC (50kAIC at 600VDC). It is constructed with a melamine tube and nickel-plated bronze endcaps for durability, and is non-indicating with ferrule end connections. The KLM-30 is ideal for DC control circuits and photovoltaic systems up to 600VDC, offering robust performance and compliance with key industry standards.
-
Key Specifications
- Part Number: KLM-30
- Manufacturer: Eaton Bussmann
- Category: Fuse
- Amperage: 30A
- Voltage: 600VAC/VDC
- Poles: Single
- Mounting Type: Holder (ferrule end x ferrule end)
- Interrupt Rating: 100kAIC @ 600VAC, 50kAIC @ 600VDC
- Series/Frame: KLM
- Trip Unit: Fast-acting
- Certifications: CE Marked, RoHS Compliant
- Construction: Melamine tube, nickel-plated bronze endcaps
- Indicator: Non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLM-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 30
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712695305
- GTIN : 00051712695305
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
