Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KLM-25

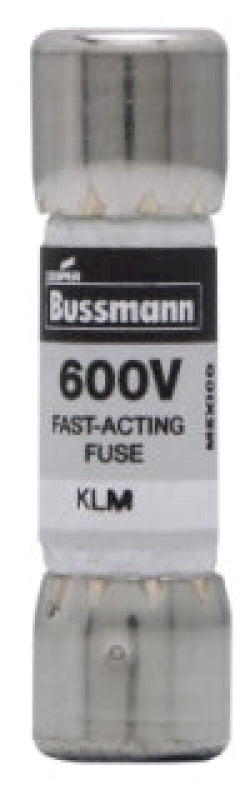

KLM-25 is a fast-acting fuse from Eaton Bussmann series designed for supplemental circuit protection.
This 25 amp, 600 volt AC/DC fuse features a melamine tube with nickel-plated bronze ferrule end caps. It offers a high interrupting rating of 100,000 amps at 600 VAC and 50,000 amps at 600 VDC. The fuse is non-indicating and complies with CE and RoHS standards, making it suitable for reliable protection in industrial and commercial applications.
- Key Specifications
- Amperage Rating: 25 Amps
- Voltage Rating: 600 Volts AC/DC
- Interrupting Rating: 100 kAIC at 600 VAC, 50 kAIC at 600 VDC
- Fuse Type: Fast-Acting
- Physical Size: 10 mm x 38 mm (Midget)
- End Caps: Nickel-plated bronze ferrule ends
- Body Material: Melamine tube
- Fuse Indicator: Non-indicating
- Mounting Type: Cartridge fuse
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Part Number: KLM-25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 25
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
- UPC : 051712695251
- GTIN : 00051712695251
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
