Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

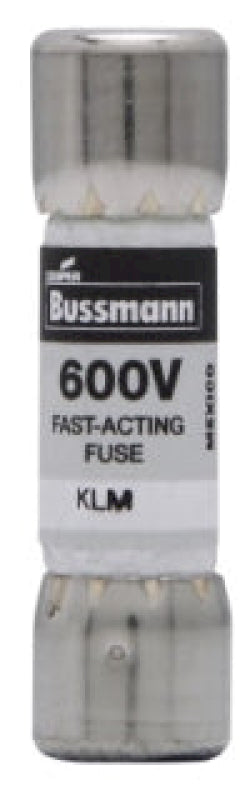

KLM-2
KLM-2 is an Eaton Bussmann series fast-acting Limitron fuse rated for 2 amps and 600 volts AC/DC.
This KLM-2 fuse features a ferrule end x ferrule end connection with a melamine tube body and nickel-plated bronze endcaps. It has a high interrupting rating of 100 kA at 600 VAC and 50 kA at 600 VDC, making it suitable for protecting electrical circuits requiring fast-acting supplemental fuses. The fuse is non-indicating and RoHS compliant with CE marking, designed for reliable circuit protection in industrial and commercial applications.
- Amperage Rating: 2 A
- Voltage Rating: 600 VAC / 600 VDC
- Interrupting Rating: 100 kA at 600 VAC, 50 kA at 600 VDC
- Fuse Type: Fast-Acting Limitron
- Connection: Ferrule end x ferrule end
- Body Material: Melamine tube
- Endcaps: Nickel-plated bronze
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
- Series: Bussmann KLM
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLM-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 2
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712695091
- GTIN : 00051712695091
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
