Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

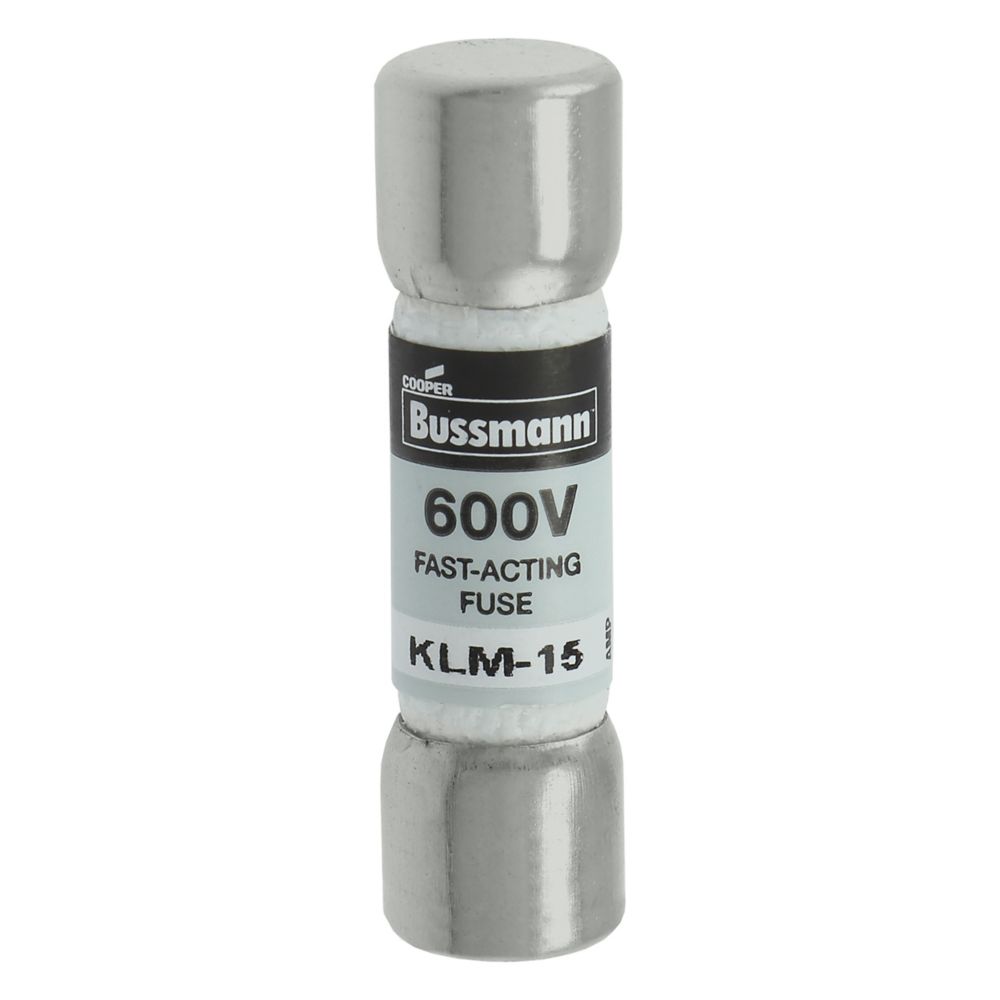

KLM-15
KLM-15 is a fast-acting fuse from Eaton Bussmann designed for reliable circuit protection at 15 amps and 600 volts AC/DC.This fuse features a melamine tube construction with nickel-plated bronze ferrule endcaps, providing durability and consistent performance. It offers a high interrupting rating of 100,000 AIC at 600 VAC and 50,000 AIC at 600 VDC, suitable for protecting DC control circuits and photovoltaic systems. The fuse is non-indicating and compact in size, making it ideal for various industrial and electrical applications.
- Amperage: 15 A
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Type: Fast Acting
- Interrupting Rating: 100 kAIC @ 600 VAC, 50 kAIC @ 600 VDC
- Construction: Melamine tube with nickel-plated bronze endcaps
- Connection: Ferrule end x ferrule end
- Non-indicating fuse
- Weight: Approximately 0.18 lbs
- Certifications: CE Marked, RoHS Compliant
- Series: Bussmann KLM
Specifications
- Part Number: KLM-15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 15
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712695169
- GTIN : 00051712695169
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
