Description

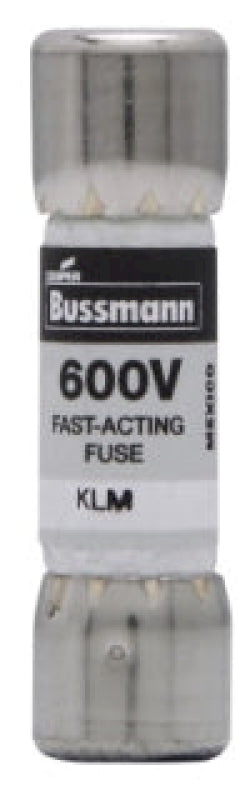

KLM-10
KLM-10 is a fast acting fuse from Eaton Bussmann designed for low-voltage circuit protection.
This 10 amp, 600 volt AC/DC fuse features a melamine tube with nickel-plated bronze endcaps and a ferrule end x ferrule end mounting style. It offers a high interrupting rating of 100,000 amps at 600 VAC and 50,000 amps at 600 VDC, making it suitable for demanding electrical applications. The fuse is UL listed and CSA certified, compliant with CE and RoHS standards, and part of the KLM series known for reliable fast-acting protection.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 600 VAC / 600 VDC
- Interrupting Rating: 100 kA at 600 VAC, 50 kA at 600 VDC
- Fuse Type: Fast Acting
- Mounting Type: Ferrule end x ferrule end
- Construction: Melamine tube, nickel-plated bronze endcaps
- Series: Bussmann KLM
- Certifications: UL Listed, CSA Certified, CE, RoHS compliant
- Physical Size: Approximately 0.41" x 1.5"
- Part Number: KLM-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 10
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
- UPC : 051712695152
- GTIN : 00051712695152
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
