Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KLM-1/2

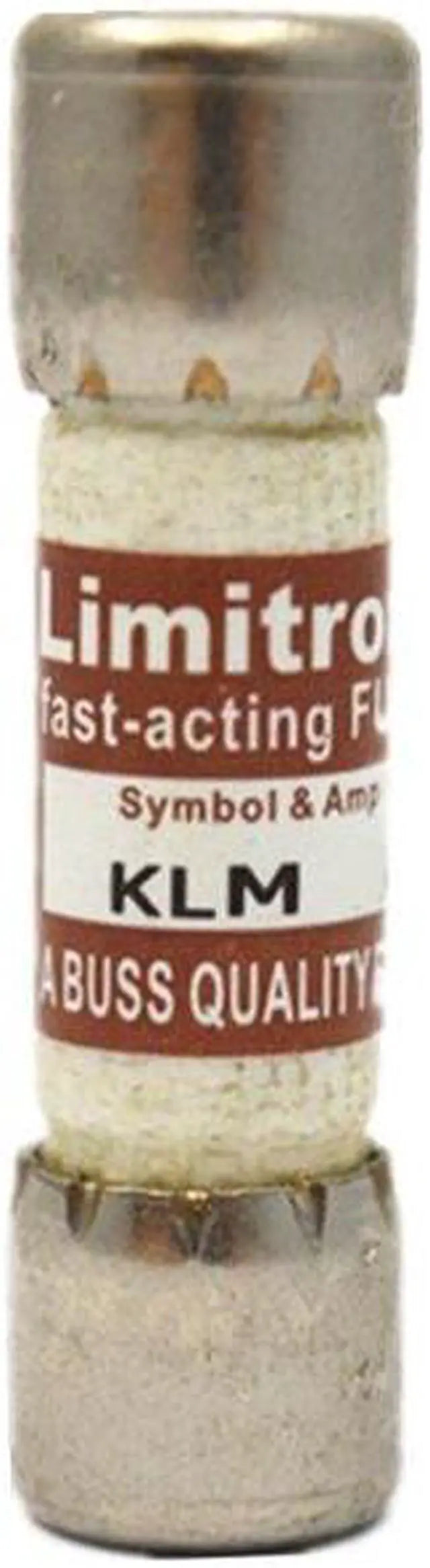

KLM-1/2 is a fast-acting midget fuse from Eaton Bussmann designed for supplemental circuit protection.
This fuse features a 1/2 ampere rating with a voltage rating of 600 VAC/VDC. It has a high interrupting rating of 100,000 amps AC and 50,000 amps DC, ensuring reliable protection in demanding applications. The fuse body is made of melamine with nickel-plated bronze endcaps and is designed for holder mounting with ferrule terminals. It is non-indicating and non-rejection type, suitable for use in various industrial and electrical systems.
- Key Specifications
- Amperage Rating: 1/2 Amp
- Voltage Rating: 600 VAC/VDC
- Interrupting Rating: 100,000 A AC / 50,000 A DC
- Fuse Type: Fast Acting
- Mounting Type: Holder
- Body Material: Melamine
- Endcaps: Nickel-plated Bronze
- Terminal Type: Ferrule
- Indicating: Non-Indicating
- Rejection Type: Non-Rejection
- Series: KLM
- Class: Supplemental
- Part Number: KLM-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 1
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
- UPC : 051712695053
- GTIN : 00051712695053
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
