Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

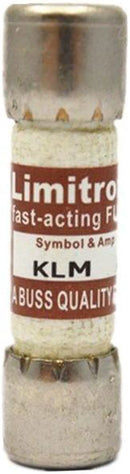

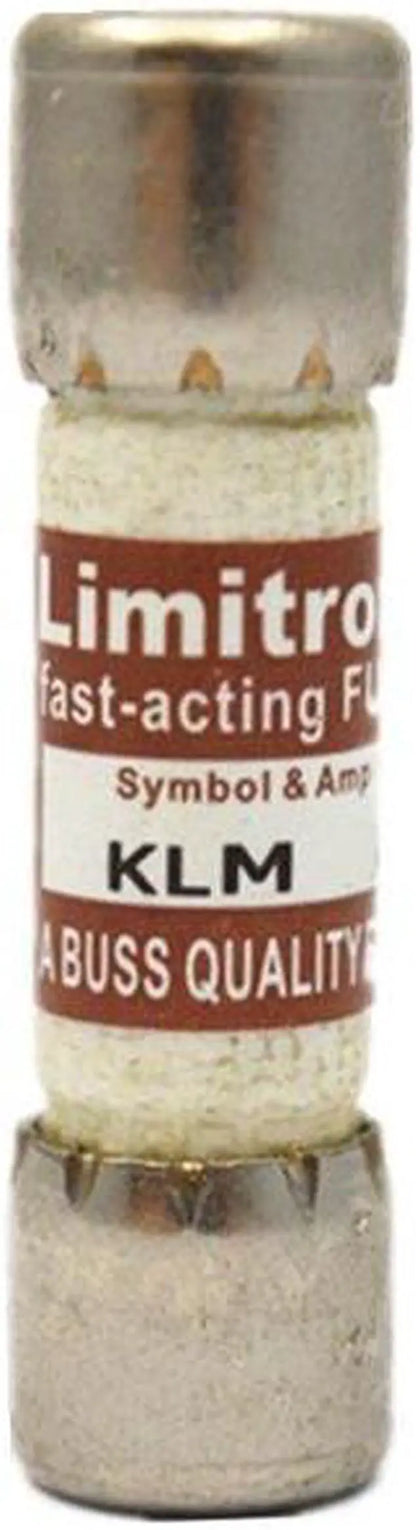

KLM-1-1/2
KLM-1-1/2 is a fast-acting midget fuse from Eaton Bussmann designed for supplemental circuit protection.This Eaton Bussmann KLM series fuse features a 1.5 ampere rating with a voltage rating of 600 VAC/VDC. It has a cartridge body type with melamine tube construction and nickel-plated bronze endcaps. The fuse is non-indicating, non-rejection type with ferrule end terminals and is designed for holder mounting. It offers a high interrupt rating of 100 kAIC at 600 VAC and 50 kAIC at 600 VDC, suitable for DC control circuits and photovoltaic systems.
- Key Specifications
- Amperage Rating: 1.5 A
- Voltage Rating: 600 VAC/VDC
- Interrupt Rating: 100 kAIC at 600 VAC, 50 kAIC at 600 VDC
- Fuse Type: Fast Acting
- Class: CC Supplemental
- Body Type: Cartridge (Melamine Tube)
- End Caps: Nickel-Plated Bronze
- Mounting Type: Holder Mount
- Terminal Type: Ferrule End
- Indicating: Non-Indicating
- Rejection Type: Non-Rejection
Specifications
- Part Number: KLM-1-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLM Series
- Type : KLM
- Voltage : 600
- Amperage : 1
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712695084
- GTIN : 00051712695084
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.18
- Certification : CE, CSA, UL Listed
