KLLU750 - Littelfuse Class L 750A 600V Time Delay Current Limiting Fuse

KLLU750

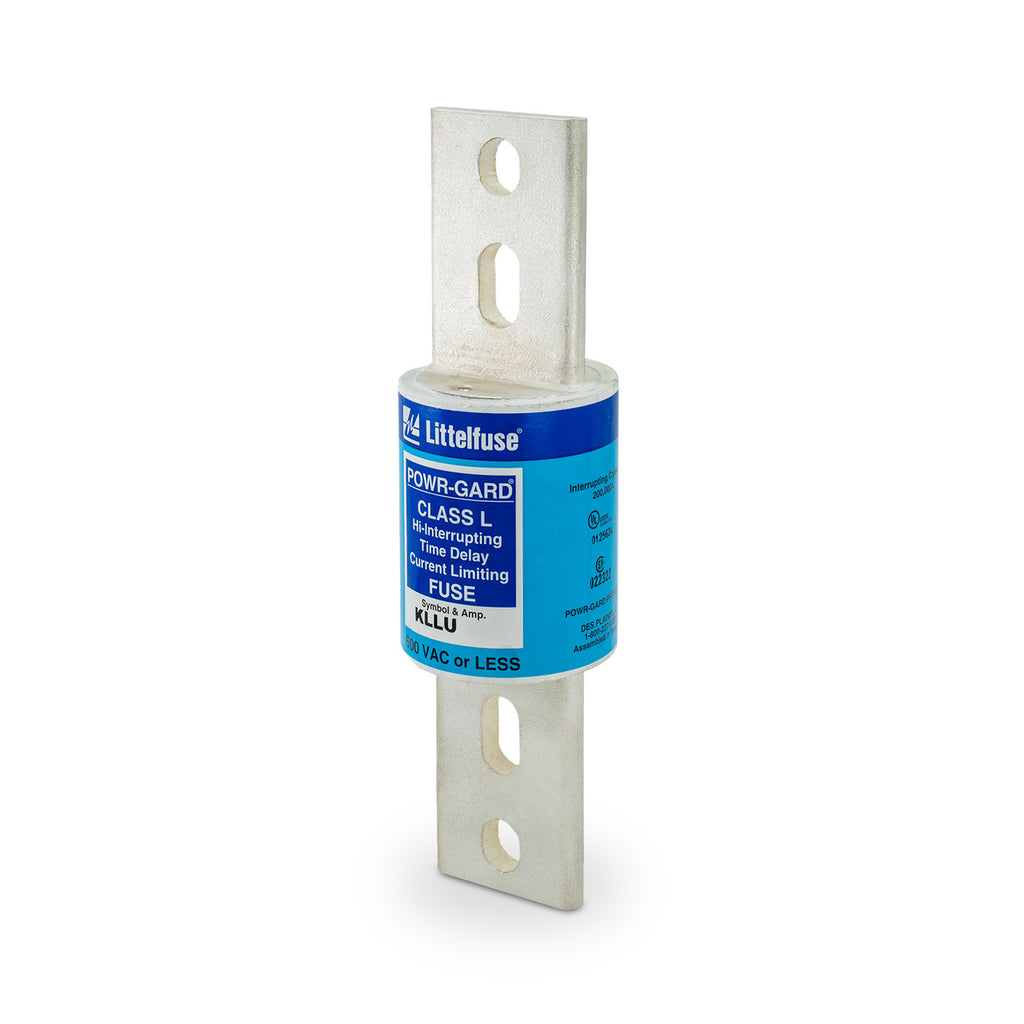

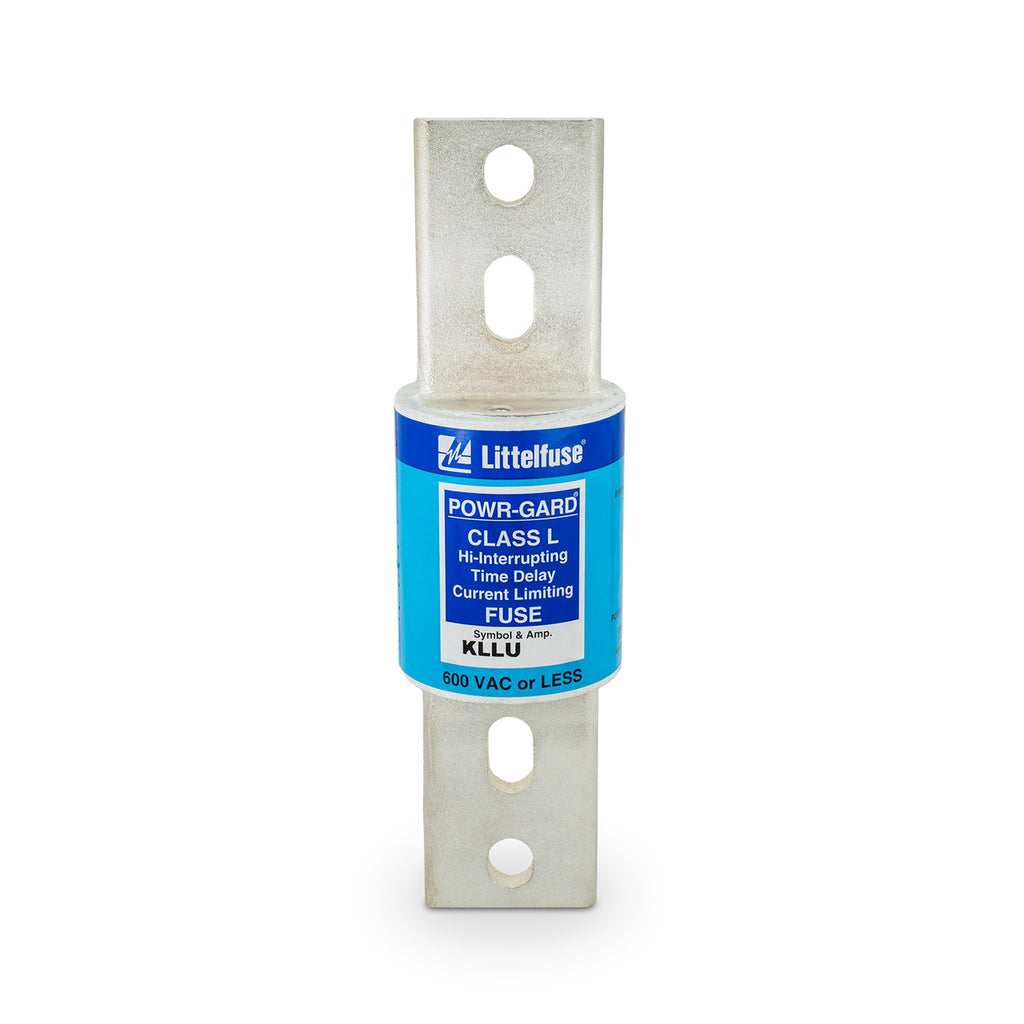

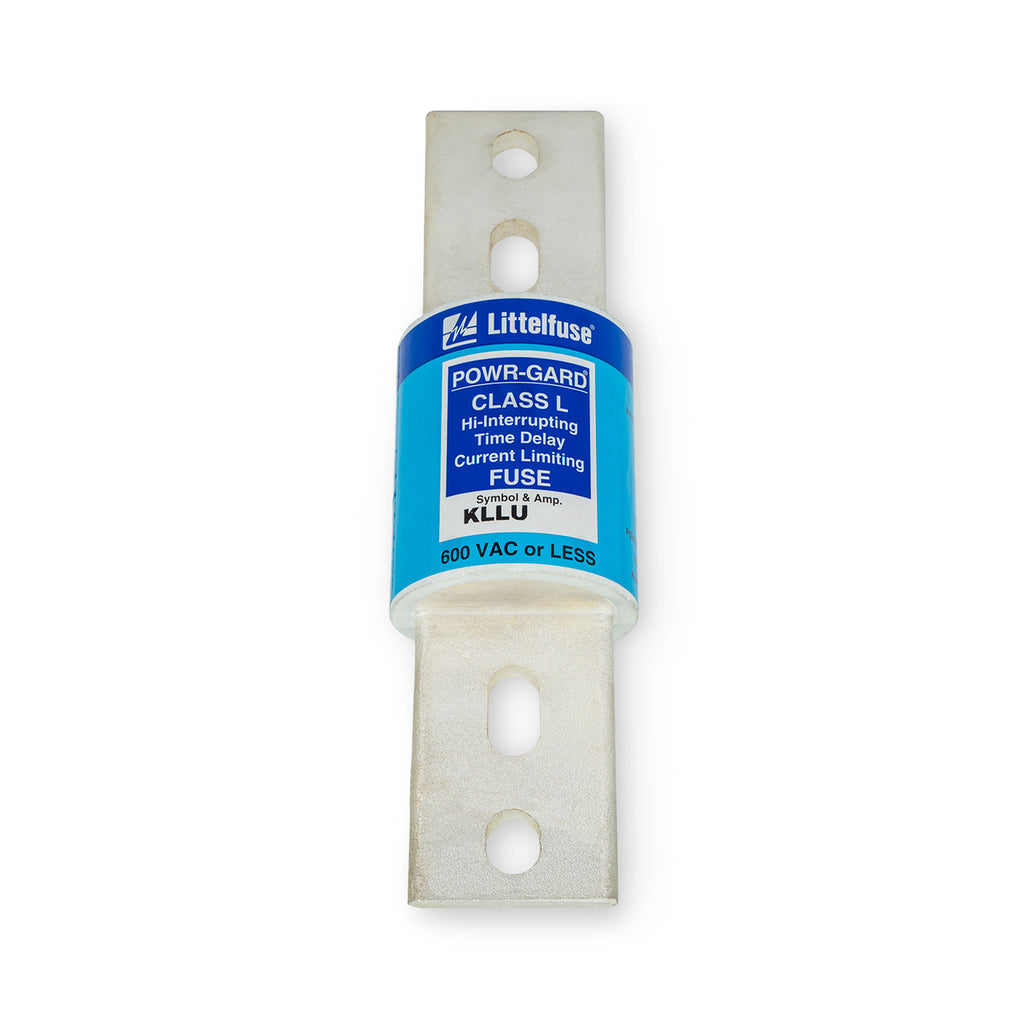

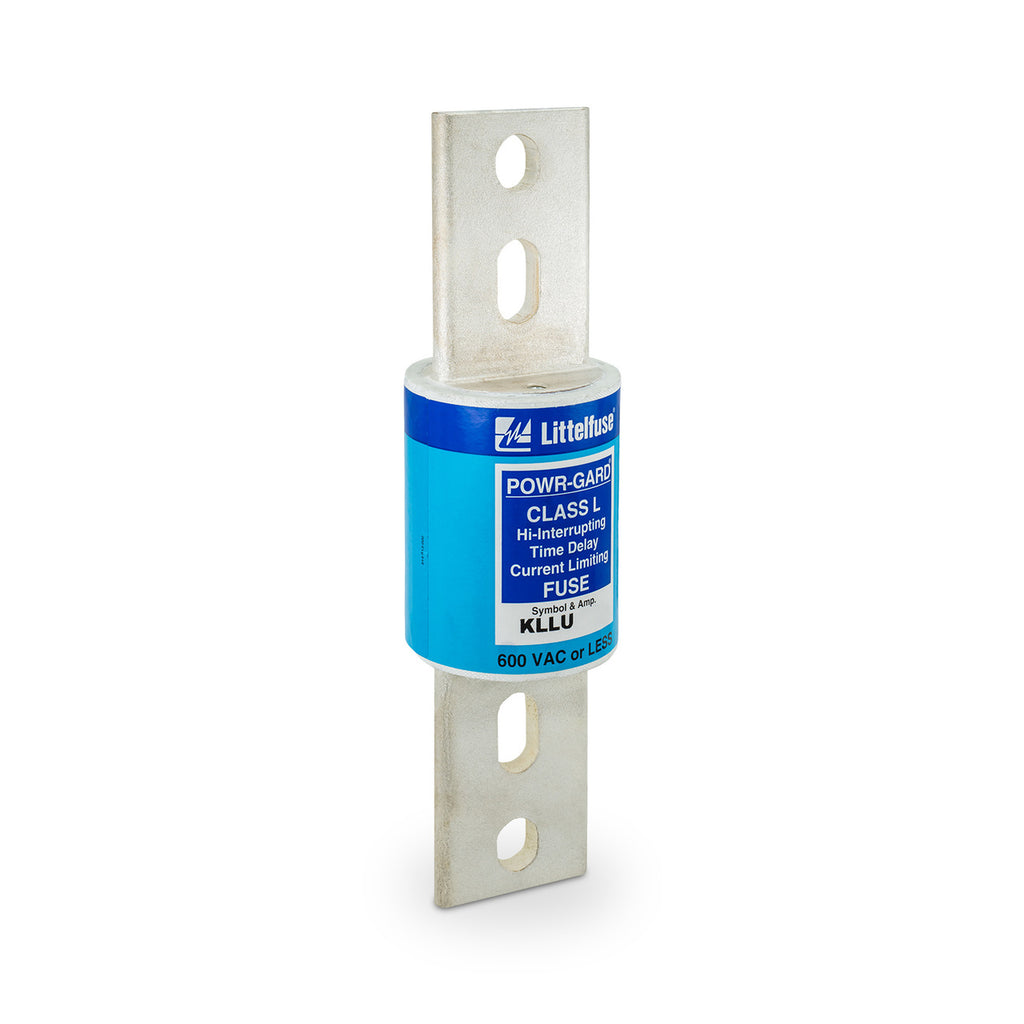

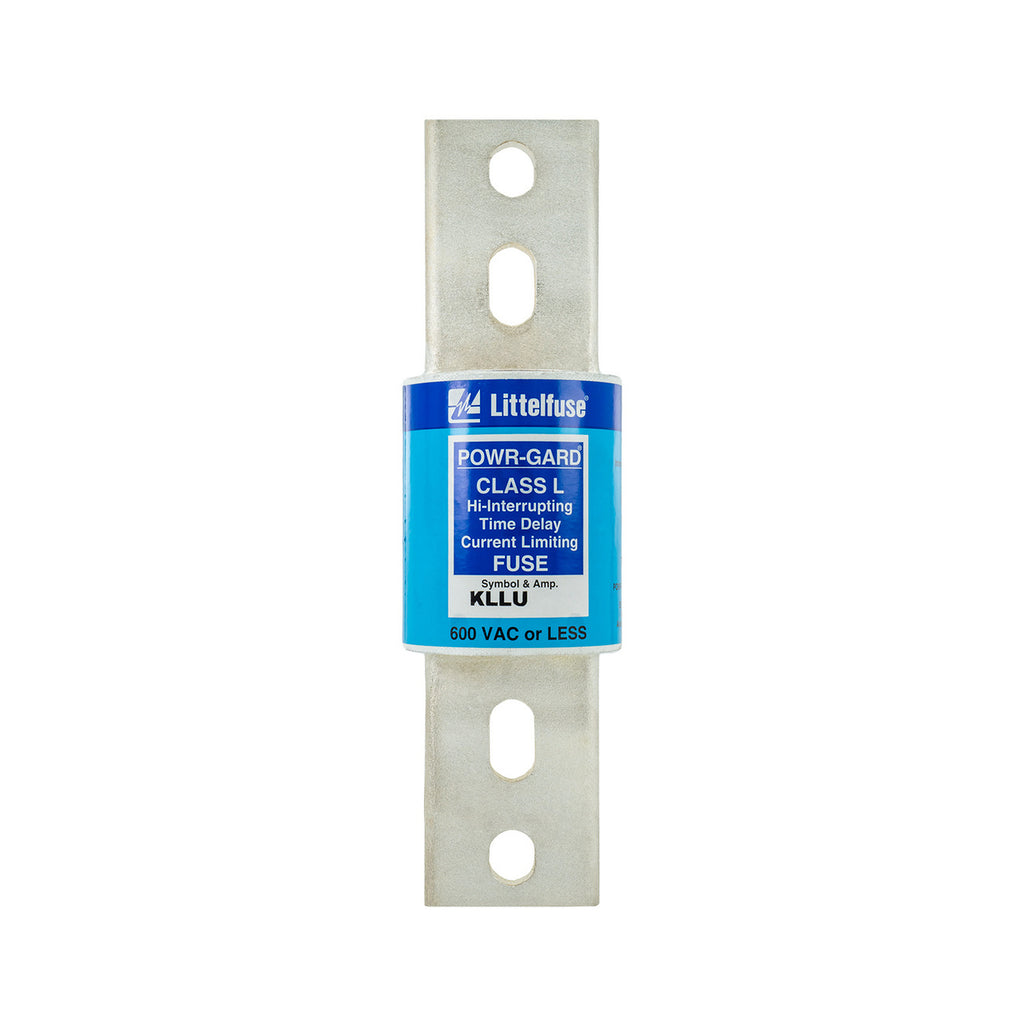

KLLU750 is a Littelfuse Class L low voltage fuse rated for 750 amperes at 600 volts AC, designed for mains and feeder protection in industrial and commercial power distribution systems.

The KLLU750 is a time-delay, current-limiting cartridge fuse with bolt-mount configuration and a physical size of 2 inches by 8 5/8 inches. This fuse provides an economical alternative to the KLPC POWR-PRO series while maintaining excellent coordination with other system components. The time-delay characteristic allows it to withstand temporary inrush currents without nuisance operation, making it ideal for motor circuits and other applications with transient overcurrents.

• Amperage Rating: 750 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: UL Class L
• Response Time: Time Delay
• Protection Type: Current Limiting
• Interrupting Rating: 200,000 AIC at 600 VAC
• DC Interrupting Rating: 20,000 AIC at 300 VDC
• Physical Size: 2 inches x 8 5/8 inches
• Mounting Type: Bolt Mount
• UL Listed (File E81895)
• CSA Certified (File LR29862)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLLU750
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLLU
• Type : KLLU
• Voltage : 600
• Amperage : 750
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 2
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 079458271027
• GTIN : 00079458271027
• Weight : 3
