Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLLU700

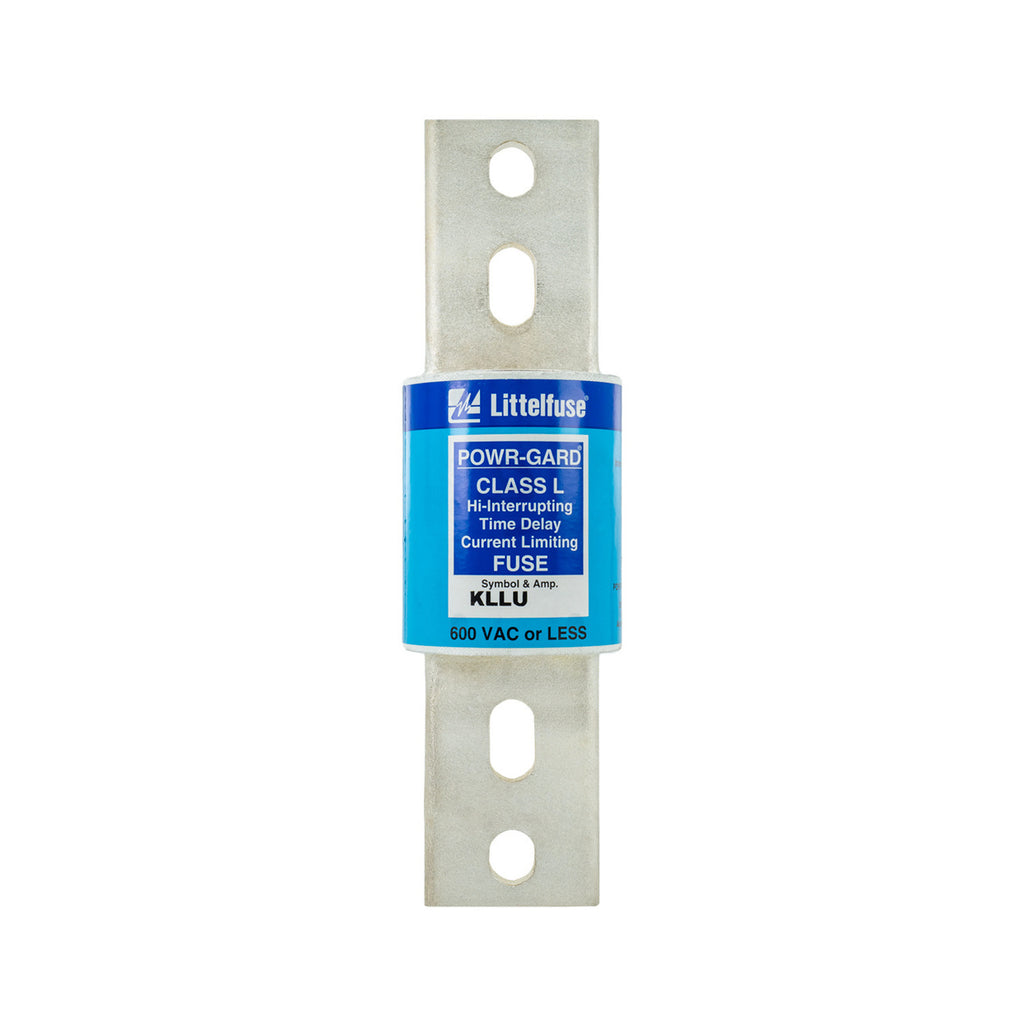

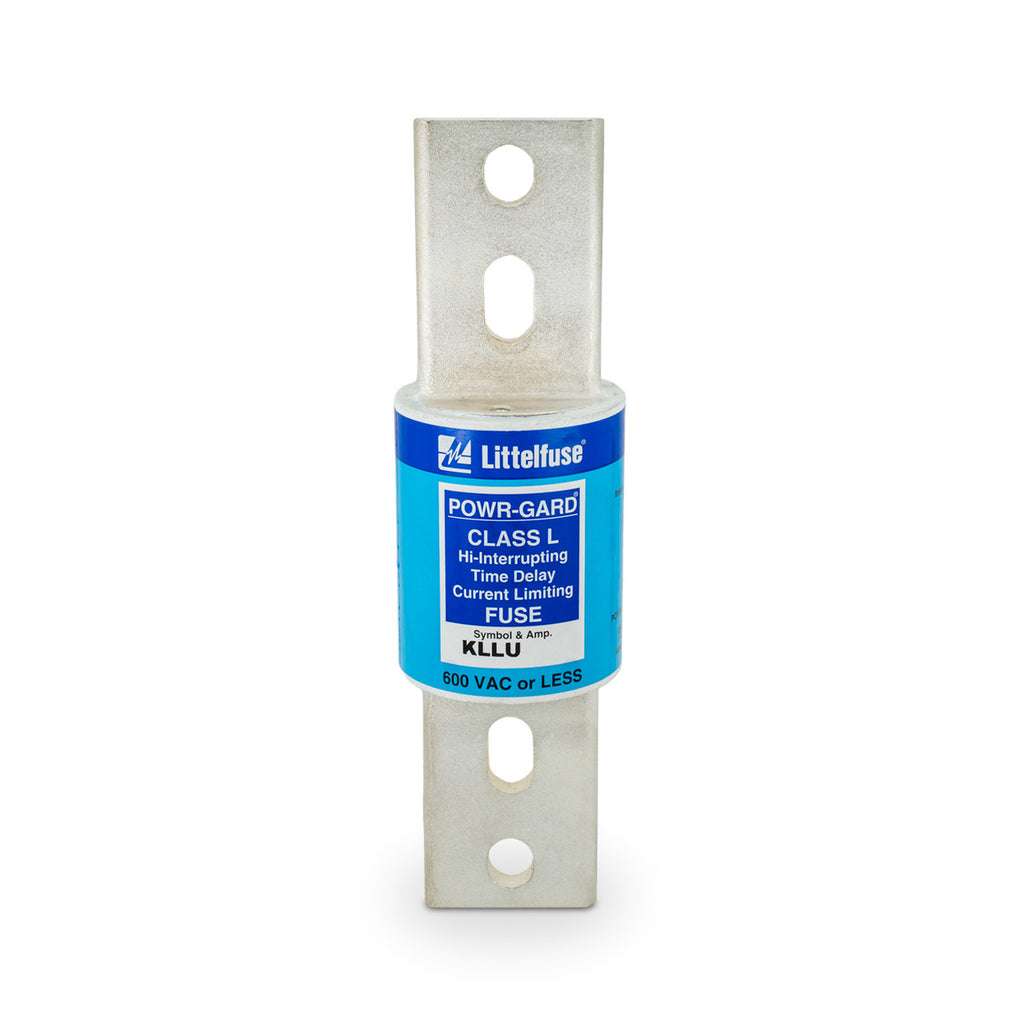

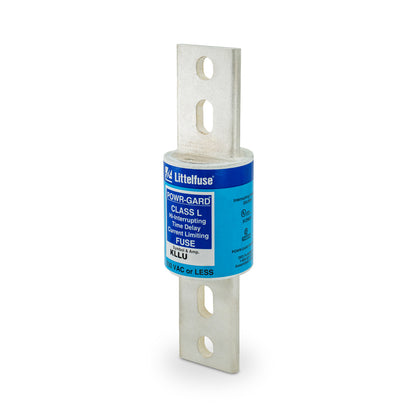

KLLU700 is a Littelfuse Class L time delay cartridge fuse designed for high-current circuit protection.
This fuse features a 700 ampere rating with voltage ratings of 600 VAC and 300 VDC. It has a bolt-on mounting type and a high interrupting rating of 200,000 amps at 600 VAC. The fuse is part of the POWR-GARD KLLU series and meets UL 248-10, CSA, and CE certifications, making it suitable for industrial and commercial electrical applications requiring reliable current limiting protection.
- Key Specifications
- Amperage: 700 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200,000 A at 600 VAC
- Fuse Class: L
- Fuse Type: Time Delay Cartridge
- Mounting Type: Bolt-On
- Series: POWR-GARD KLLU
- Certifications: UL 248-10, CSA, CE
- Dimensions: 2-1/2 inch diameter, 8-5/8 inch length
- Part Number: KLLU700
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLLU
- Type : KLLU
- Voltage : 600
- Amperage : 700
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
- UPC : 079458271010
- GTIN : 00079458271010
- Weight : 3
