Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLLU601

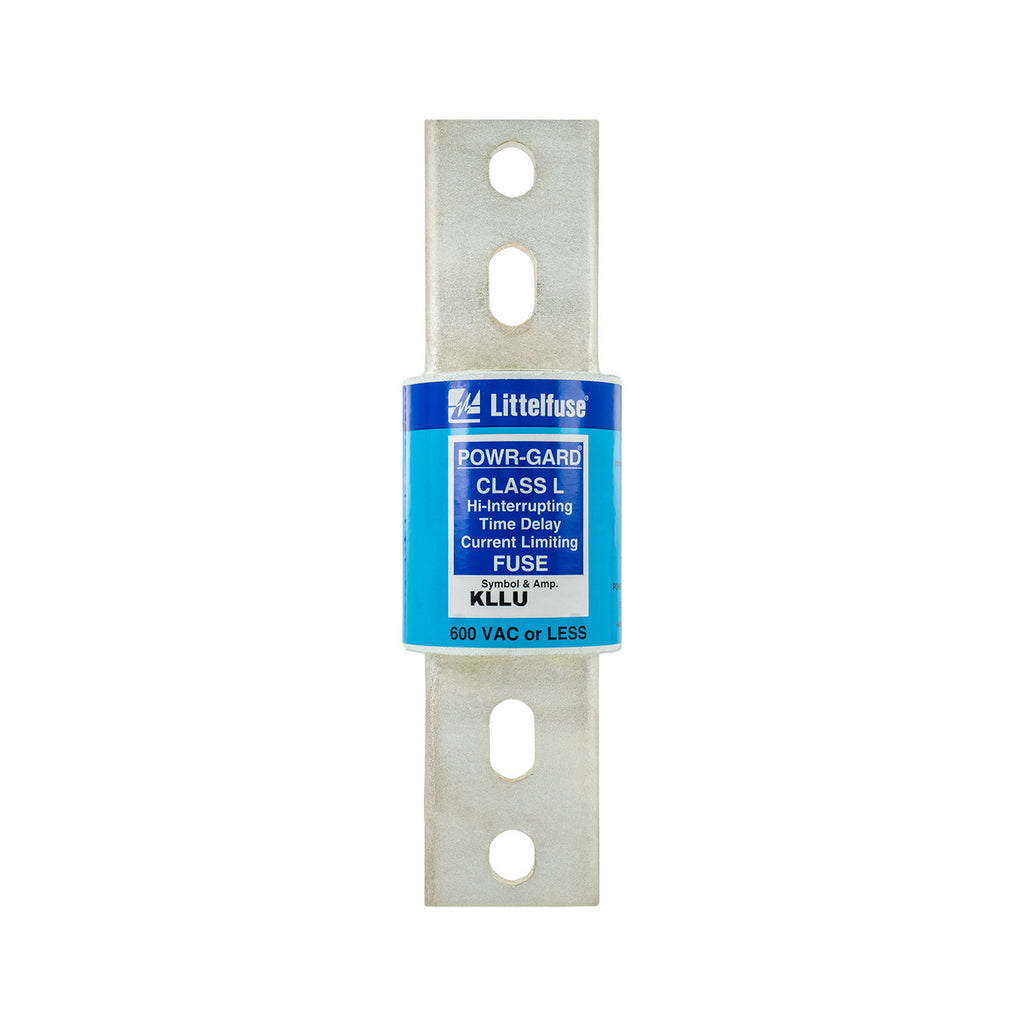

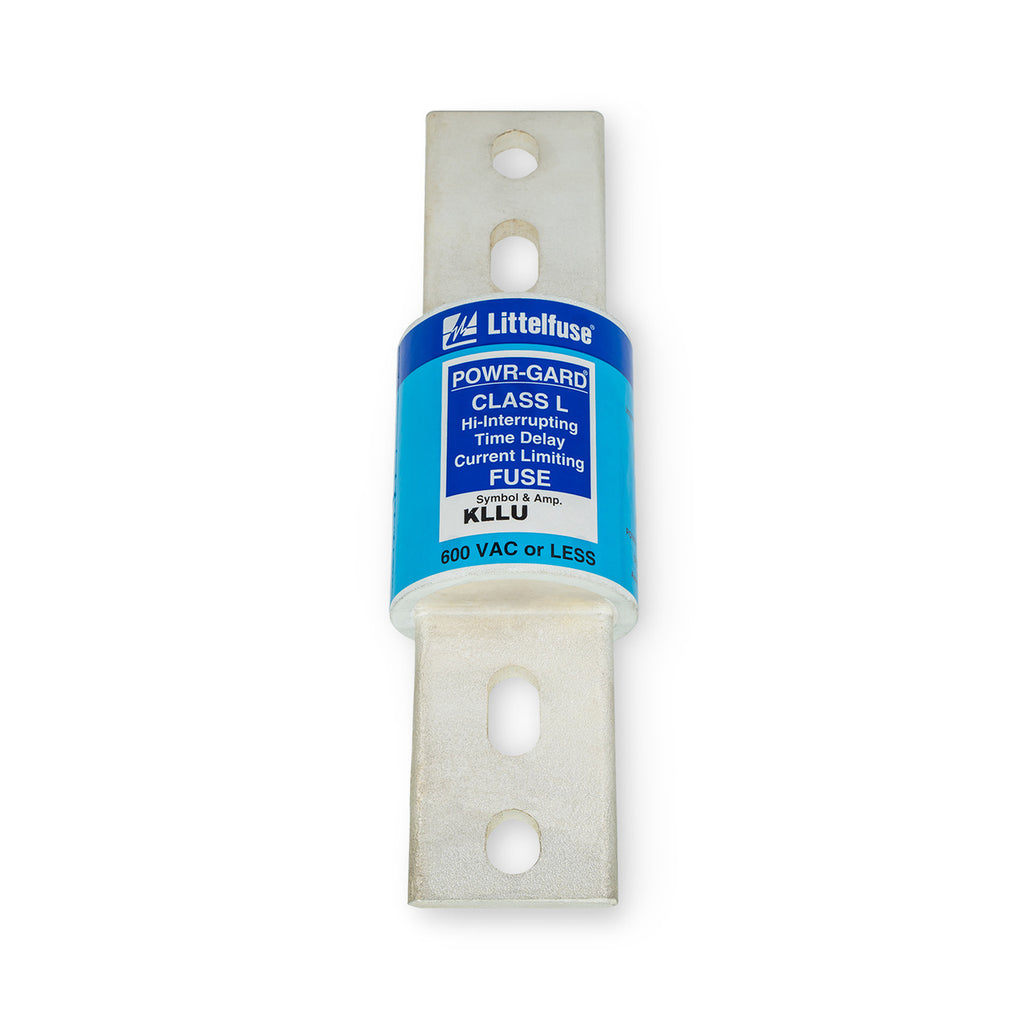

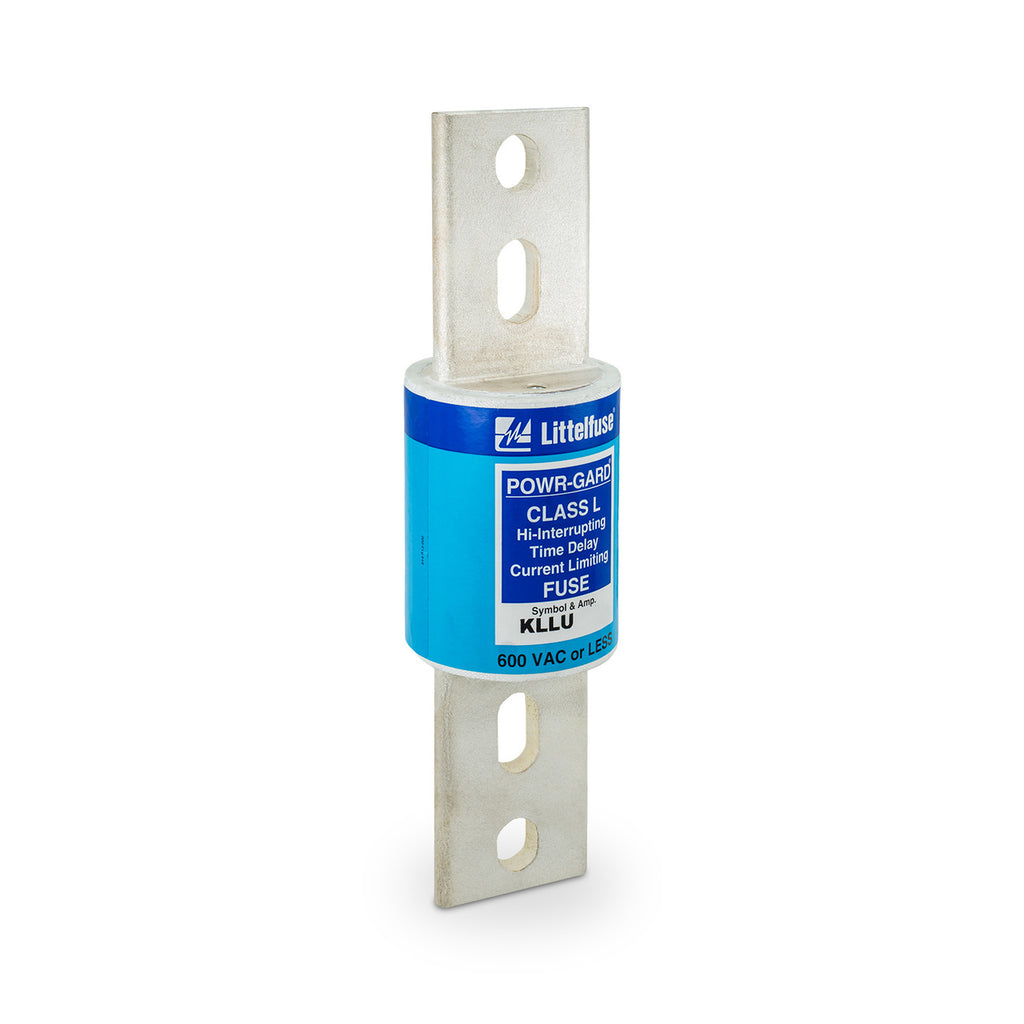

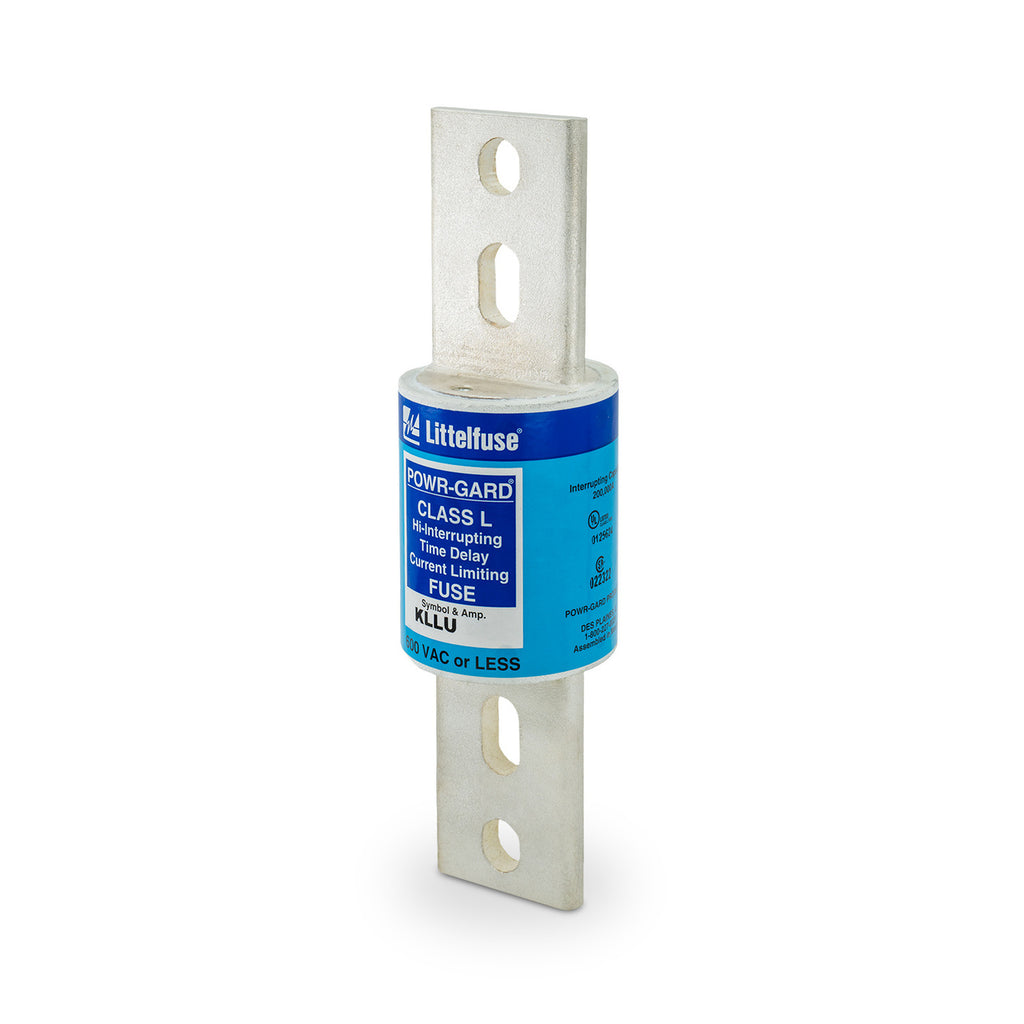

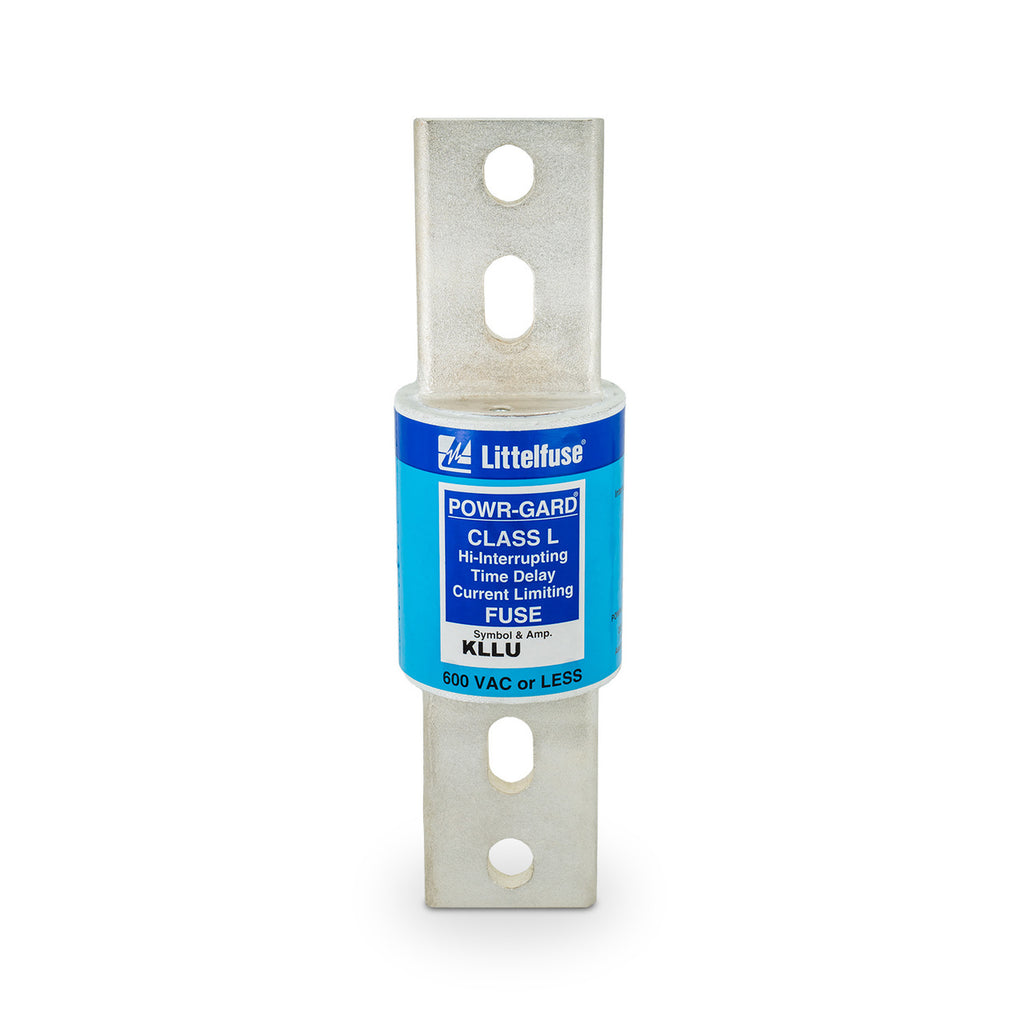

KLLU601 is a UL Class L time-delay fuse rated for 601 amperes at 600VAC with a 200,000 ampere interrupting rating. KLLU601 is designed for service switches, switchboard mains and feeders, motor control center mains, large motor branch circuits, and circuit breaker protection applications. This cartridge-style fuse features bolt-in mounting and provides current-limiting protection with a ten-second minimum time delay at 500 percent of rating to accommodate heavy starting currents from large motors and inductive loads. Key Specifications
- Current Rating: 601 Amperes
- Voltage Rating: 600VAC / 300VDC
- Interrupting Rating: 200,000 Amperes AC
- Fuse Class: L
- Fuse Type: Time-Delay / Slow Blow
- Mounting: Bolt-In
- Body Diameter: 2-1/2 inches
- Body Length: 8-5/8 inches
- Body Type: Cartridge
- Standards: UL 248-10, CSA, CE
Specifications
- Part Number: KLLU601
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLLU
- Type : KLLU
- Voltage : 600
- Amperage : 601
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 079458270990
- GTIN : 00079458270990
- Weight : 3
