Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLLU1200

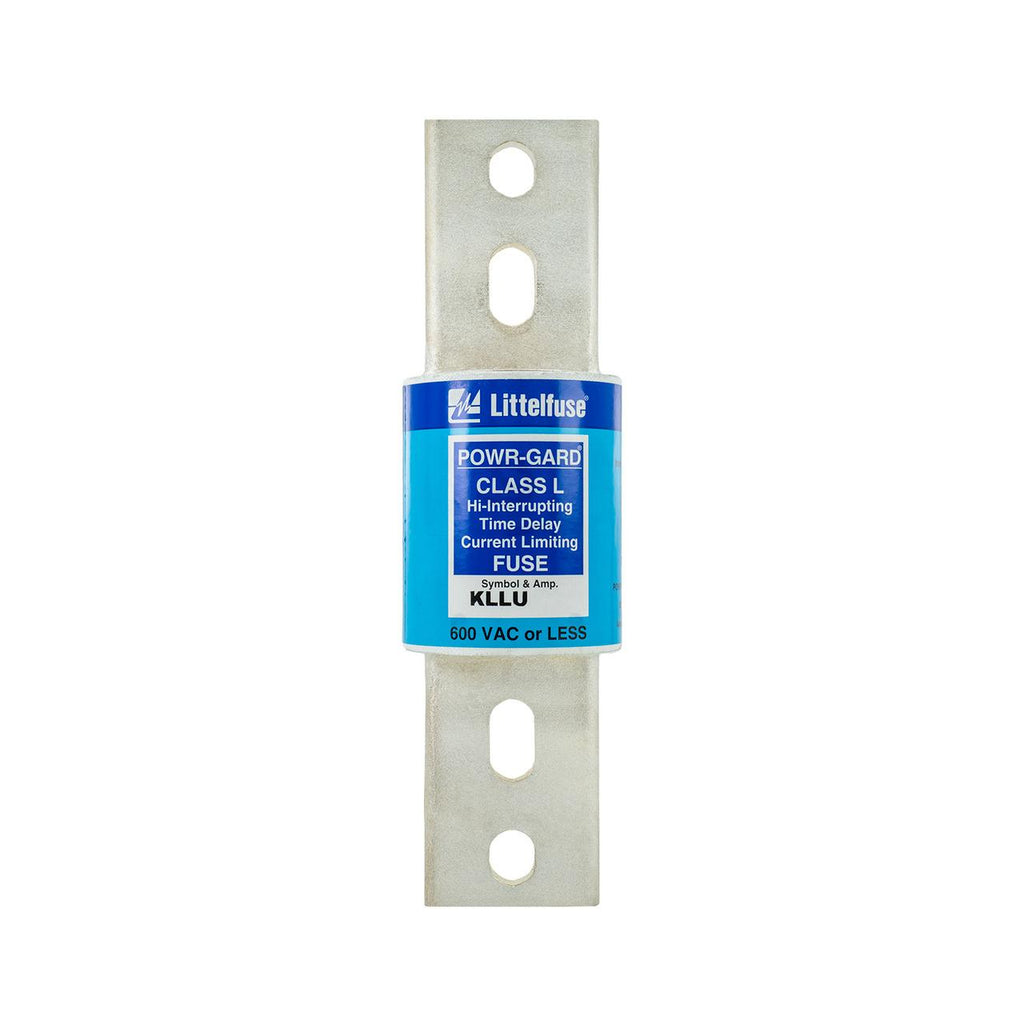

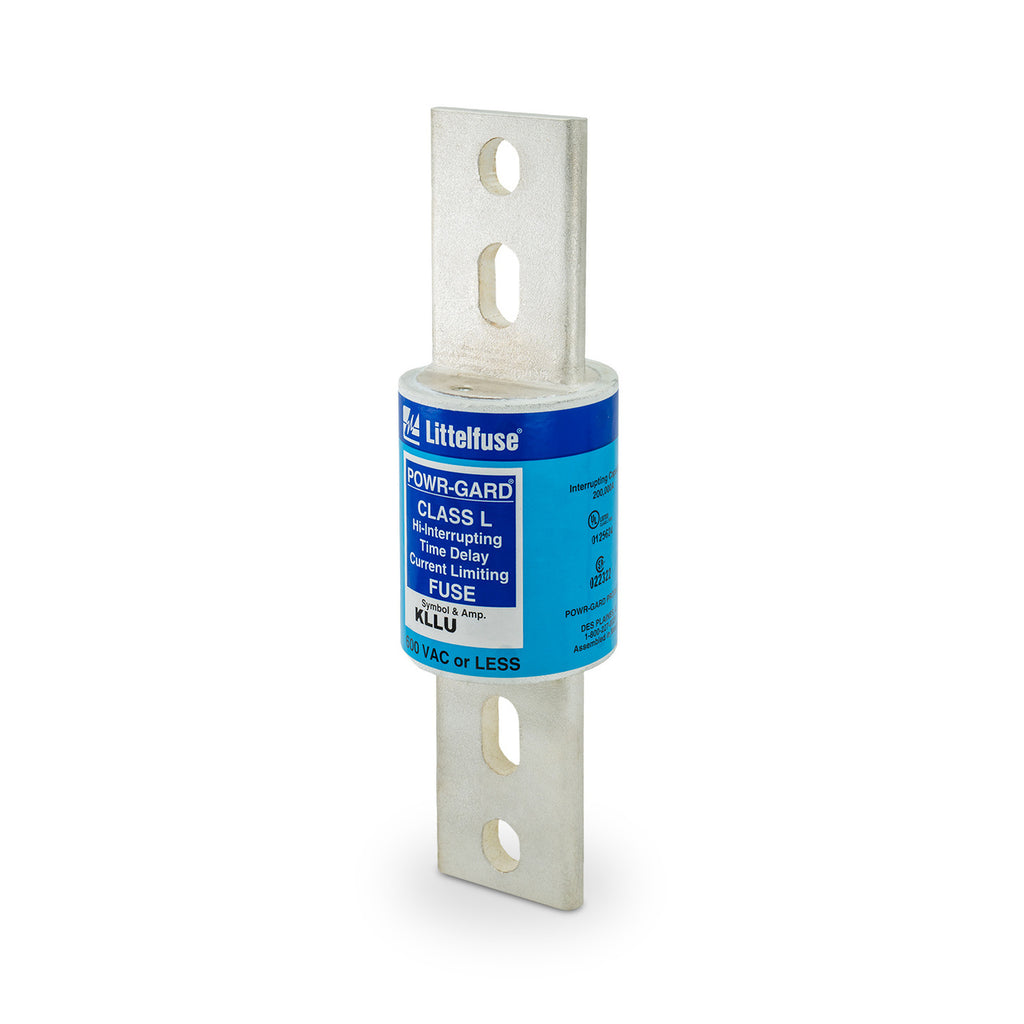

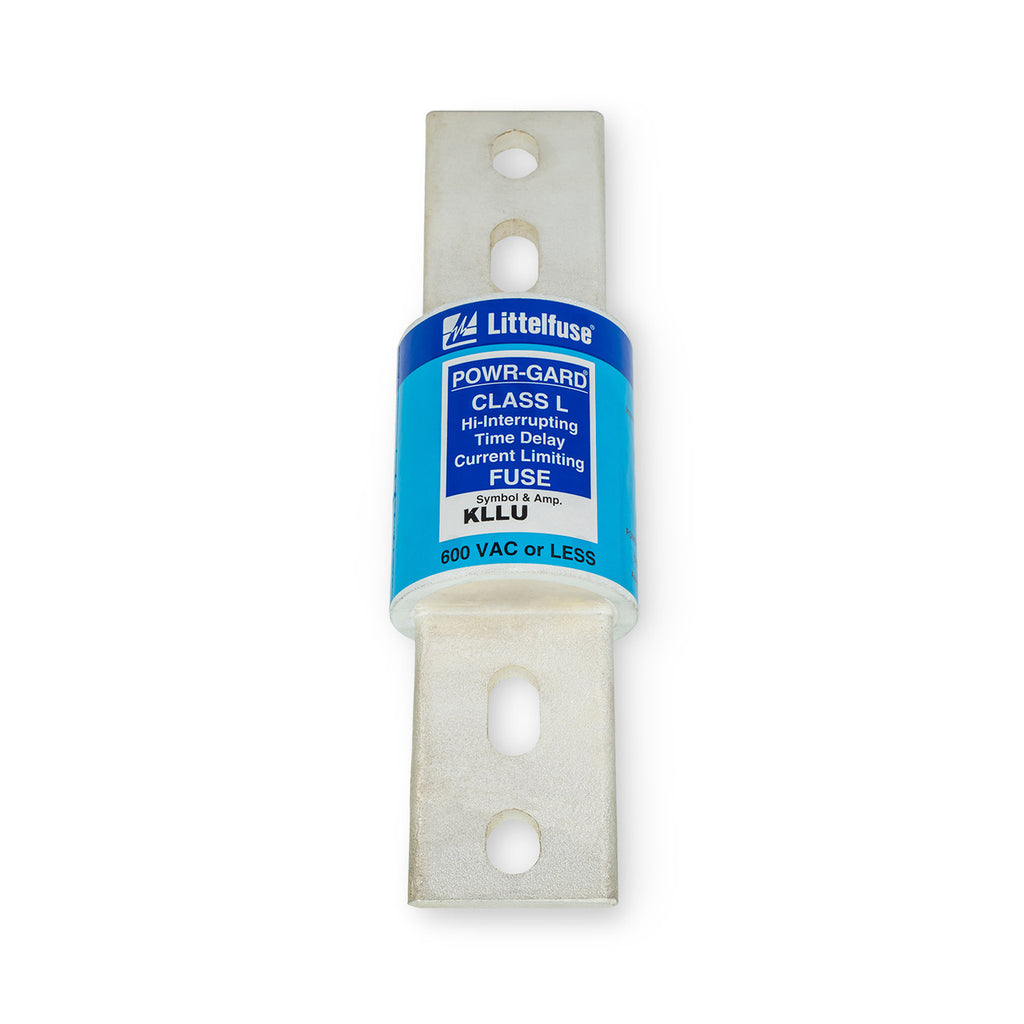

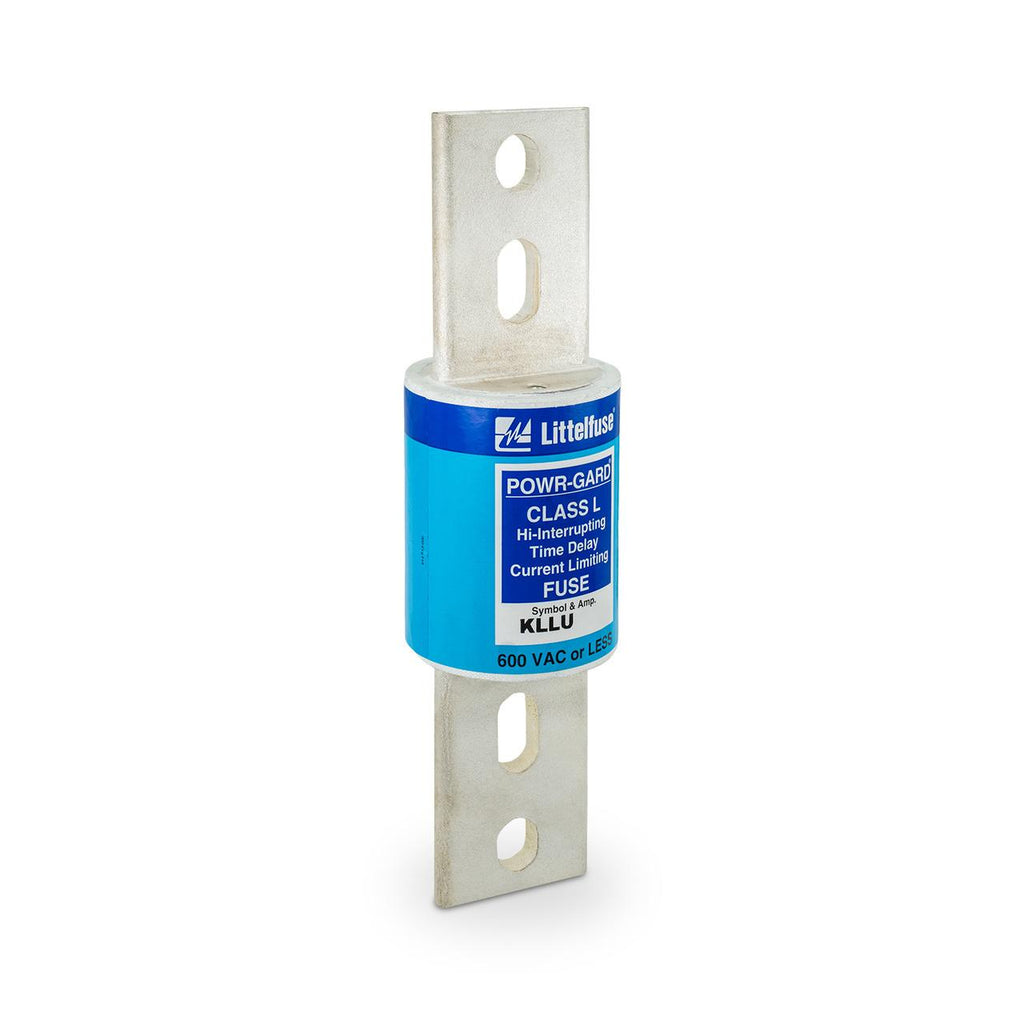

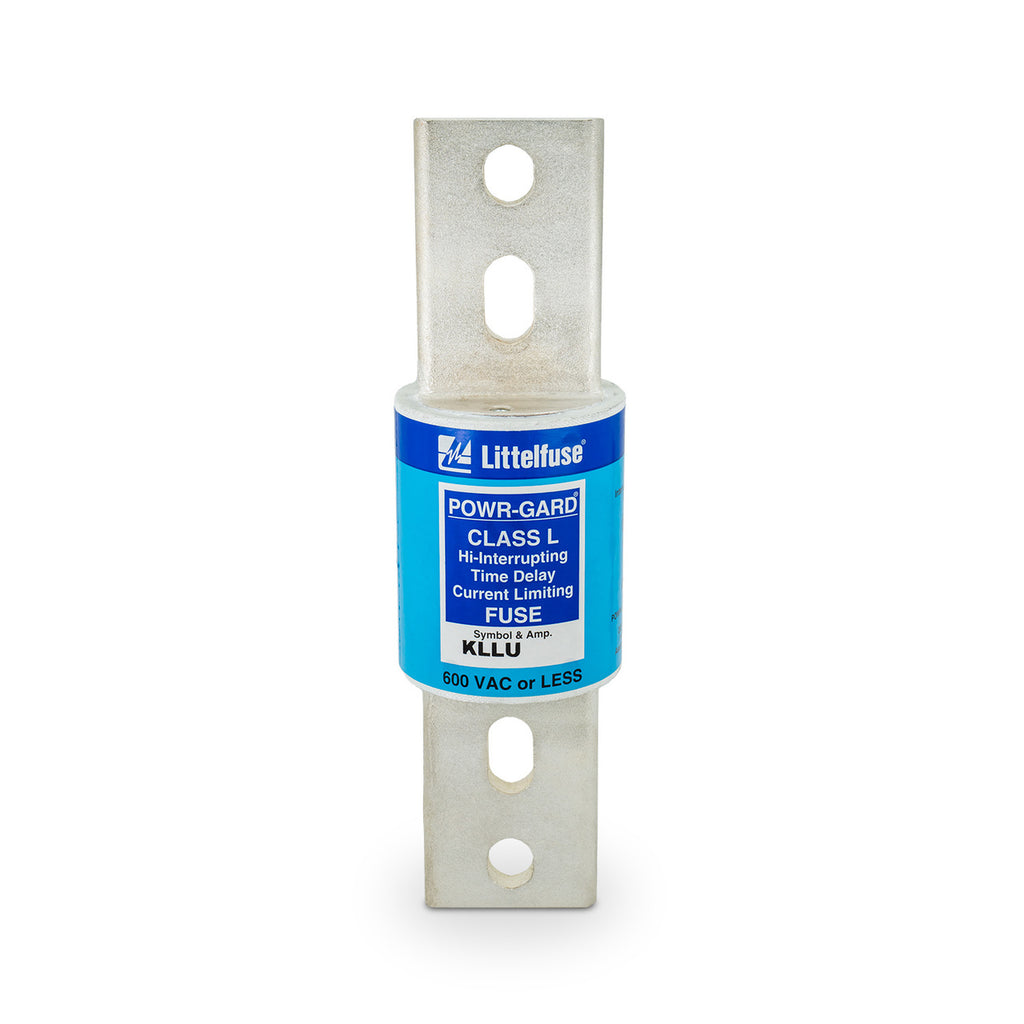

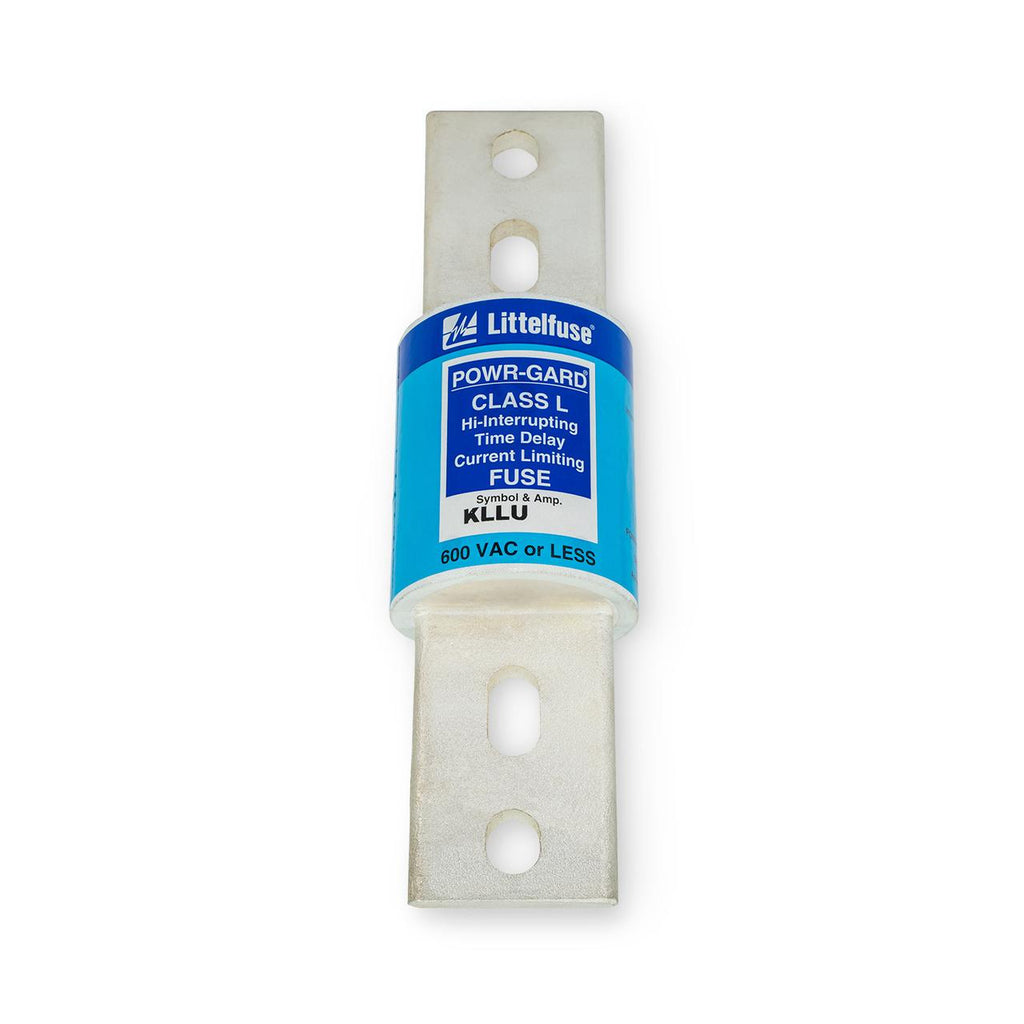

KLLU1200 is a Littelfuse 1200 Amp, 600 Volt AC Class L time delay fuse designed for reliable overcurrent protection.This 1 pole fuse features a bolt-in connection type and is rated for 1200 Amps at 600VAC and 300VDC. It has a high interrupting rating of 200,000 amps at 600VAC and 20,000 amps at 300VDC, with current limiting and time delay characteristics to protect motors and switchboard mains. The fuse body is made of melamine and it is UL and CSA certified, suitable for use in service switches, motor control centers, and large motor branch circuits.
- Amperage: 1200A
- Voltage Rating: 600VAC, 300VDC
- Poles: 1
- Connection Type: Bolt-In
- Interrupting Rating: 200kA @ 600VAC, 20kA @ 300VDC
- Fuse Class: L
- Time Delay: Yes
- Current Limiting: Yes
- Body Material: Melamine
- Certifications: UL Listed, CSA Certified
- Physical Size: 2 inch diameter, 10 3/4 inch length
Specifications
- Part Number: KLLU1200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLLU
- Type : KLLU
- Voltage : 600
- Amperage : 1200
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 079458271065
- GTIN : 00079458271065
- Weight : 4 lb
