Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLLU800

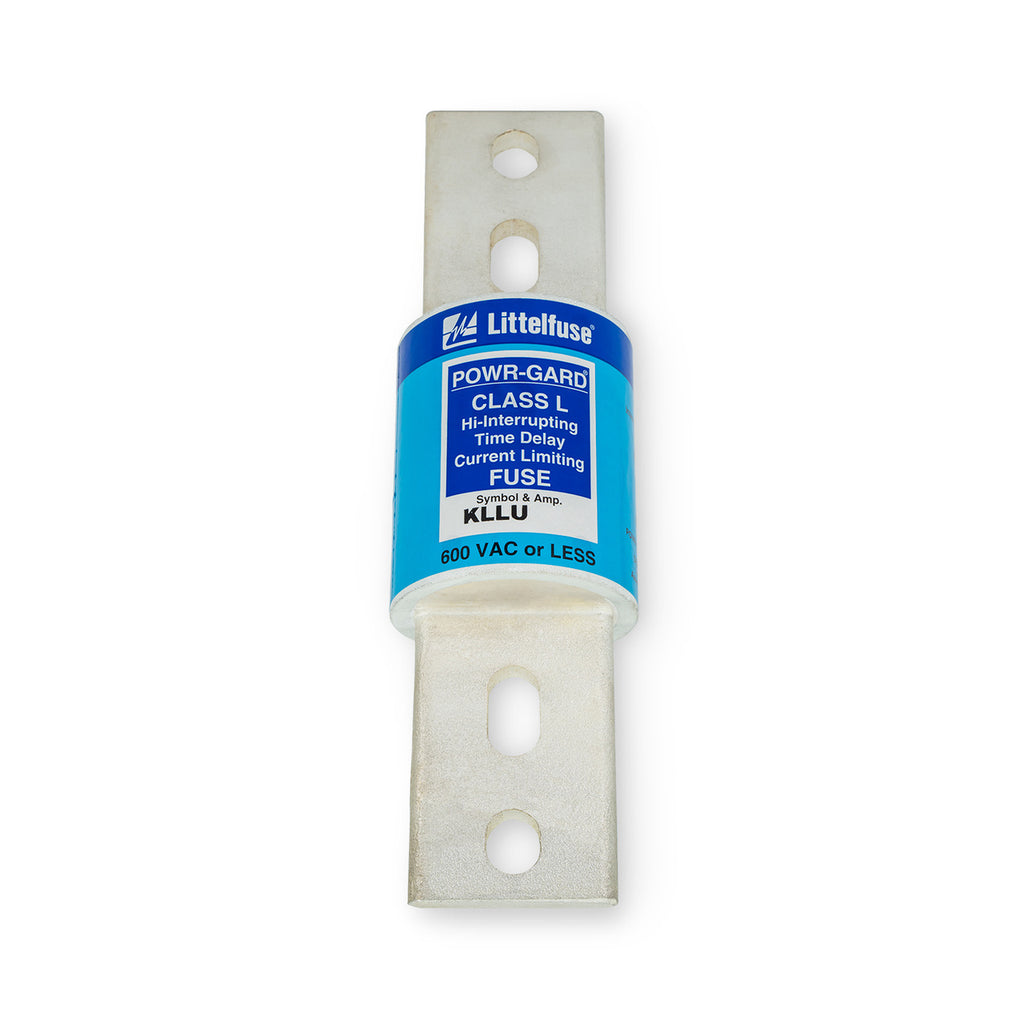

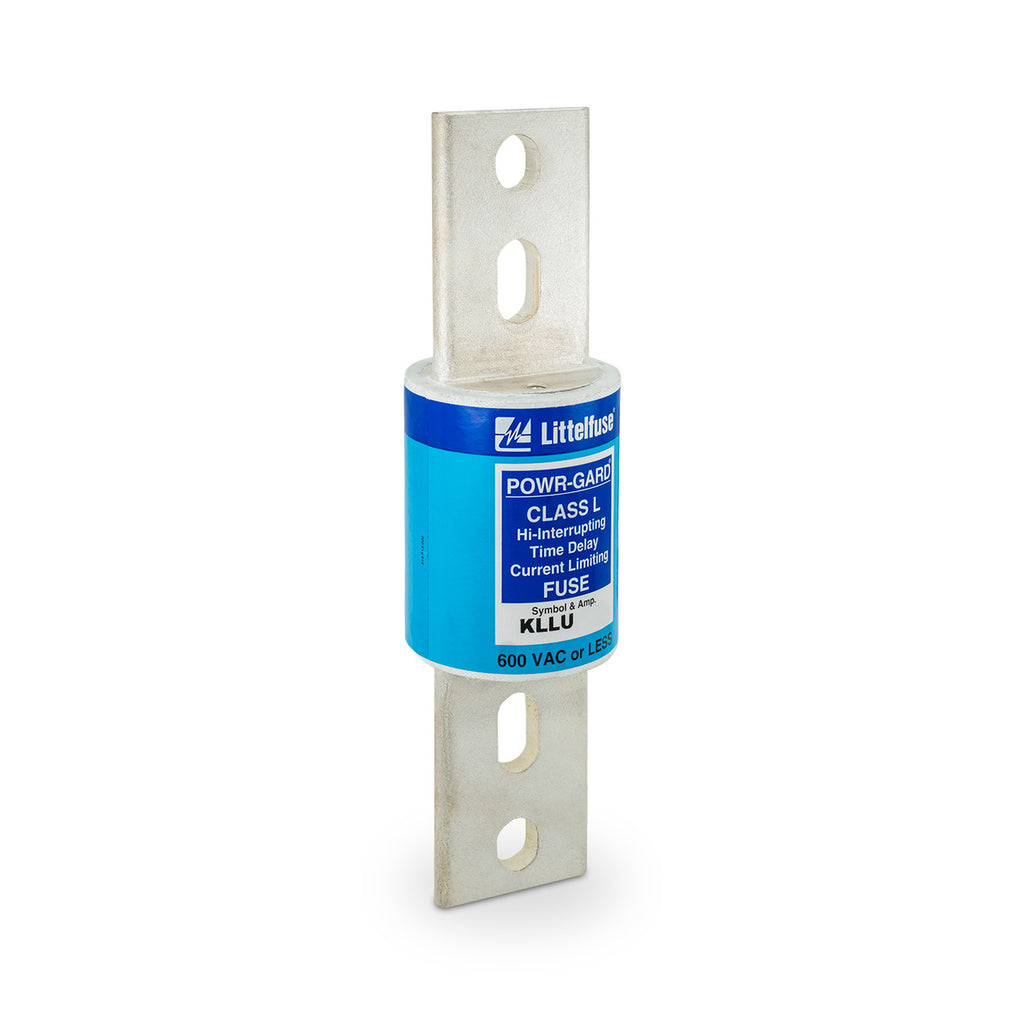

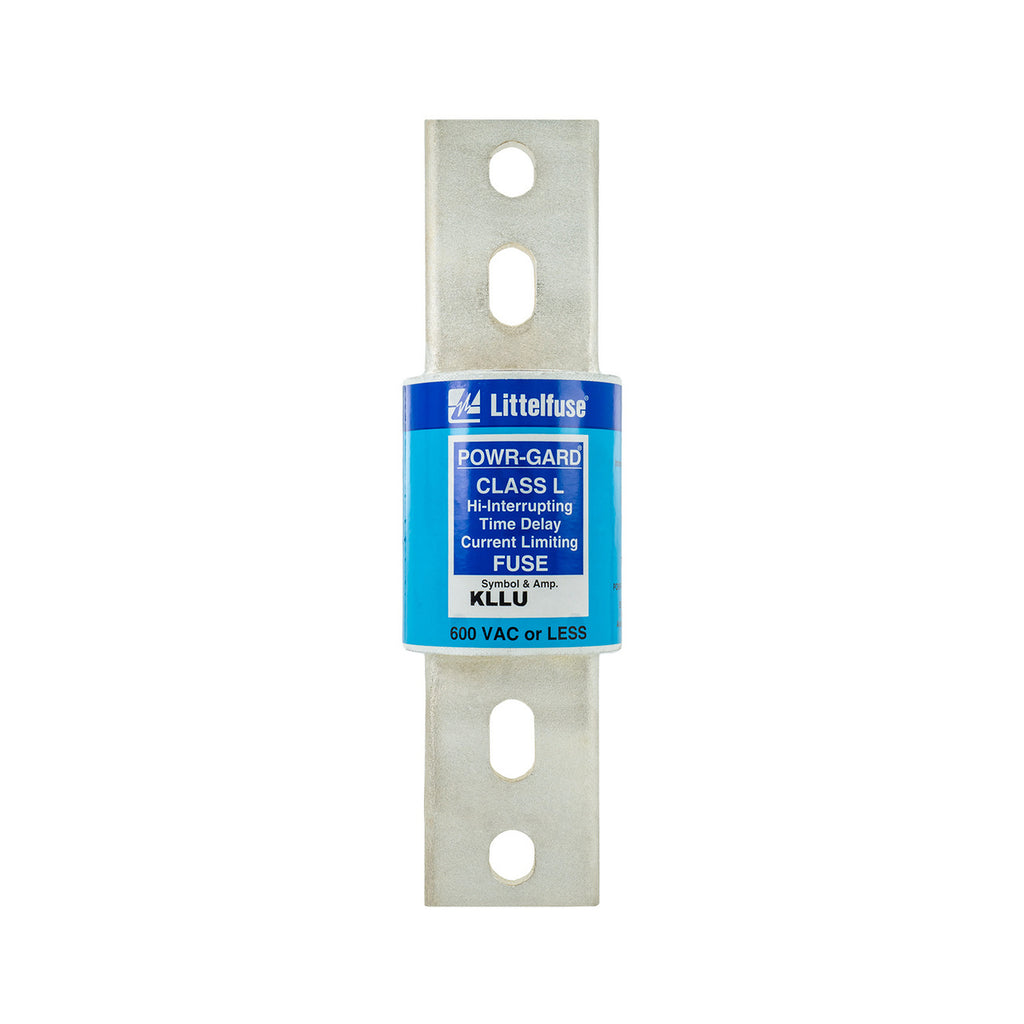

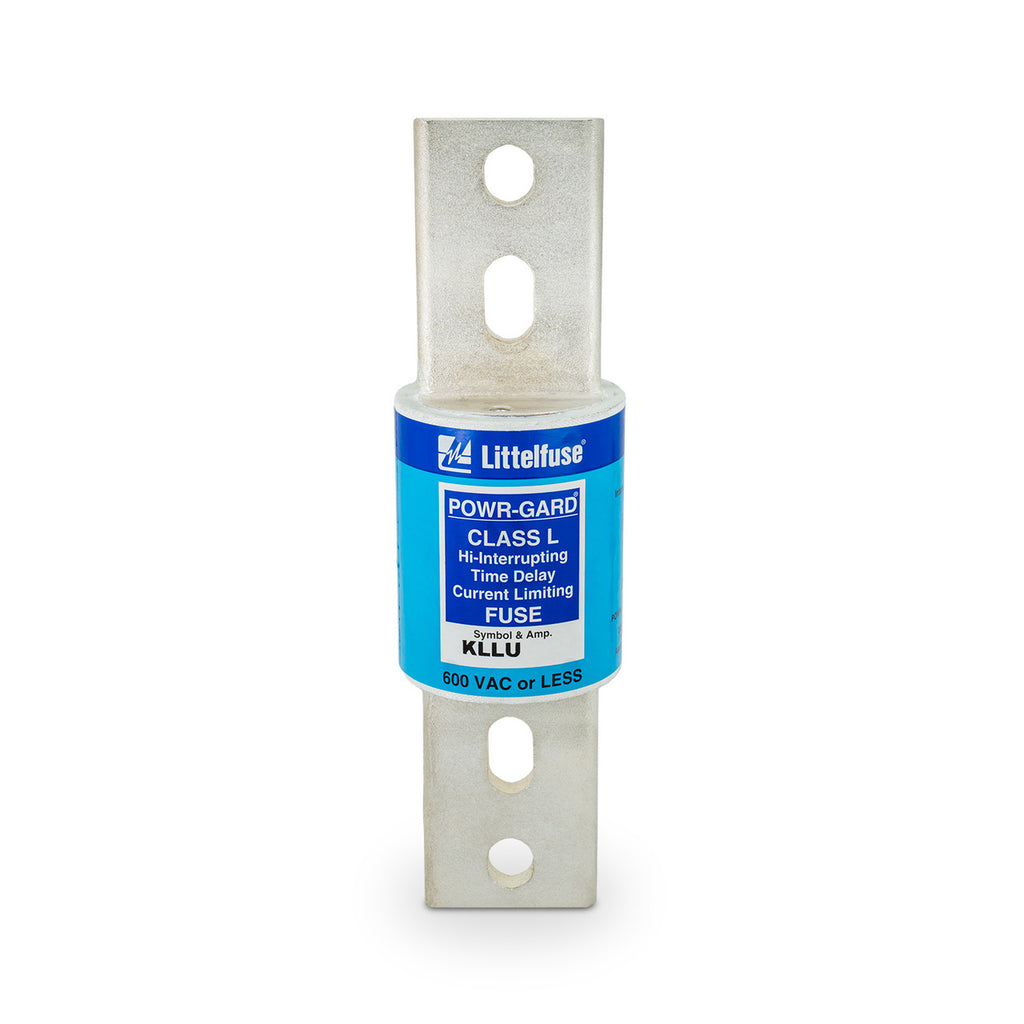

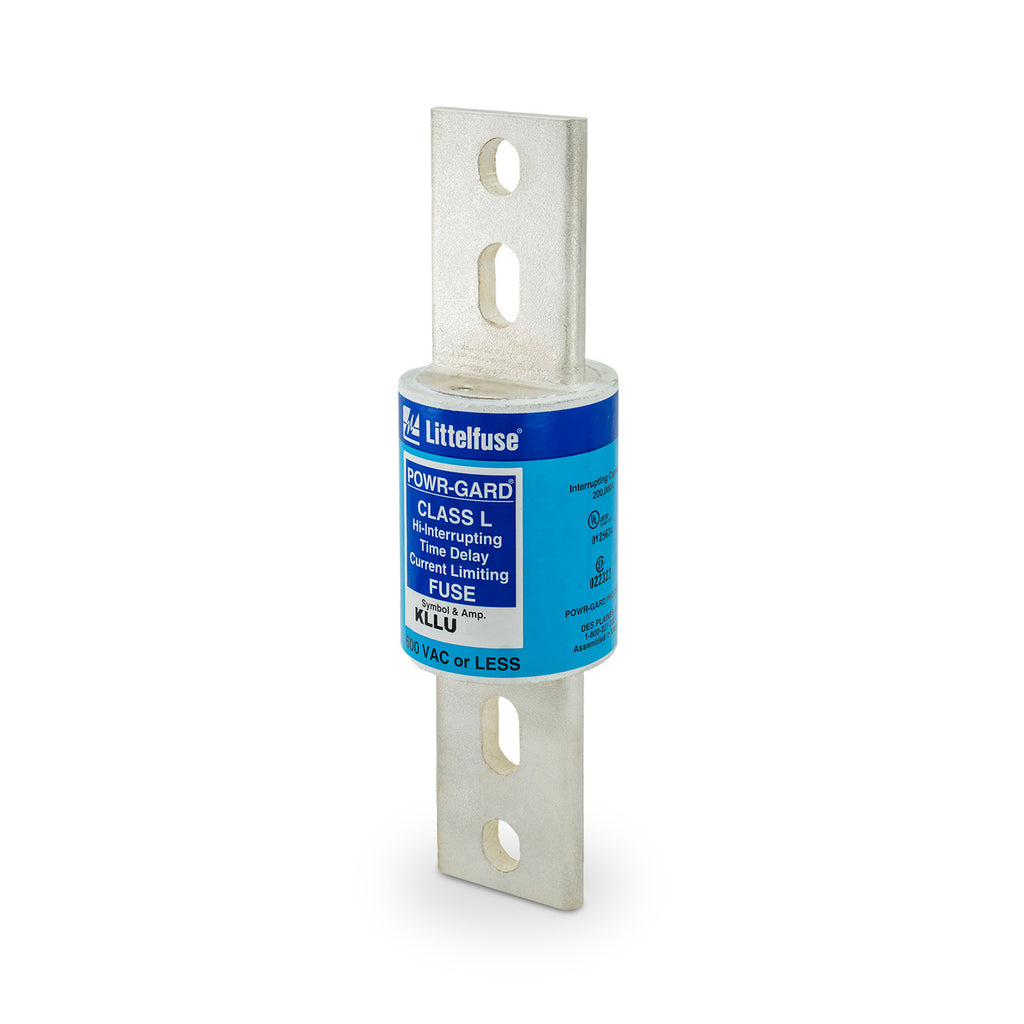

KLLU-800 is a Littelfuse Class L time delay fuse rated for 800 amps and 600 volts AC with bolt mounting and a single pole design.
This fuse features a 200,000 amp interrupt rating at 600 VAC and 20,000 amp interrupt rating at 300 VDC. It is a current limiting fuse designed for motor branch circuit protection, service switches, switchboard mains, and bolted pressure contact switches. The fuse has a blade connection with bolt terminals and meets UL and CSA certifications. Its physical size is approximately 2 inches wide by 2 inches high by 8.63 inches long, providing reliable and economical protection with selective coordination capabilities.
- Key Specifications
- Amperage Rating: 800 A
- Voltage Rating: 600 V AC, 300 V DC
- Poles: 1
- Mounting Type: Bolt Mount
- Interrupt Rating: 200,000 A @ 600 VAC, 20,000 A @ 300 VDC
- Fuse Class: Class L, Time Delay
- Connection Type: Blade with Bolt Terminals
- Series: KLLU
- Approvals: UL Listed, CSA Certified
- Dimensions: 2" W x 2" H x 8.63" L
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLLU800
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLLU
- Type : KLLU
- Voltage : 600
- Amperage : 800
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 07945827103
- GTIN : 00079458271034
- Weight : 3.63
