Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLLU-800

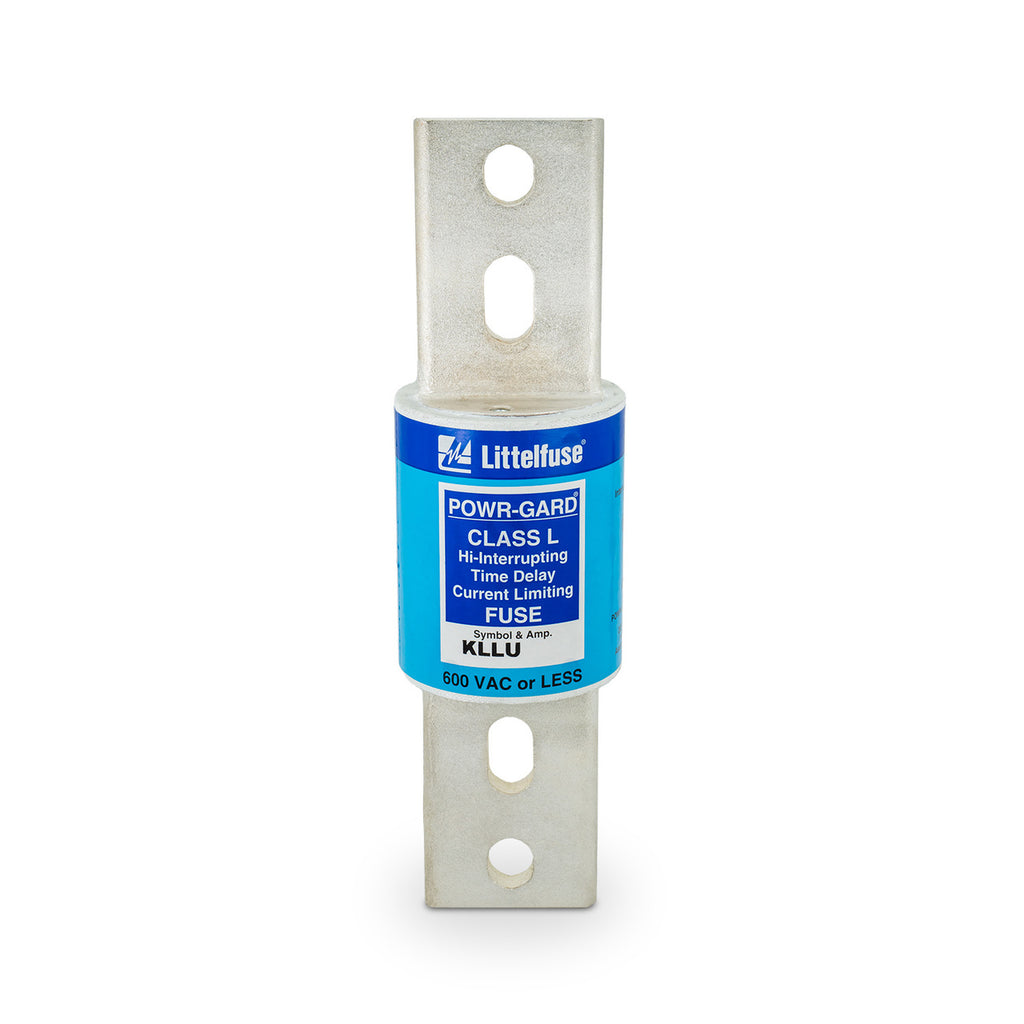

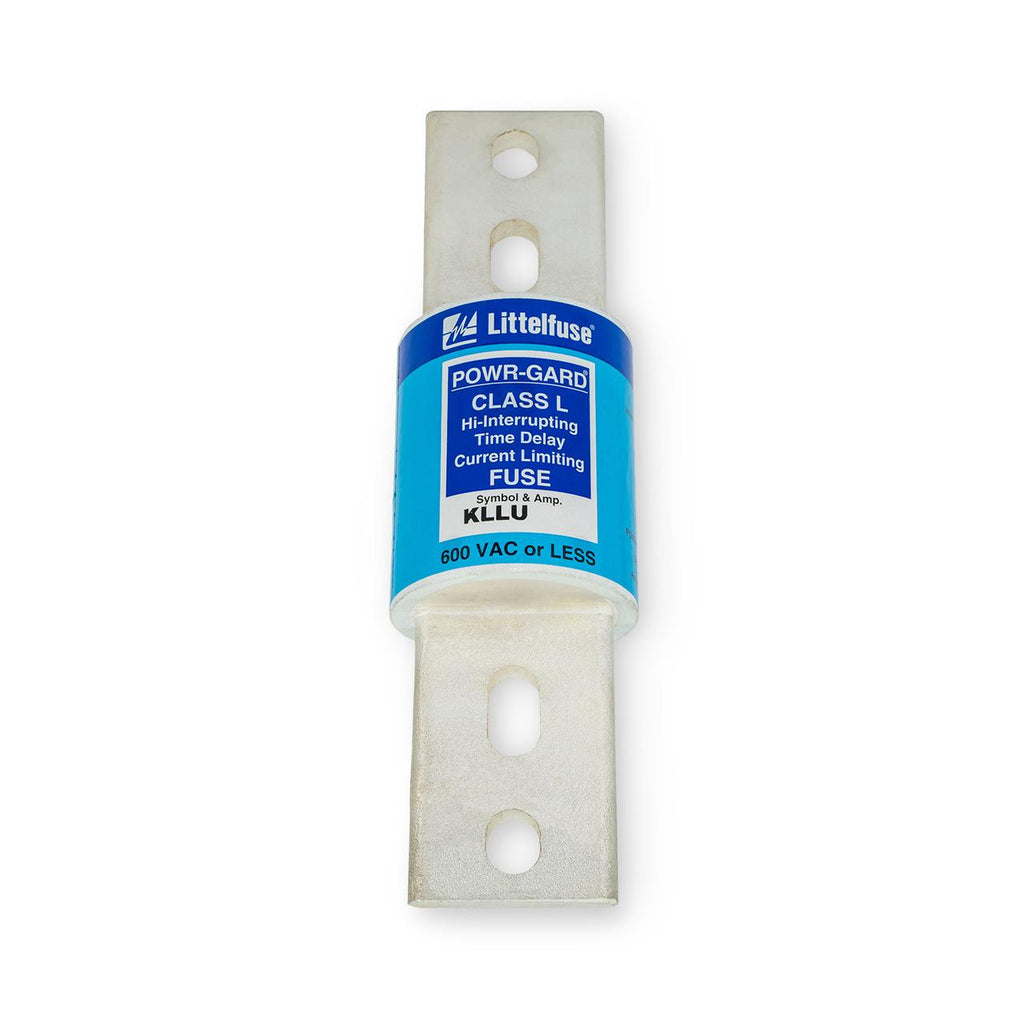

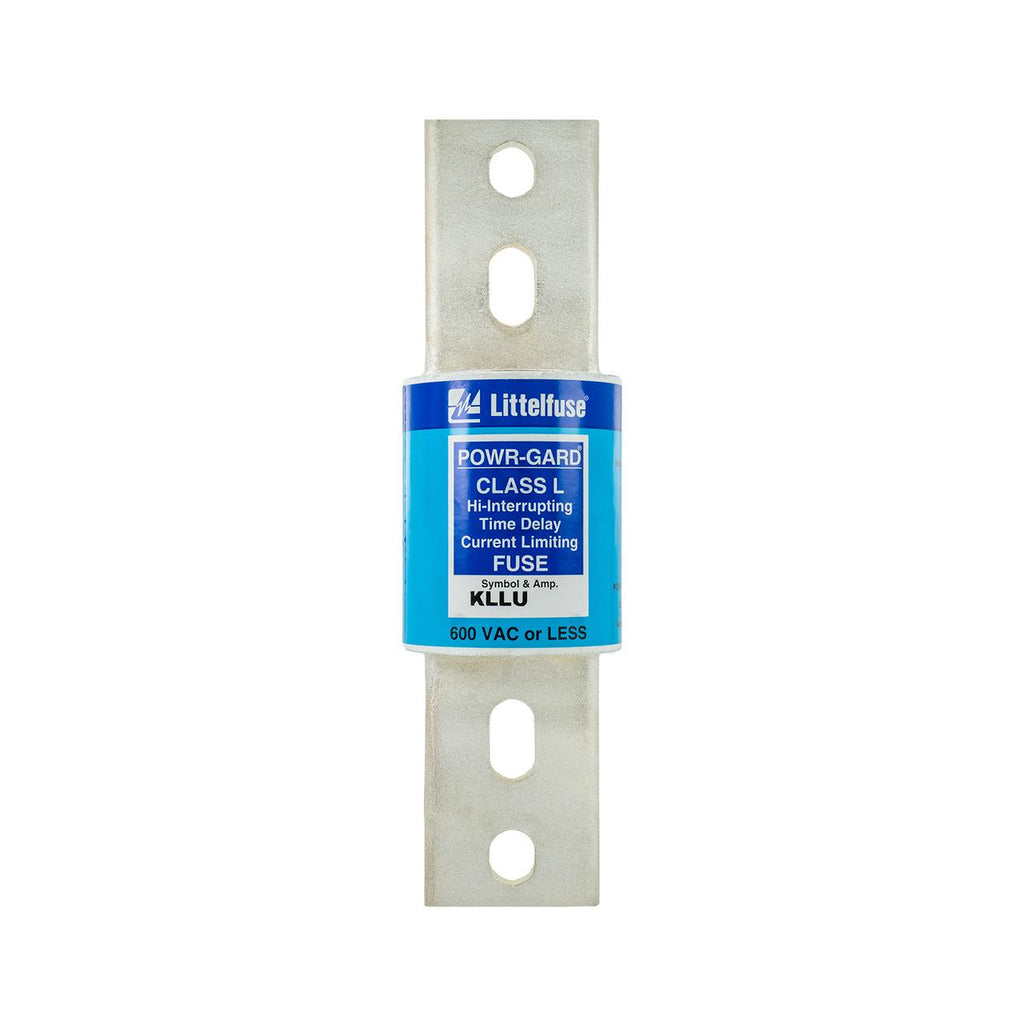

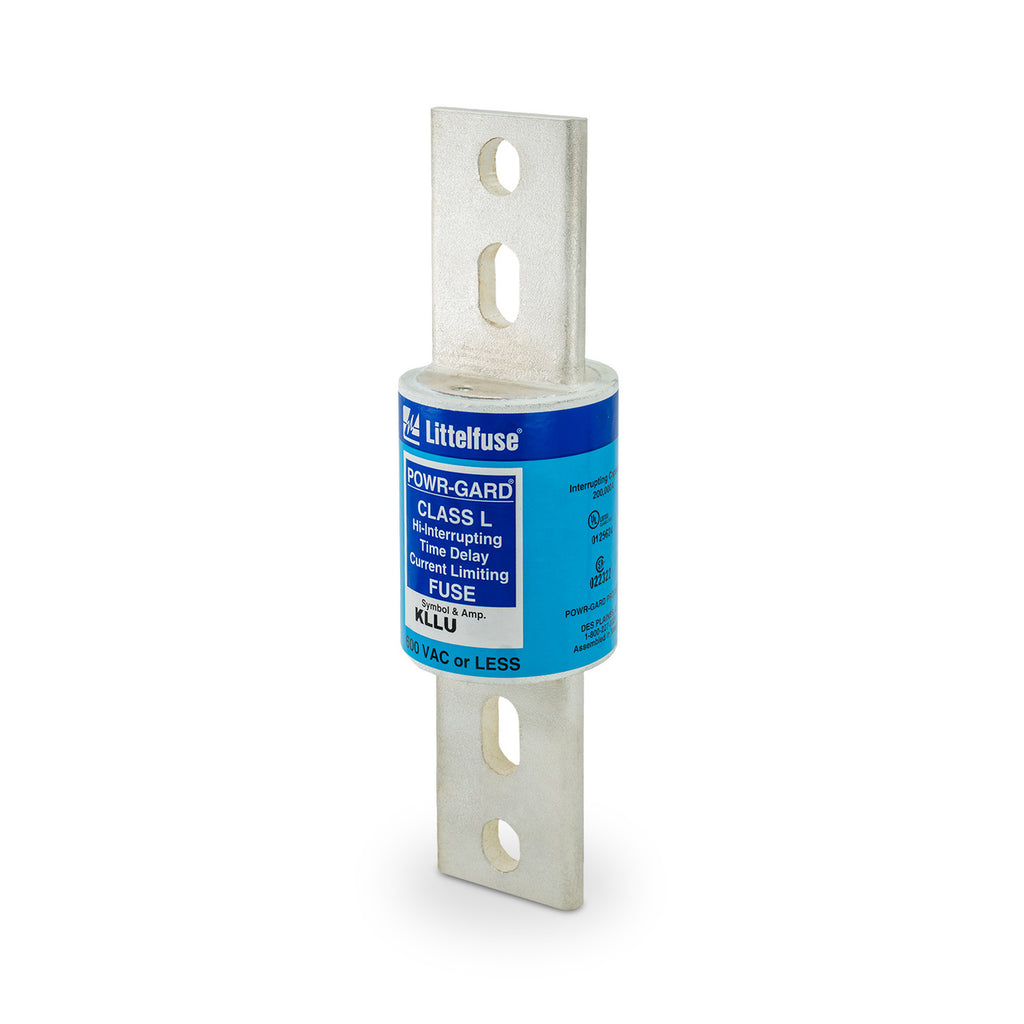

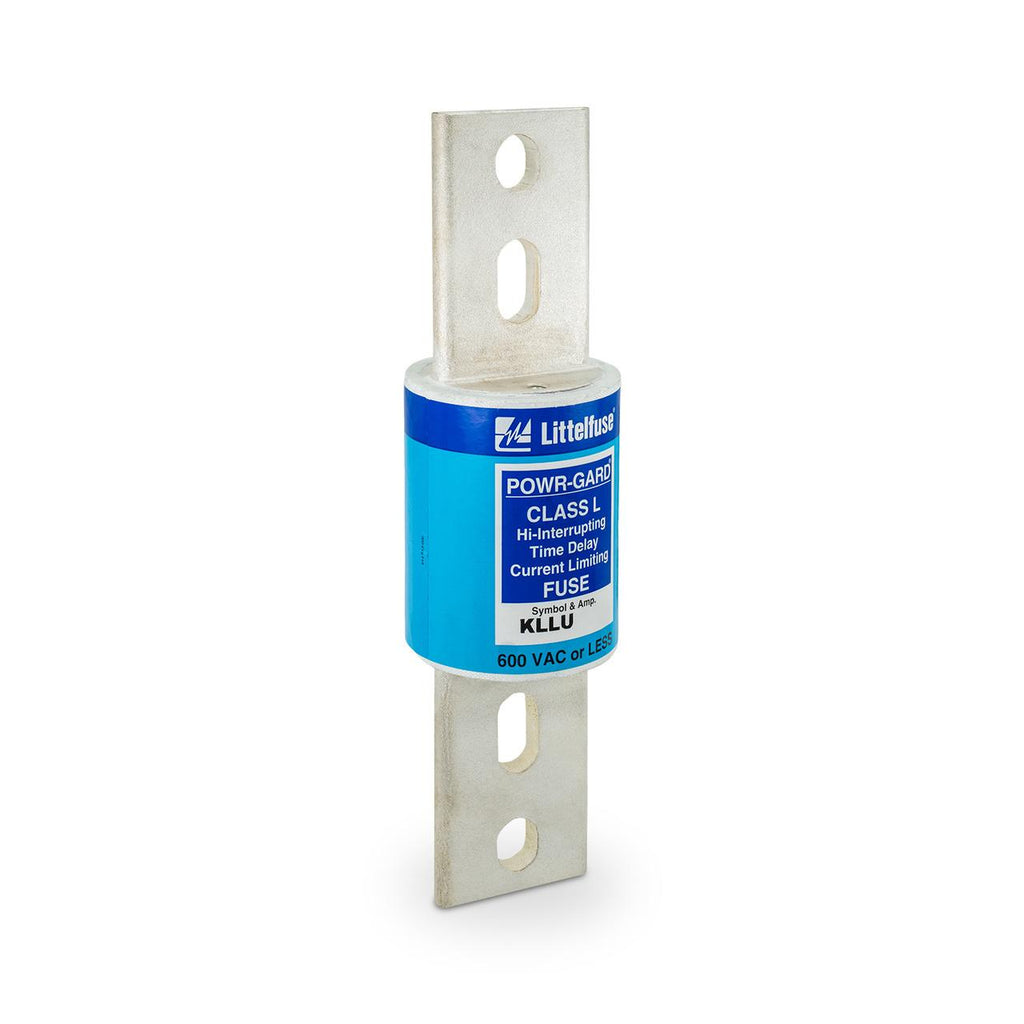

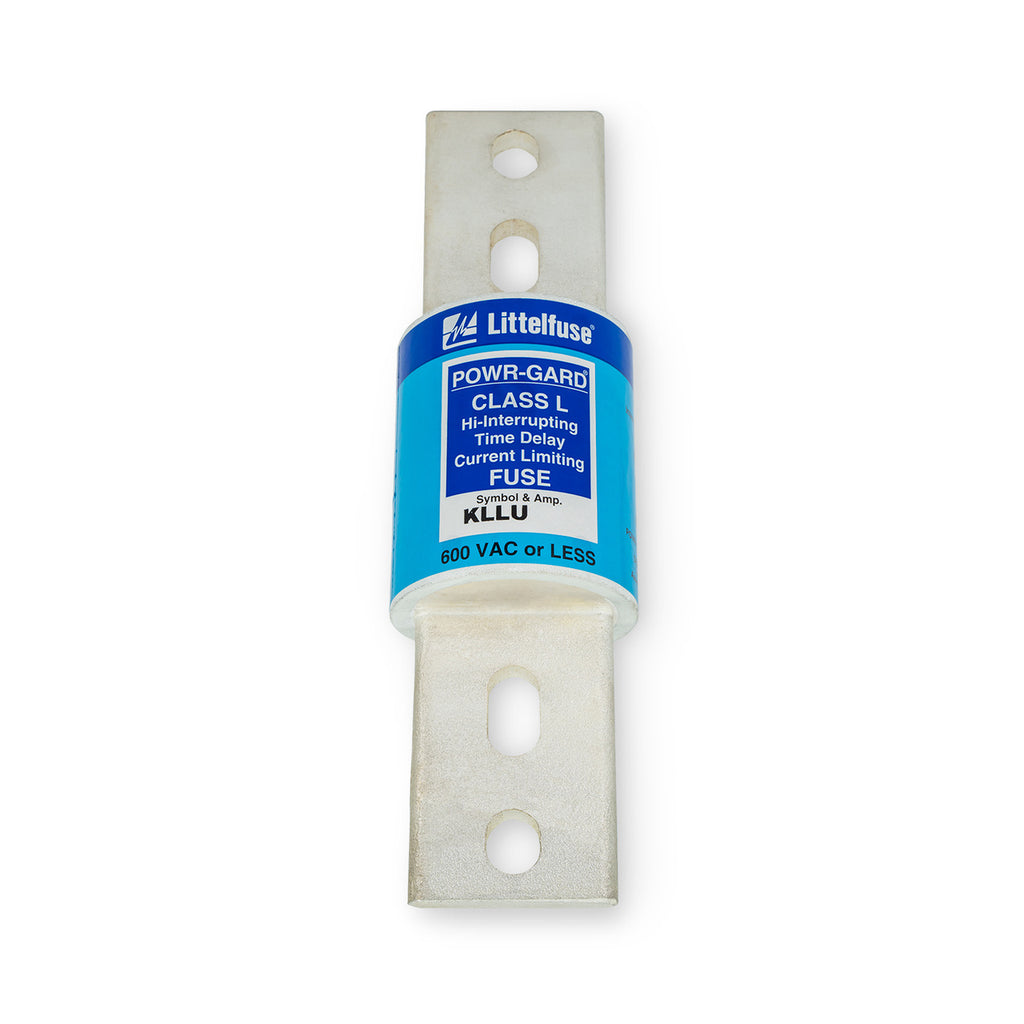

KLLU-800 is an 800 amp, 600 volt Class L time delay fuse from Littelfuse designed for reliable overcurrent protection.This KLLU series fuse features a bolt mounting type with blade connection and offers a 200,000 amp interrupt rating at 600 VAC. It is UL and CSA certified, suitable for service switches, switchboard mains and feeders, motor control center mains, and large motor branch circuits. The fuse measures approximately 2 inches in height, 2.5 inches in width, and 8.63 inches in depth.
- Key Specifications
- Amperage: 800 A
- Voltage Rating: 600 V AC, 300 V DC
- Poles: 1
- Mounting Type: Bolt
- Connection Type: Blade
- Interrupt Rating: 200,000 A @ 600 VAC, 20,000 A @ 300 VDC
- Series: KLLU
- Fuse Type: Time Delay, Current Limiting
- Approvals: UL Listed, CSA Certified
- Dimensions: 2" H x 2.5" W x 8.63" D
Specifications
- Part Number: KLLU-800
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 4.75
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 079458271034
- Weight : 5.19
