Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLLU-750

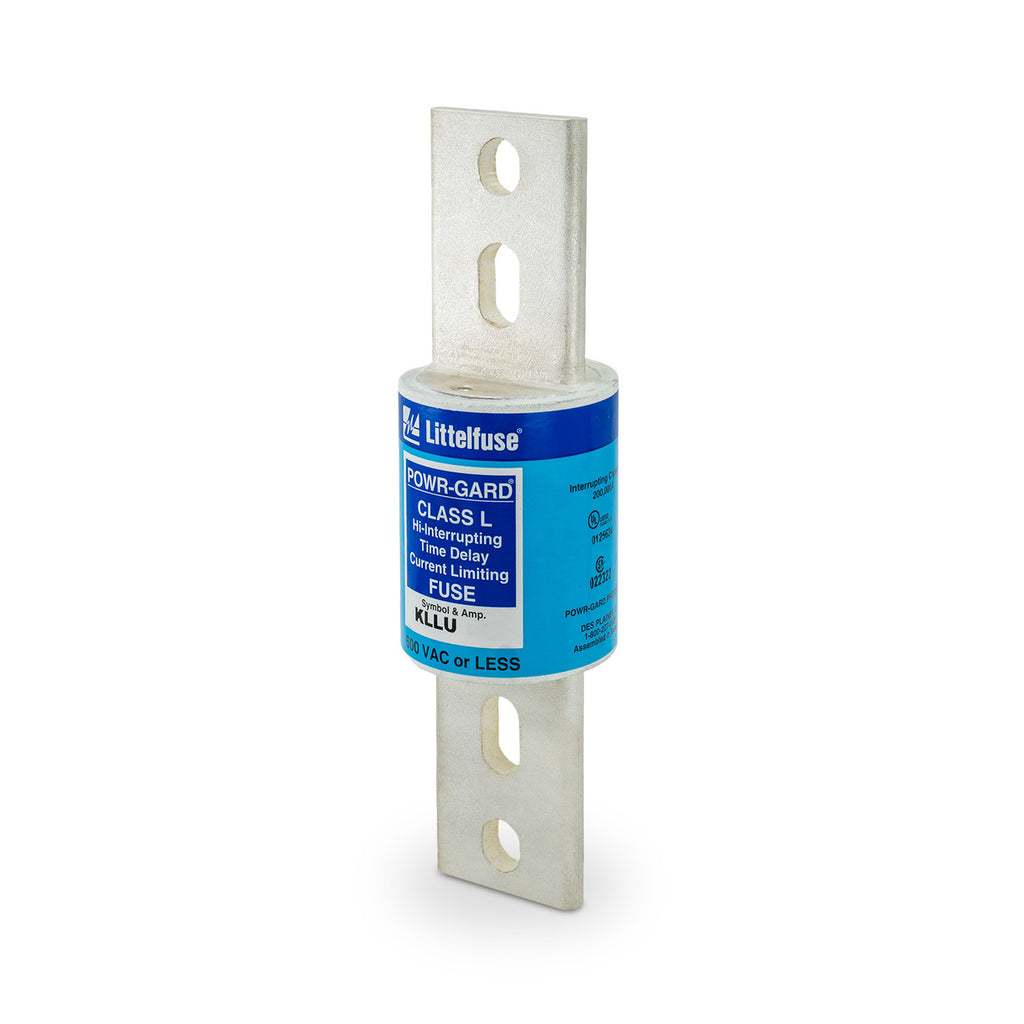

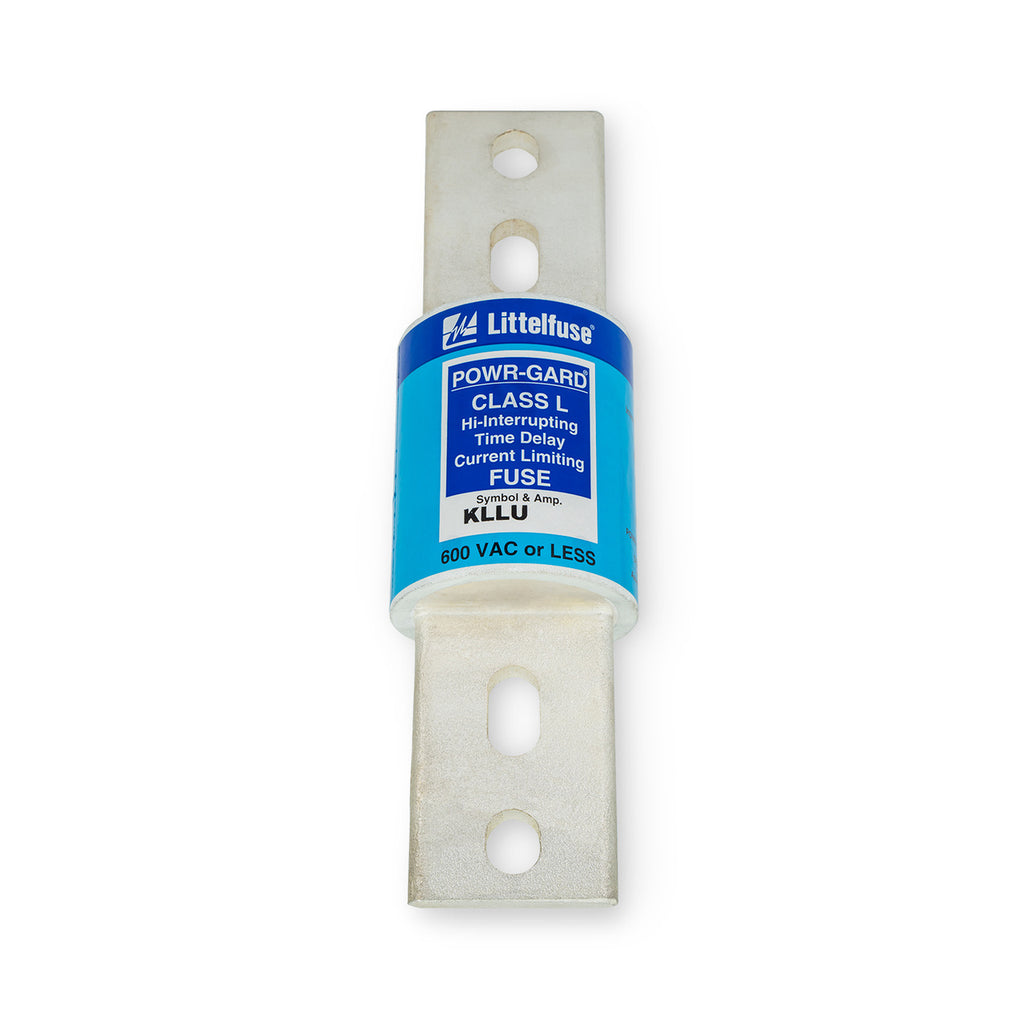

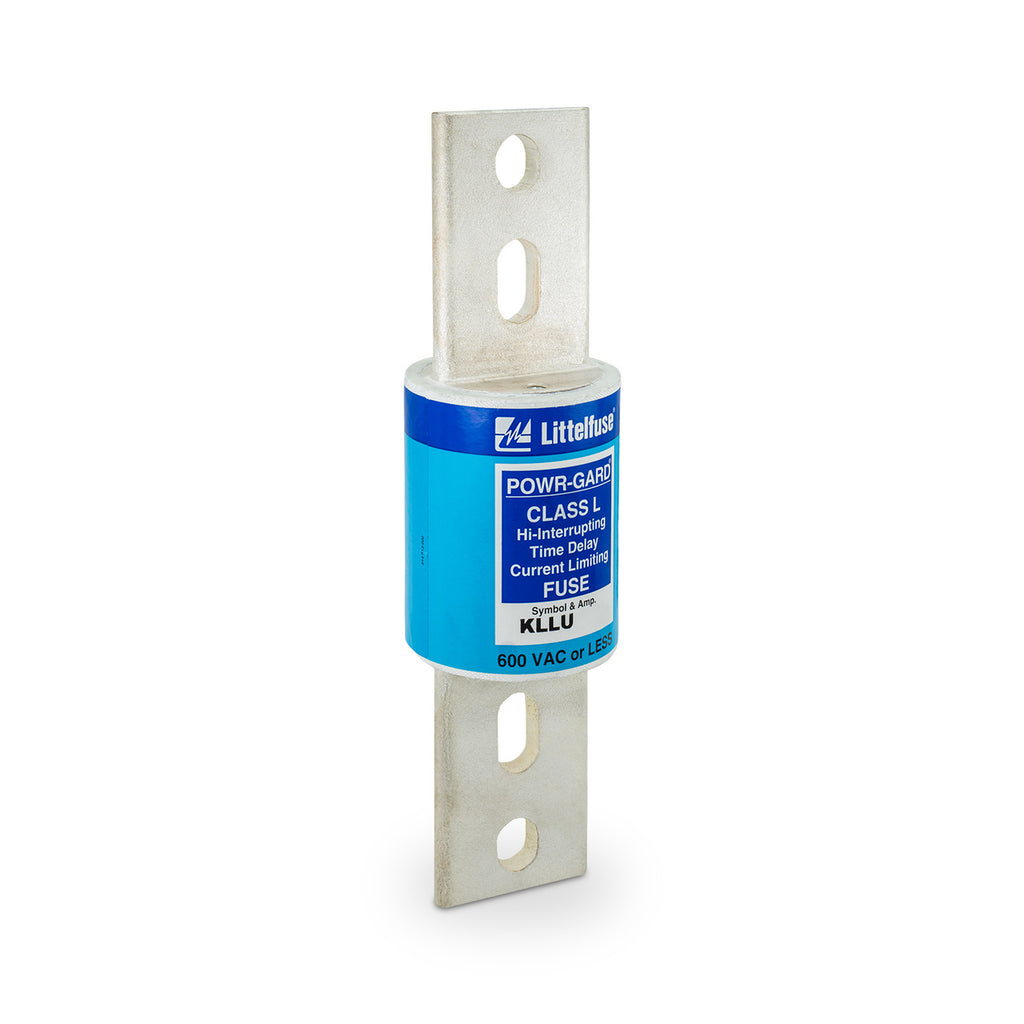

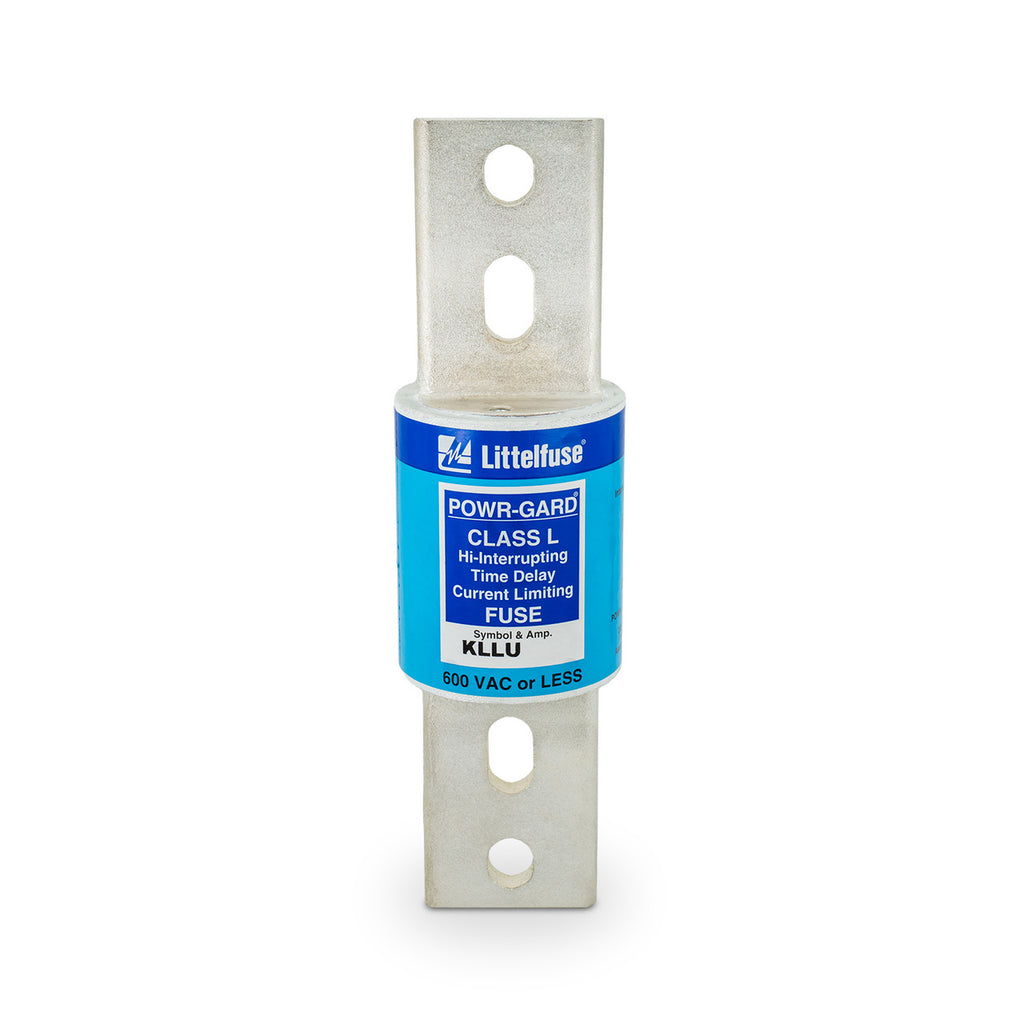

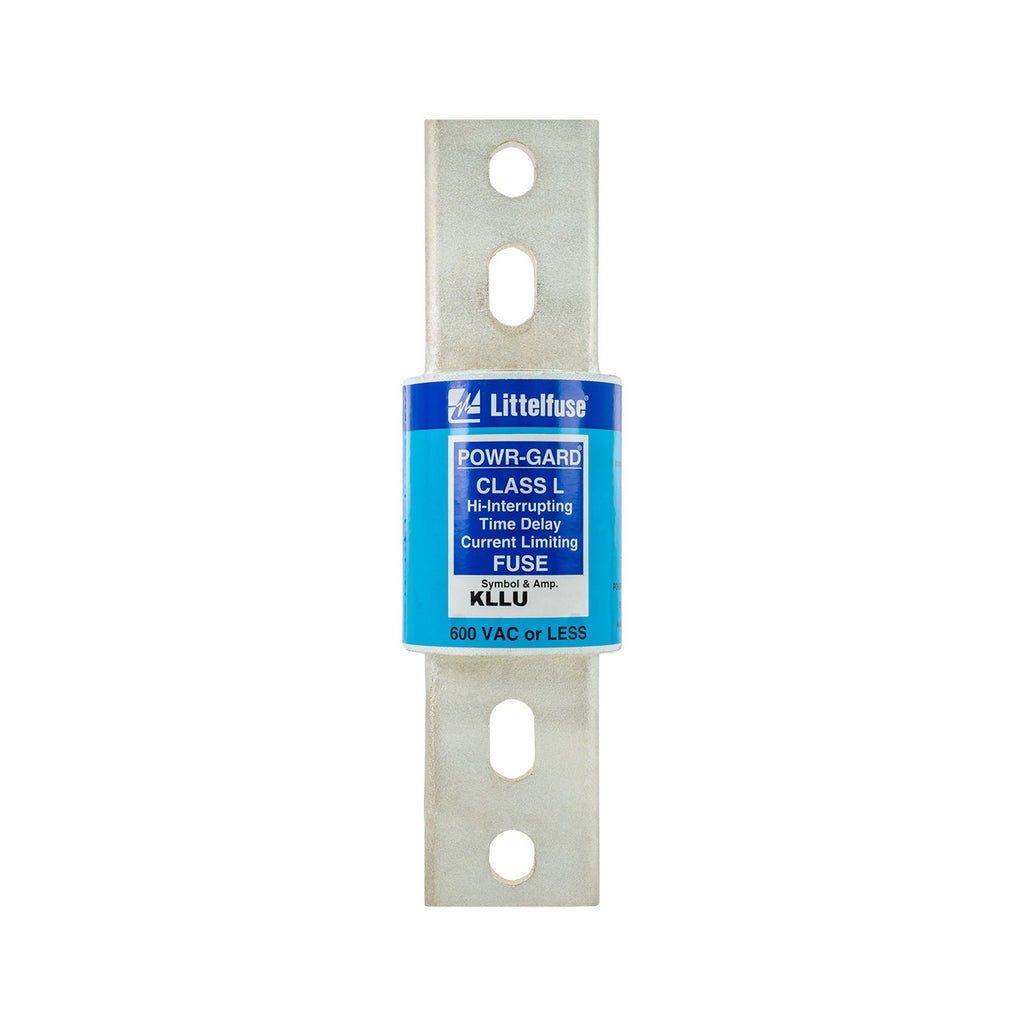

KLLU-750 is a Littelfuse Class L time-delay fuse designed for reliable overcurrent protection in industrial applications.This 750 amp, 600 volt AC fuse features a bolt-in mounting type and current-limiting technology to reduce short circuit damage. It has a 200,000 amp interrupting rating and meets UL 248-10 Class L and CSA certifications. The fuse offers a minimum 10-second time delay at 500% of rating, making it ideal for motor branch circuits, switchboard mains, and feeders. It coordinates selectively with other Class L fuses rated 600 amps or less for enhanced system protection.
- Key Specifications
- Amperage: 750A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: UL Class L
- Mounting Type: Bolt-In
- Interrupting Rating: 200,000 A
- Time-Delay: Yes, minimum 10 seconds at 500% rating
- Current Limiting: Yes
- Certifications: UL Listed, CSA Certified
- Physical Size: 2 inch diameter x 8 5/8 inch length
- Applications: Motor branch circuits, switchboard mains, feeders
Specifications
- Part Number: KLLU-750
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 4.75
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 007945827102
- GTIN : 00079458271027
- Weight : 3.5
