Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLLU-700

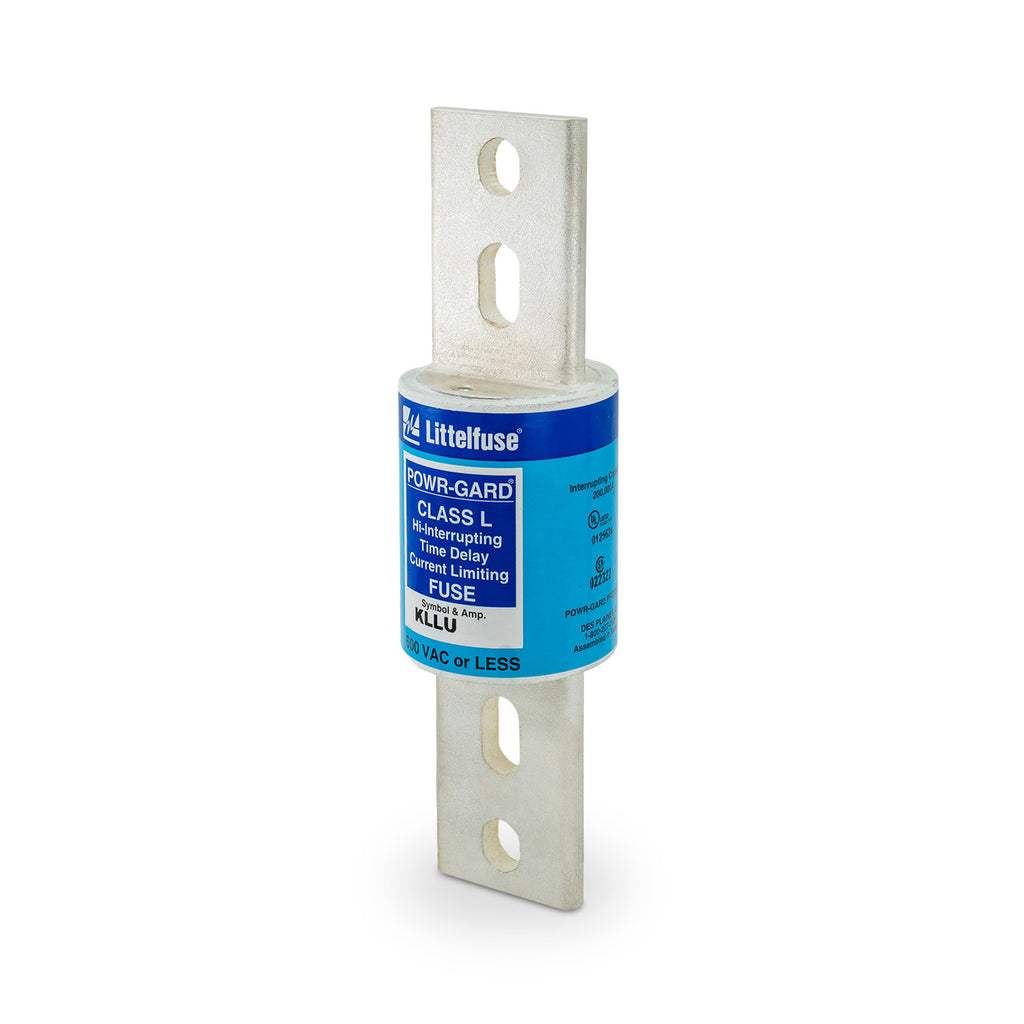

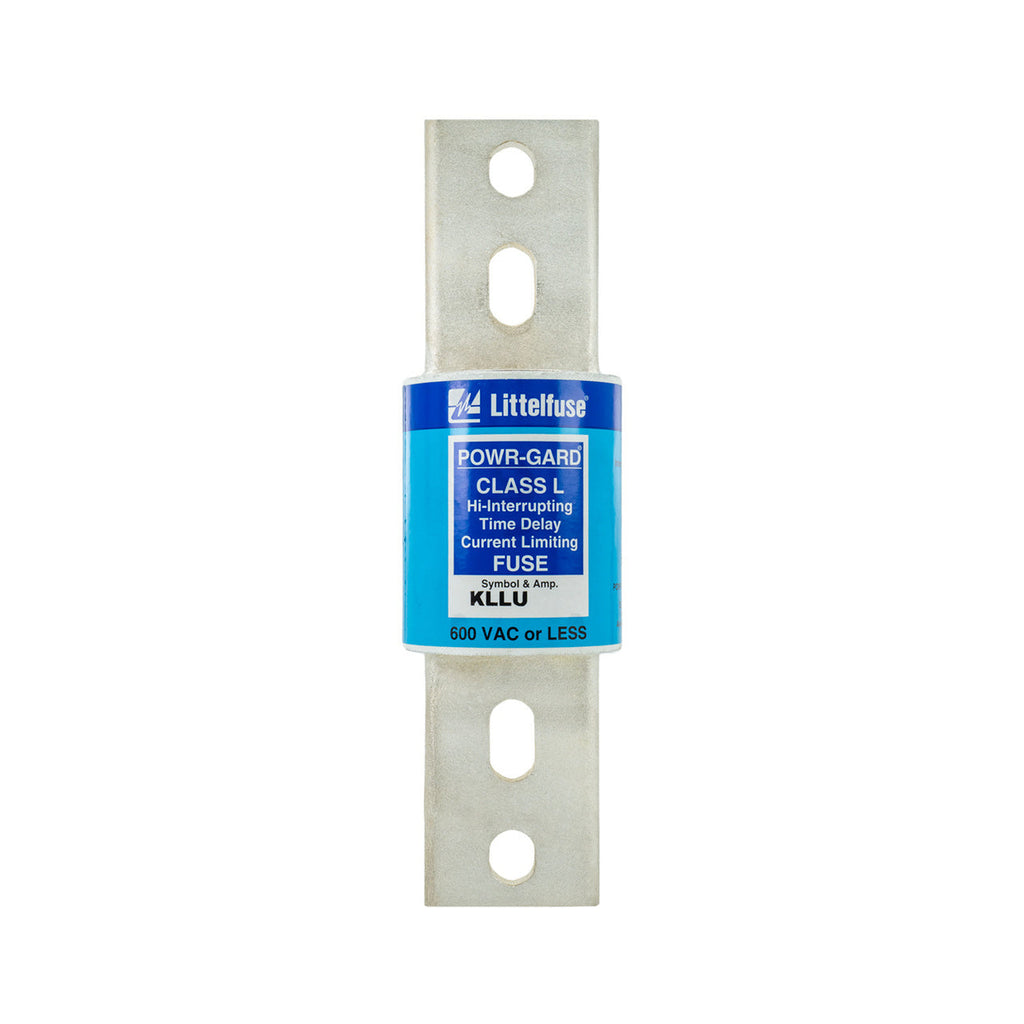

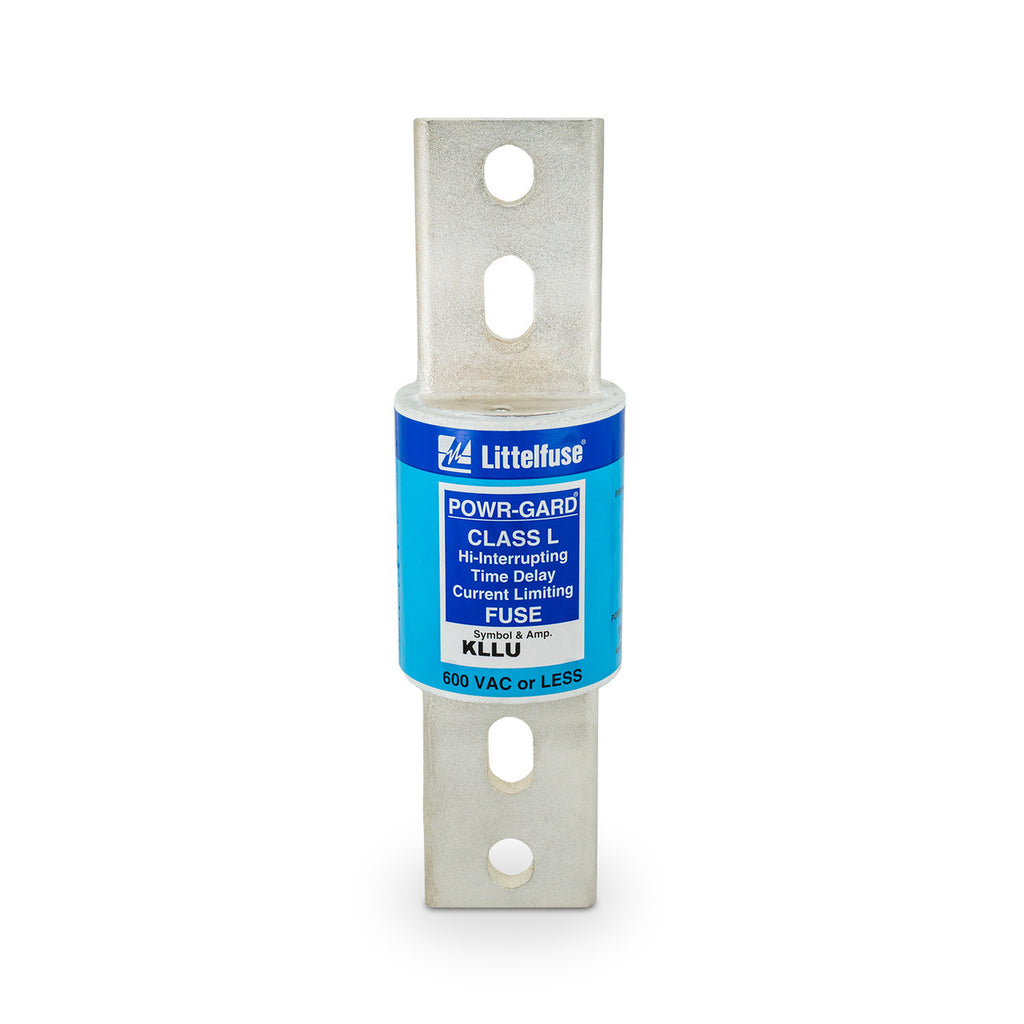

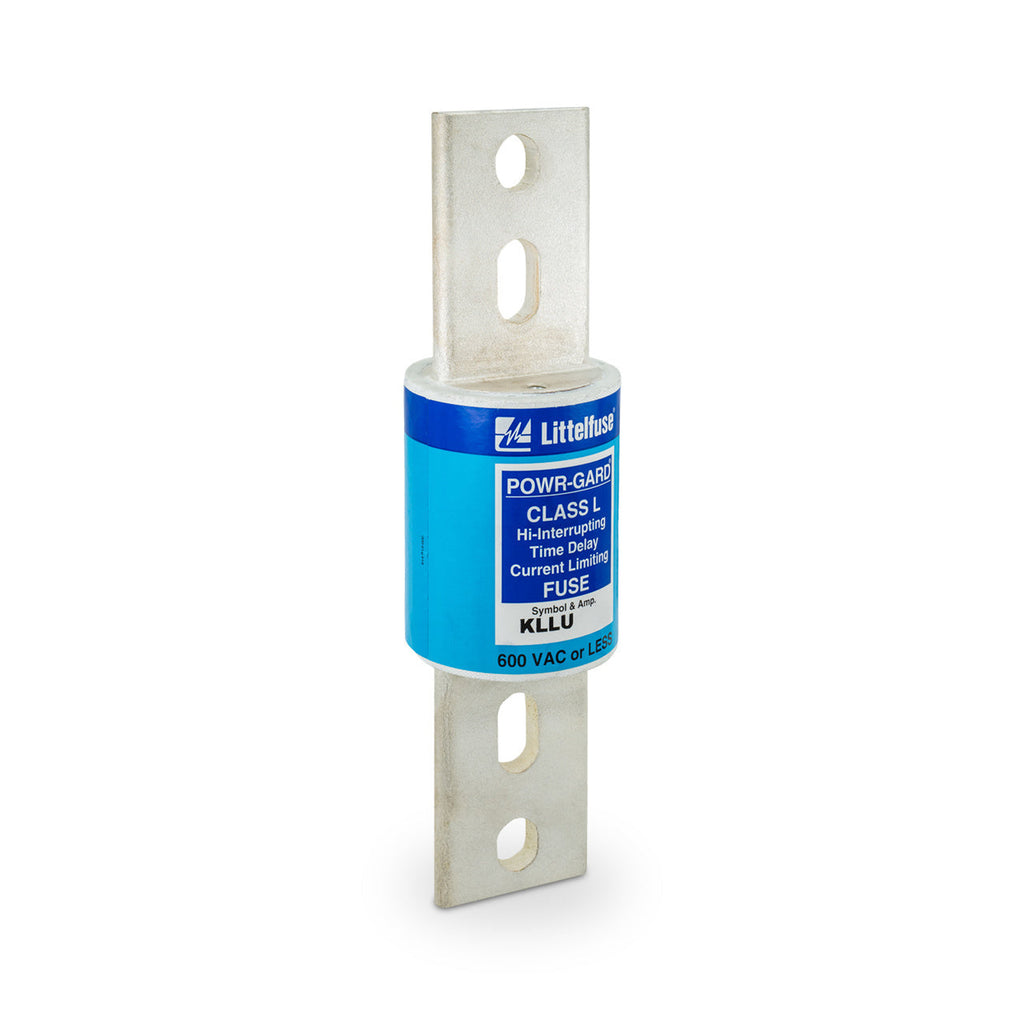

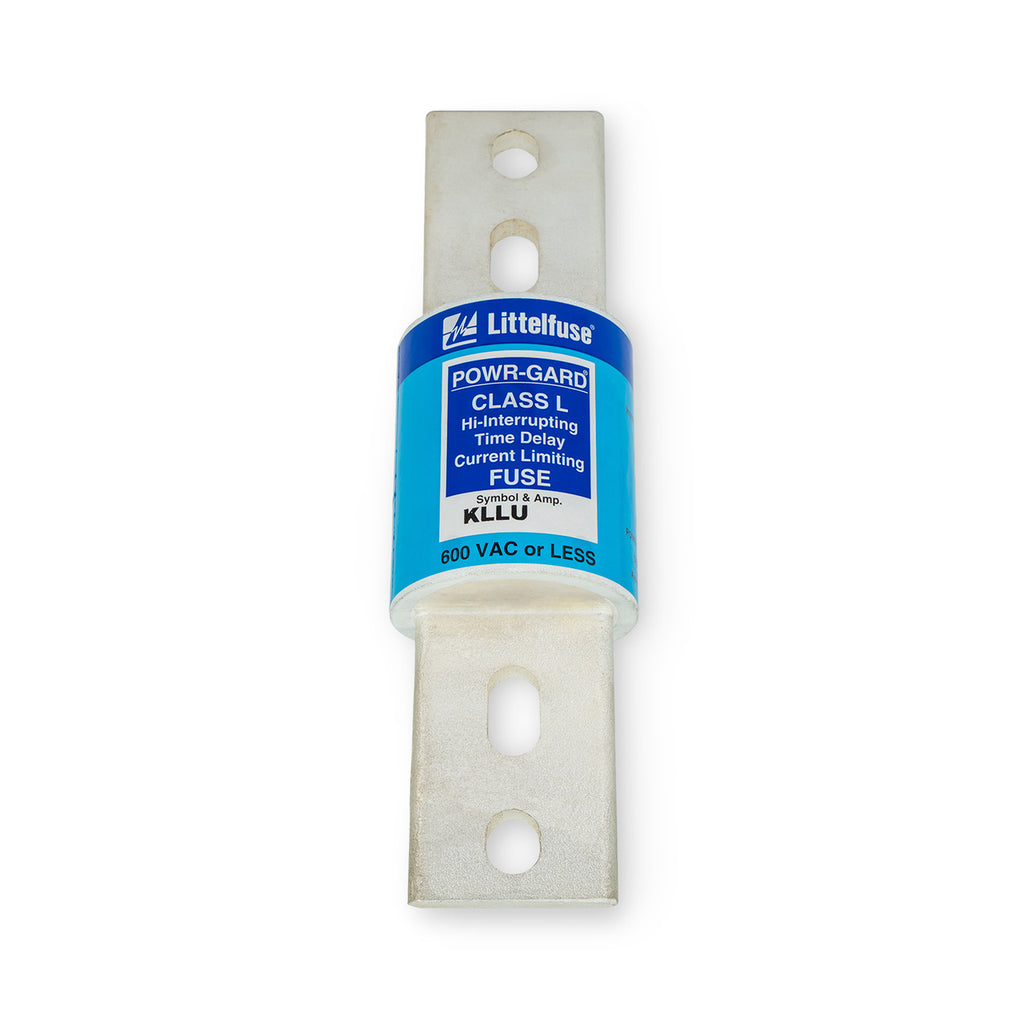

KLLU-700 is a Littelfuse Class L time-delay fuse designed for reliable overcurrent protection in industrial applications.This 700 amp fuse features a voltage rating of 600 VAC and 300 VDC with a high interrupting rating of 200,000 amperes AC and 20,000 amperes DC. It is a current-limiting fuse with bolt-in mounting, suitable for service switches, switchboard mains, motor control centers, and large motor branch circuits. The KLLU series meets UL 248-10 standards and is UL Listed and CSA Certified.
- Amperage: 700 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: Class L
- Time-Delay: Yes
- Mounting Type: Bolt Mount
- Current Limiting: Yes
- Approvals: UL Listed, CSA Certified
- Size: 2 1/2 inch diameter, 8 5/8 inch length
- Applications: Service switches, switchboard mains, motor control centers
Specifications
- Part Number: KLLU-700
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 007945827101
- GTIN : 00079458271010
- Weight : 5.19
