Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
KLLU-1500

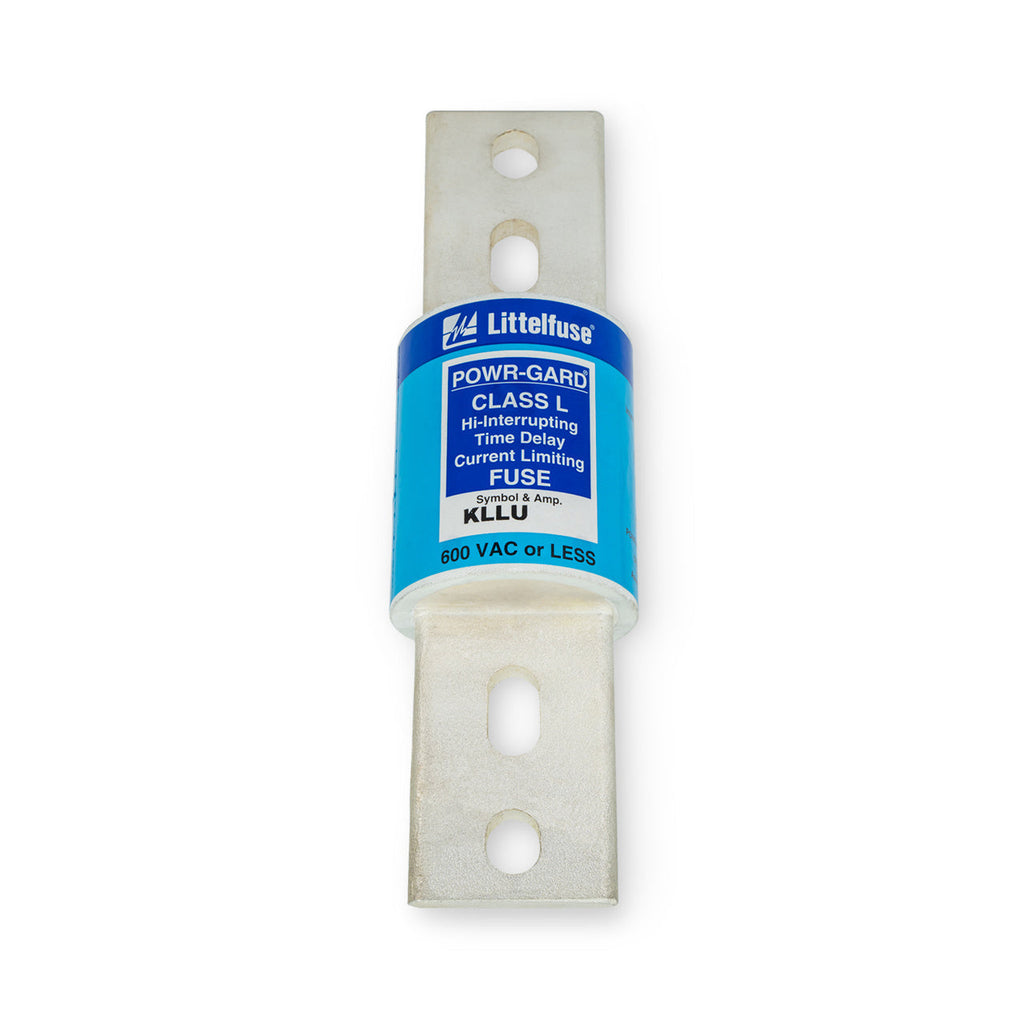

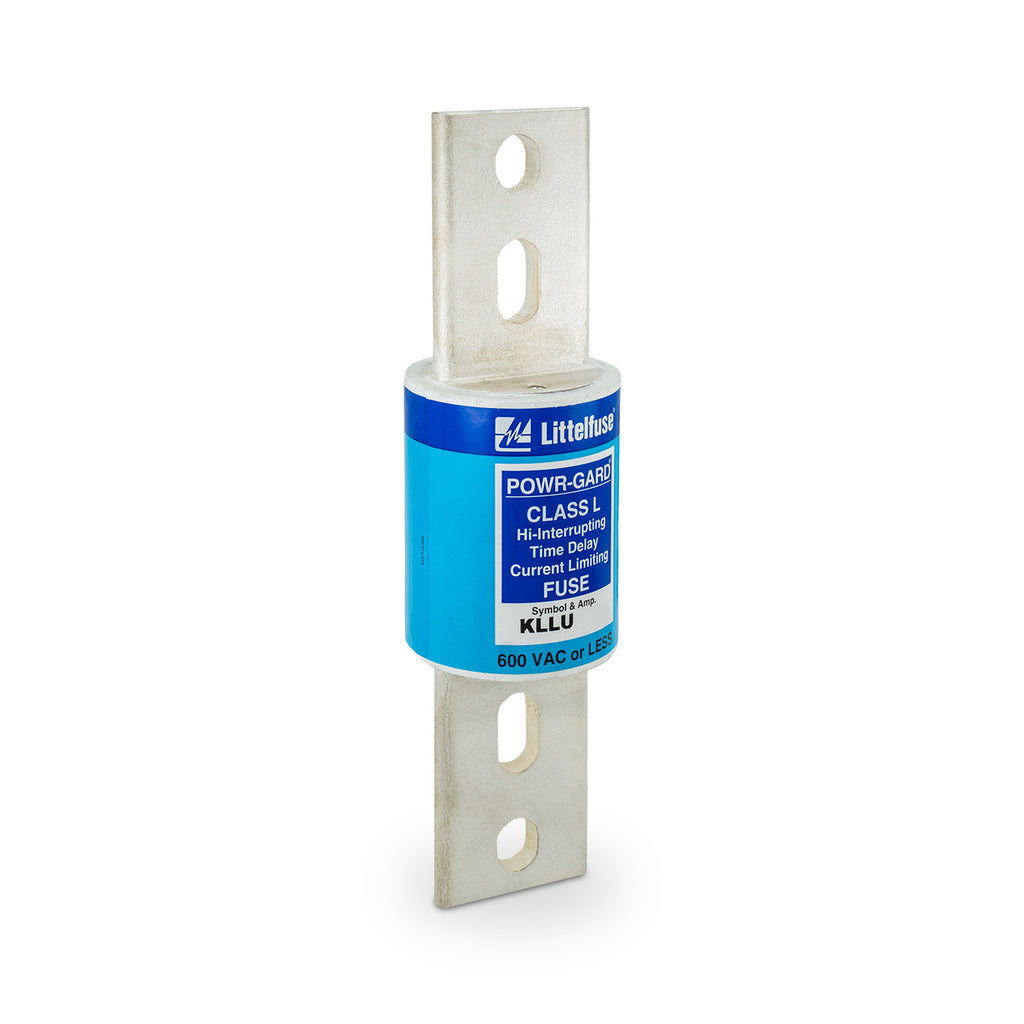

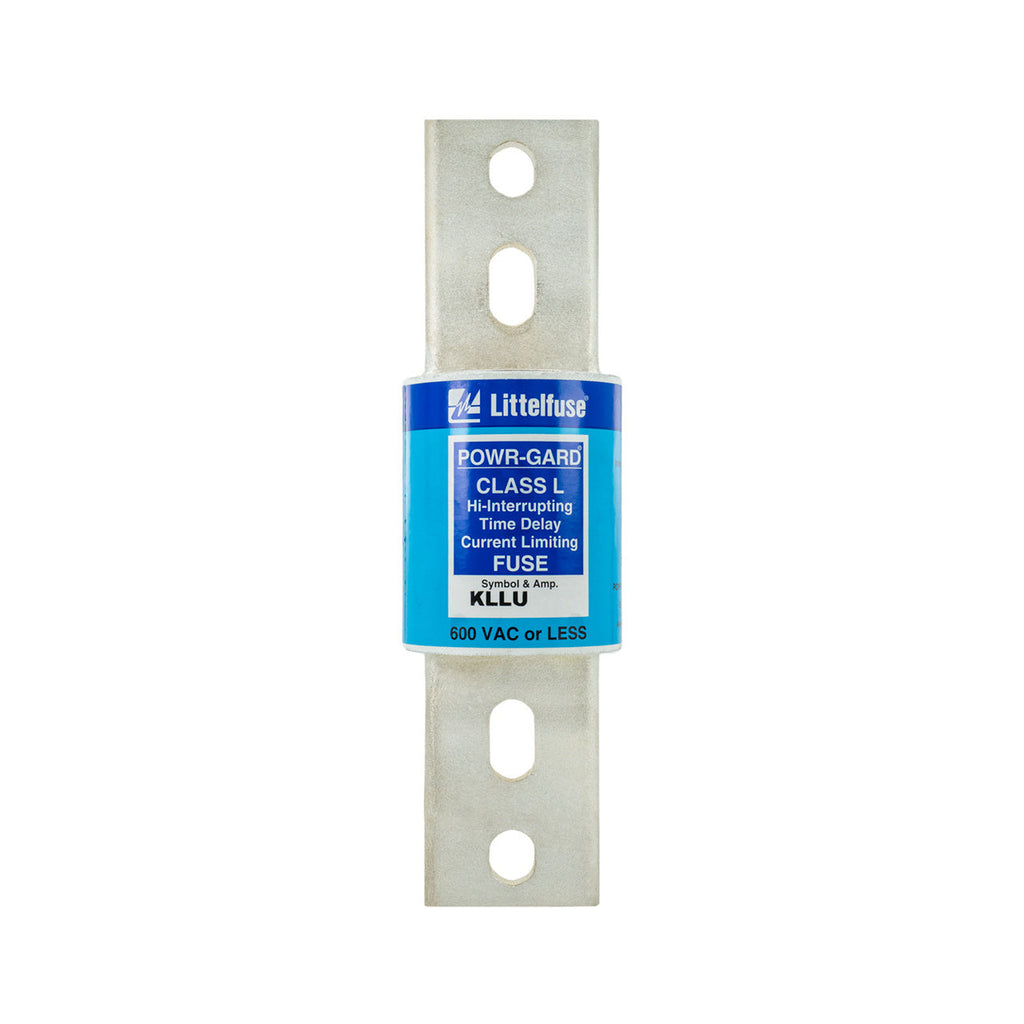

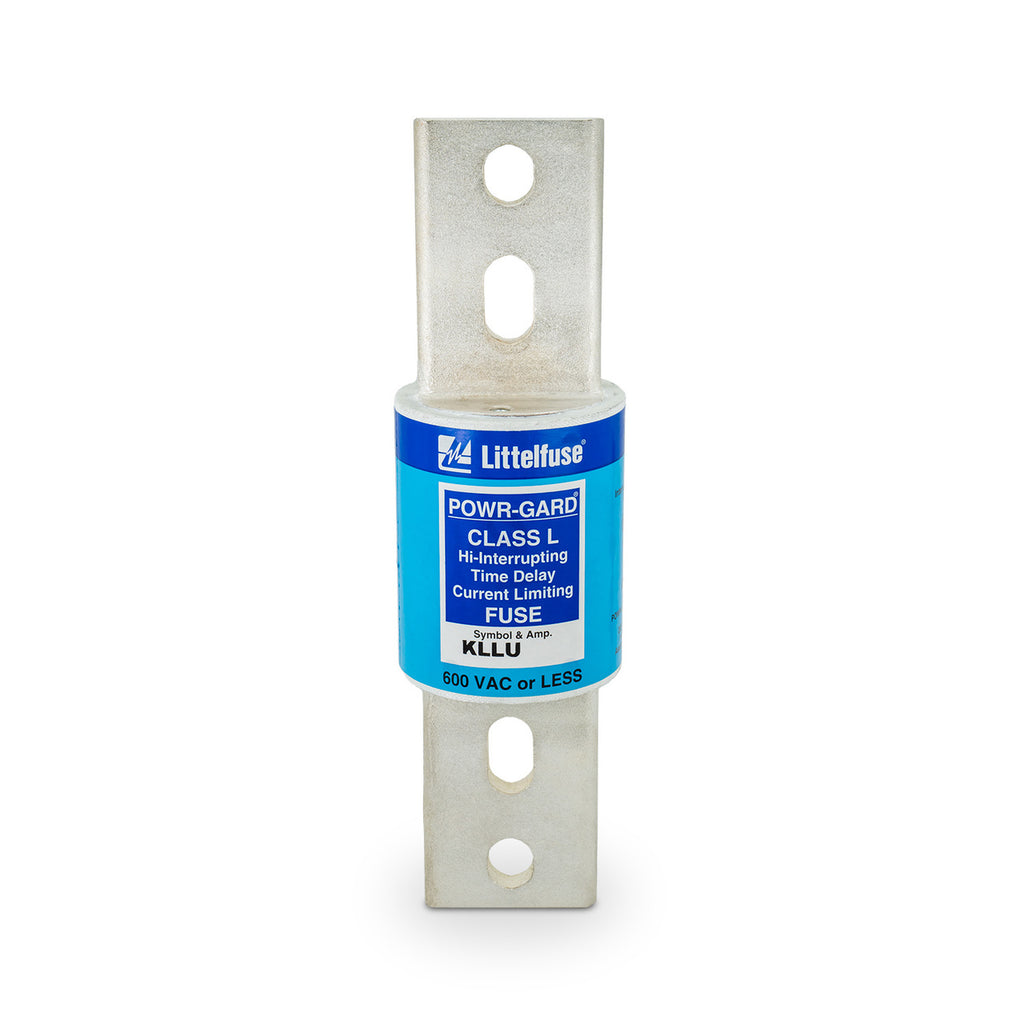

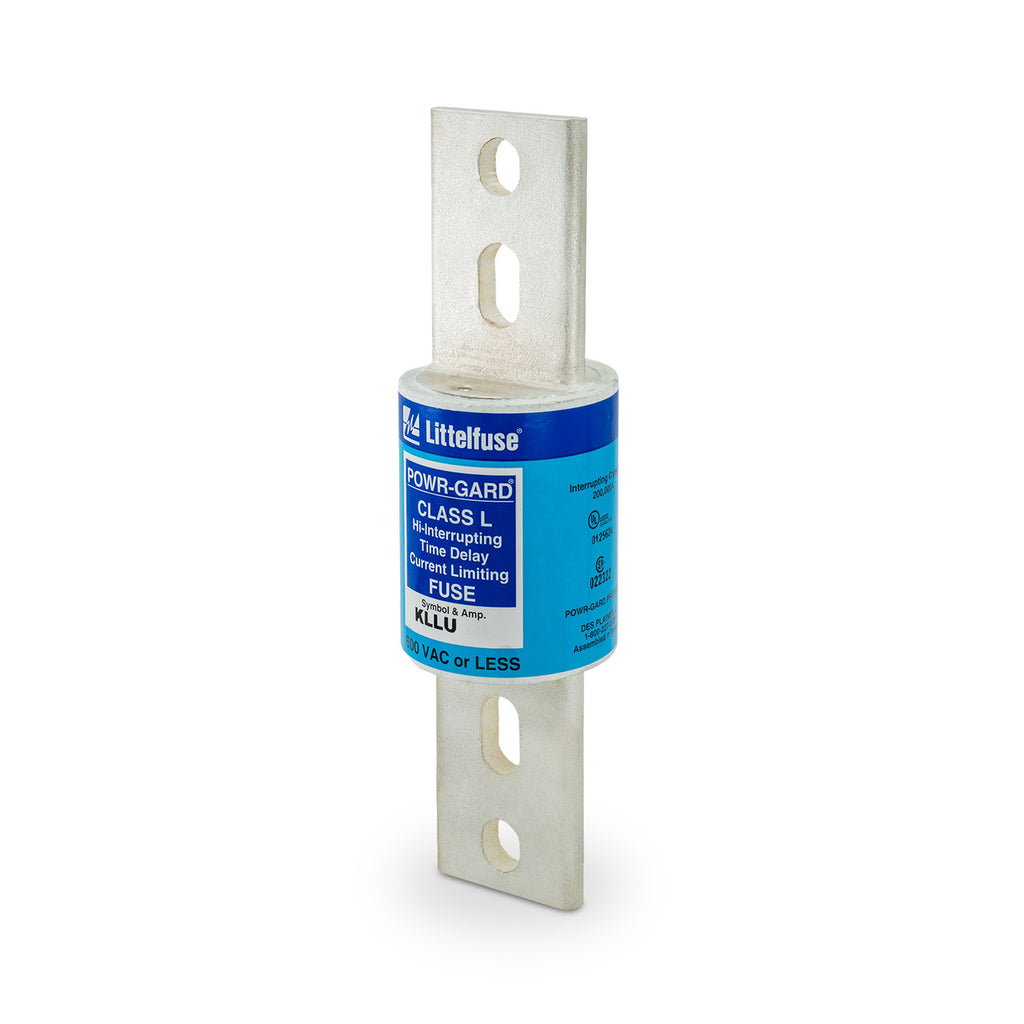

KLLU-1500 is a Littelfuse Class L time delay fuse rated for 1500 Amps and 600 Volts AC, designed for reliable overcurrent protection in industrial applications.This fuse features current-limiting technology with a 200,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 300 VDC. It is UL Listed and CSA Certified, making it suitable for service switches, switchboard mains, motor control centers, and large motor branch circuits. The KLLU-1500 offers an economical alternative to KLPC fuses with slightly higher peak let-thru current and is easily coordinated with other system components.
- Amperage: 1500 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Type: UL Class L
- Time Delay
- Current Limiting
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Dimensions: 2 3/8" x 10 3/4"
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- Economic alternative to KLPC fuse
- POWR-PRO® series
Specifications
- Part Number: KLLU-1500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 2.38
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 007945827109
- GTIN : 00079458271096
- Weight : 5.19
