Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLLU-1200

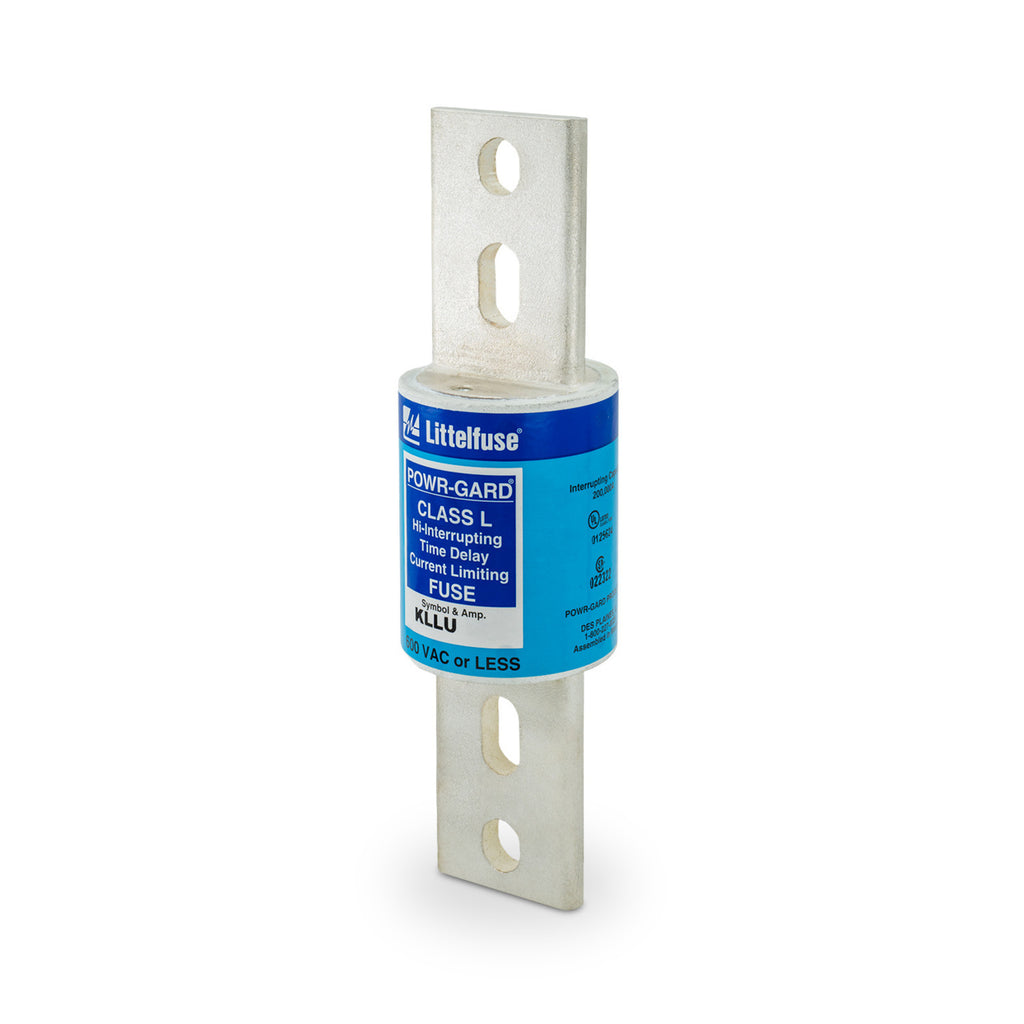

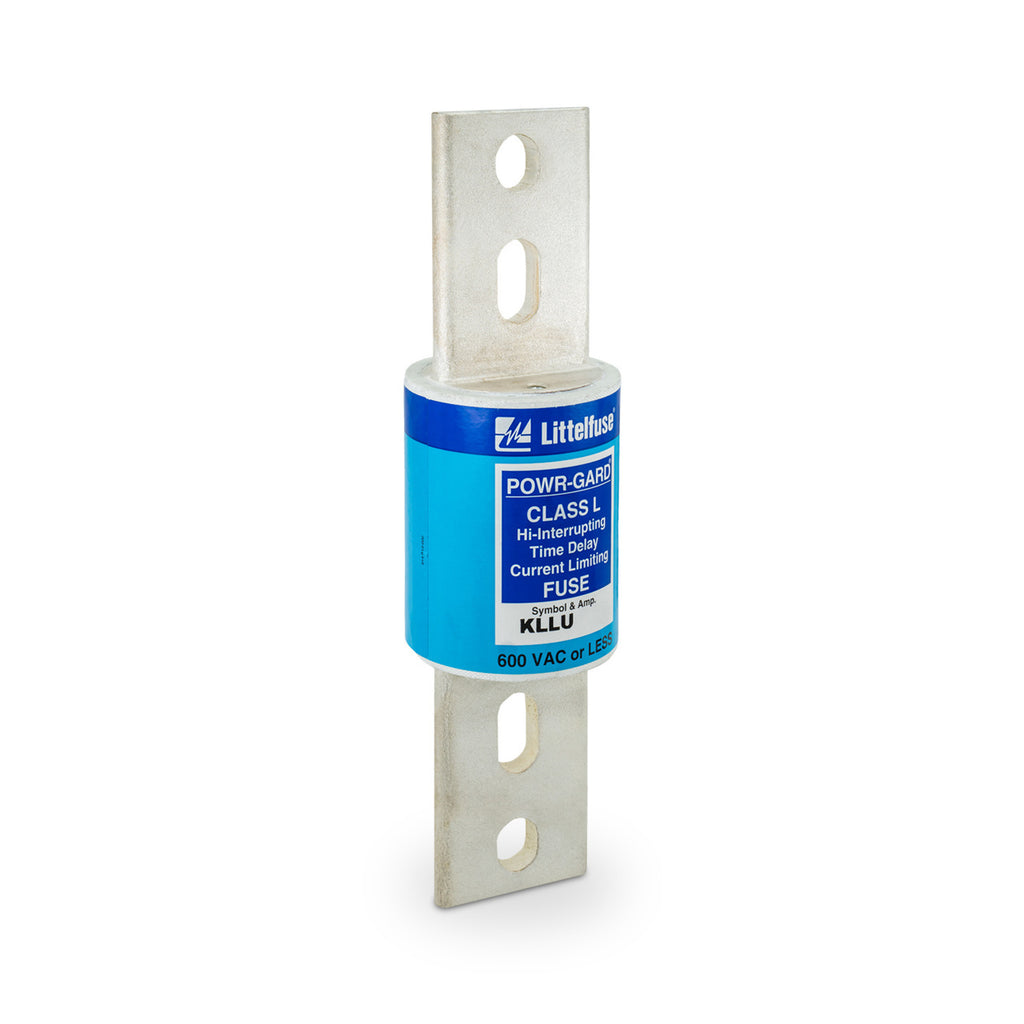

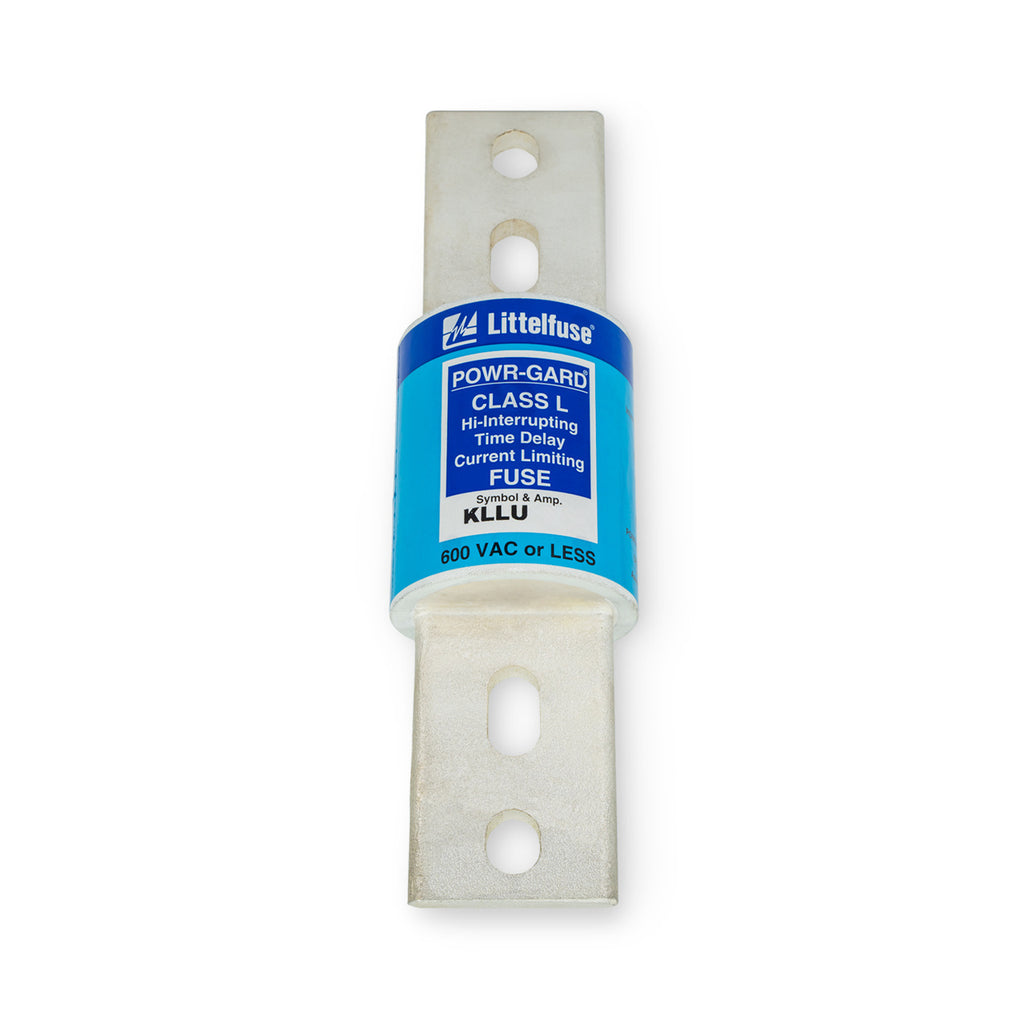

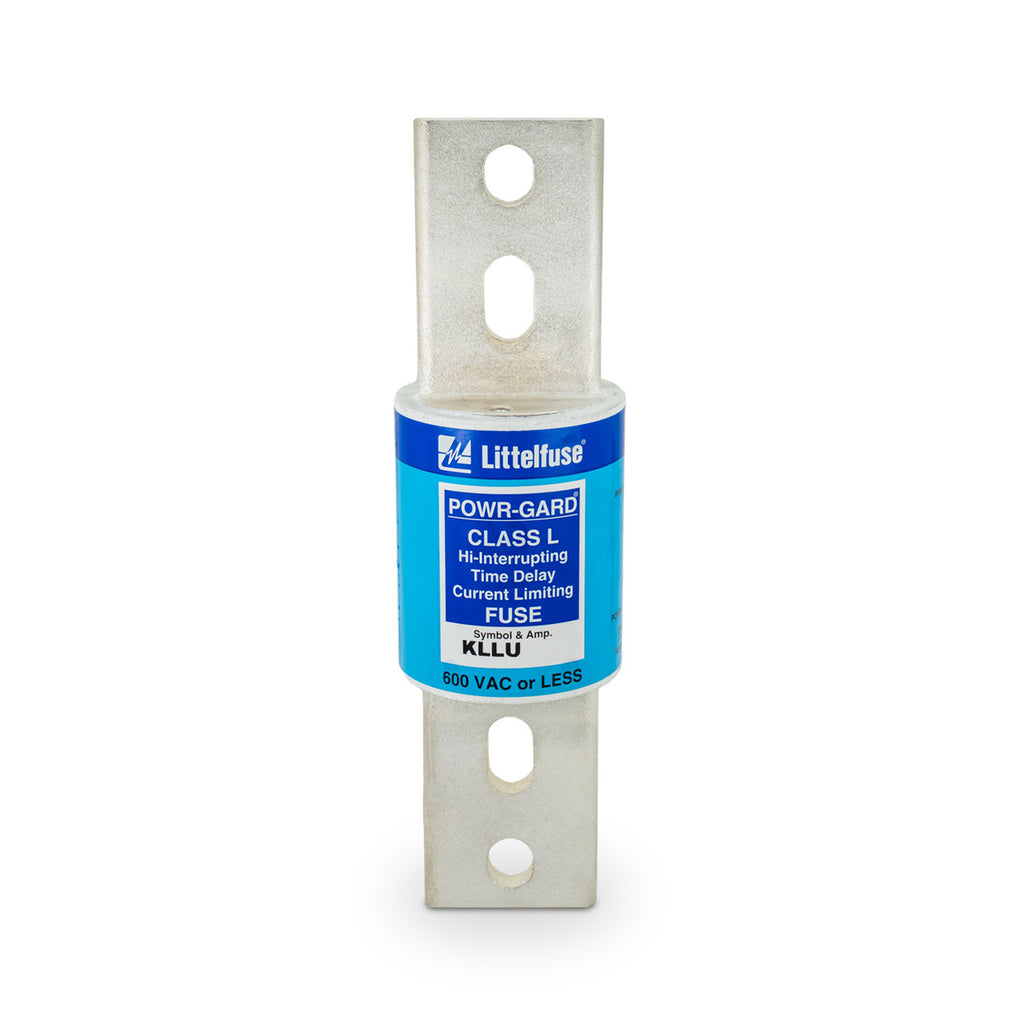

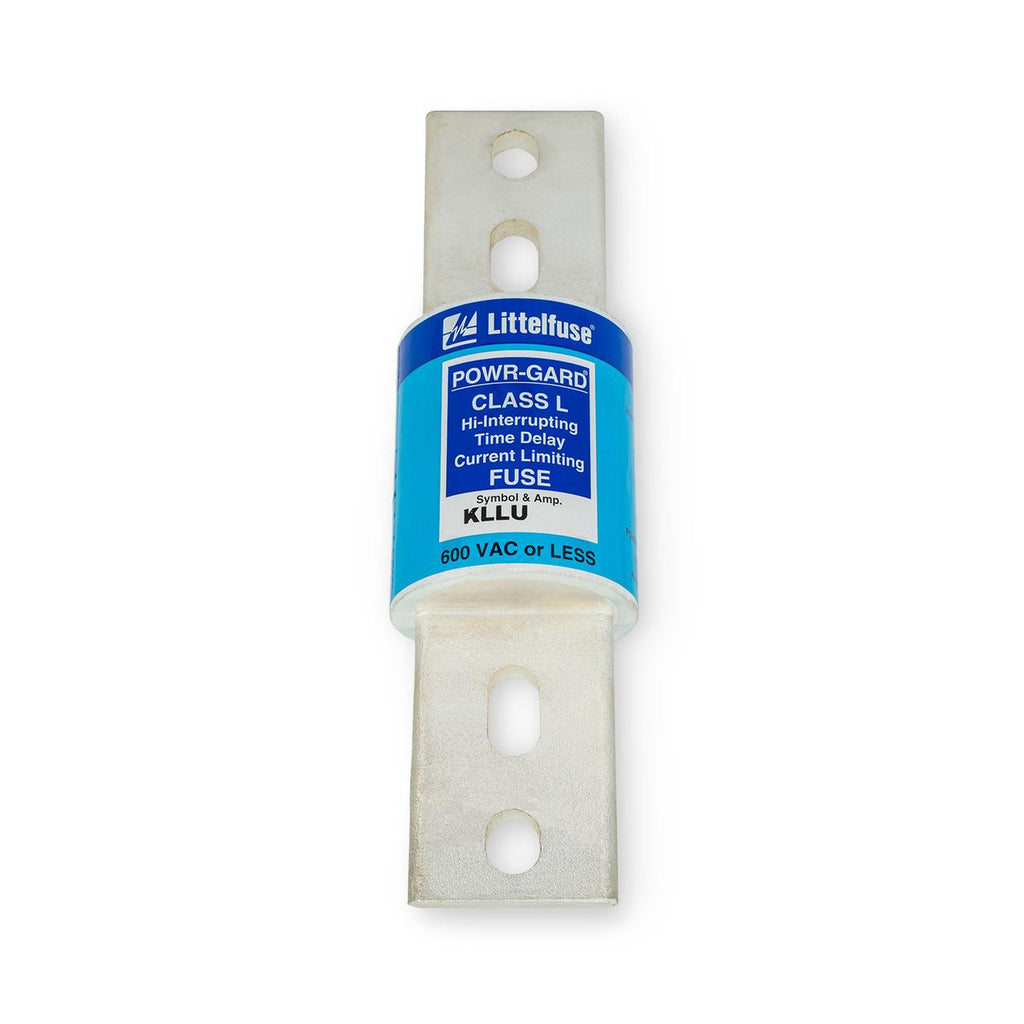

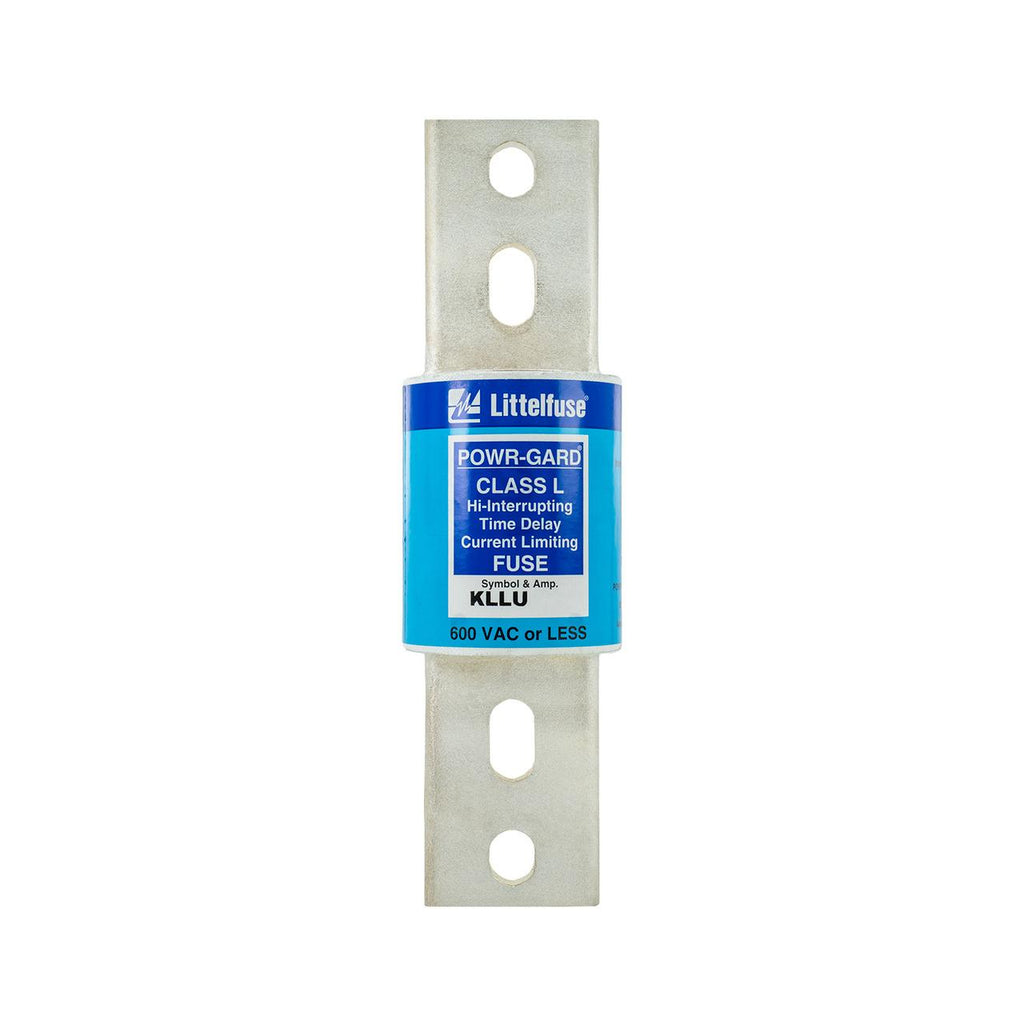

KLLU-1200 is a Littelfuse 1200 Amp, 600 Volt Class L fuse designed for reliable overcurrent protection.This KLLU series fuse features a single pole, time-delay, current-limiting design with a bolt-in mounting type. It has a 200kA interrupting rating at 600VAC and 20kA at 300VDC, making it suitable for service switches, switchboard mains, motor control center mains, and large motor branch circuits. The fuse is UL listed and CSA certified, constructed with a melamine body for durability.
- Amperage: 1200 Amps
- Voltage: 600VAC, 300VDC
- Poles: 1
- Mounting Type: Bolt-In
- Interrupting Rating: 200kA @ 600VAC, 20kA @ 300VDC
- Fuse Class: Class L
- Time-Delay, Current-Limiting
- Body Material: Melamine
- Certifications: UL Listed, CSA Certified
- Series: KLLU
Specifications
- Part Number: KLLU-1200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : KLLU
- Type : KLLU - Time-Delay (Slow-Blow)
- Voltage : 600
- Amperage : 1200
- AIC rating : 200kA@600V
- Connection : Bolt-In (Knife Blade Terminals)
- Diameter : 2
- Class Rating : L
Product Data
- UPC : 079458271065
- GTIN : 00079458271065
- Dimensions : 2.5” Diameter x 10.75” Length (63.5mm x 273mm)
- Weight : 2 lb
- Certification : UL Listed (File: E81895), CSA Certified (File: LR29862), CE Marked
