KLLU-1000 - Littelfuse 1000 Amp 600V AC Time Delay Current Limiting Class L Fuse, Bolt-In Mount, 200kA Interrupt Rating, UL/CSA Certified

KLLU-1000

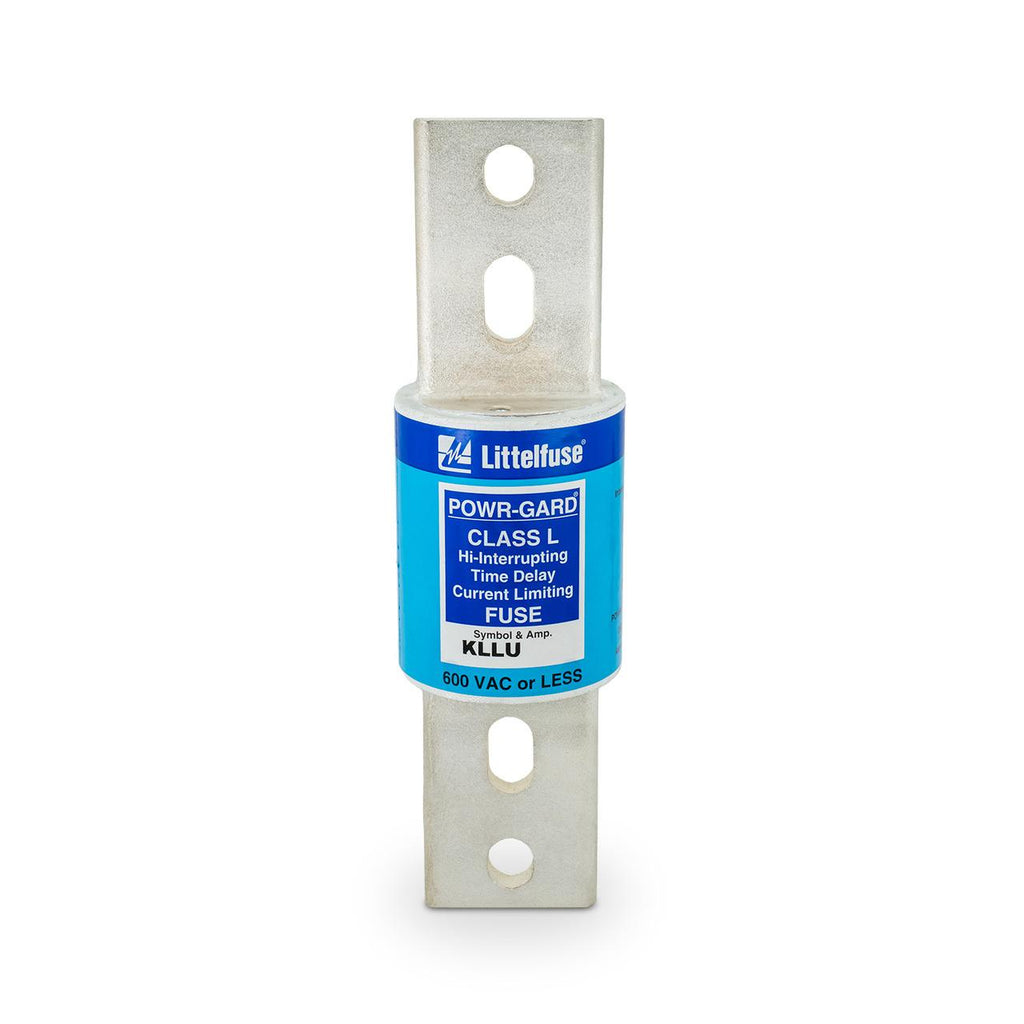

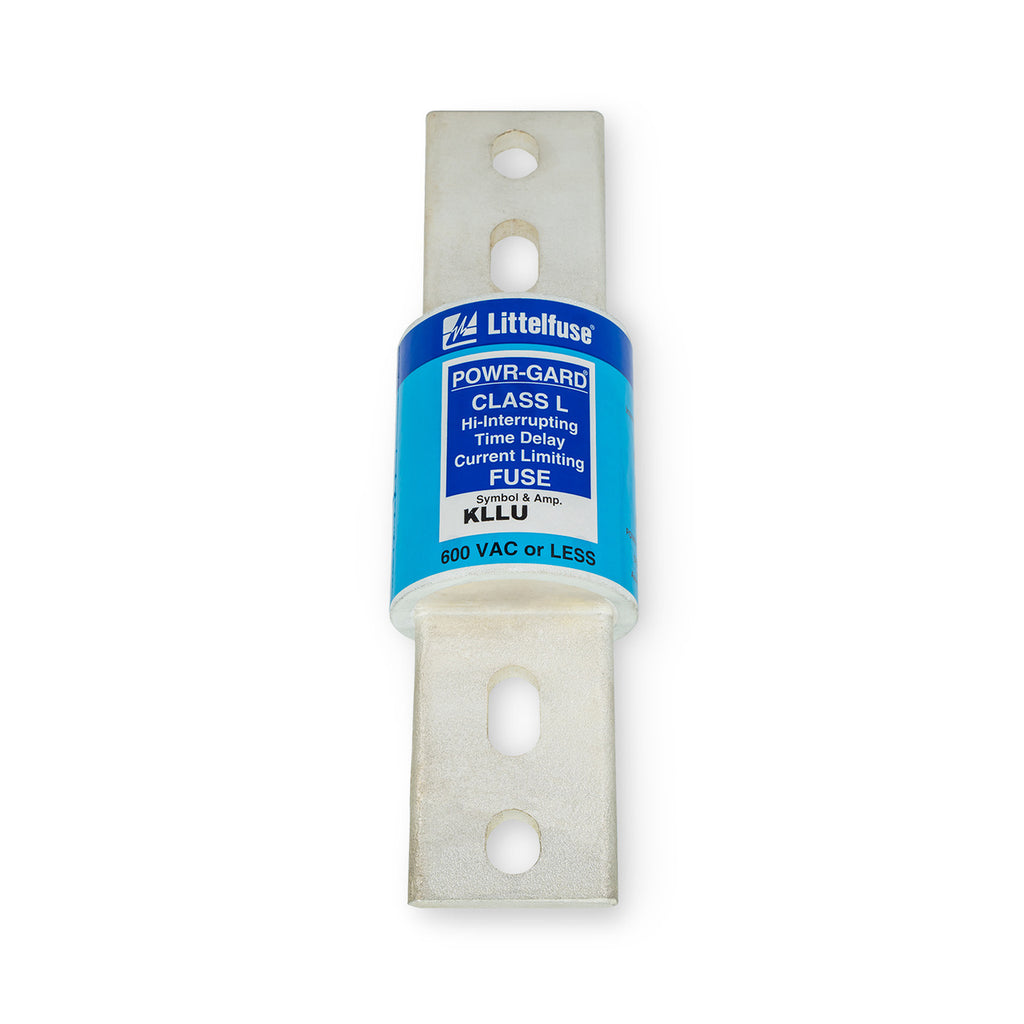

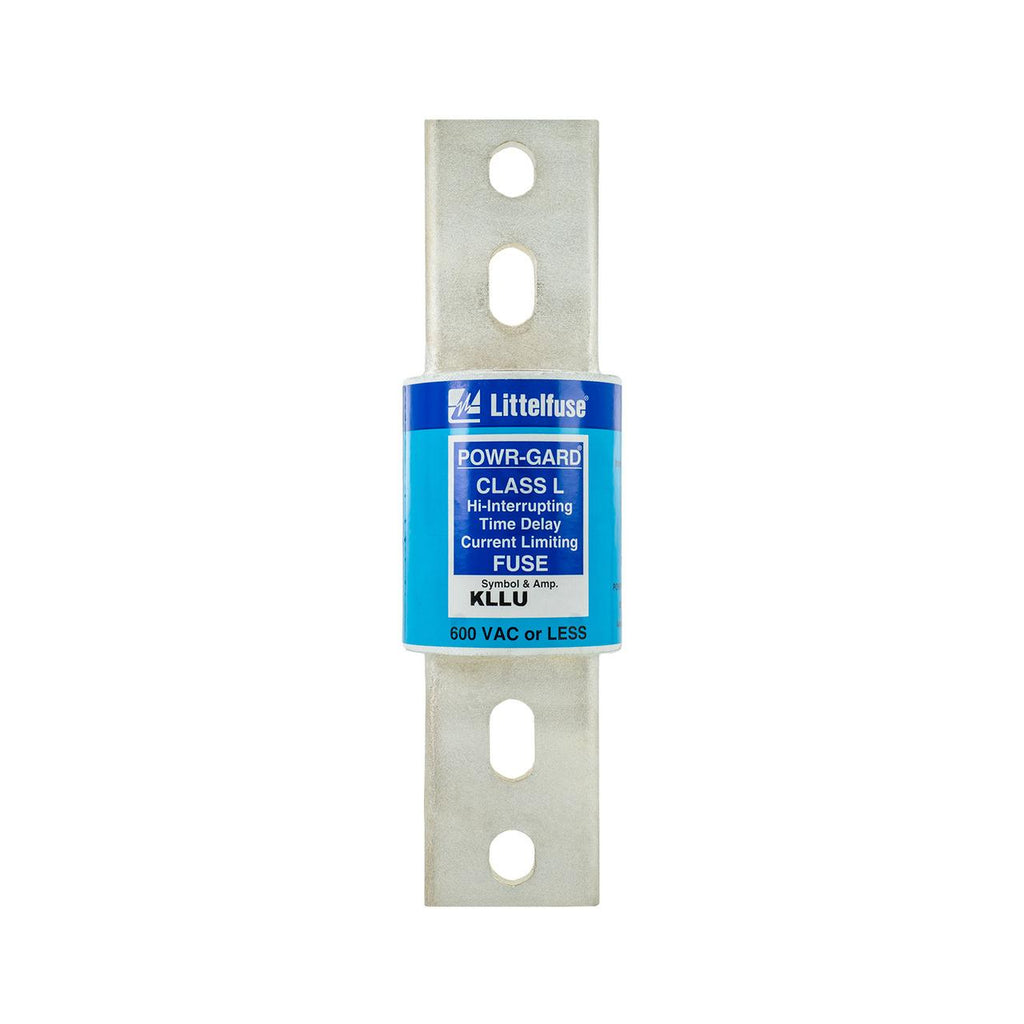

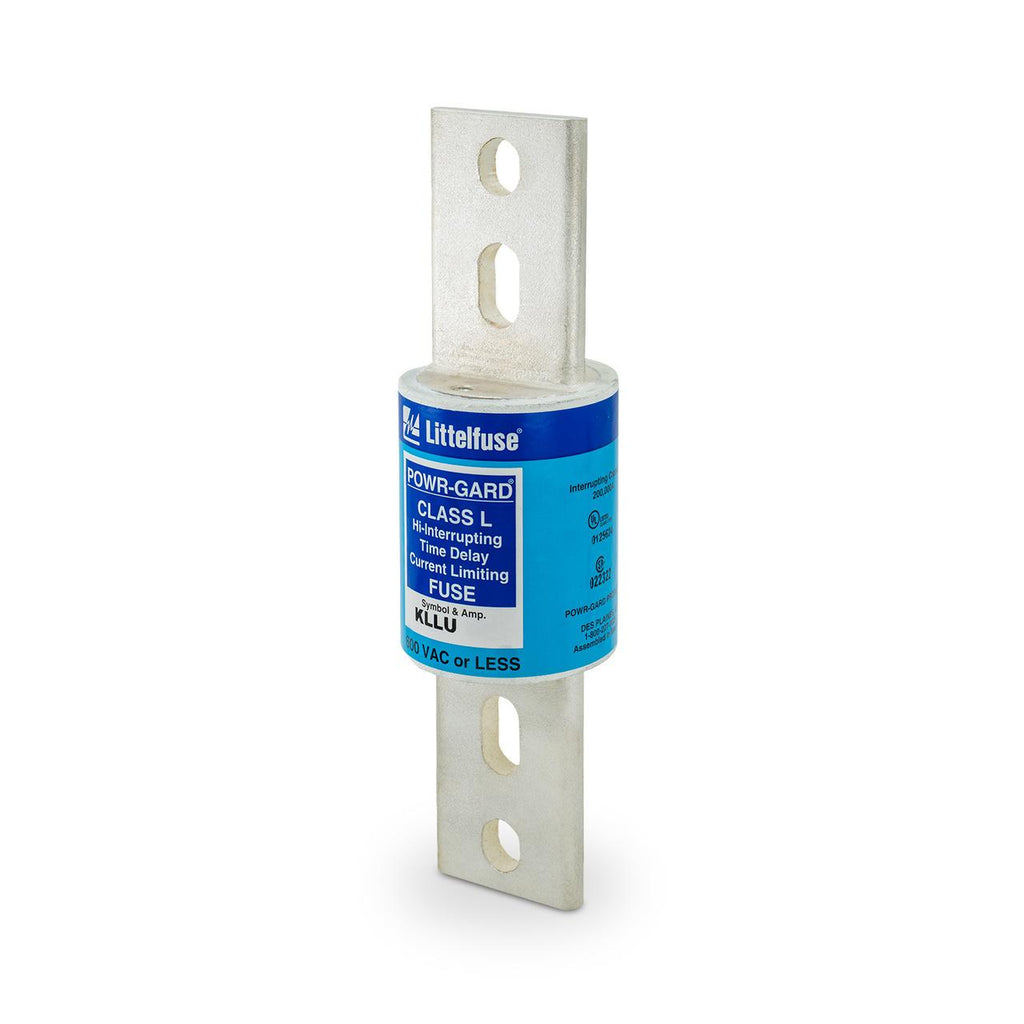

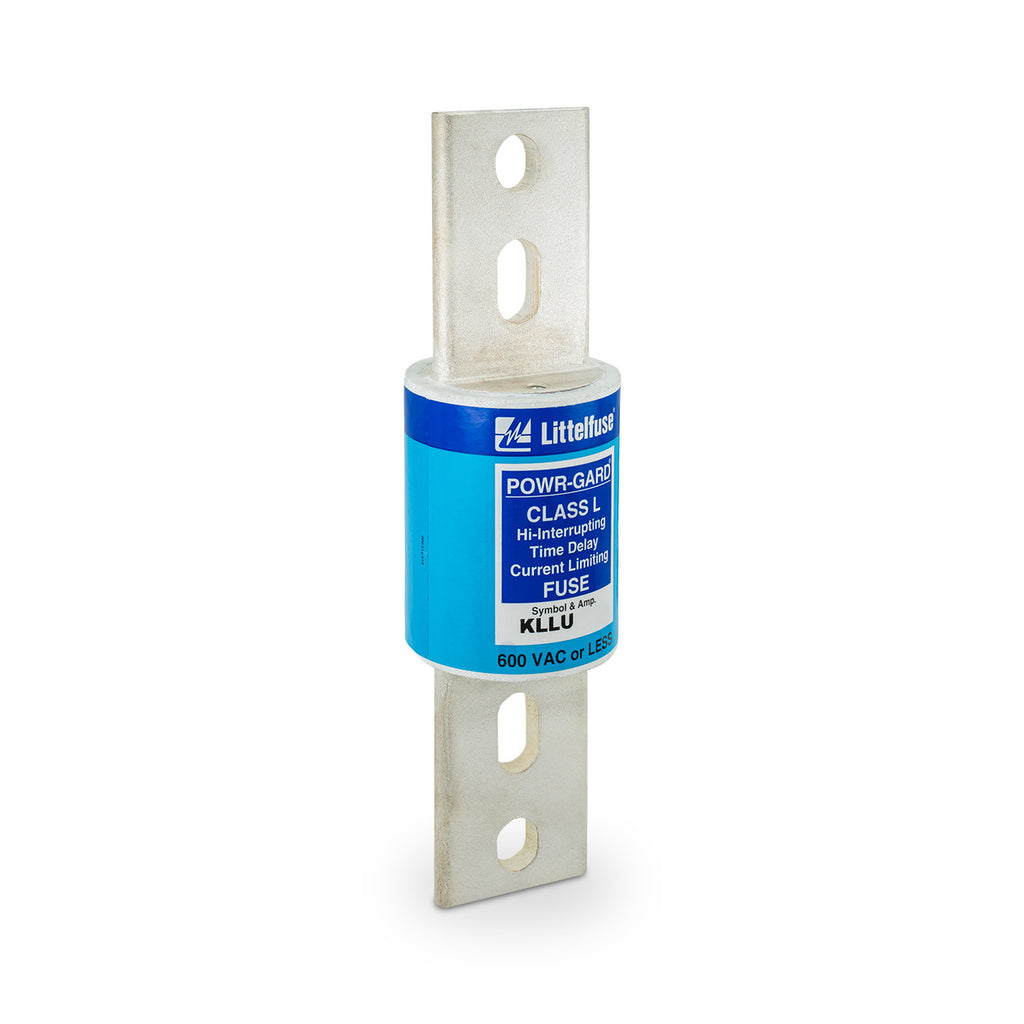

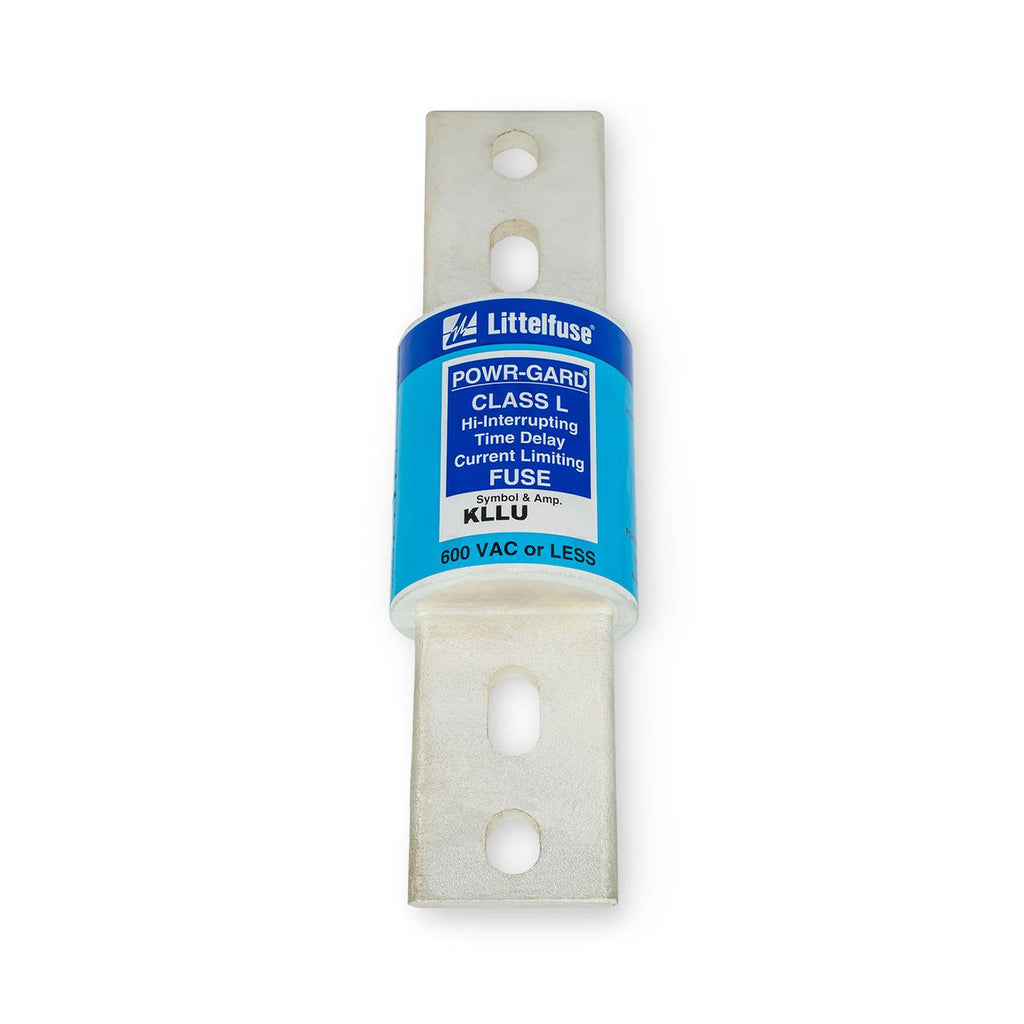

KLLU-1000 is a Littelfuse 1000 Amp, 600V AC, time-delay, current-limiting, Class L fuse designed for robust circuit protection in demanding industrial applications.

This fuse offers reliable overcurrent protection for service switches, switchboard mains, motor control center mains, and large motor branch circuits. It features a 10-second minimum time delay at 500% of rating, reducing nuisance trips during motor starts, and provides selective coordination with other current-limiting fuses. The KLLU-1000 is an economical alternative to the KLPC series, with a slightly higher peak let-through current, and is certified for both AC and DC applications.

Key Specifications
• Amperage: 1000A
• Voltage: 600V AC / 300V DC
• Poles: 1
• Mounting Type: Bolt-In
• Interrupt Rating: 200,000A @ 600V AC / 20,000A @ 300V DC
• Series/Frame: KLLU, Class L
• Trip Unit: Time Delay
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE
• Physical Size: 2-1/2" diameter x 10-3/4" length
• Current Limiting: Yes
• Applications: Service switches, switchboard mains, motor control center mains, large motor branch circuits
• Standards: UL 248-10, Class L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLLU-1000
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Diameter : 2.38
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 079458271058
• Weight : 5.19
