Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

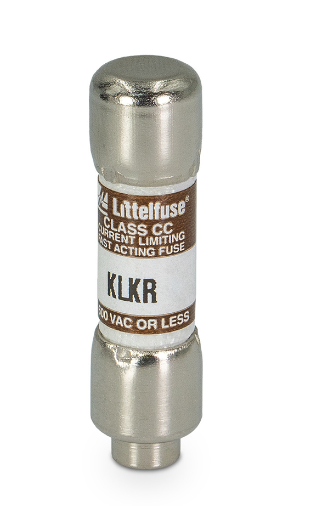

KLKR4
KLKR4 is a Class CC fast-acting fuse designed for general-purpose branch circuit protection in OEM equipment and control panels.
The KLKR4 Series fuse features a compact cartridge design with current-limiting technology that reduces damage from short-circuit heating and magnetic effects. Its fast-acting response provides superior protection for control circuits, lighting circuits, and solid-state components. The rejection feature prevents substitution of lower-rated fuses. This fuse complies with UL 248-4 and CSA standards and is RoHS compliant.
- Current Rating: 4 Amps continuous
- AC Voltage Rating: 600V
- DC Voltage Rating: 300V
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Fuse Class: Class CC (Midget)
- Opening Characteristic: Fast-Acting
- Body Material: Melamine
- Caps: Nickel-plated bronze
- Physical Size: 0.41 inches diameter x 1.5 inches length
- Mounting: Fuse Block / Clip / Holder
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLKR4
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : KLKR
- Voltage : 600
- Amperage : 4
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 079458260533
- GTIN : 00079458260533
- Weight : 12
