Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLKR20

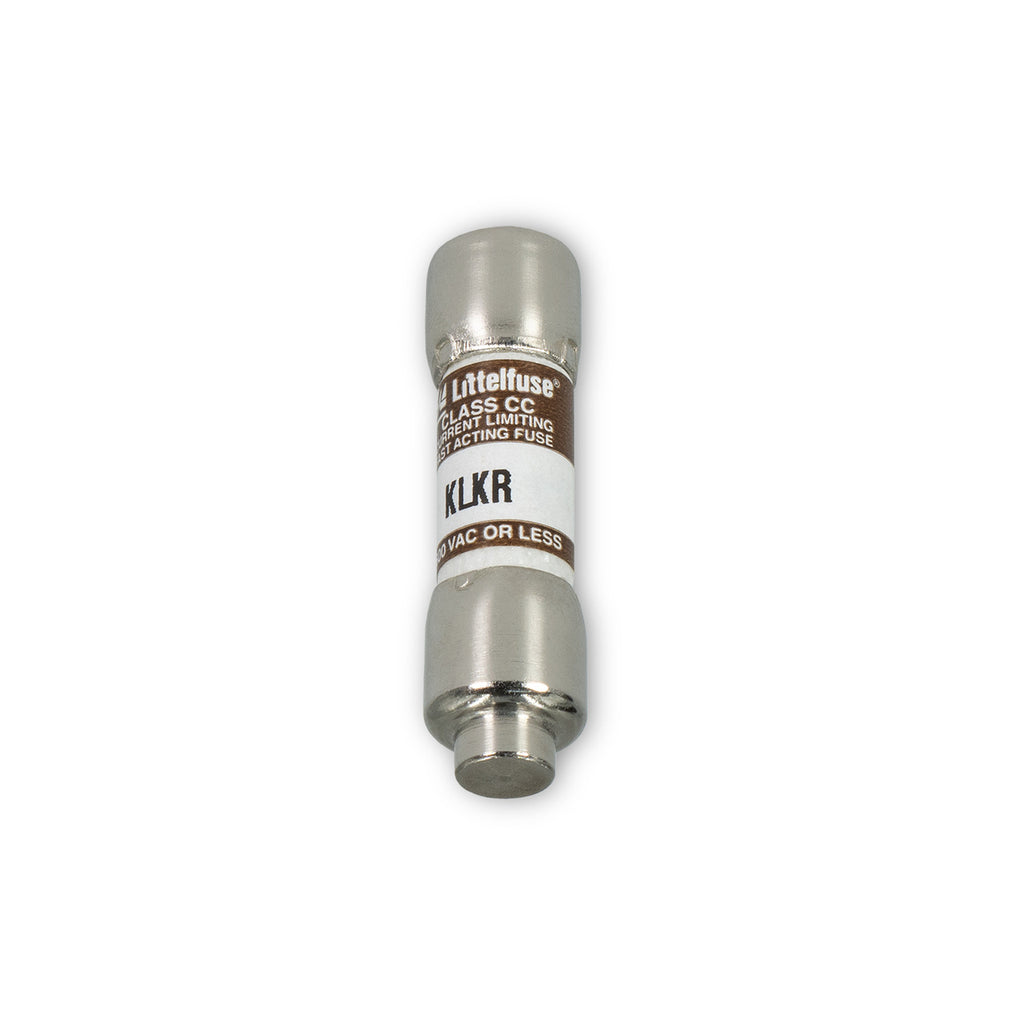

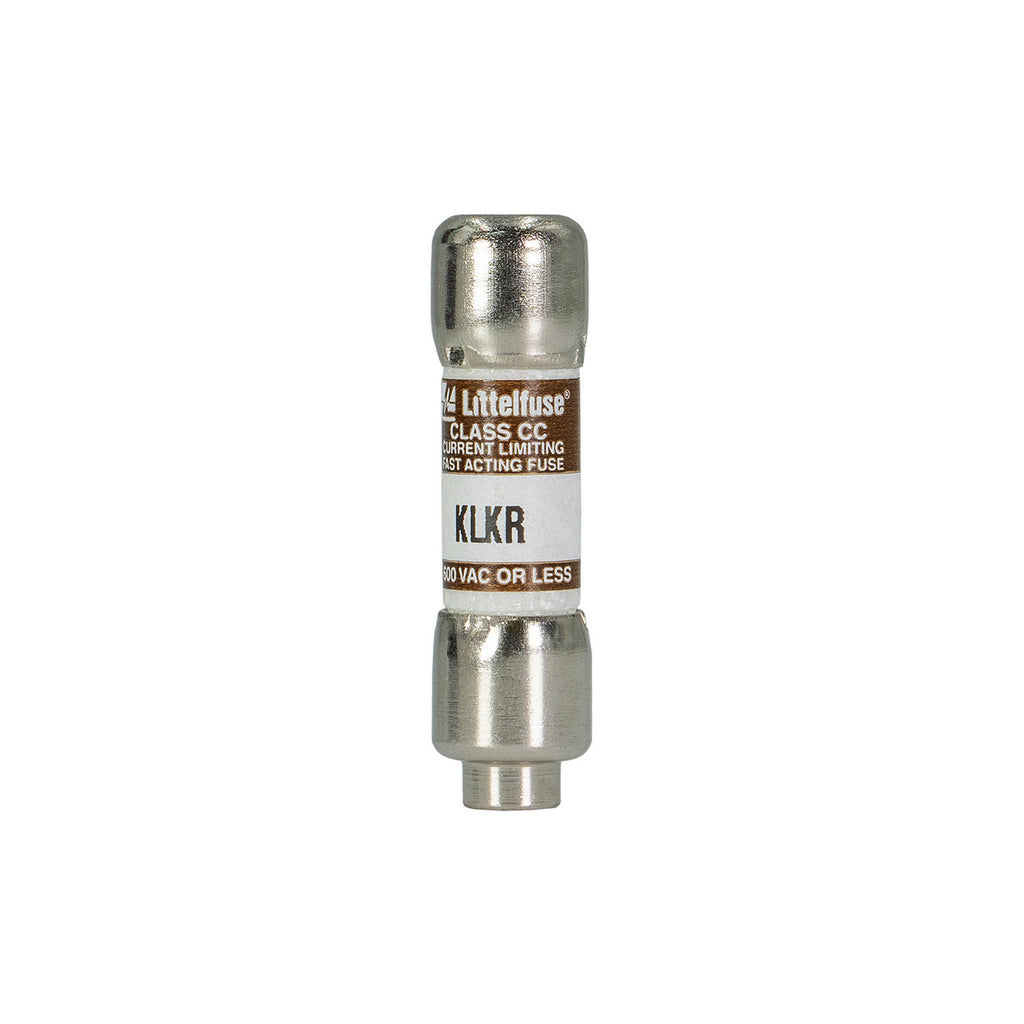

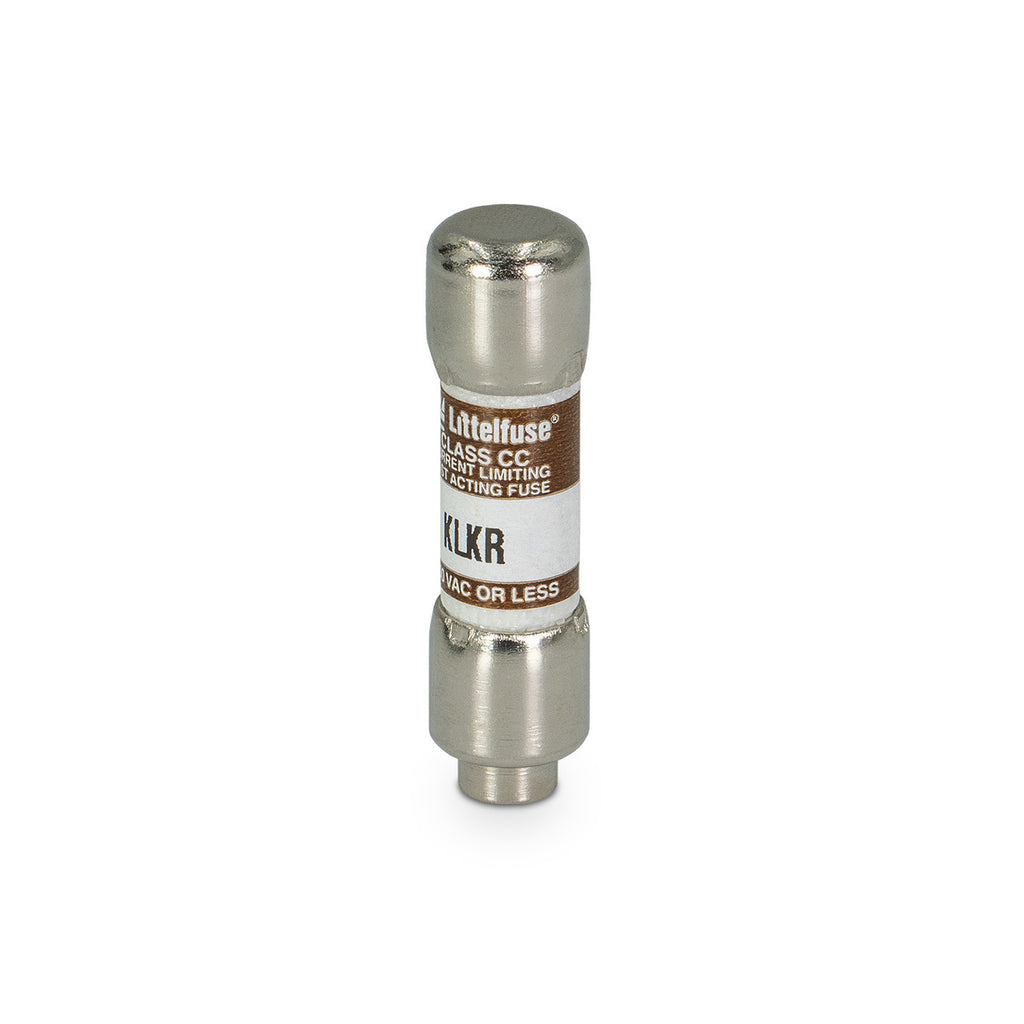

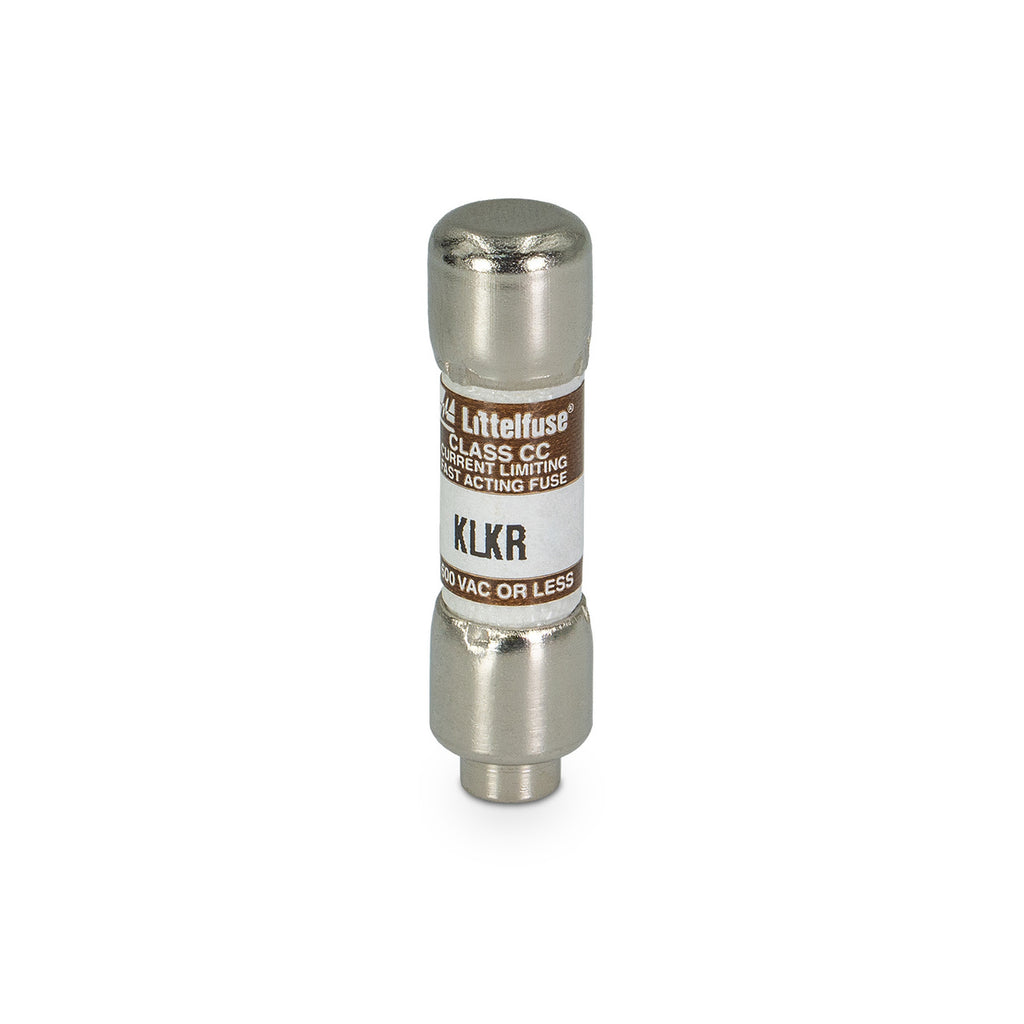

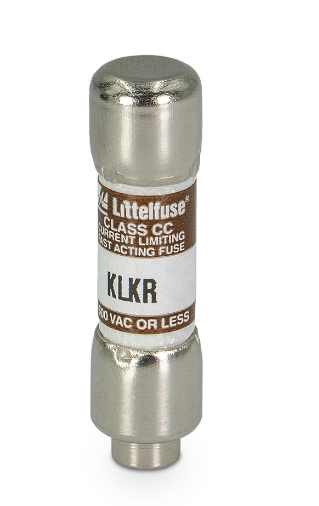

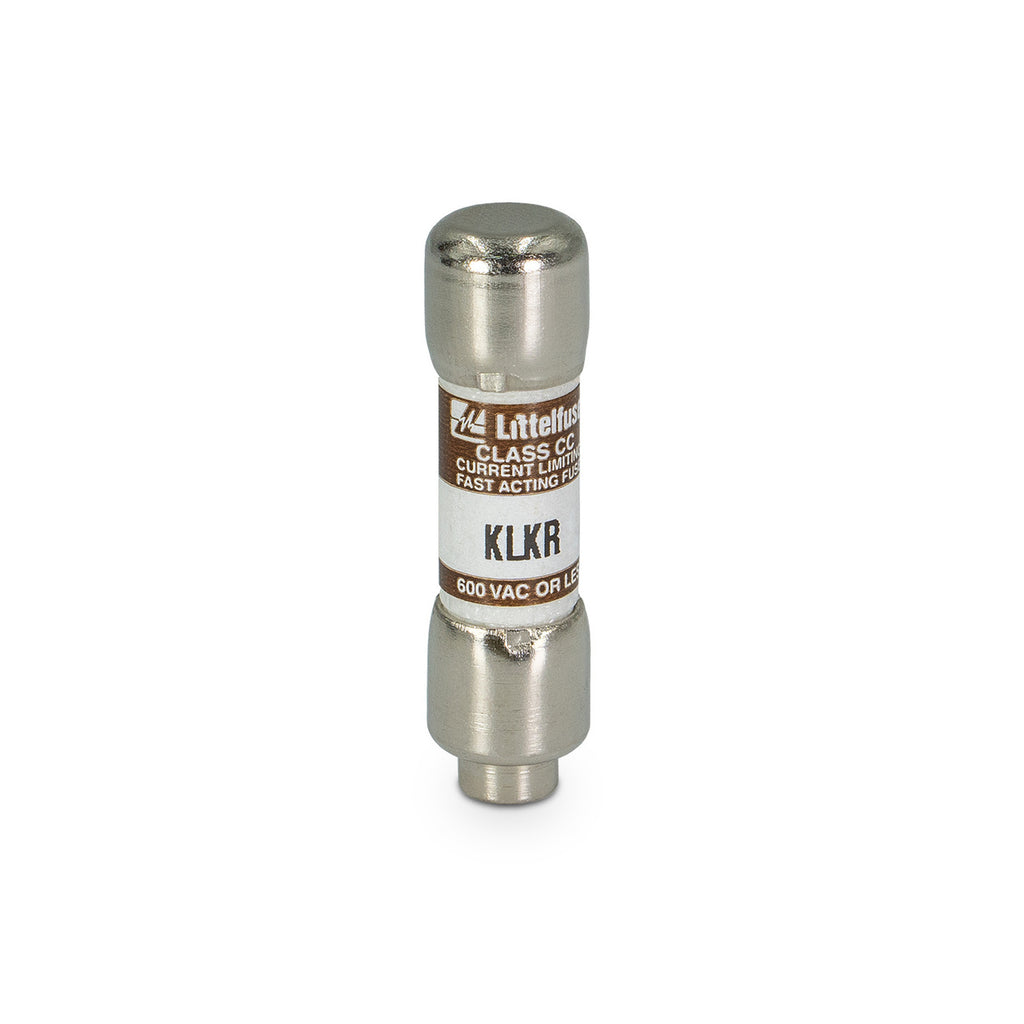

KLKR20 is a Littelfuse 20 amp, 600 volt Class CC fast-acting fuse designed for general-purpose branch circuit protection.The KLKR20 fuse features a compact 0.41 x 1.5 inch cartridge size with a fast-acting trip unit and a high interrupting rating of 200,000 amps at 600 VAC. It is constructed with a melamine body and nickel-plated bronze end caps, providing reliable current-limiting protection in control circuits, lighting, and transformer circuits. This fuse complies with UL 248-4 Class CC standards and is UL listed, CSA certified, and RoHS compliant.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Type: Fast-Acting (F)
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Series: KLKR (Class CC)
- Mounting Type: Holder
- Dimensions: 0.41 x 1.5 inches
- Material: Melamine body, nickel-plated bronze caps
- Certifications: UL Listed, CSA Certified, RoHS Compliant
Specifications
- Part Number: KLKR20
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : KLKR
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 079458260717
- GTIN : 00079458260717
- Weight : 5.19
