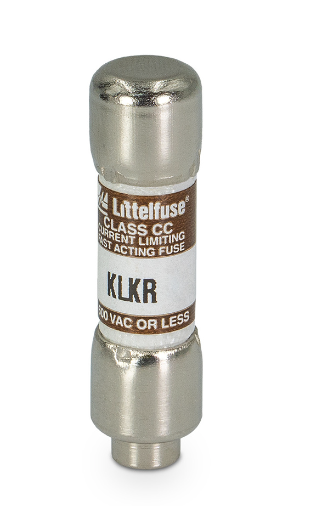

KLKR15 - Littelfuse 15 Amp 600 Volt Class CC Fast-Acting Fuse

KLKR15

KLKR15 is a Littelfuse Class CC fuse rated for 15 amps and 600 volts, designed for fast-acting circuit protection.

This fuse features a compact 41/100" x 1 1/2" melamine body with nickel-plated bronze end caps, providing highly current-limiting protection ideal for branch circuits, OEM equipment, and control panels. It has a fast-acting opening characteristic and a rejection feature to prevent substitution with lower-rated fuses. The KLKR15 is UL listed, CSA certified, and CE compliant, with an interrupting rating of 200,000 amperes at 600 VAC and 20,000 amperes at 300 VDC, ensuring reliable protection against short circuits and overloads.

• Amperage: 15 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: Class CC
• Fuse Type: Fast-Acting
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Body Material: Melamine
• End Caps: Nickel-Plated Bronze
• Size: 0.41" Diameter x 1.5" Length
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL Listed, CSA Certified, CE Compliant
• Rejection Type: Prevents substitution with lower-rated fuses

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR15
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : KLKR
• Voltage : 600
• Amperage : 15
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 079458260687
• GTIN : 00079458260687
• Weight : 7
