Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

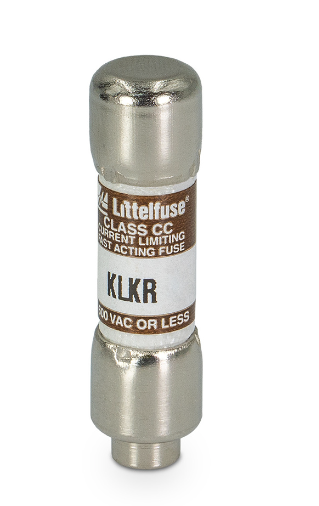

KLKR12
KLKR12 is a Littelfuse Class CC fast-acting current limiting fuse designed for general-purpose branch circuit protection.KLKR12 provides fast overload response and superior protection in a compact size, reducing damage from short-circuit currents. It is UL and CSA certified, RoHS compliant, and suitable for control circuits, general loads, and solid-state components.
- Amperage: 12 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: Class CC
- Speed: Fast Acting
- Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
- Current Limiting: Yes
- Body Material: Melamine
- Caps Material: Nickel-plated bronze
- Rejection Type: Yes
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Country of Origin: Mexico
Specifications
- Part Number: KLKR12
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : KLKR
- Voltage : 600
- Amperage : 12
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- Weight : 0.08
