Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

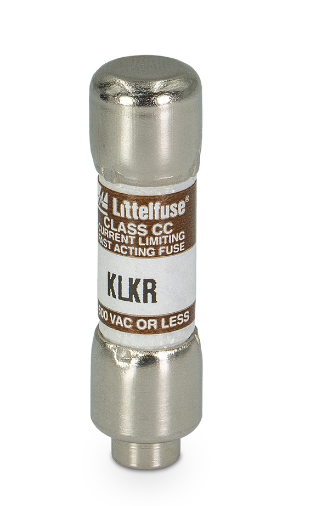

KLKR1/2
KLKR1/2 is a Littelfuse Class CC fast-acting fuse designed for general-purpose branch circuit protection. This compact fuse provides reliable current-limiting performance and rejection features to prevent substitution with lower-rated fuses. The KLKR1/2 fuse is ideal for use in control circuits, lighting circuits, and control transformer circuits where fast overload response is required. Its melamine body and nickel-plated bronze caps ensure durability and safety in demanding environments. The fuse is UL Listed, CSA Certified, and RoHS compliant, meeting the highest industry standards for safety and environmental responsibility.
- Amperage: 1/2 A
- Maximum AC Voltage: 600 V
- Maximum DC Voltage: 300 V
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Series: KLKR
- Class: Class CC
- Opening: Fast-Acting
- Mounting: Fuse Block / Clip / Holder
- Body Material: Melamine
- Caps: Nickel-plated Bronze
- UL Listed
- CSA Certified
- RoHS Compliant
Specifications
- Part Number: KLKR1/2
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : KLKR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- GTIN : 00758150430993
- Weight : 7
