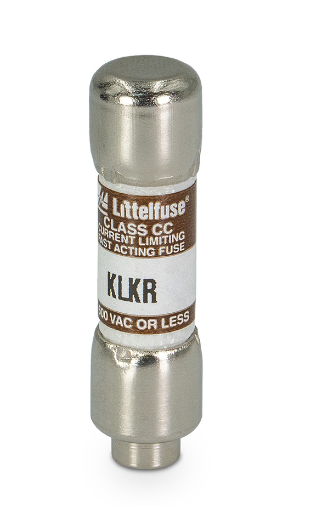

KLKR1-1/2 - Littelfuse 1.5A 600V Class CC Fast-Acting Fuse

KLKR1-1/2

KLKR1-1/2 is a Littelfuse Class CC fast-acting fuse designed for general-purpose branch circuit protection.This 1.5 amp fuse features a voltage rating of 600 VAC and 300 VDC, with a high interrupting rating of 200,000 amps at 600 VAC and 20,000 amps at 300 VDC. Its compact melamine body and nickel-plated bronze end caps provide durability and reliable performance. The KLKR series fuses are current-limiting and include rejection features to prevent substitution with lower rated fuses, making them ideal for protecting equipment requiring fast overload response such as control circuits and solid-state components. It complies with UL and CSA standards.

Key Specifications
• Amperage: 1.5 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Fuse Class: Class CC
• Speed: Fast-Acting
• Body Material: Melamine
• End Caps: Nickel-Plated Bronze
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KLKR1-1/2
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Gard
• Type : KLKR
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1



Product Data

• Weight : 7 lb
