Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

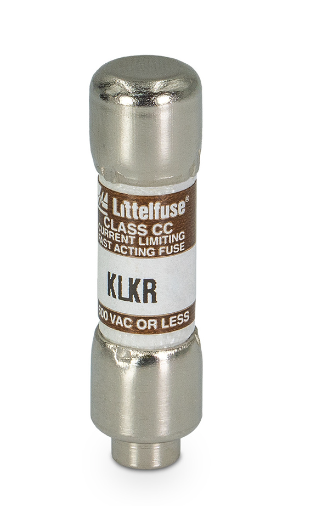

KLKR03.5

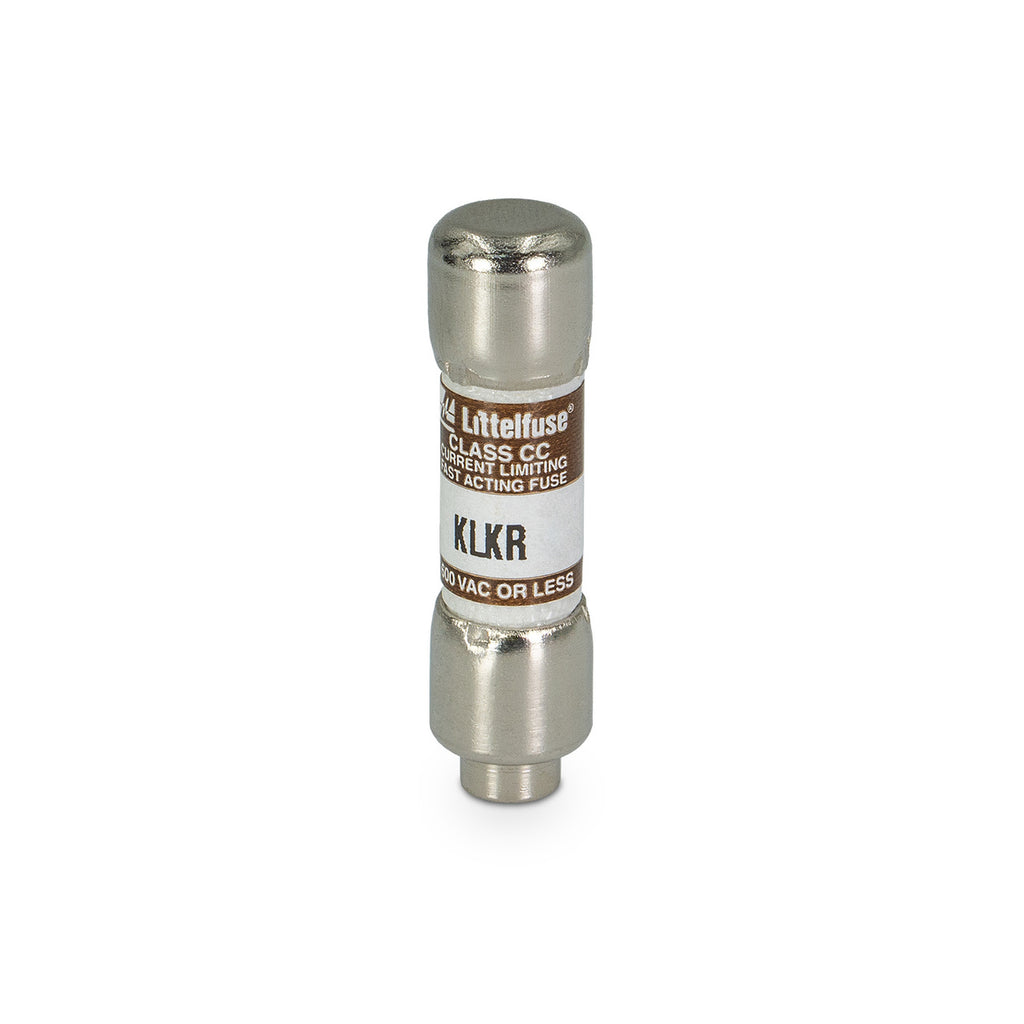

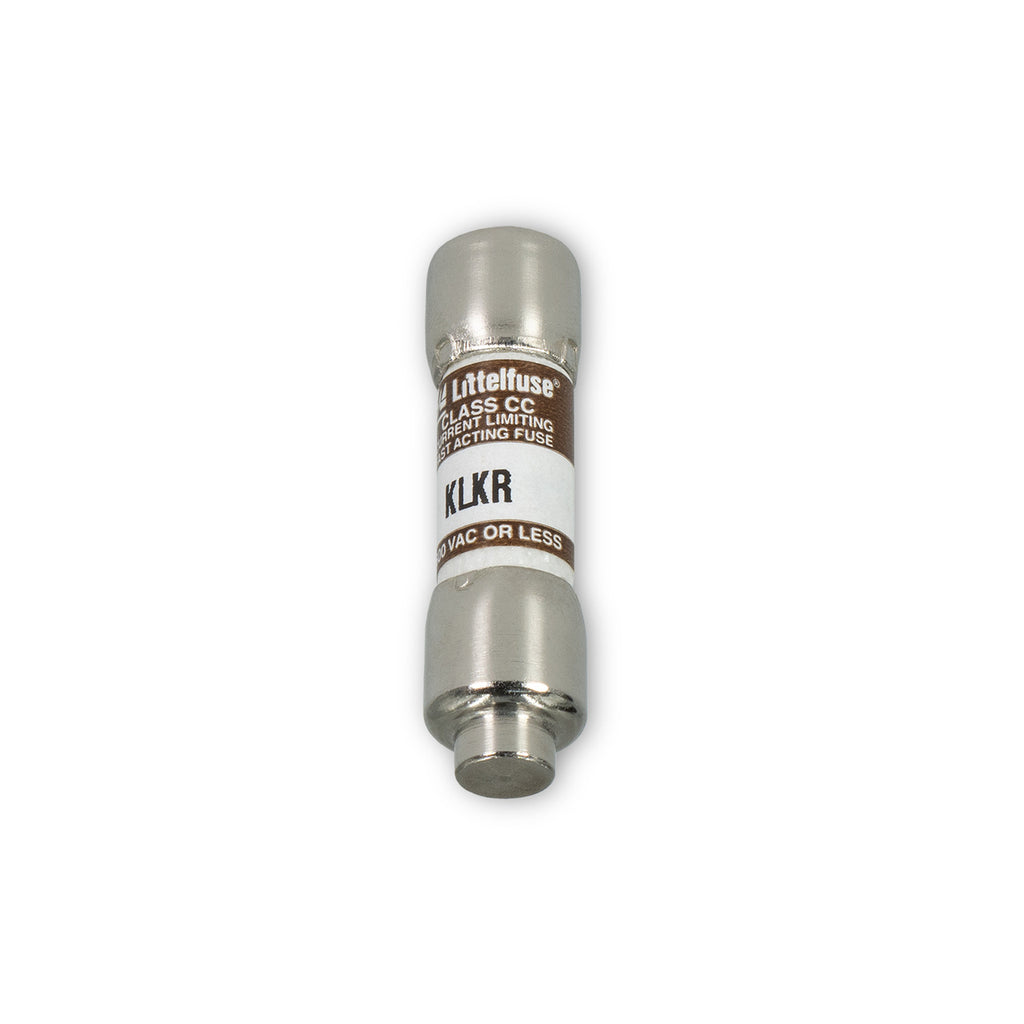

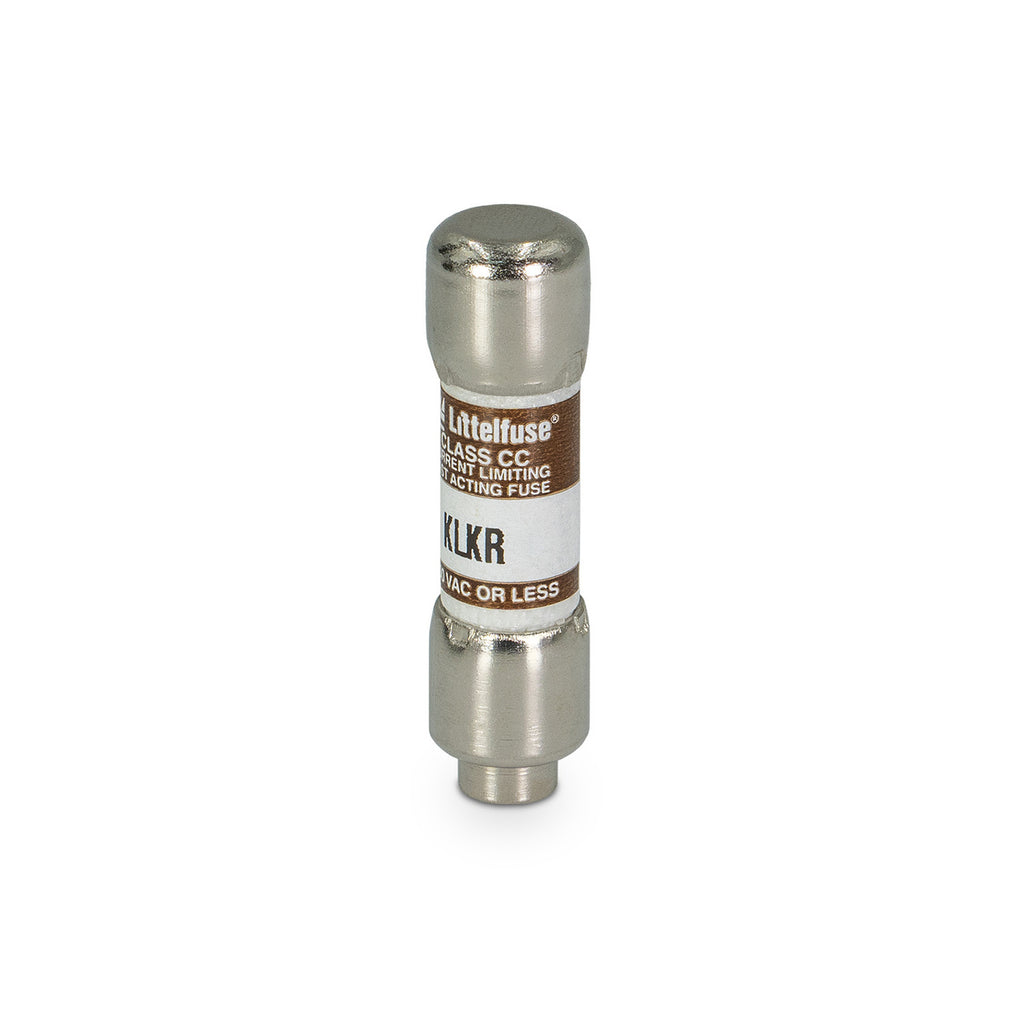

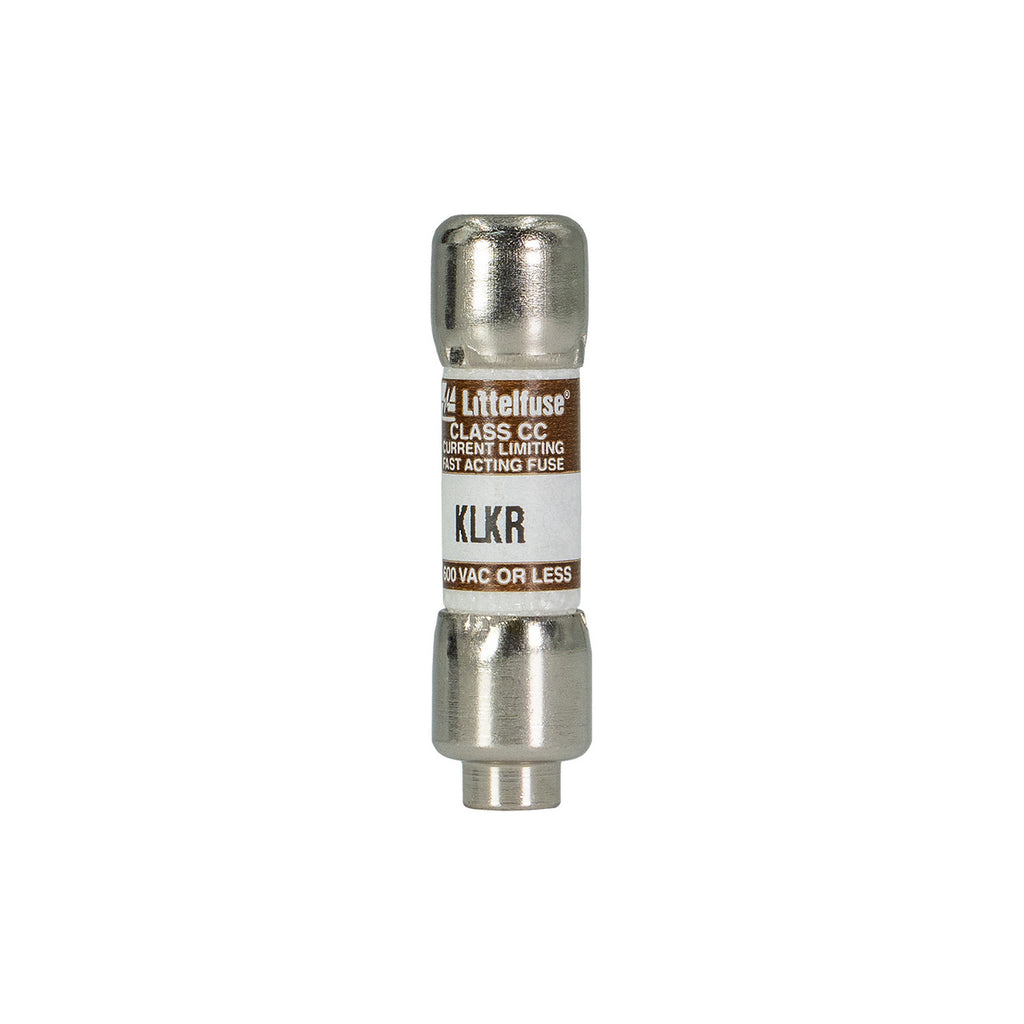

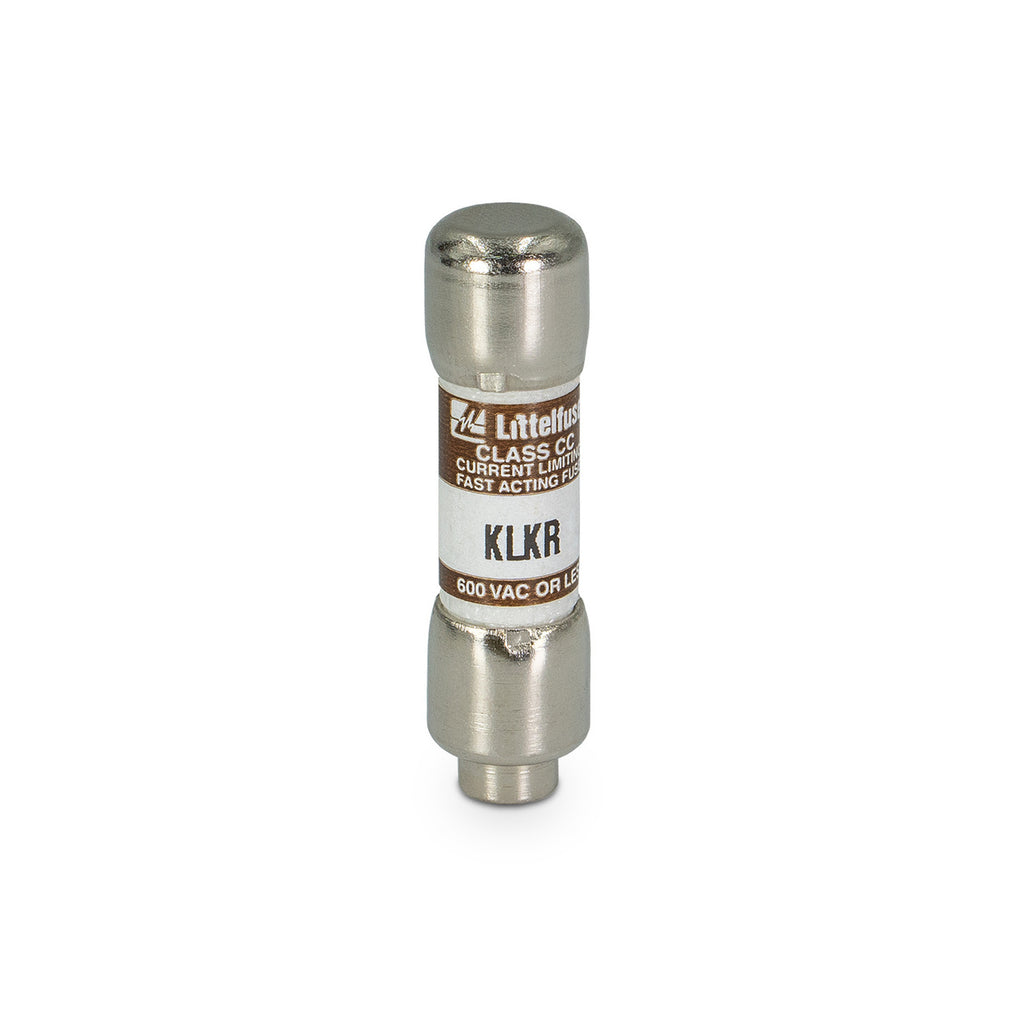

KLKR03.5 is a Class CC fast-acting fuse designed for general-purpose branch circuit protection in control panels and industrial applications. This compact cartridge fuse provides reliable protection for sensitive equipment and solid-state components. The KLKR03.5 fuse features a current-limiting design and rejection capability to prevent the use of fuses with lower interrupting ratings. It is constructed with a melamine body and nickel-plated bronze caps for durability and consistent performance.
- Amperage Rating: 3.5 A
- Voltage Rating: 600 V AC, 300 V DC
- Interrupt Rating: 200 kA at 600 V AC, 20 kA at 300 V DC
- Series: KLKR
- Class: Class CC
- Speed: Fast-Acting
- Mounting Type: Cartridge
- Physical Size: 0.41" x 1.5"
- Rejection Type: Yes
- Standards: UL 248-4, CSA, CE
Specifications
- Part Number: KLKR03.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLKR Series - Class CC Dual-Element, Fast-Acting Fuses
- Type : KLKR Series - Class CC Dual-Element, Fast-Acting Fuses
- Voltage : 600
- Amperage : 3.5
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458260489
- GTIN : 00079458260489
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : CE, CSA Certified, RoHS, UL 248-4, UL Listed
