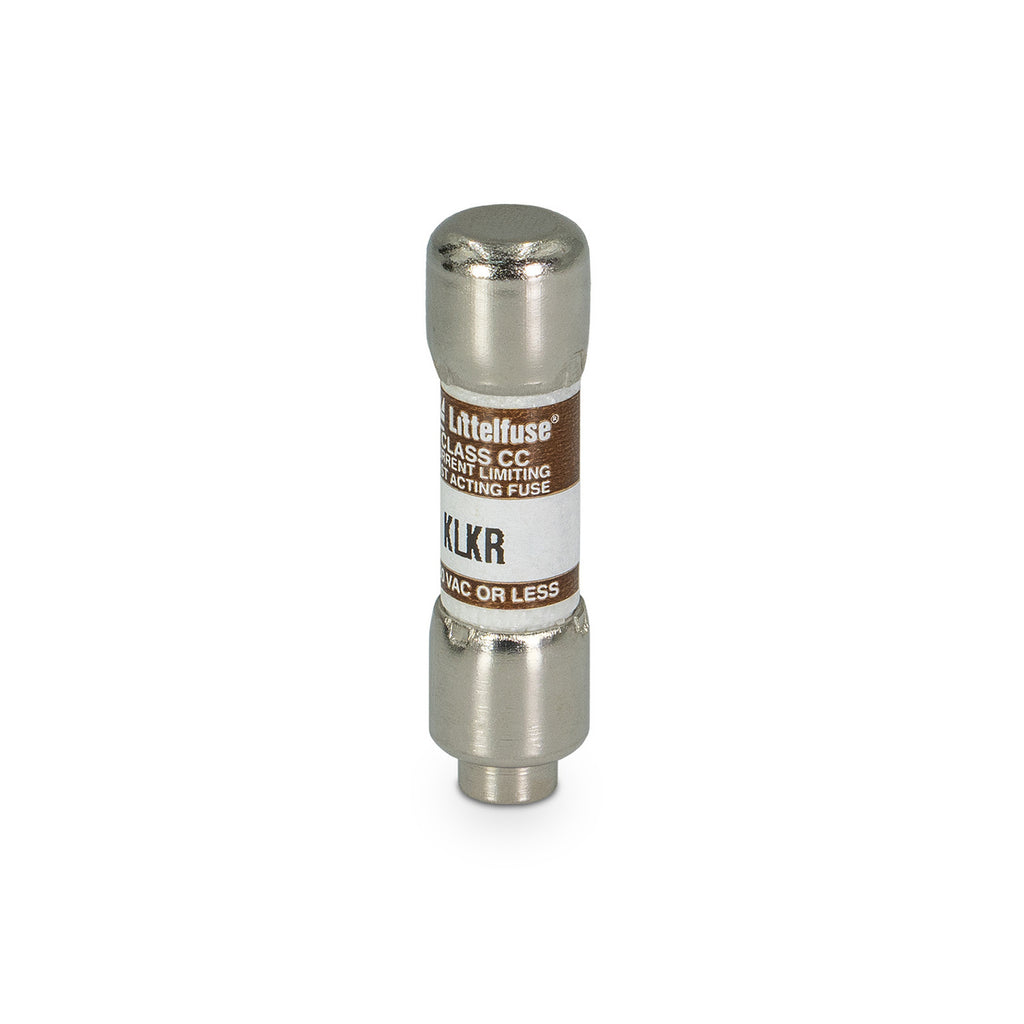

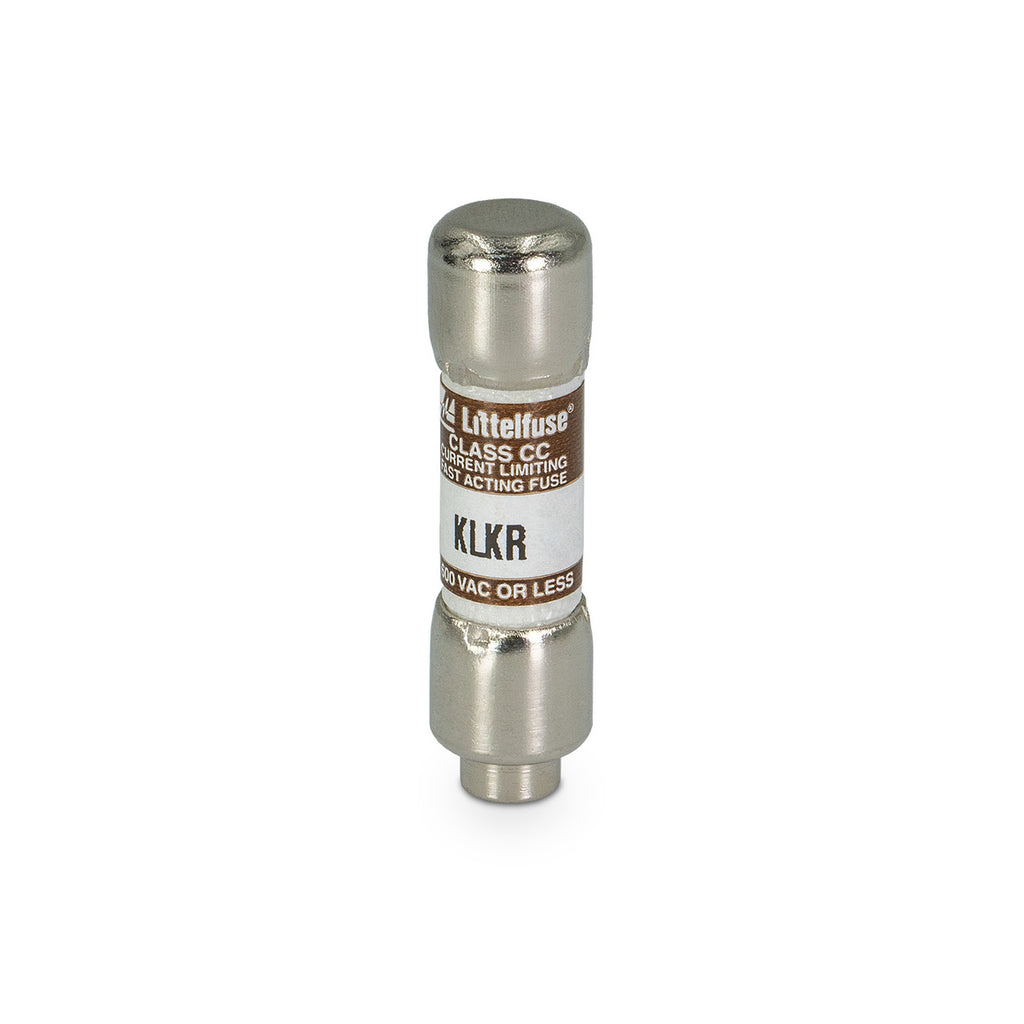

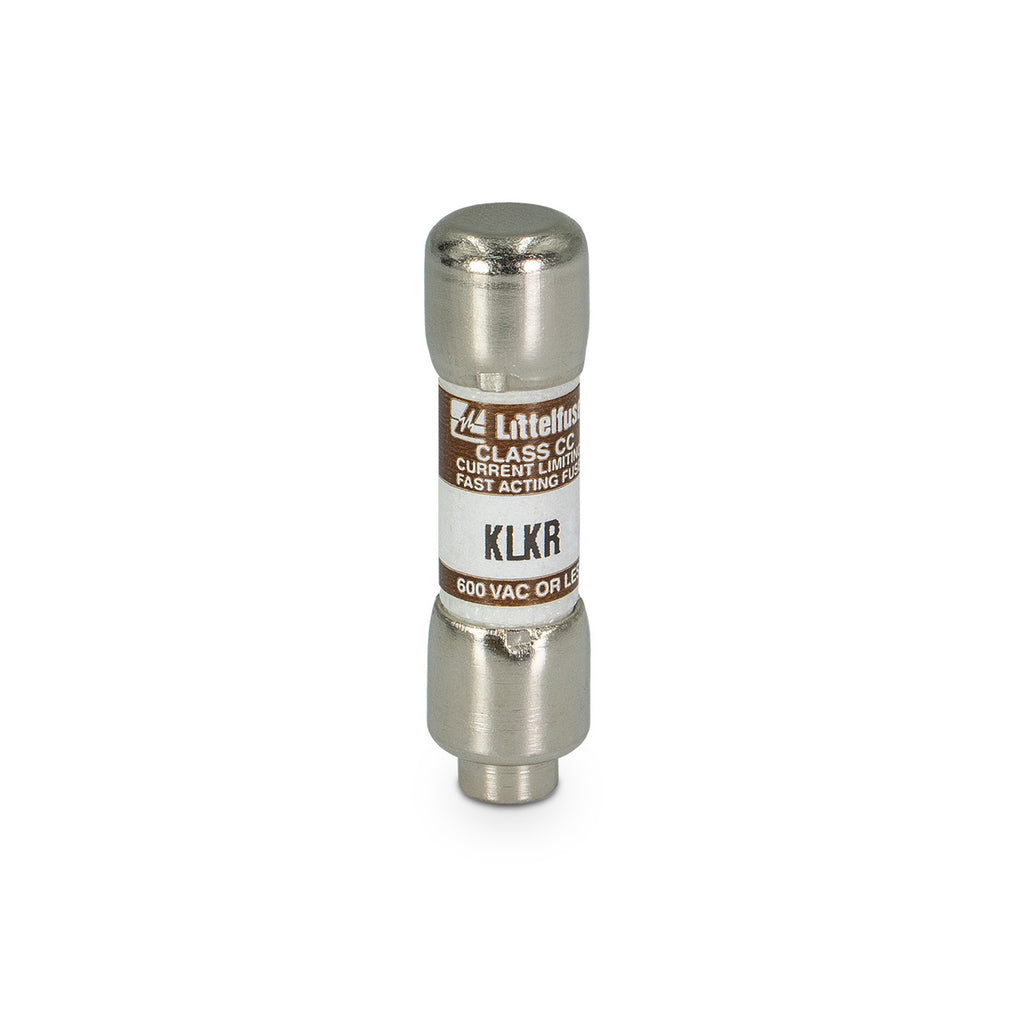

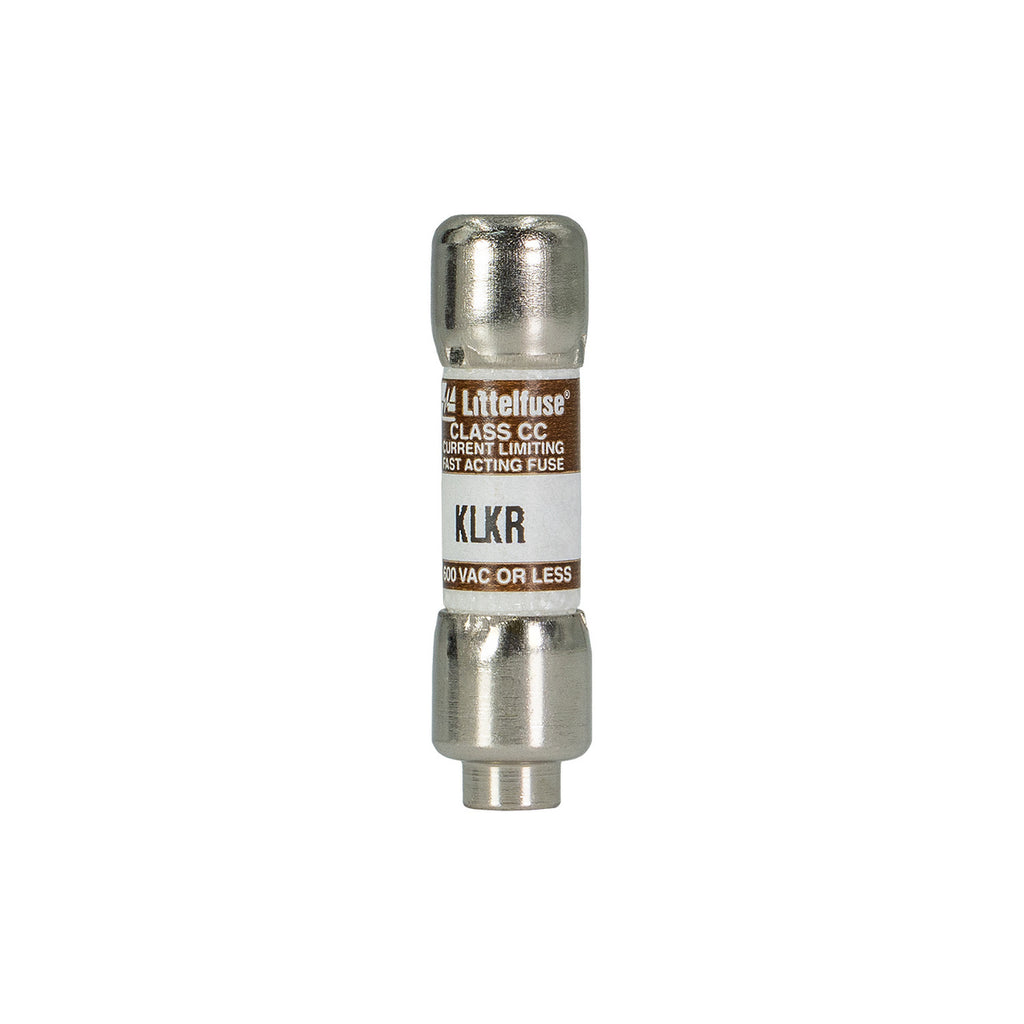

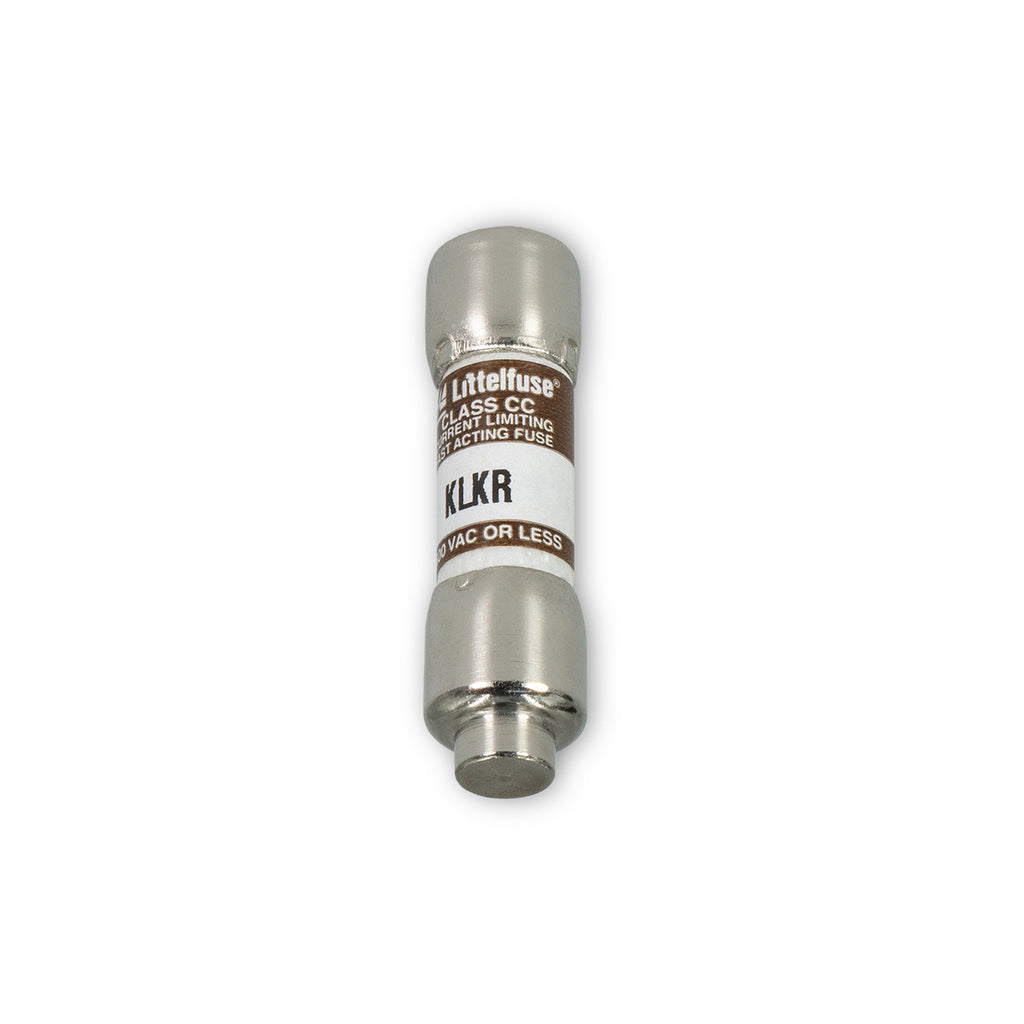

KLKR005 - Littelfuse 5 Amp 600 Volt Class CC Fast-Acting Fuse

KLKR005

KLKR005 is a Littelfuse Class CC fast-acting fuse designed for branch circuit protection in OEM equipment and control panels.This 5 Amp fuse features a compact 0.41" x 1.5" cartridge body, providing highly current-limiting protection with a 600 Volt AC and 300 Volt DC rating. It offers a 200,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 300 VDC, ensuring reliable performance in general-purpose branch circuits. The fuse is UL Listed and CSA Certified, with rejection capability to prevent improper fuse use.

• Amperage Rating: 5 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class CC
• Response Time: Fast-Acting
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Mounting Type: Cartridge
• Fuse Size: 0.41" x 1.5"
• Certifications: UL Listed, CSA Certified
• Protection Type: Branch Circuit, OEM Equipment, Control Panels
• Current Limiting: Yes
• Rejection Capability: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR005
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLKR Series - Class CC Dual-Element, Fast-Acting Fuses
• Type : KLKR Series - Class CC Dual-Element, Fast-Acting Fuses
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 07945826055
• GTIN : 00079458260557
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 7.6
• Certification : CE, UL 248-4, UL Listed, CSA Certified, RoHS
