KLKR.500 - Littelfuse 0.5A 600V Fast-Acting Class CC Fuse, Cartridge, 200kA Interrupt Rating

KLKR-.500

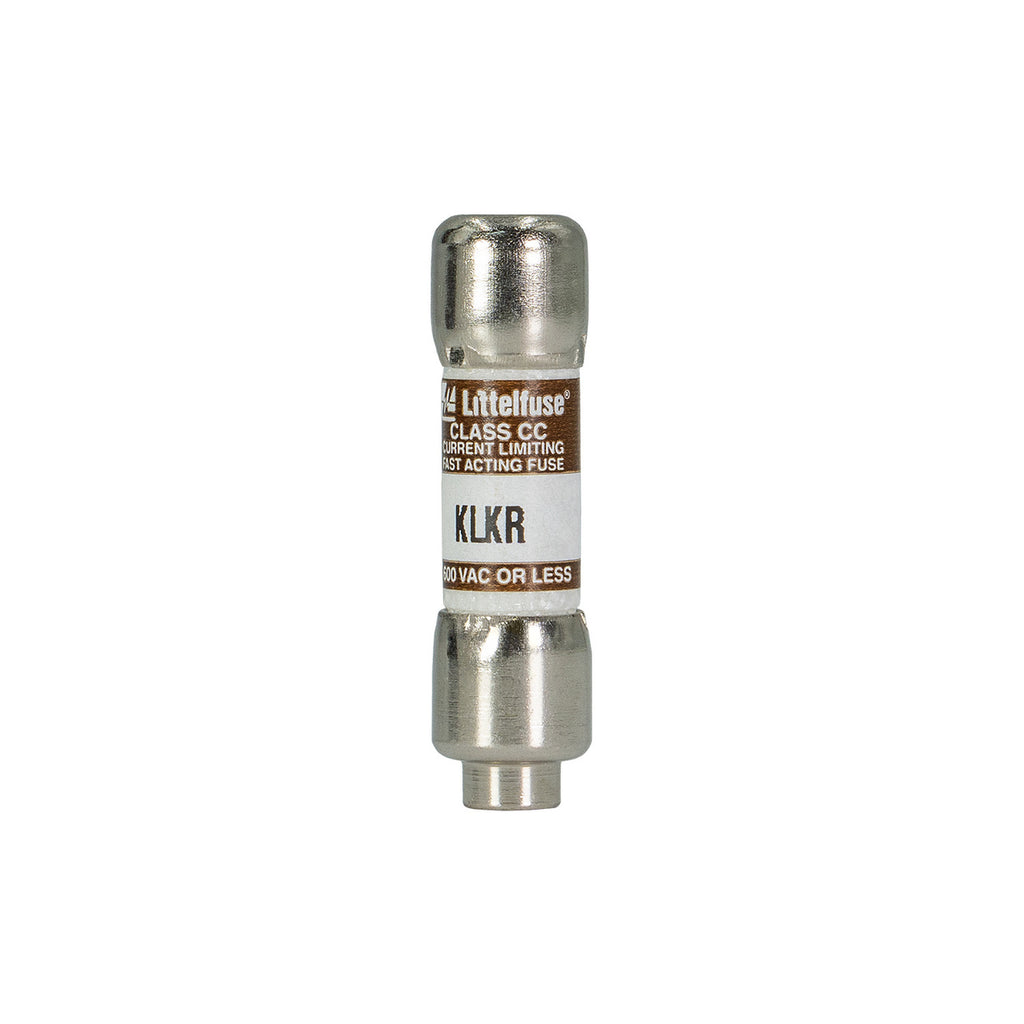

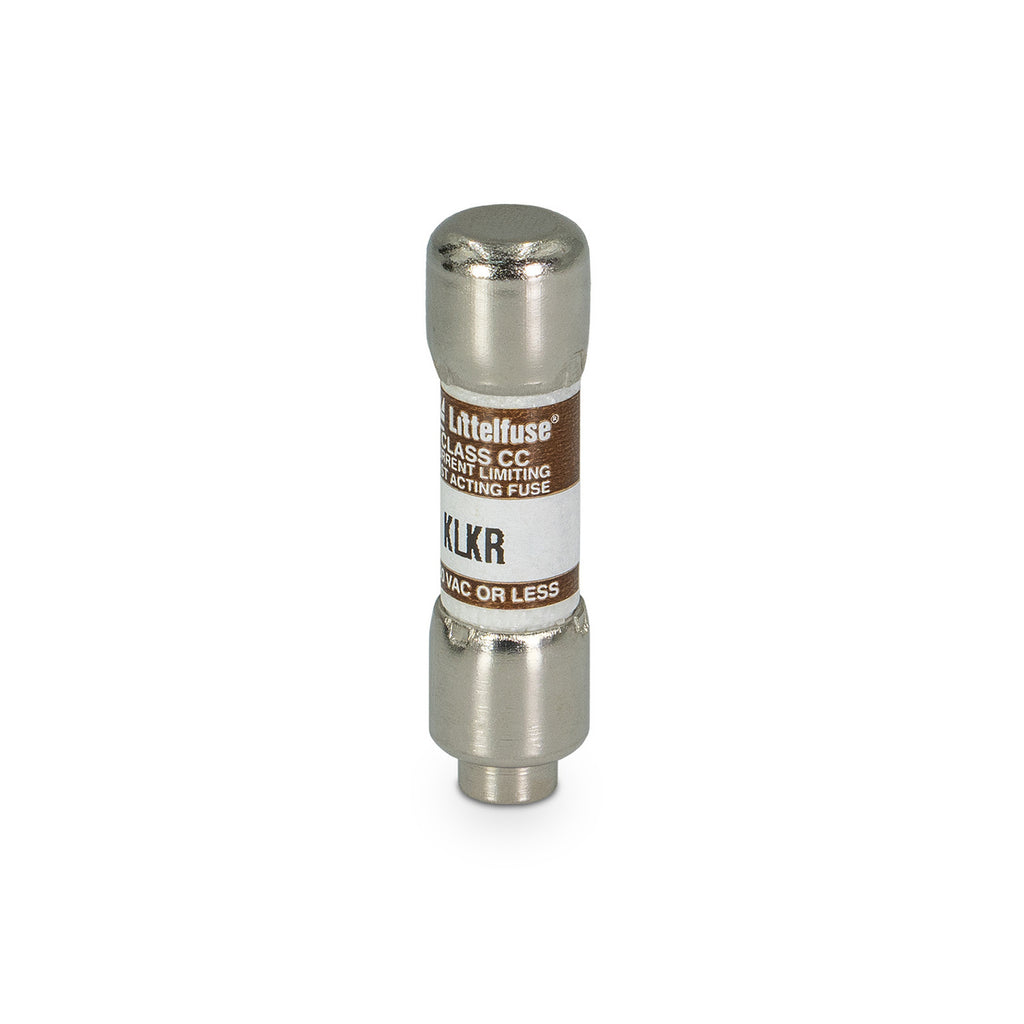

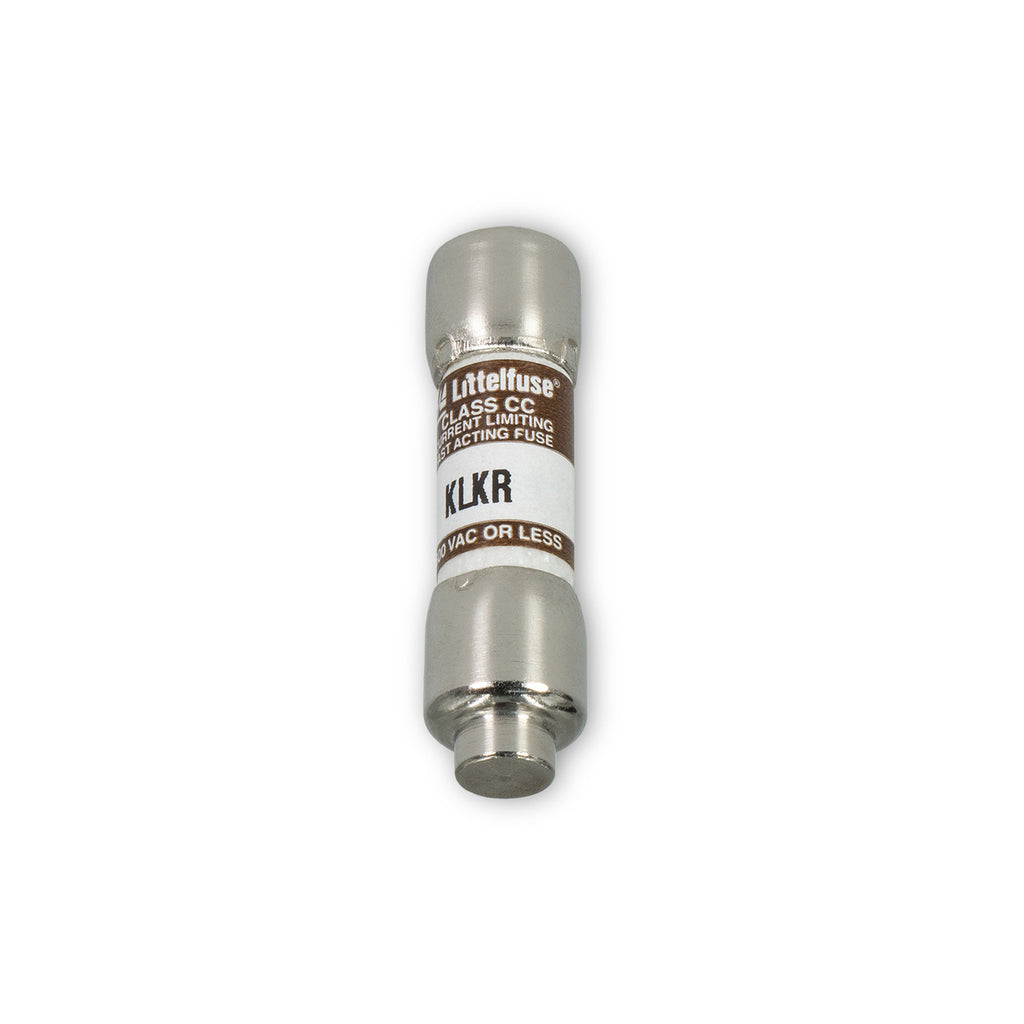

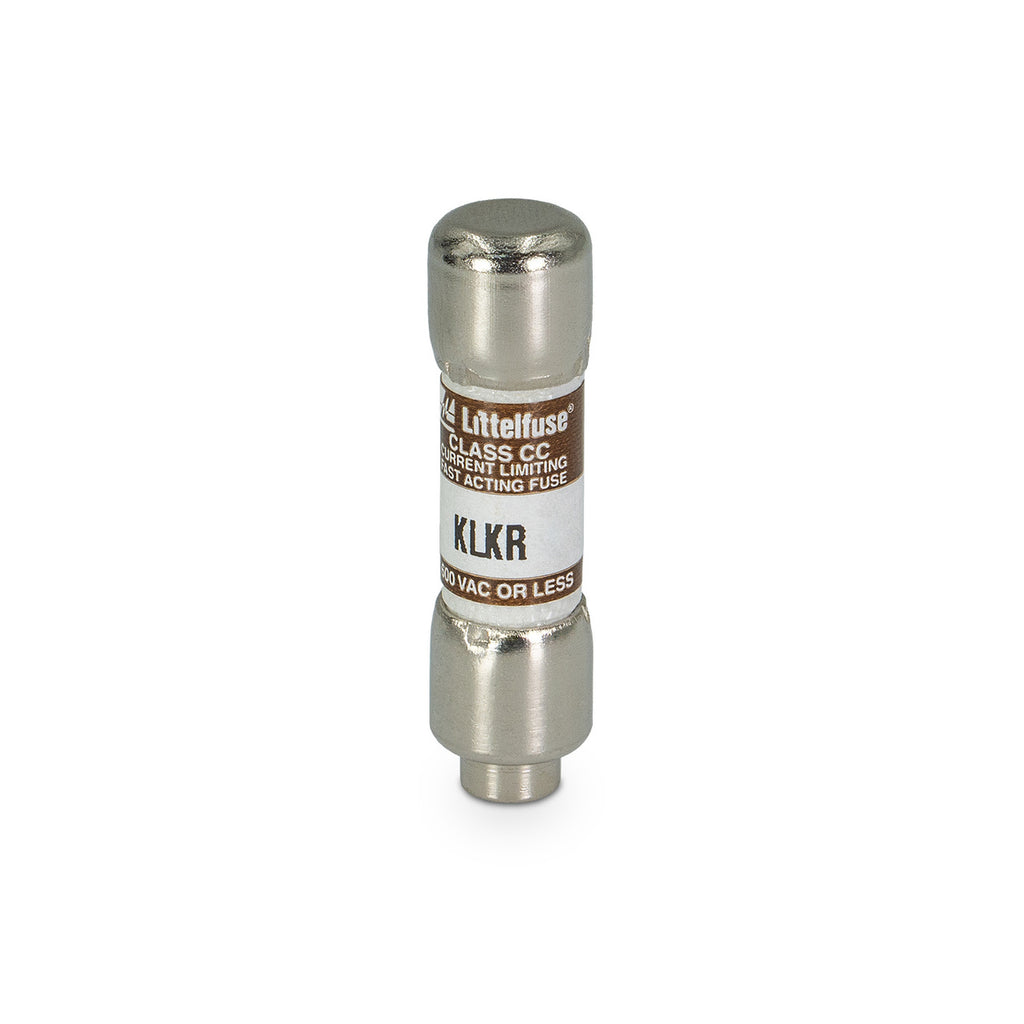

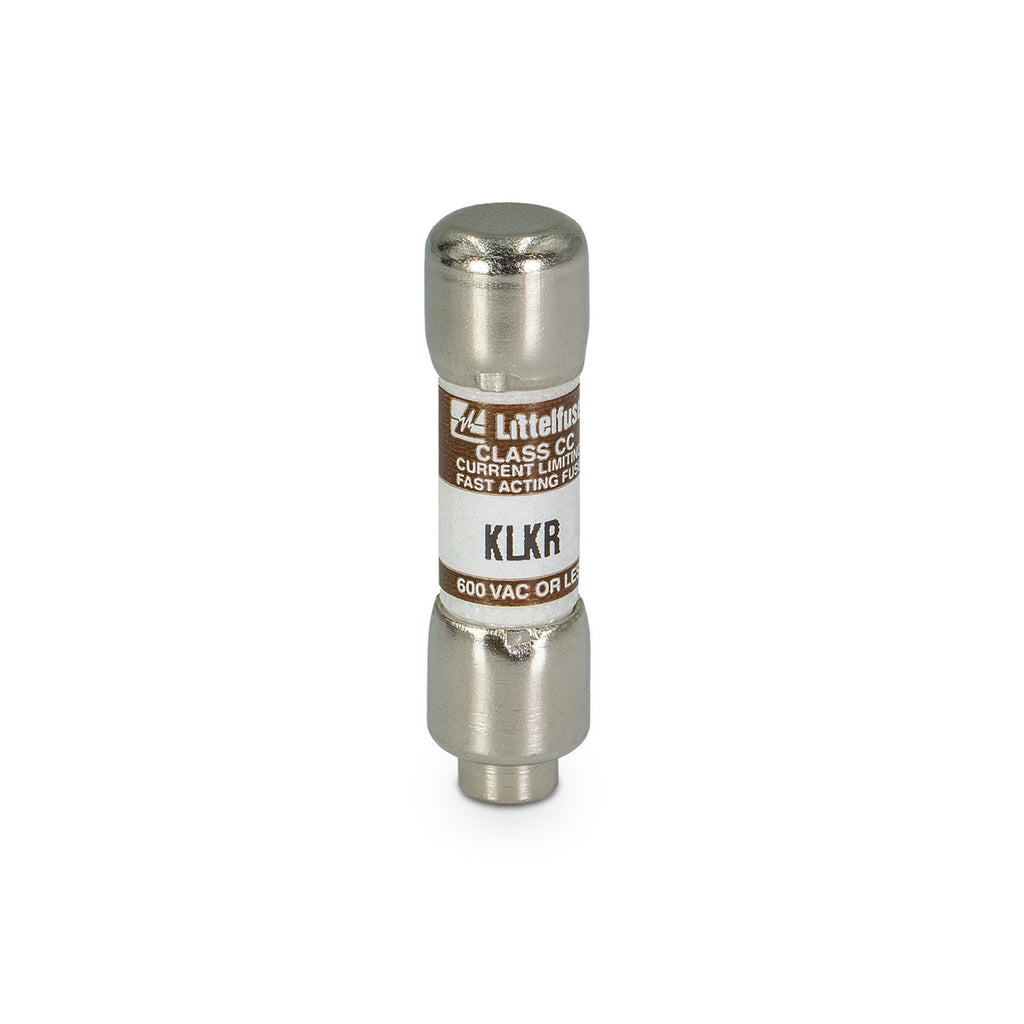

KLKR.500 is a Littelfuse fast-acting Class CC fuse designed for general-purpose branch circuit protection with a 0.5 ampere rating and 600 volts AC voltage rating.This KLKR Series fuse features a compact cartridge design with fast overload response and current-limiting capabilities. It is rated for 600V AC and 300V DC operation, with an interrupting rating of 200,000 amps RMS symmetrical at 600V AC and 20,000 amps DC. The fuse body is made of melamine with nickel-plated bronze end caps, and it complies with UL 248-4, CSA, and CE standards. It includes rejection features to prevent substitution with lower rated fuses and is RoHS compliant.

• Amperage: 0.5 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Type: Fast-Acting (F/A)
• Interrupt Rating: 200 kA AC, 20 kA DC
• Mounting Type: Cartridge
• Series: KLKR Class CC
• Material: Melamine body, nickel-plated bronze caps
• Certifications: UL Listed, CSA Certified, CE Compliant
• Rejection Type: Prevents substitution with lower rated fuses
• RoHS Compliant
• Dimensions: Approximately 0.41 in diameter x 1.5 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR-.500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse

Product Data

• UPC : 07945826024
• GTIN : 079458260243
• Weight : 0.1
