Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

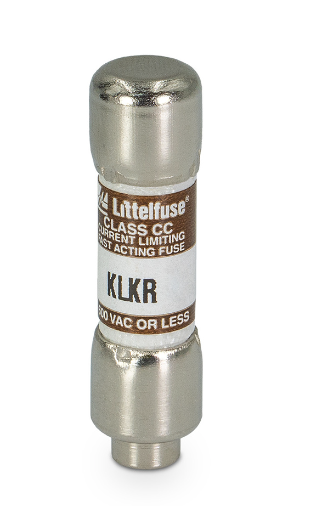

KLKR-4
KLKR-4 is a 4 Amp, 600 Volt AC Class CC fast-acting fuse designed for general-purpose branch circuit protection in OEM equipment and control panels. This compact, current-limiting fuse features rejection-type design to prevent substitution of lower-rated fuses and delivers superior overload response in a minimal footprint. Key Specifications
- Amperage: 4 Amps
- AC Voltage Rating: 600V
- DC Voltage Rating: 300V
- UL Class: CC
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC @ 300VDC
- Response Type: Fast-Acting
- Body Material: Melamine
- Caps Material: Nickel-plated Bronze
- Physical Size: 0.41 inches diameter x 1.5 inches length
- UL Listed (File E81895)
- CSA Certified (File LR29862)
Specifications
- Part Number: KLKR-4
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- Weight : 12
