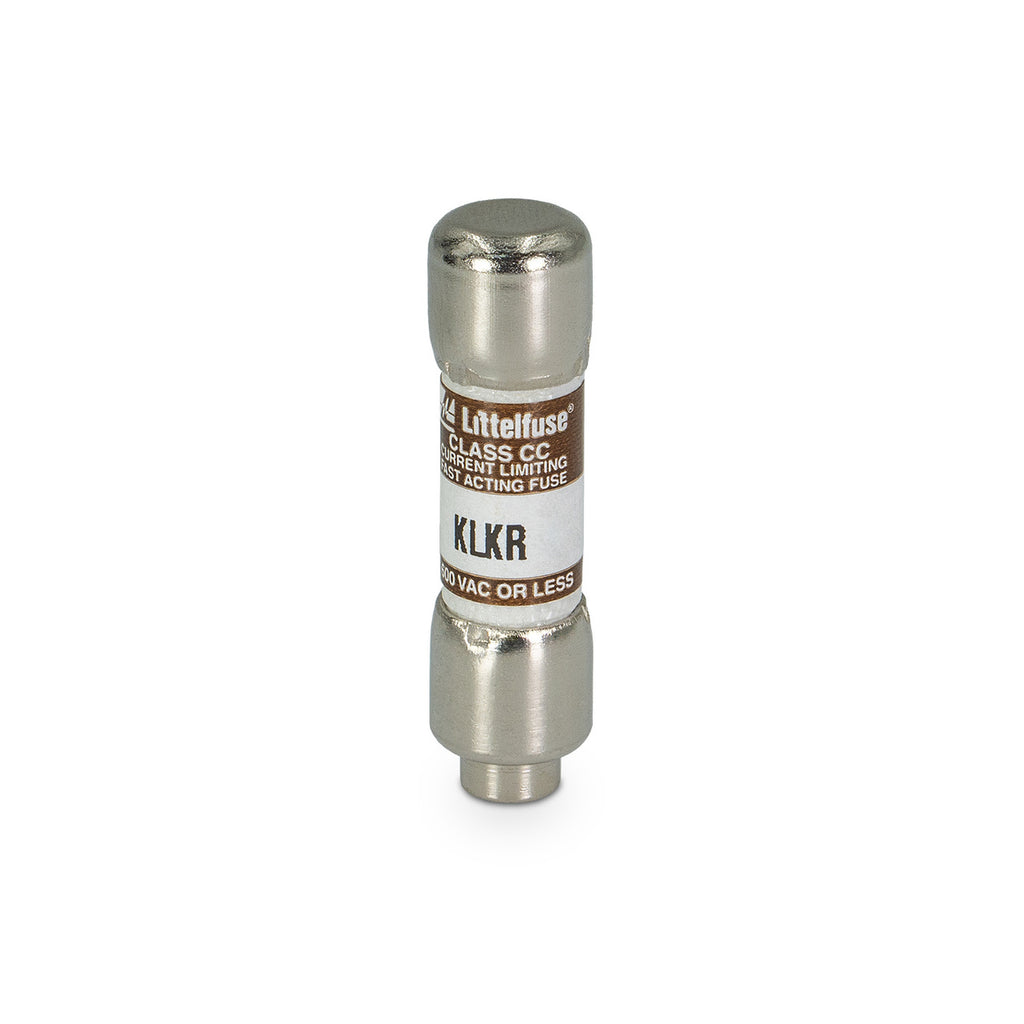

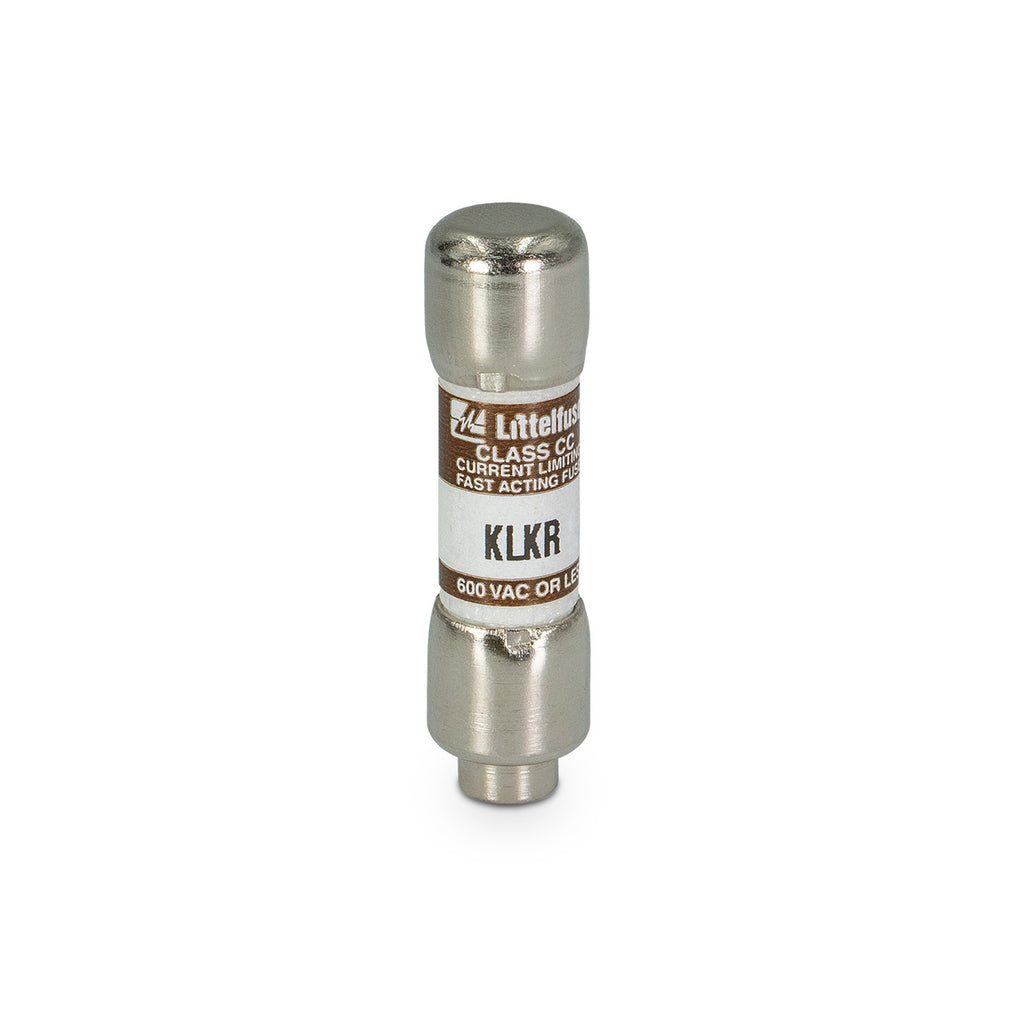

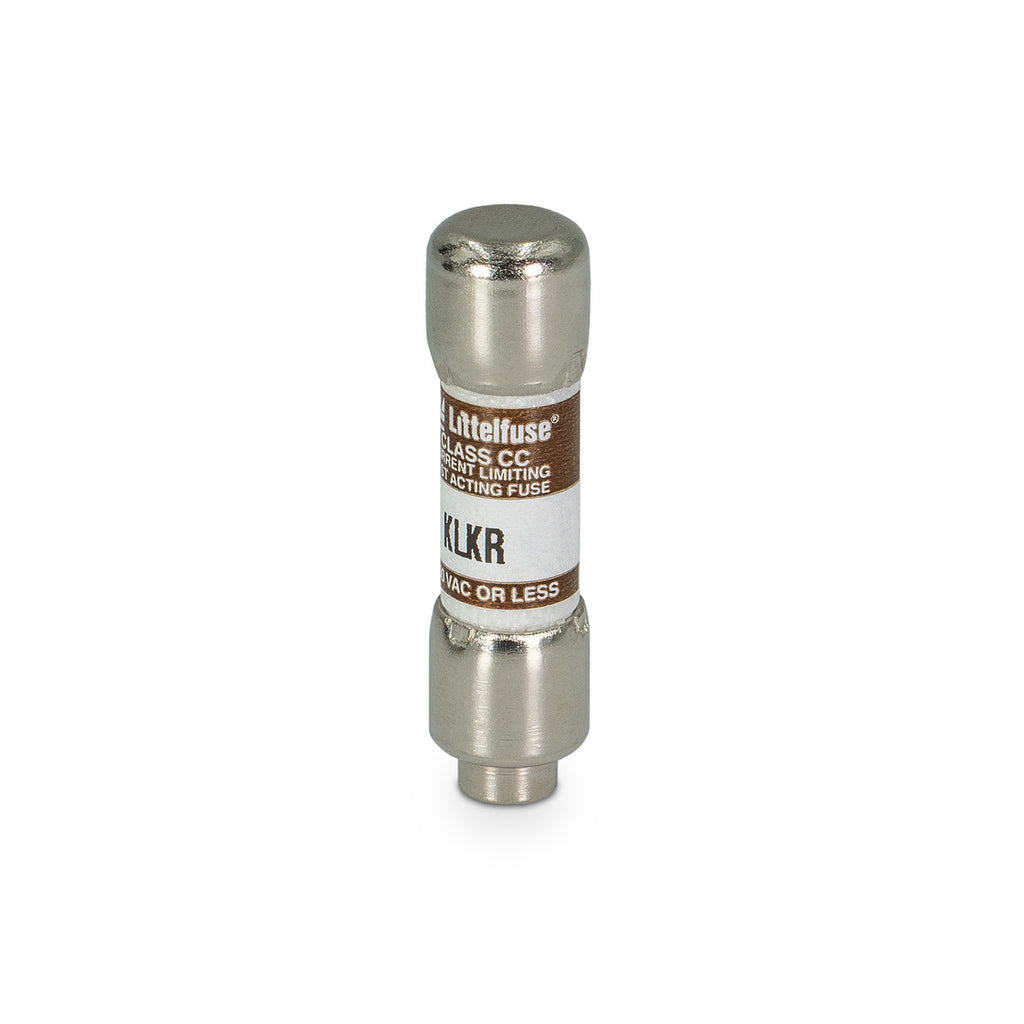

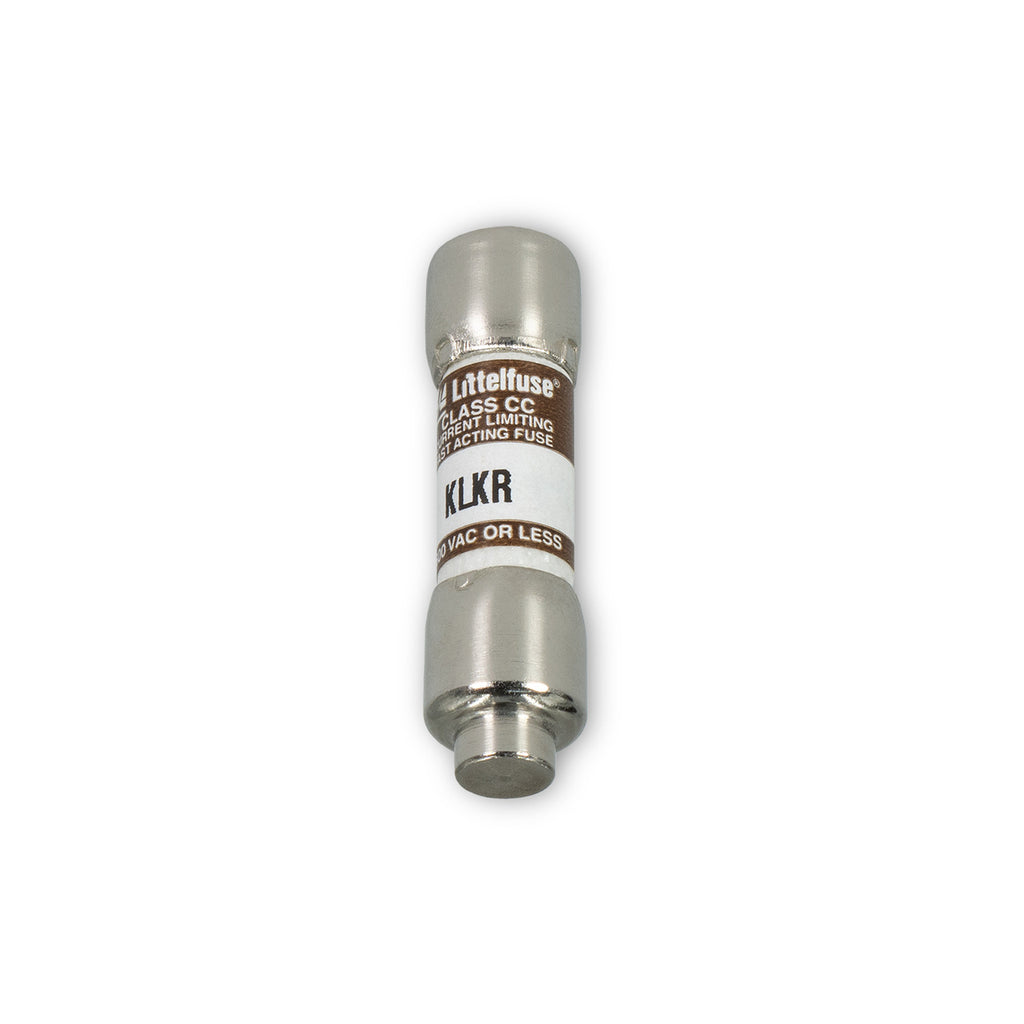

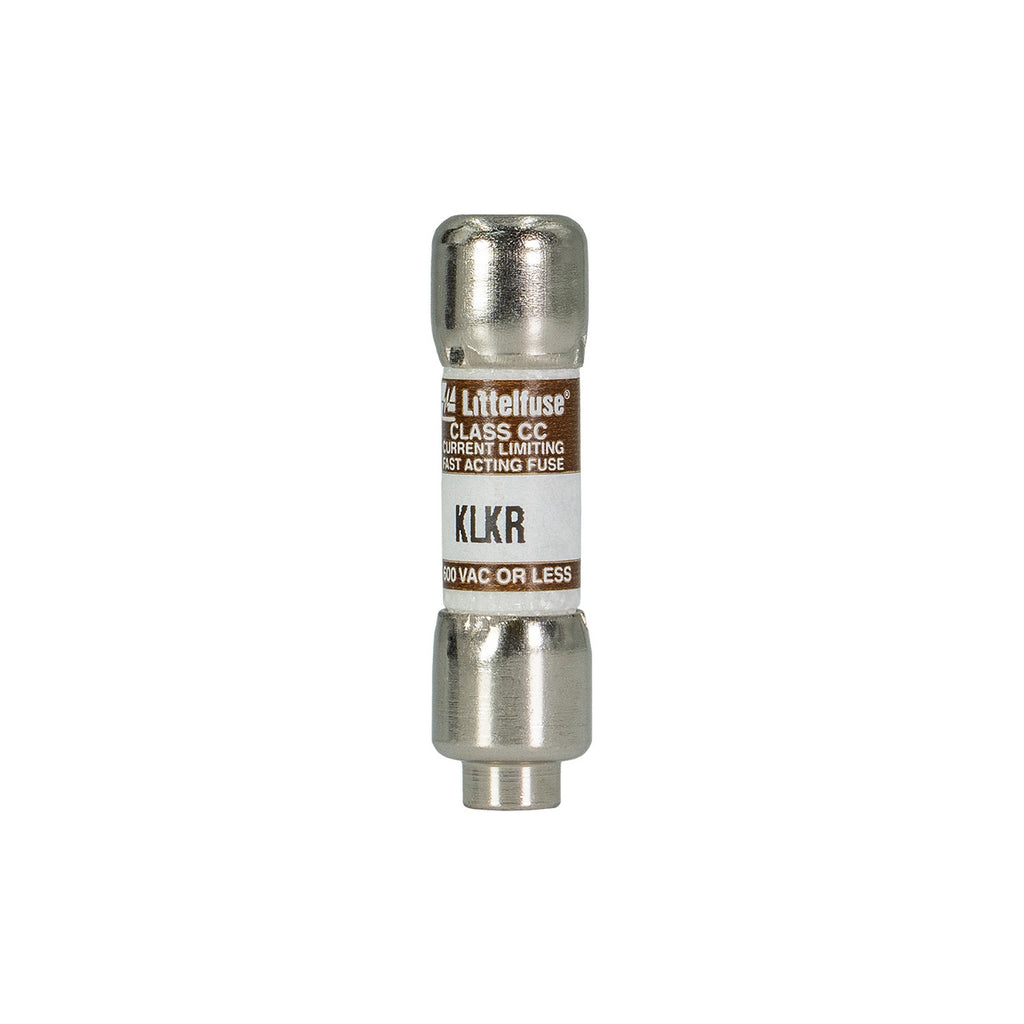

KLKR.100 - Littelfuse 0.1A 600V AC/300V DC Fast Acting Class CC Fuse, 1.5 Inch Cartridge

KLKR-.100

KLKR.100 is a Littelfuse fast acting Class CC fuse designed for general purpose branch circuit protection with a 0.1 amp rating and 600 V AC/300 V DC voltage rating.This KLKR series fuse features a compact 1.5 inch cartridge body with nickel-plated bronze caps and melamine construction. It provides extremely current limiting protection with a 200 kA interrupt rating at 600 VAC and 20 kA at 300 VDC. The fuse includes a rejection feature to prevent substitution with lower rated fuses and is UL, CSA, and CE certified. It is ideal for OEM equipment, control panels, and solid-state device protection requiring fast overload response.

• Amperage: 0.1 A
• Voltage Rating: 600 V AC / 300 V DC
• Interrupt Rating: 200 kA AC / 20 kA DC
• Fuse Class: CC
• Fuse Type: Fast Acting, High Speed
• Mounting Type: Ferrule Terminal, Holder Mounting
• Body Material: Melamine
• Caps: Nickel Plated Bronze
• Dimensions: 0.41 in Diameter x 1.5 in Length
• Certifications: UL Listed, CSA Certified, CE Compliant
• Rejection Feature: Prevents use of lower rated fuses
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR-.100
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse

Product Data

• UPC : 079458260113
• GTIN : 00079458260113
• Weight : 5.19
