KLKR-030 - Littelfuse 30A 600V AC Class CC Fast-Acting Fuse with 200kA Interrupt Rating

KLKR-030

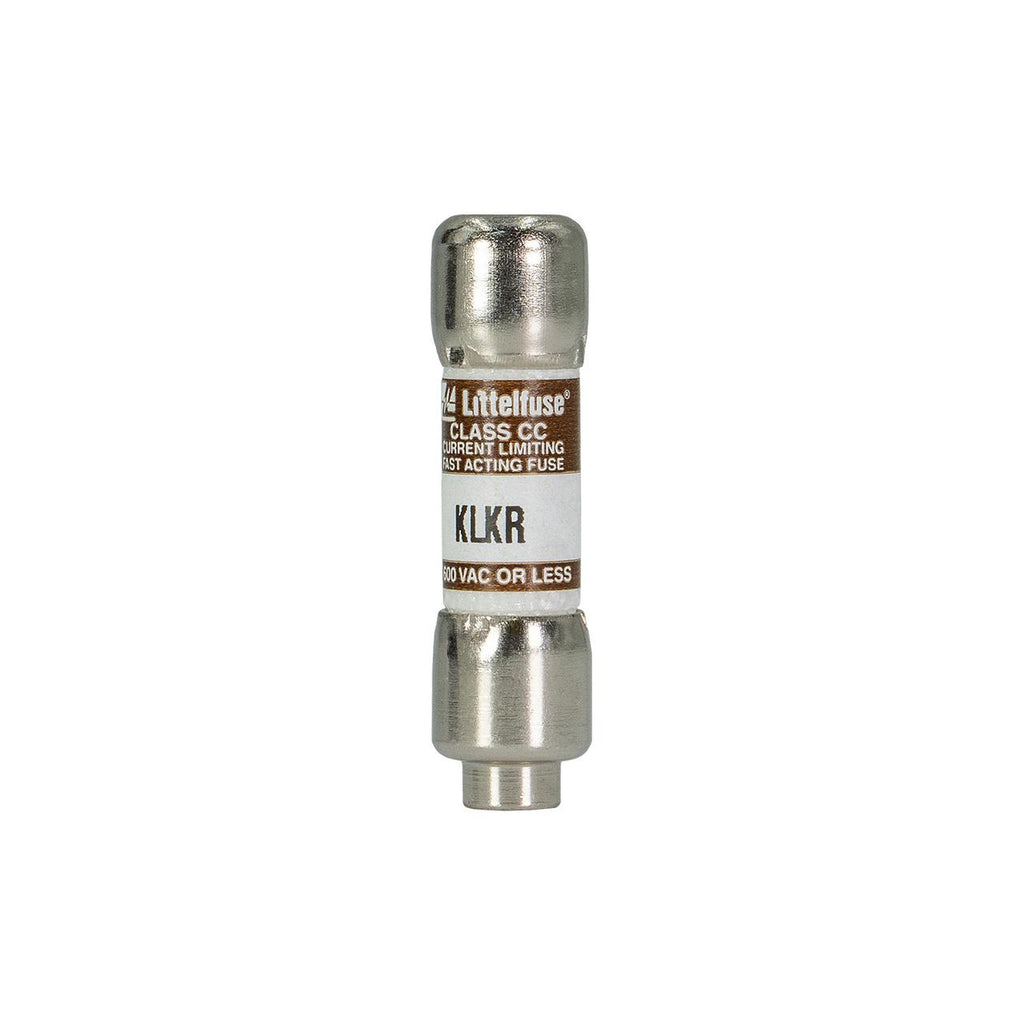

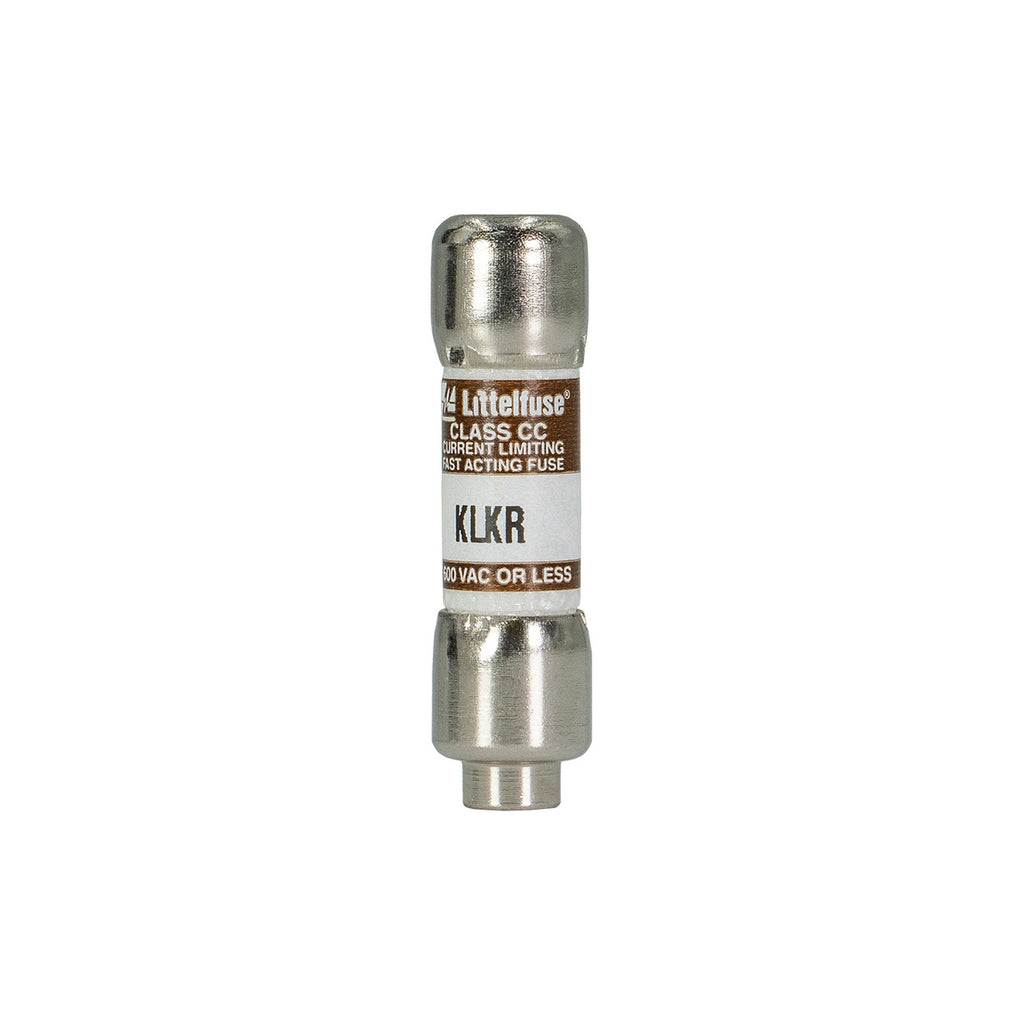

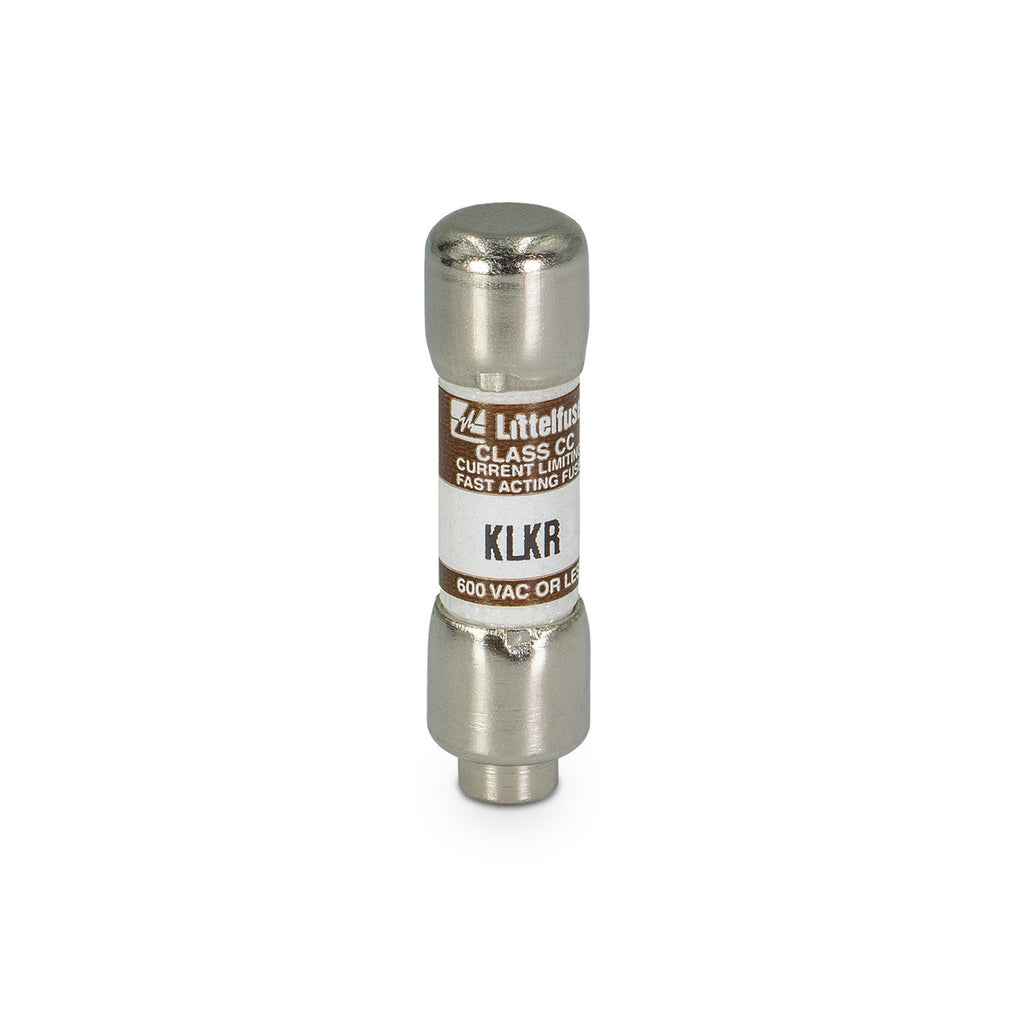

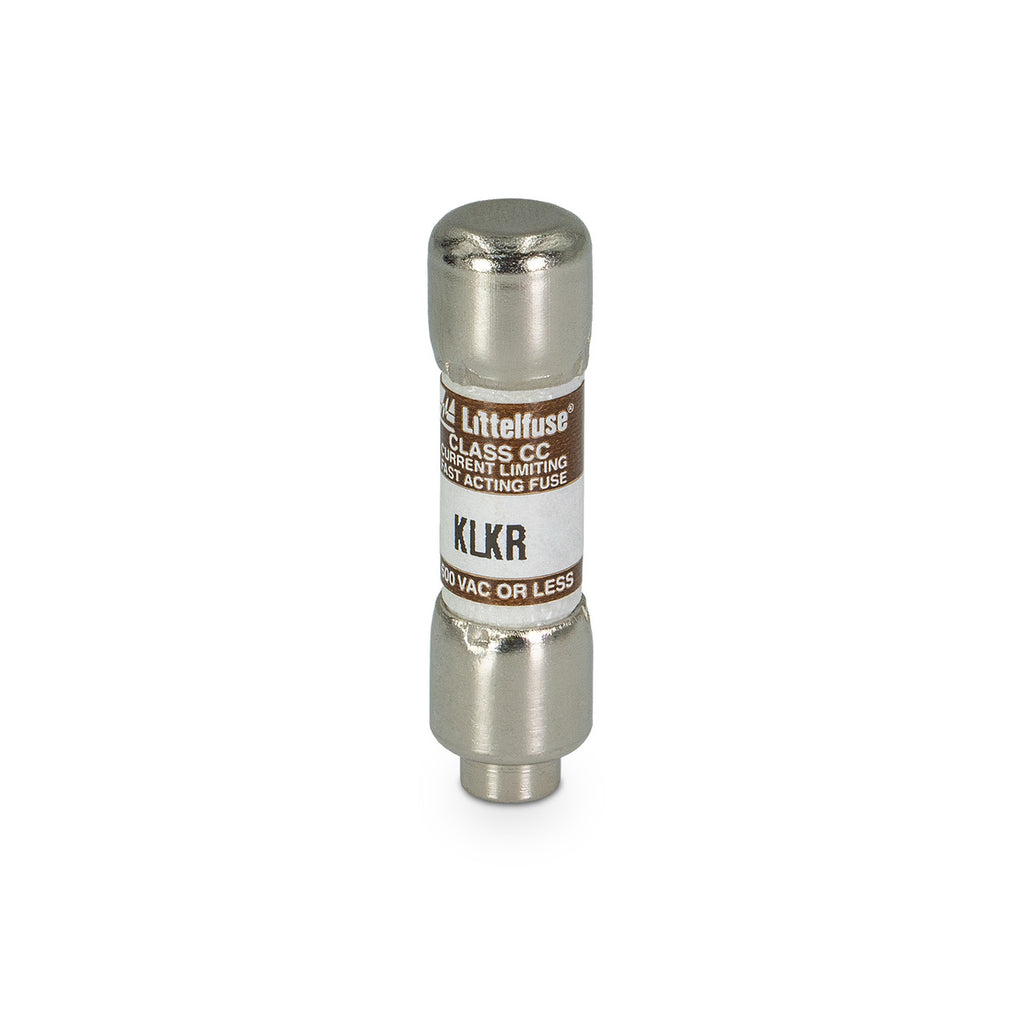

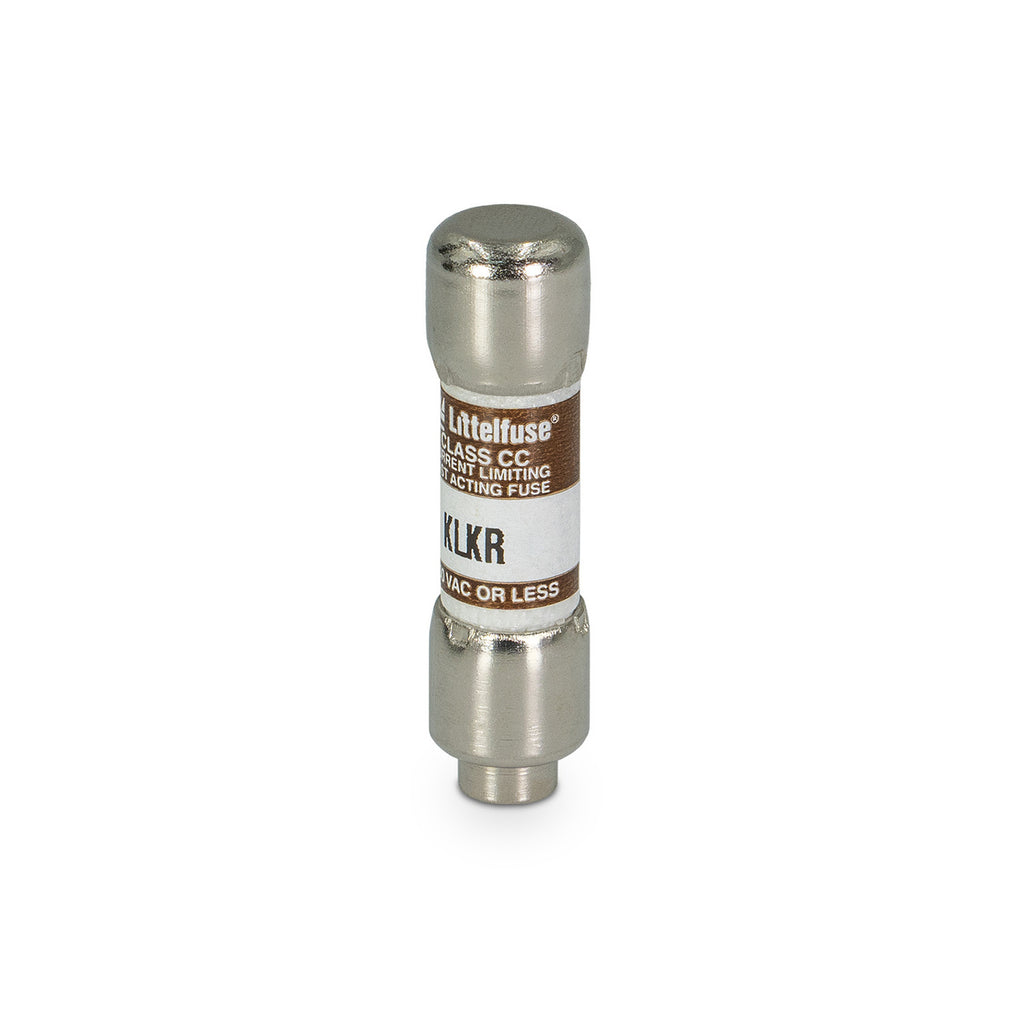

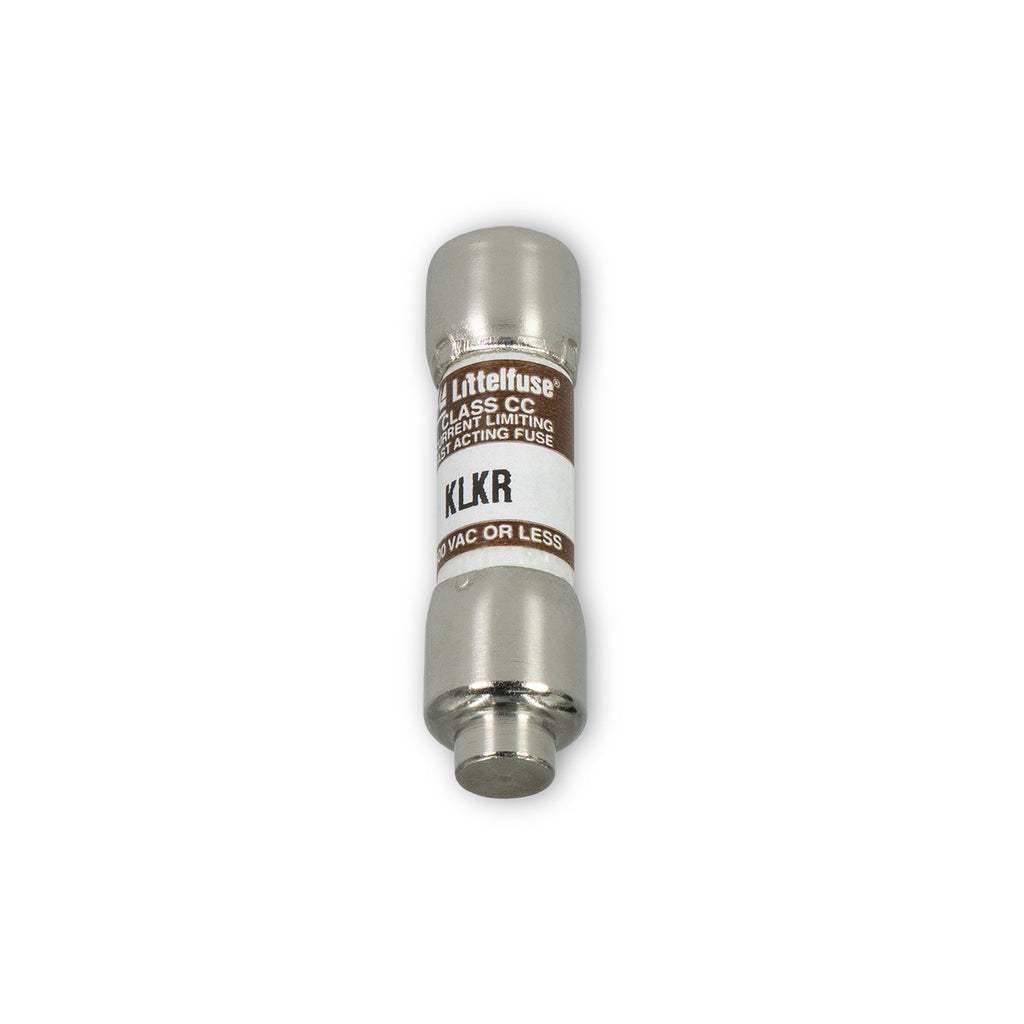

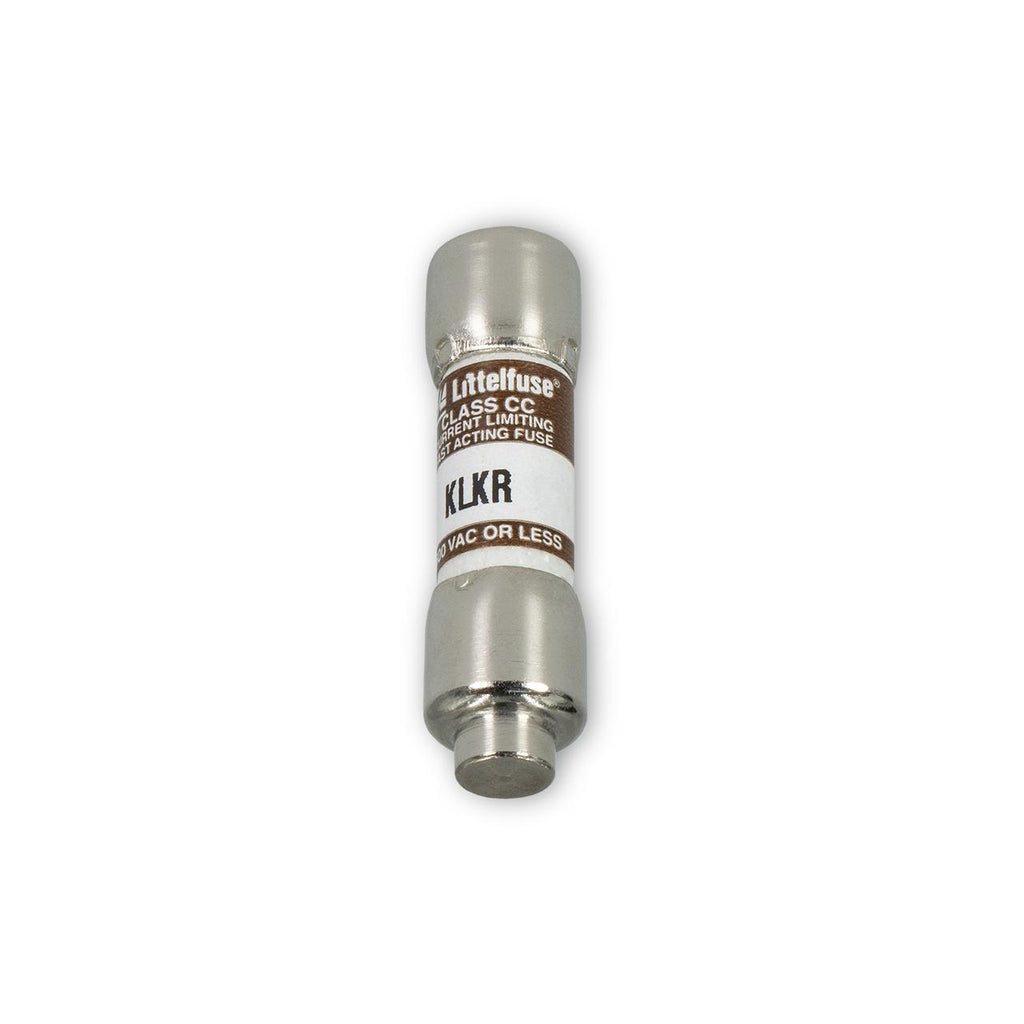

KLKR-030 is a Littelfuse Class CC fast-acting fuse designed for general-purpose branch circuit protection.This fuse features a 30 amp continuous current rating and a maximum voltage rating of 600 VAC and 300 VDC. It offers a high interrupting rating of 200,000 amps RMS symmetrical at 600 VAC and 20,000 amps at 300 VDC. The KLKR series fuse is compact with a melamine body and nickel-plated bronze end caps, providing fast overload response and current-limiting protection. It complies with UL 248-4, CSA, and RoHS standards and is UL Listed and CSA Certified. This fuse is ideal for control circuits, lighting circuits, and solid-state component protection where fast overload protection is required.

Key Specifications
• Amperage: 30 A continuous
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Fuse Type: Fast-Acting (F)
• Fuse Class: Class CC
• Body Material: Melamine
• End Caps: Nickel-plated bronze
• Standards: UL 248-4, CSA Certified, RoHS Compliant
• Dimensions: 13/32 in x 1 1/2 in
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR-030
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 079458260731
• GTIN : 079458260731
• Weight : 5.19
