Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description

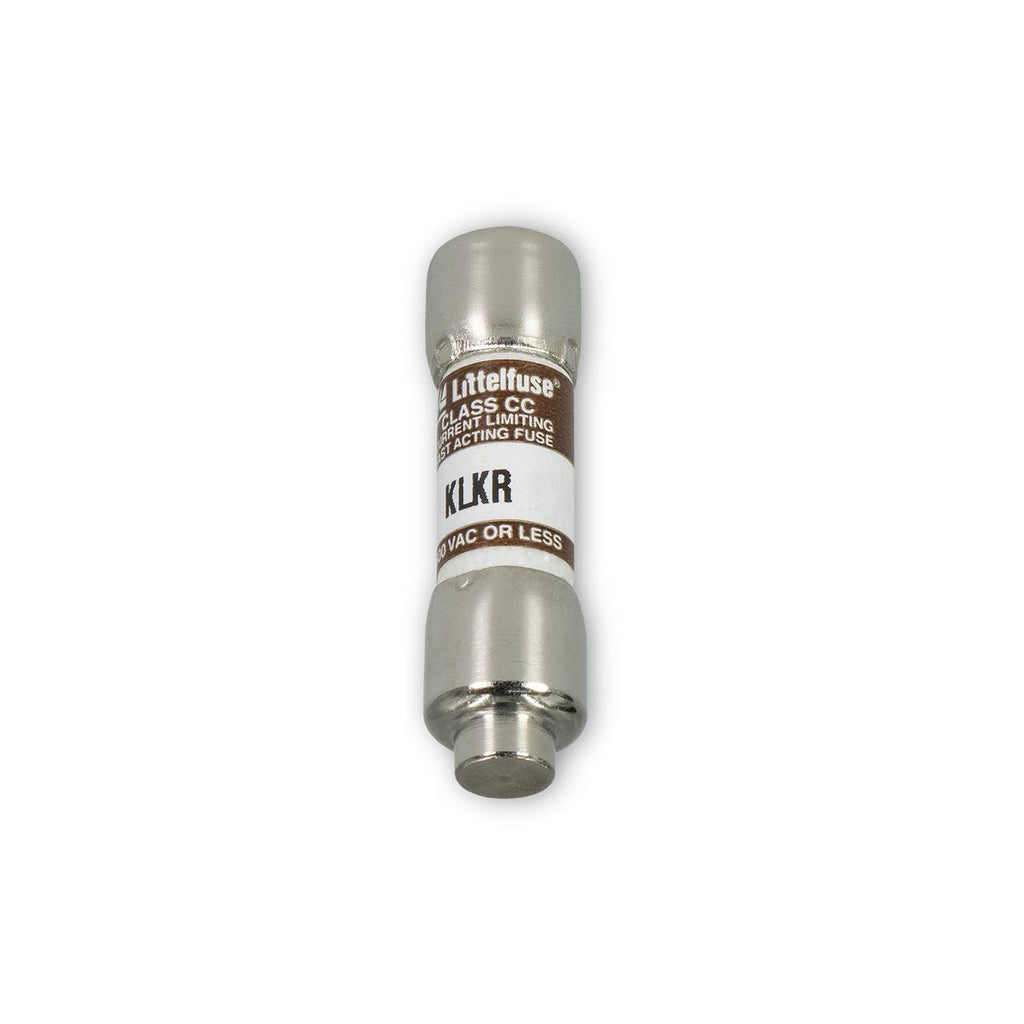

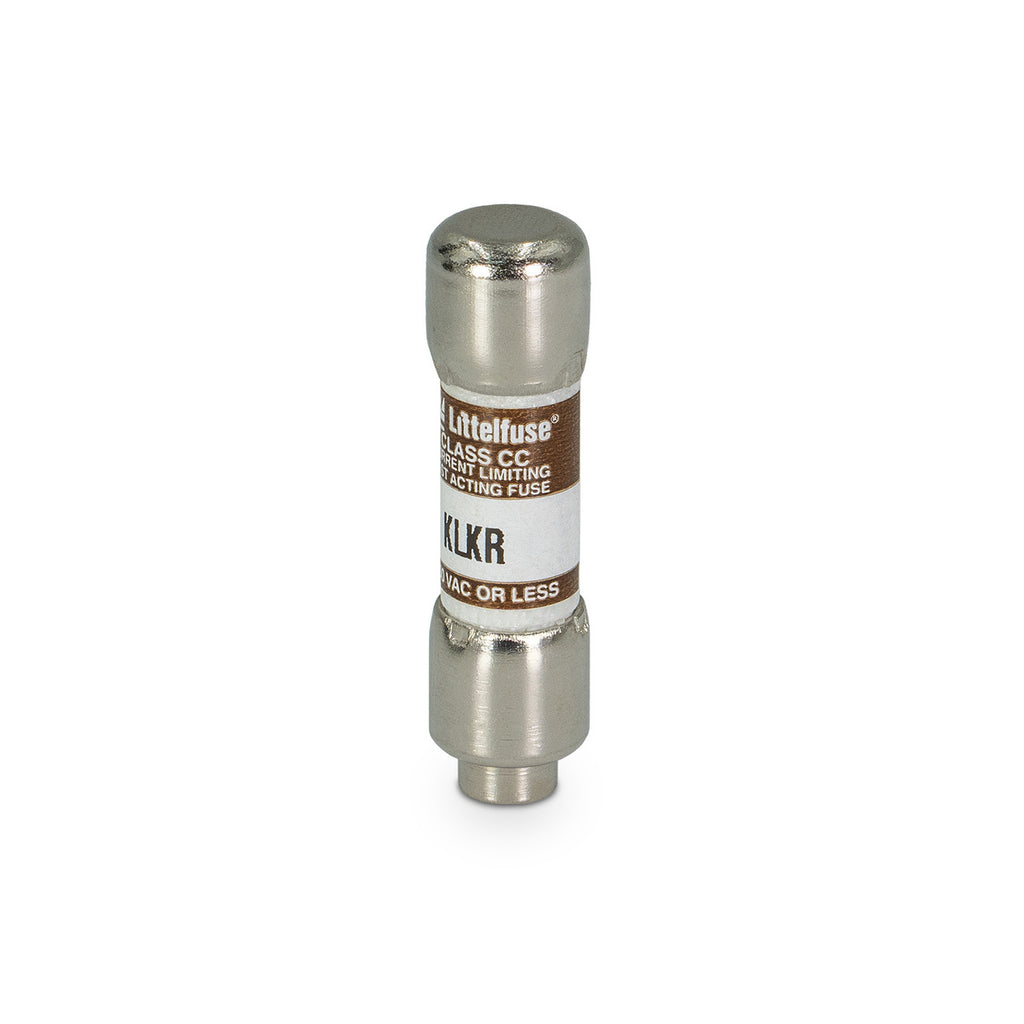

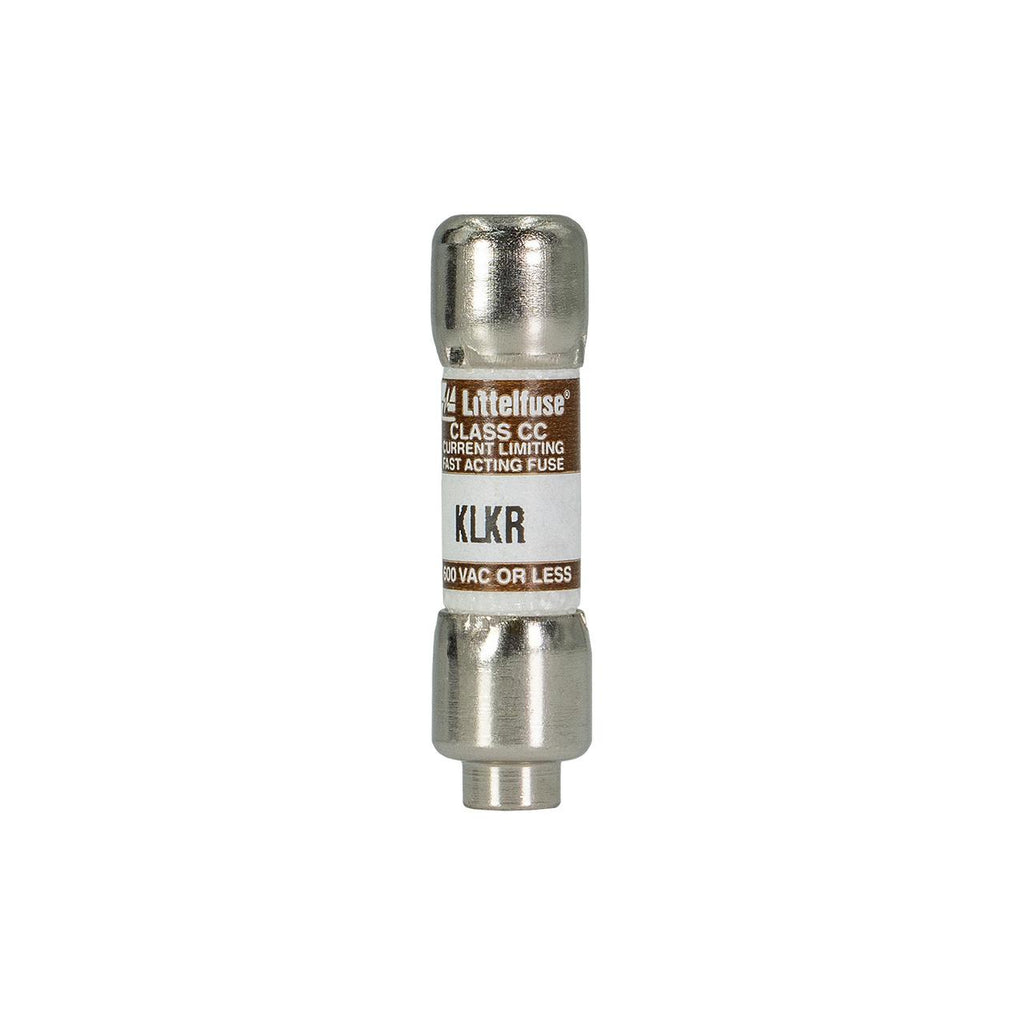

KLKR-004
KLKR-004 is a Littelfuse Class CC fast-acting fuse designed for general-purpose branch circuit protection.
This 4 amp fuse features a 600 V AC voltage rating and a high interrupting rating of 200,000 amps RMS symmetrical at 600 VAC and 20,000 amps at 300 VDC. It is compact, current-limiting, and fast-acting, ideal for protecting control circuits, lighting, and general loads. The fuse body is melamine with nickel-plated bronze end caps and complies with UL 248-4, CSA, CE, and RoHS standards. It includes rejection features to prevent substitution with lower-rated fuses and is UL and CSA certified.
- Key Specifications
- Amperage: 4 Amps
- Voltage Rating: 600 V AC, 300 V DC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Type: Fast-Acting (F)
- Fuse Class: Class CC
- Body Material: Melamine
- End Caps: Nickel-plated bronze
- Mounting Type: Cartridge style
- Standards: UL 248-4, CSA, CE, RoHS Compliant
- Country of Origin: Mexico
- Part Number: KLKR-004
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- UPC : 079458260533
- GTIN : 079458260533
- Weight : 12
