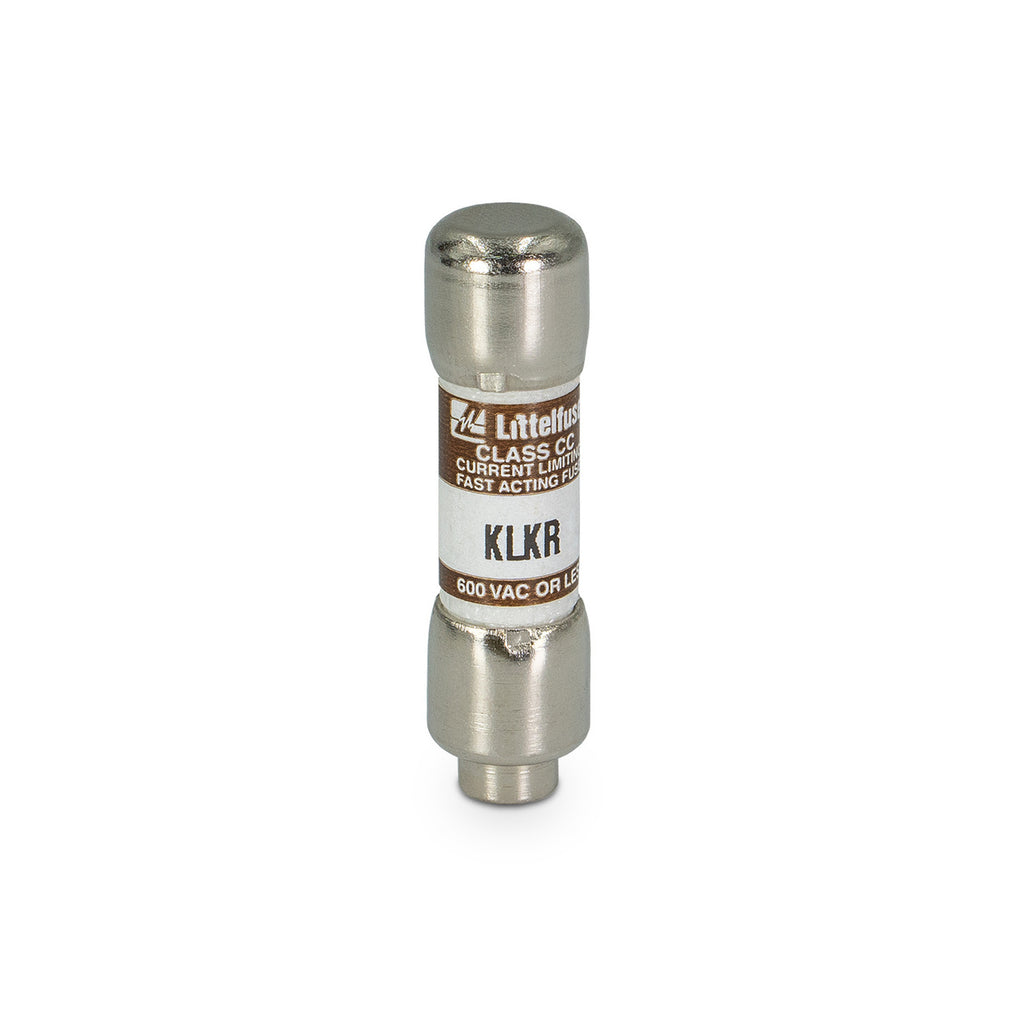

KLKR003 - Littelfuse 3A 600V AC Class CC Fast-Acting Fuse

KLKR-003

KLKR003 is a Littelfuse Class CC fast-acting fuse rated for 3 amps and 600 volts AC, designed for superior branch circuit protection.This KLKR Series fuse features a compact size with rejection capabilities to prevent substitution of lower rated fuses. It provides fast overload response and current-limiting protection ideal for OEM equipment, control panels, lighting circuits, and control transformer circuits. The fuse is UL, CSA, and CE certified, rated for 200,000 A interrupting capacity at 600 VAC and 20 kA DC, and constructed with a melamine body and nickel-plated bronze caps.

• Amperage: 3 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA AC, 20 kA DC
• Fuse Type: Fast-Acting (F)
• Fuse Class: Class CC
• Mounting: 1.5 inch length, 0.41 inch diameter
• Material: Melamine body, nickel-plated bronze caps
• Certifications: UL Listed, CSA Certified, CE Compliant
• Rejection feature to prevent lower rated fuse substitution
• Compact size for space-saving branch circuit protection
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKR-003
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse

Product Data

• UPC : 079458260472
• GTIN : 079458260472
• Weight : 25
