Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLKD5

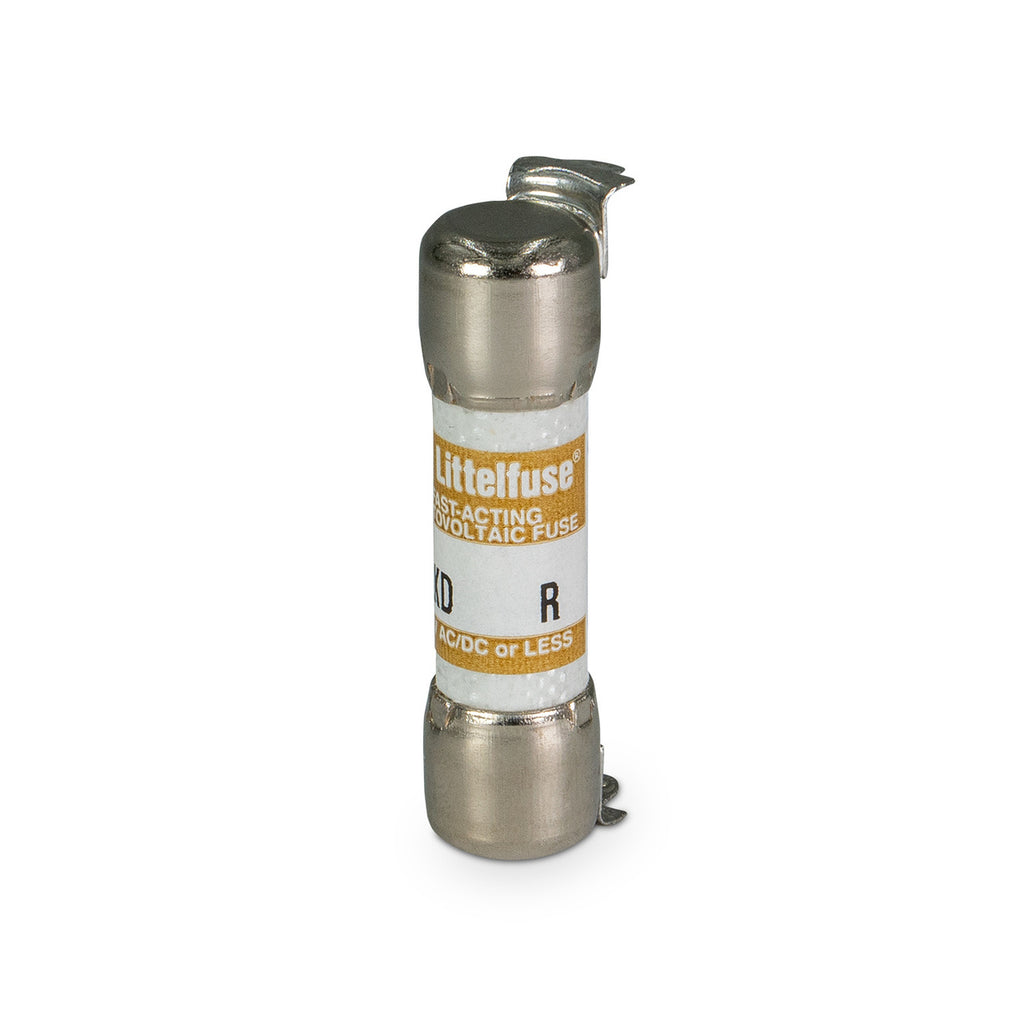

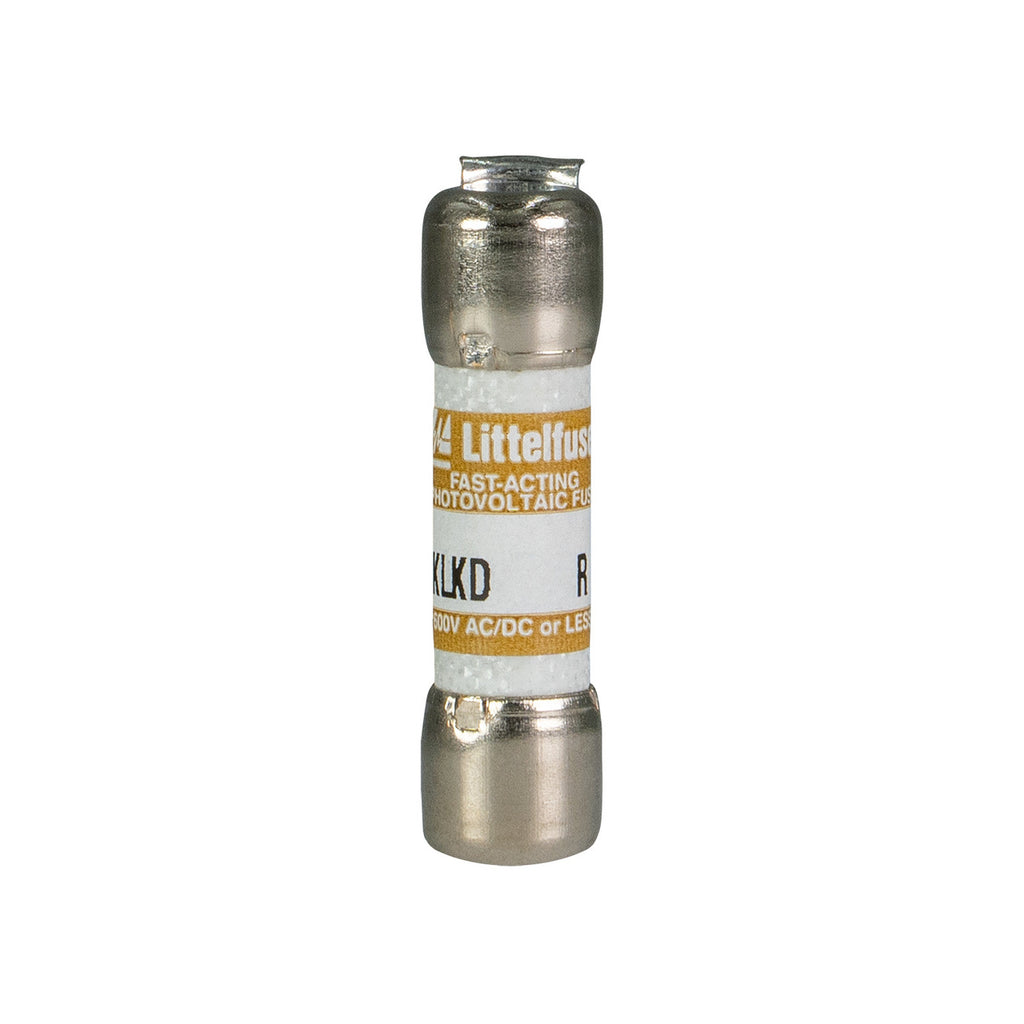

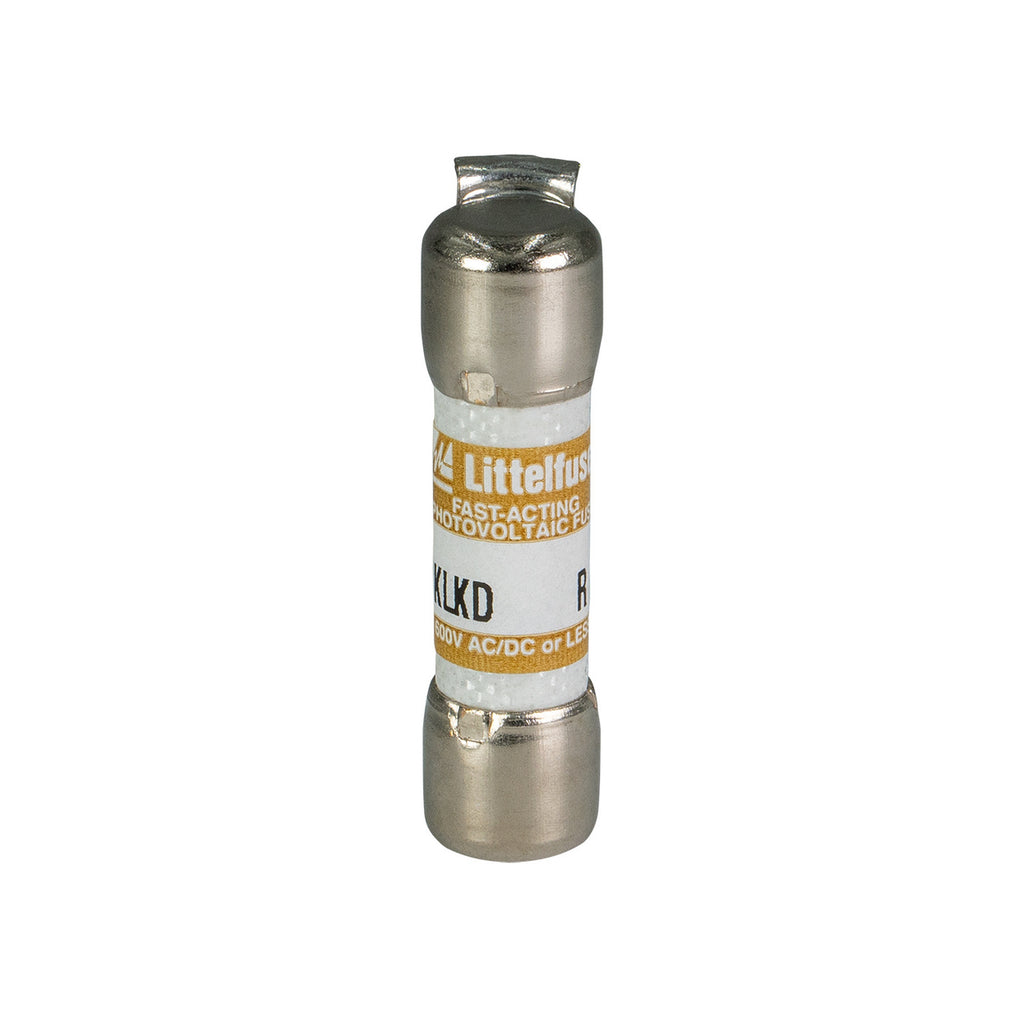

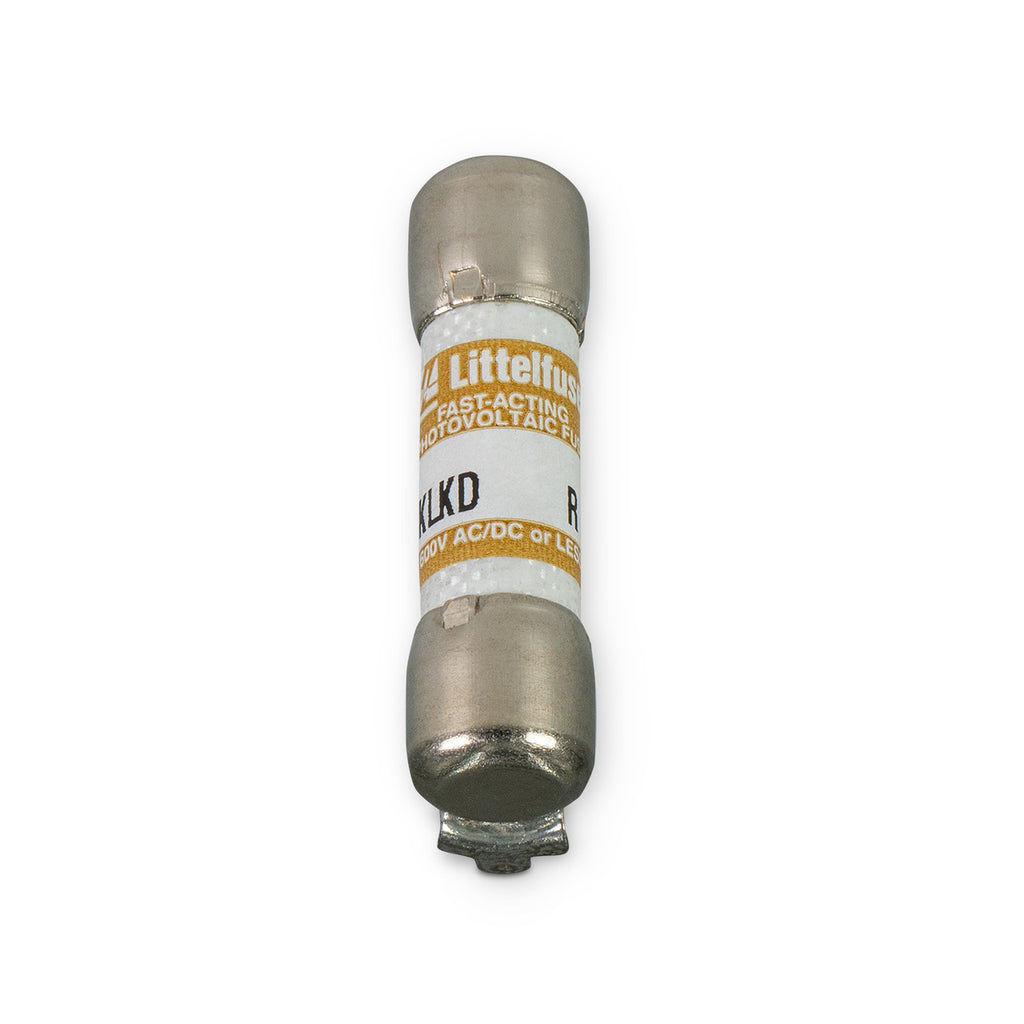

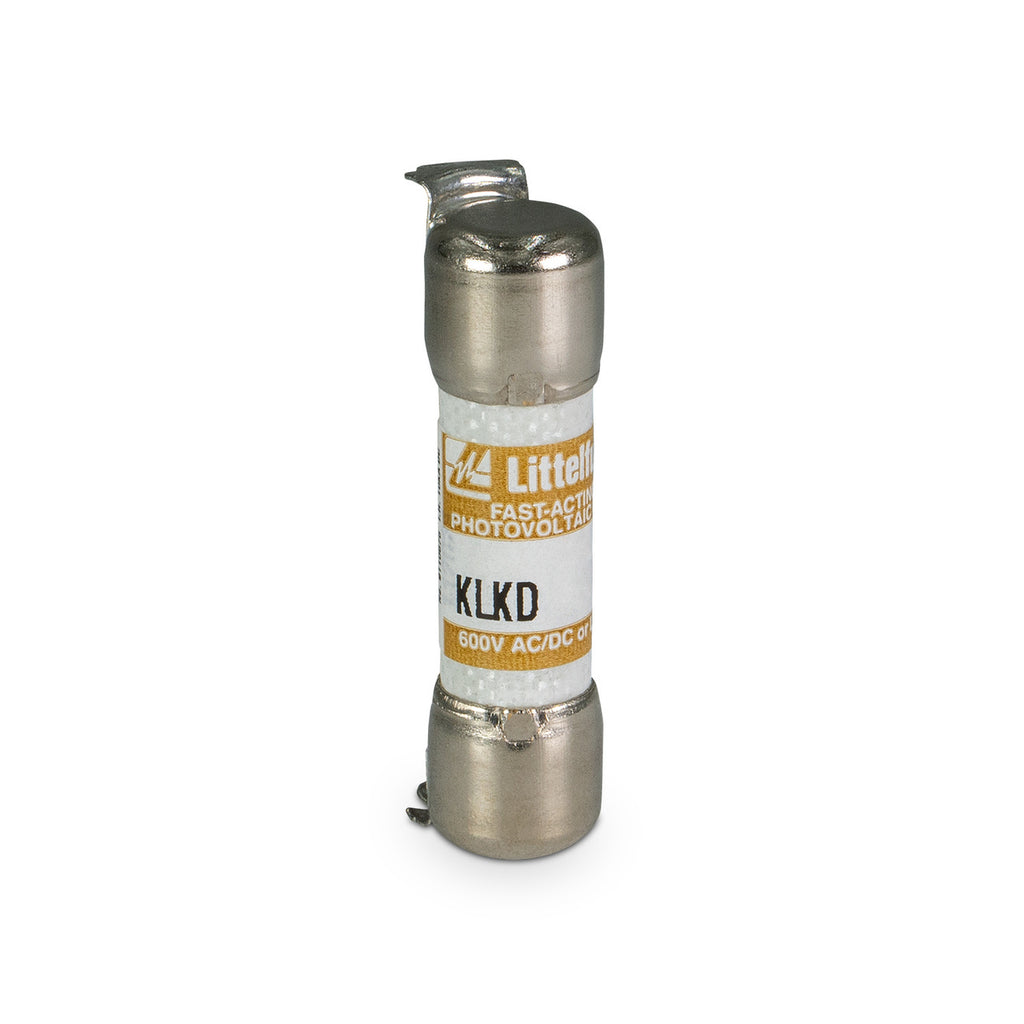

KLKD5 is a Littelfuse 5 amp, 600 volt fast acting midget fuse from the KLKD series designed for reliable overcurrent protection.
This KLKD5 fuse features a fast-acting opening characteristic suitable for protecting circuits in solar combiner boxes and other applications requiring high interrupting capacity. It is rated for 600 volts AC/DC with an interrupting rating of 100,000 AIC at 600 VAC and 50,000 AIC at 600 VDC. The fuse has a melamine body with copper alloy end caps and meets UL and IEC photovoltaic fuse specifications. It is non-indicating and compatible with indicating fuse blocks or covers.
- Current Rating: 5 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Type: Fast Acting (F)
- Series: KLKD
- Physical Size: 0.41" x 1.5" (Midget 10x38mm)
- Interrupting Rating: 100,000 AIC @ 600 VAC
- DC Interrupting Rating: 50,000 AIC @ 600 VDC
- Body Material: Melamine
- End Caps: Copper Alloy
- Certifications: UL and IEC Photovoltaic Specifications
- Mounting Type: Holder
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLKD5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : KLKD
- Voltage : 600
- Amperage : 5
- AIC rating : 100kA@600V
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 079458102024
- GTIN : 00079458102024
- Weight : 5.19
