Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLKD20

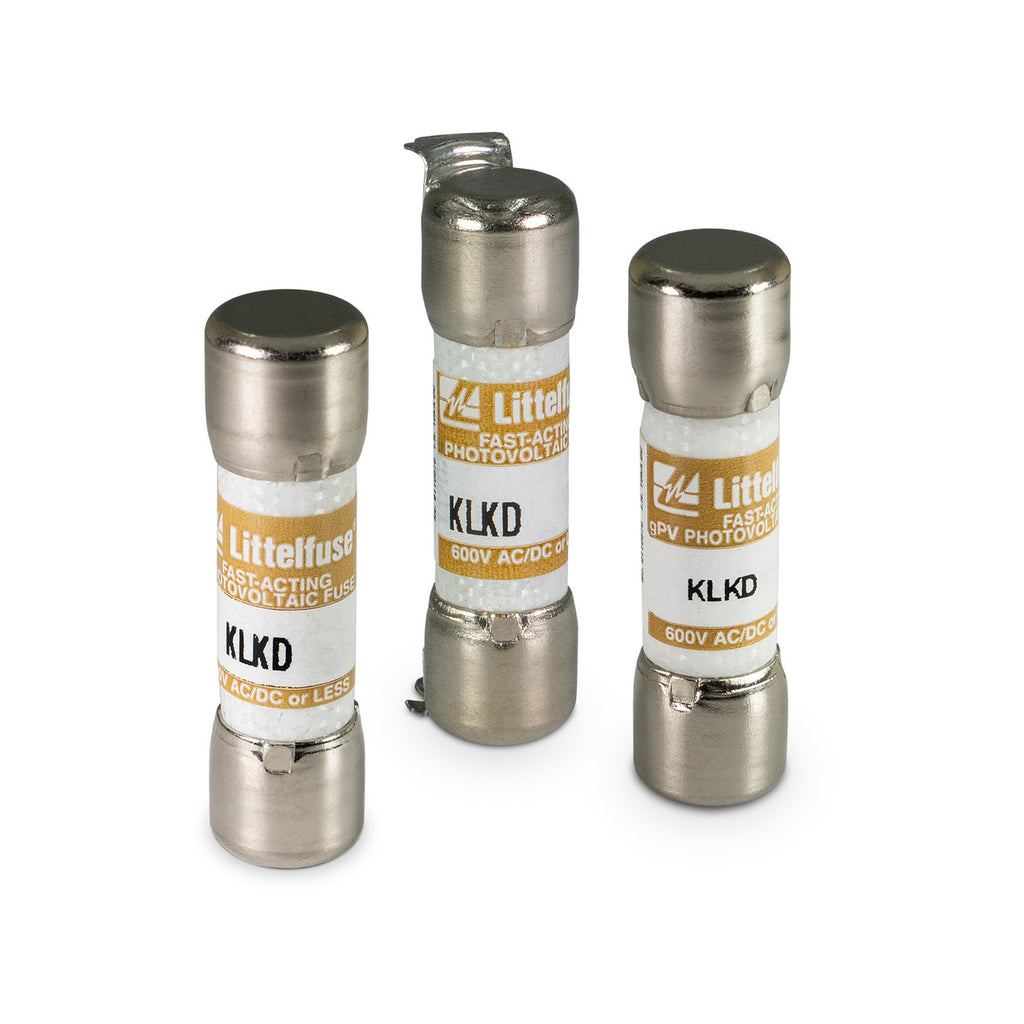

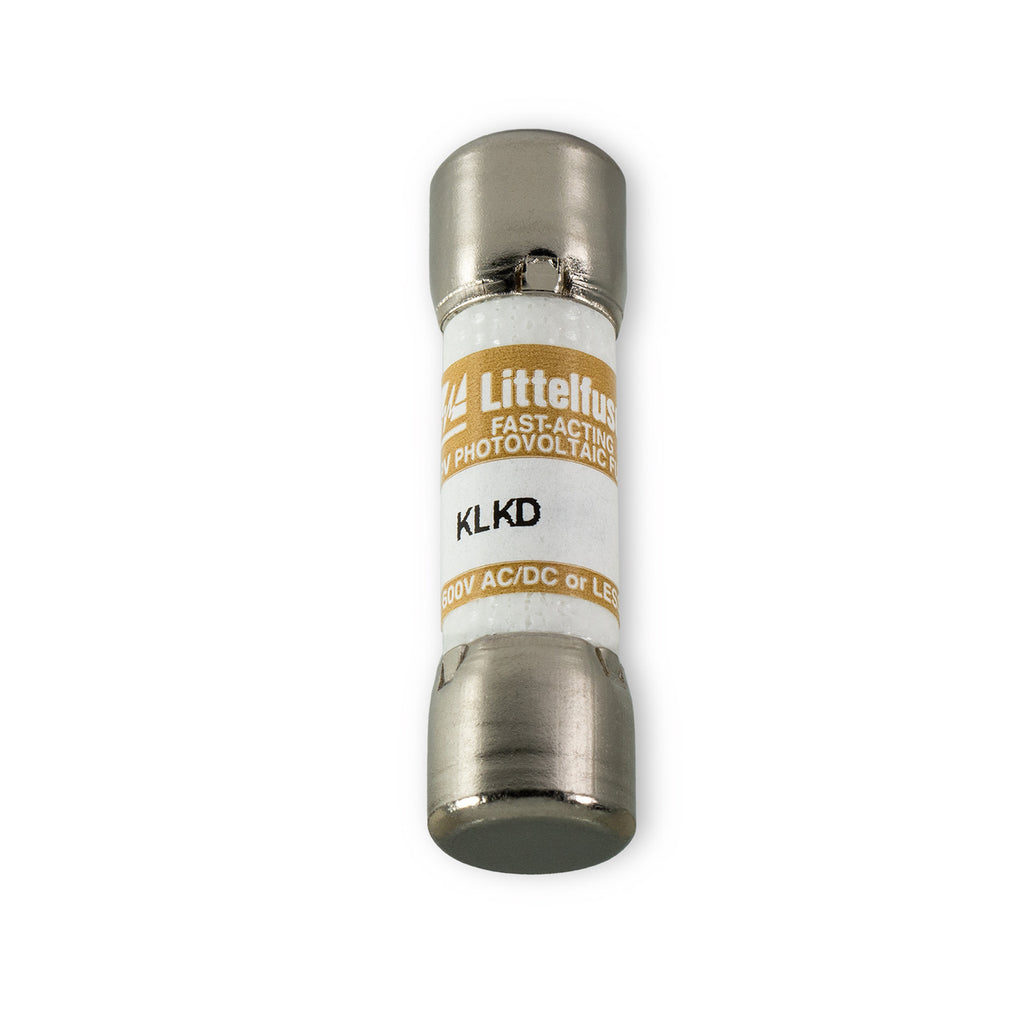

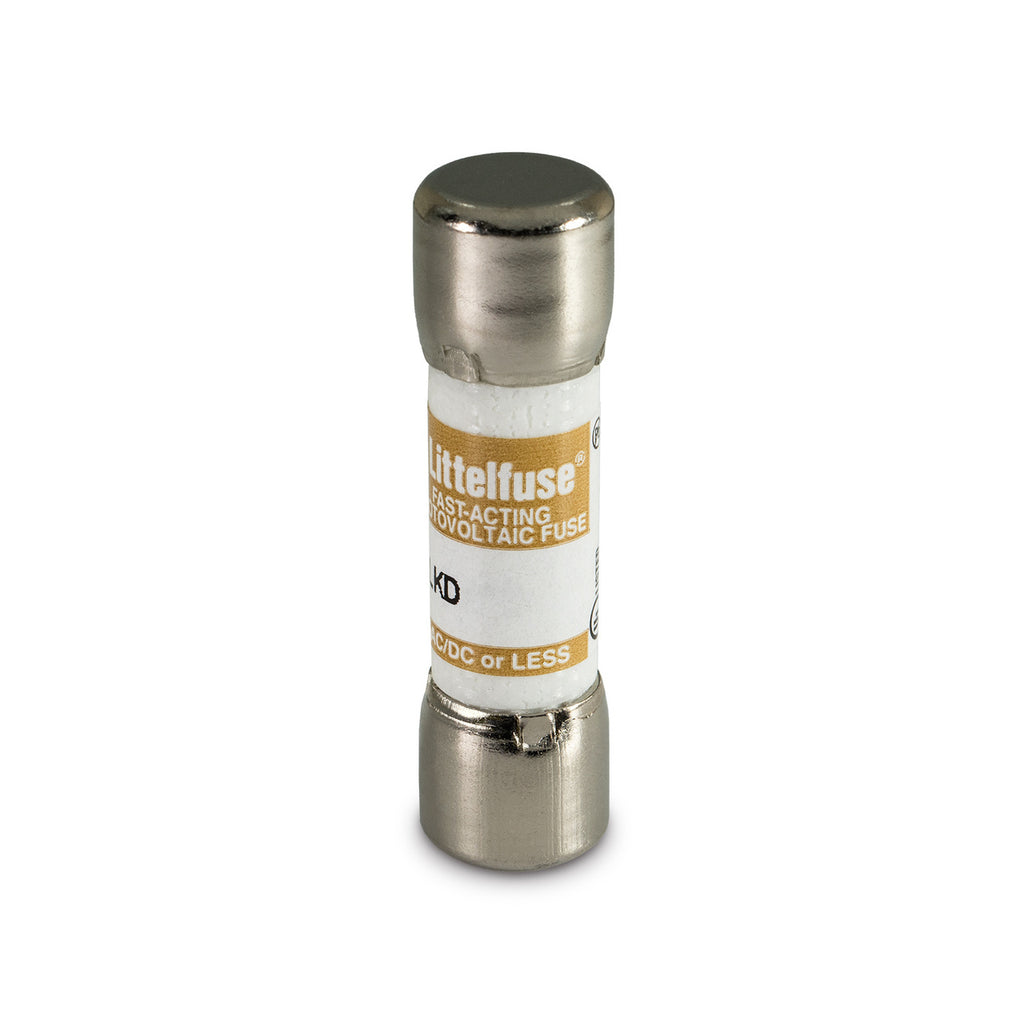

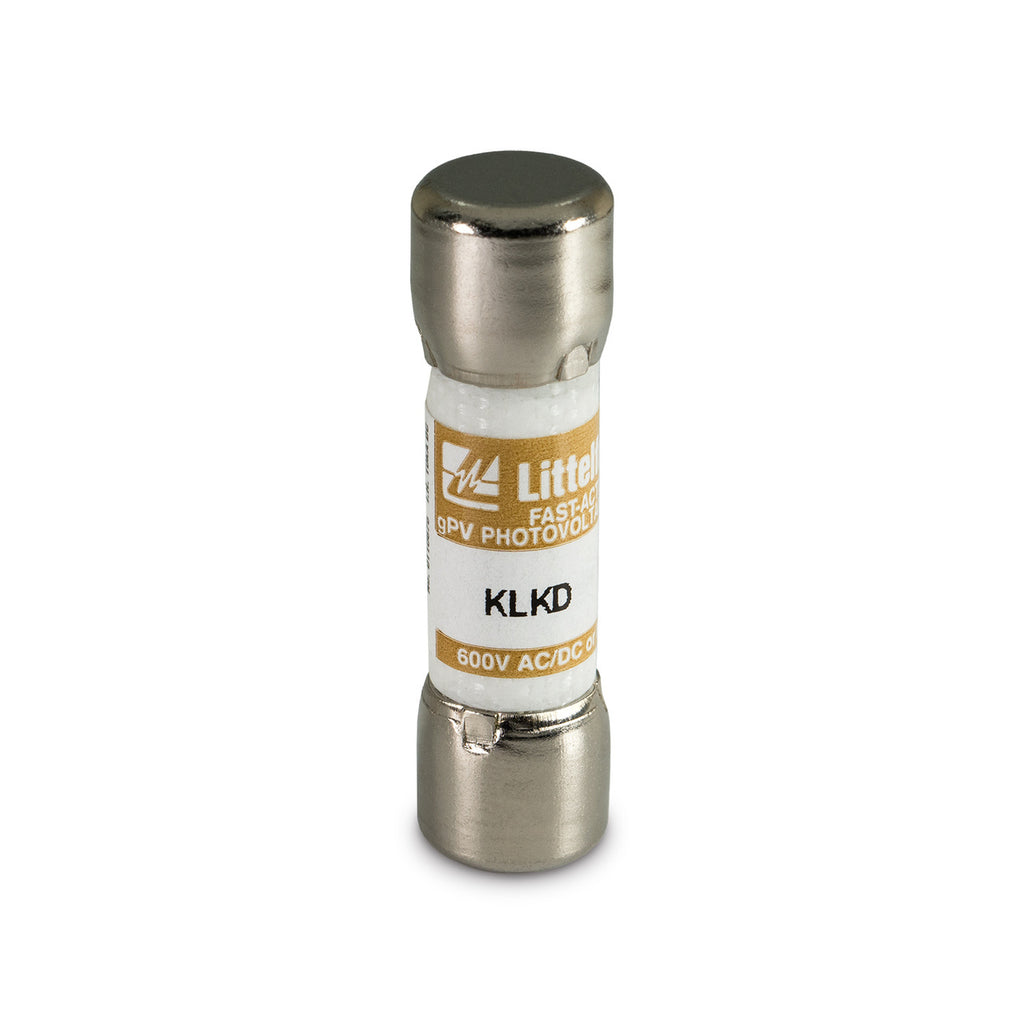

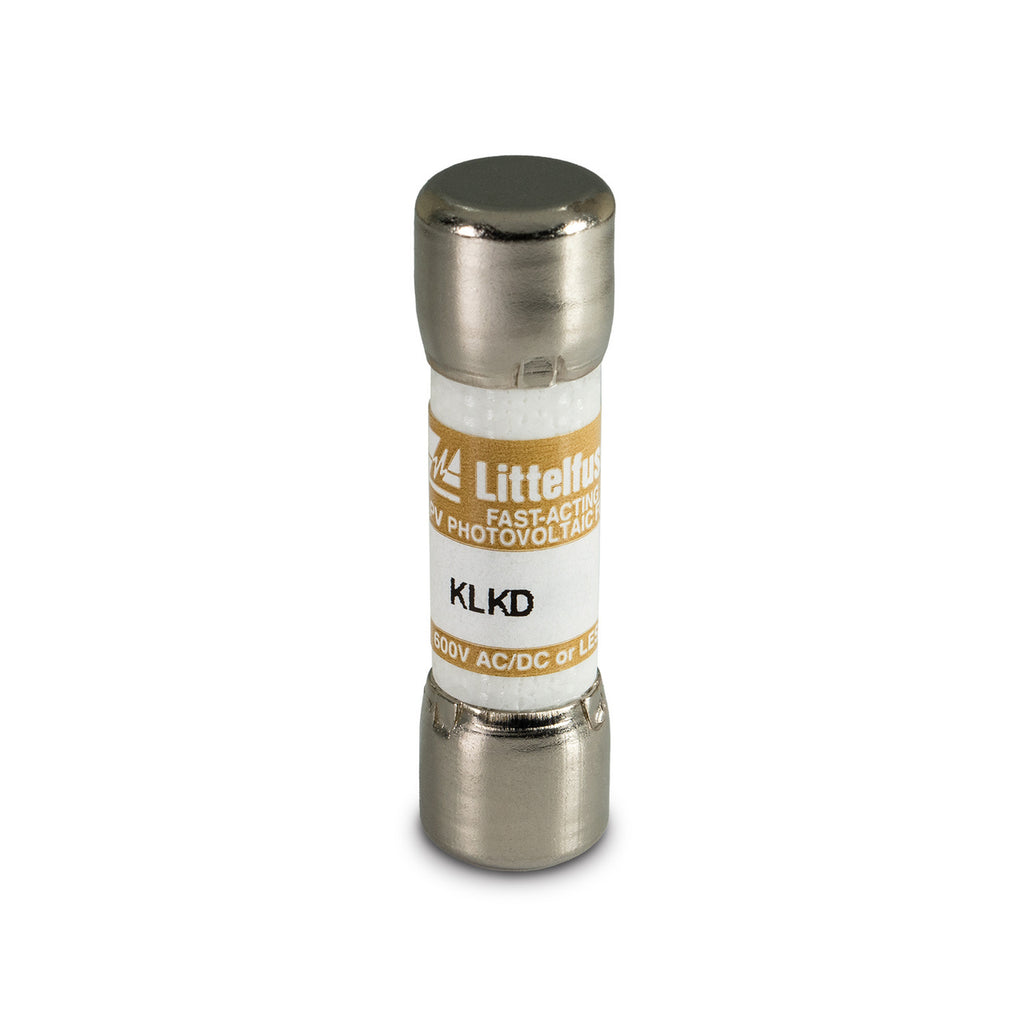

KLKD20 is a 20 Amp, 600 Volt AC/DC fast acting midget fuse from Littelfuse designed for circuit protection.
This KLKD series fuse features a melamine body with copper alloy end caps, providing high DC voltage rating and fast-acting performance. It is suitable for use in solar combiner boxes and circuits with DC fault currents up to 50,000 A. The fuse meets UL and IEC photovoltaic specifications and is RoHS compliant. It has an interrupting rating of 100,000 AIC at 600 VAC and 50,000 AIC at 600 VDC.
- Amperage: 20 Amps
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Type: Midget (10x38mm)
- Speed: Fast Acting
- Interrupting Rating: 100,000 AIC @ 600 VAC
- DC Interrupting Rating: 50,000 AIC @ 600 VDC
- Body Material: Melamine
- End Caps: Copper Alloy
- Certifications: UL and IEC Photovoltaic Specifications
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLKD20
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : KLKD
- Voltage : 600
- Amperage : 20
- AIC rating : 100kA@600V
- Diameter : 0.41
- Barrels : 1
Product Data
- Weight : 7
