KLKD001 - Littelfuse 1A 600V AC/DC Fast-Acting Midget Fuse 100kA Interrupting Rating

KLKD001

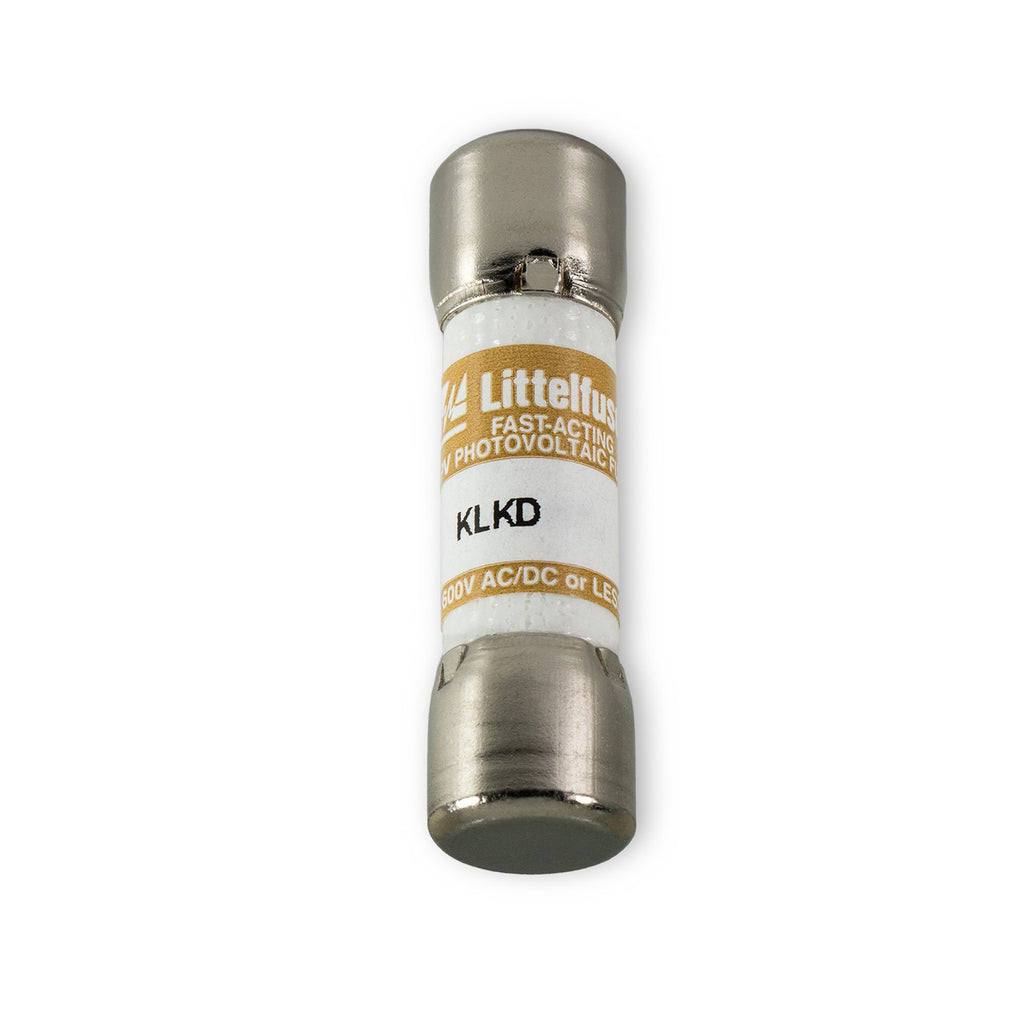

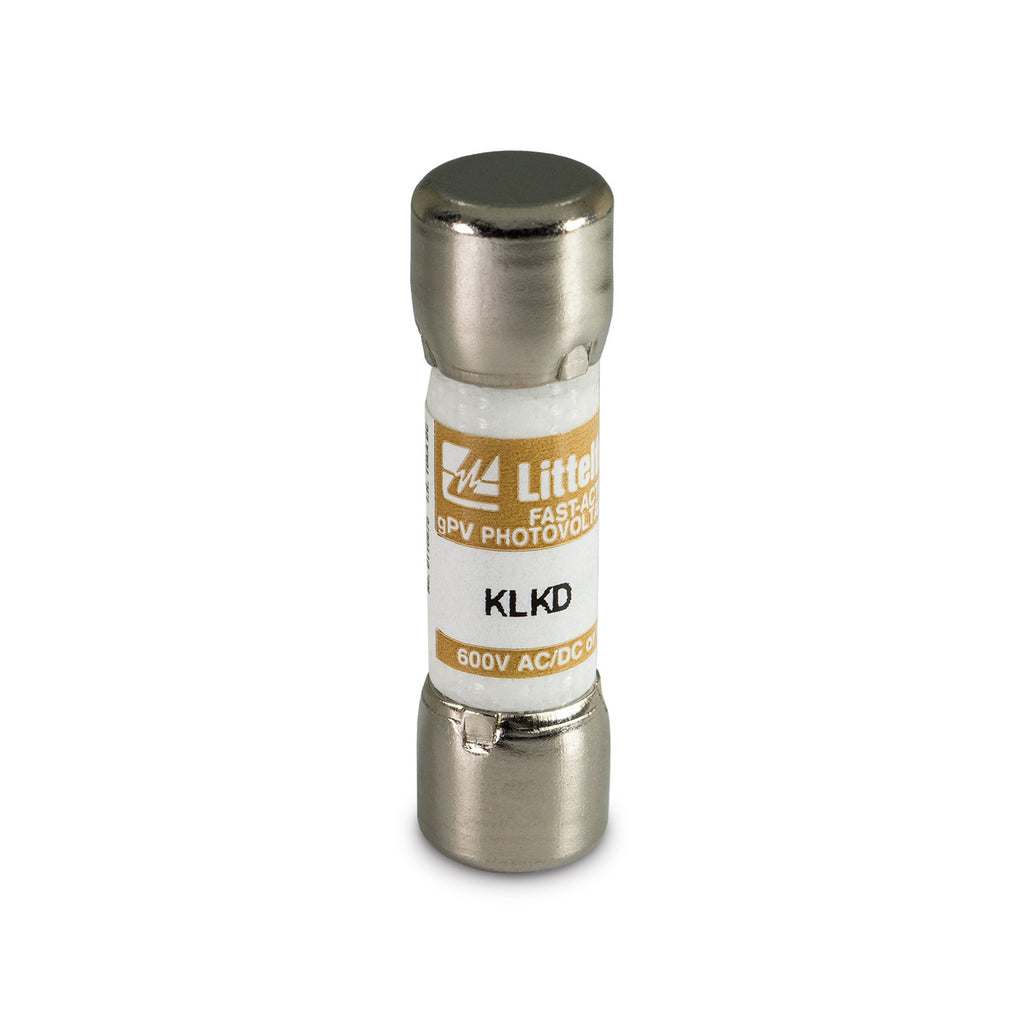

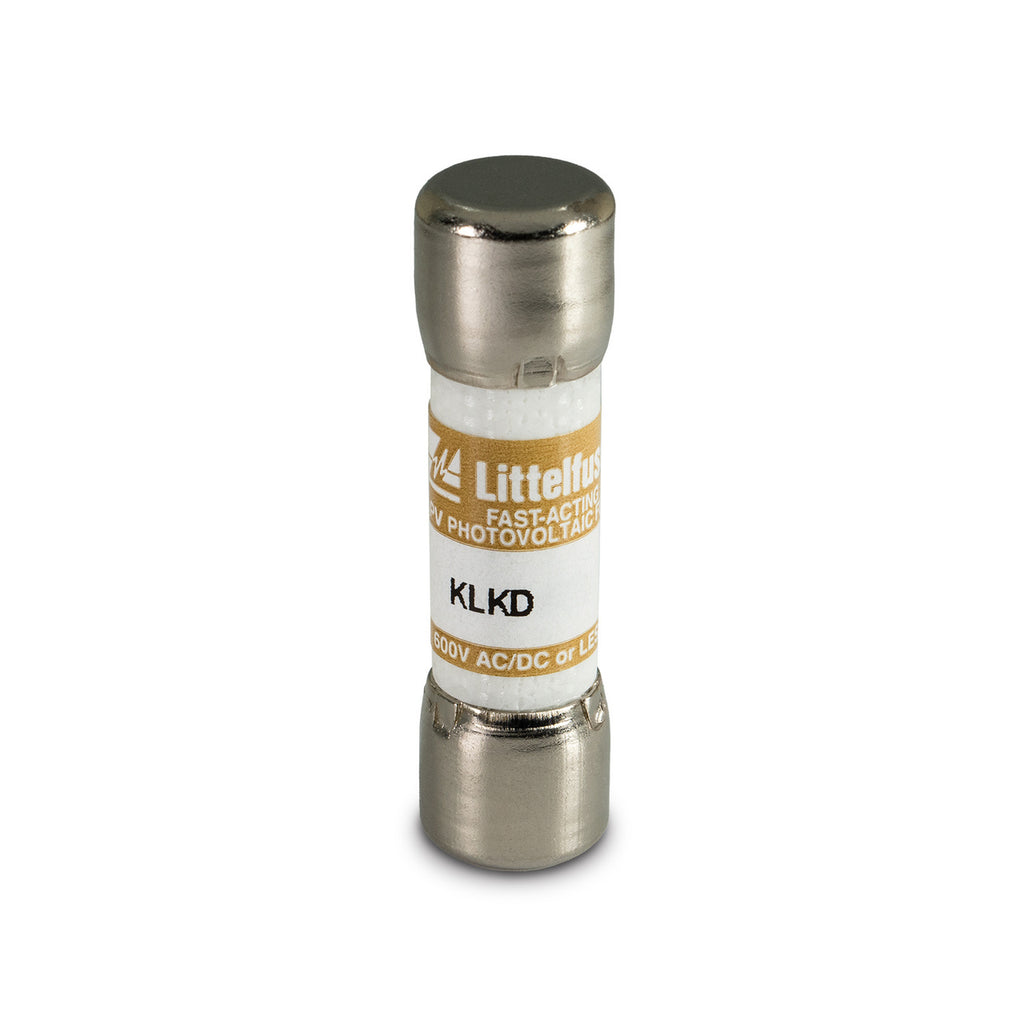

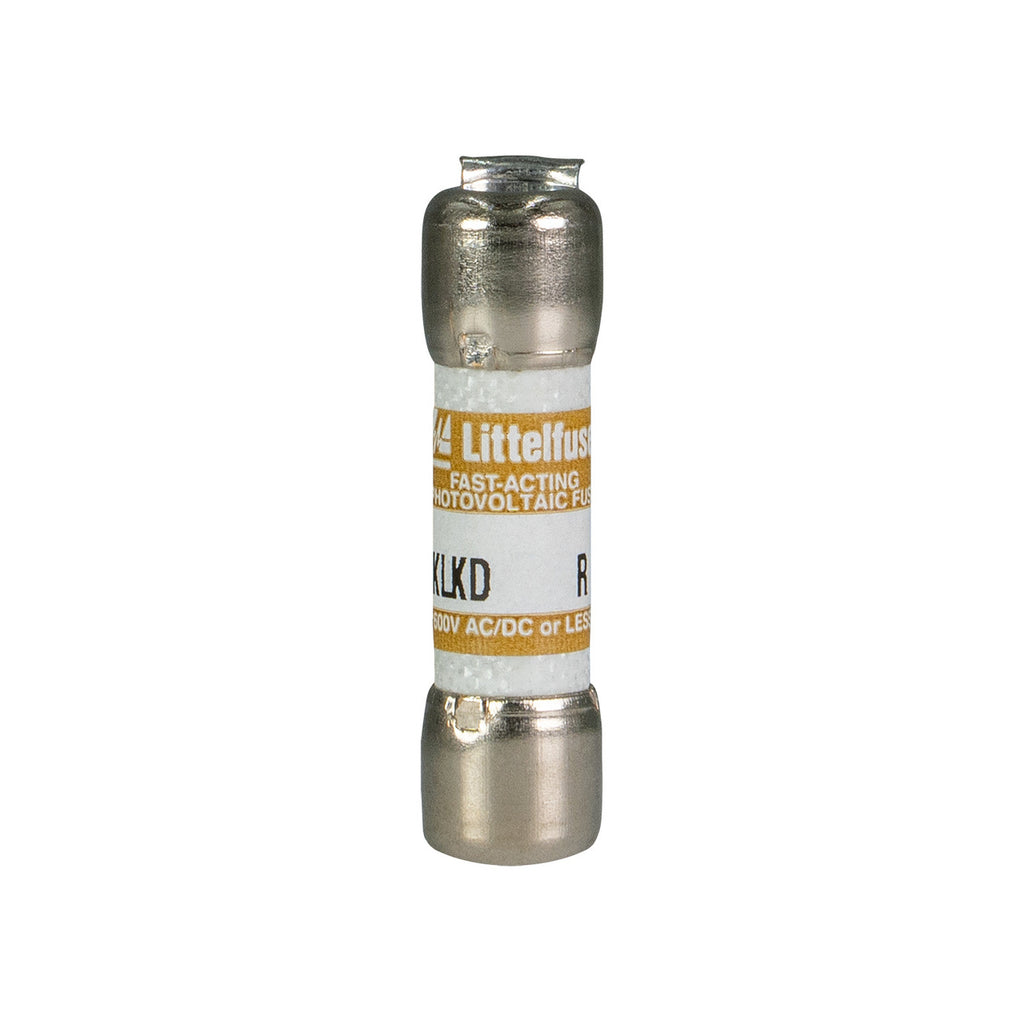

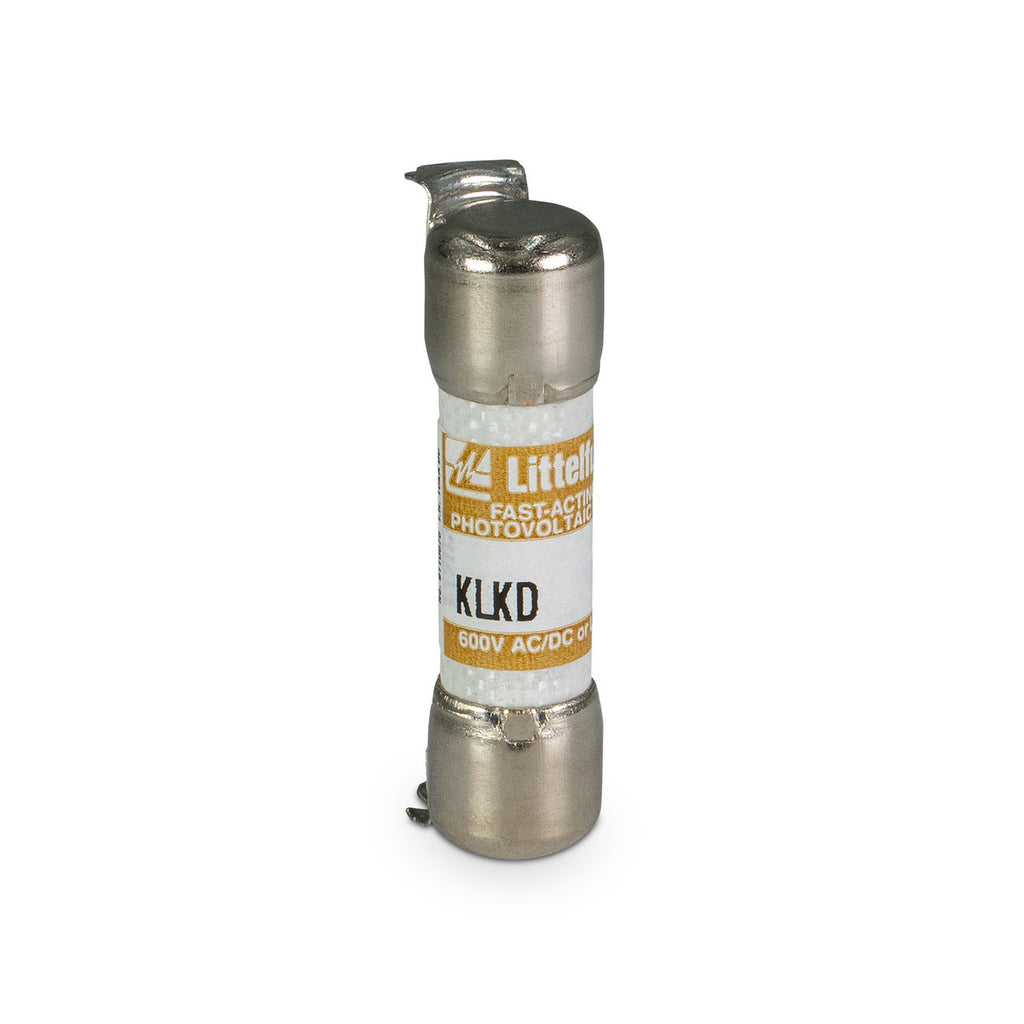

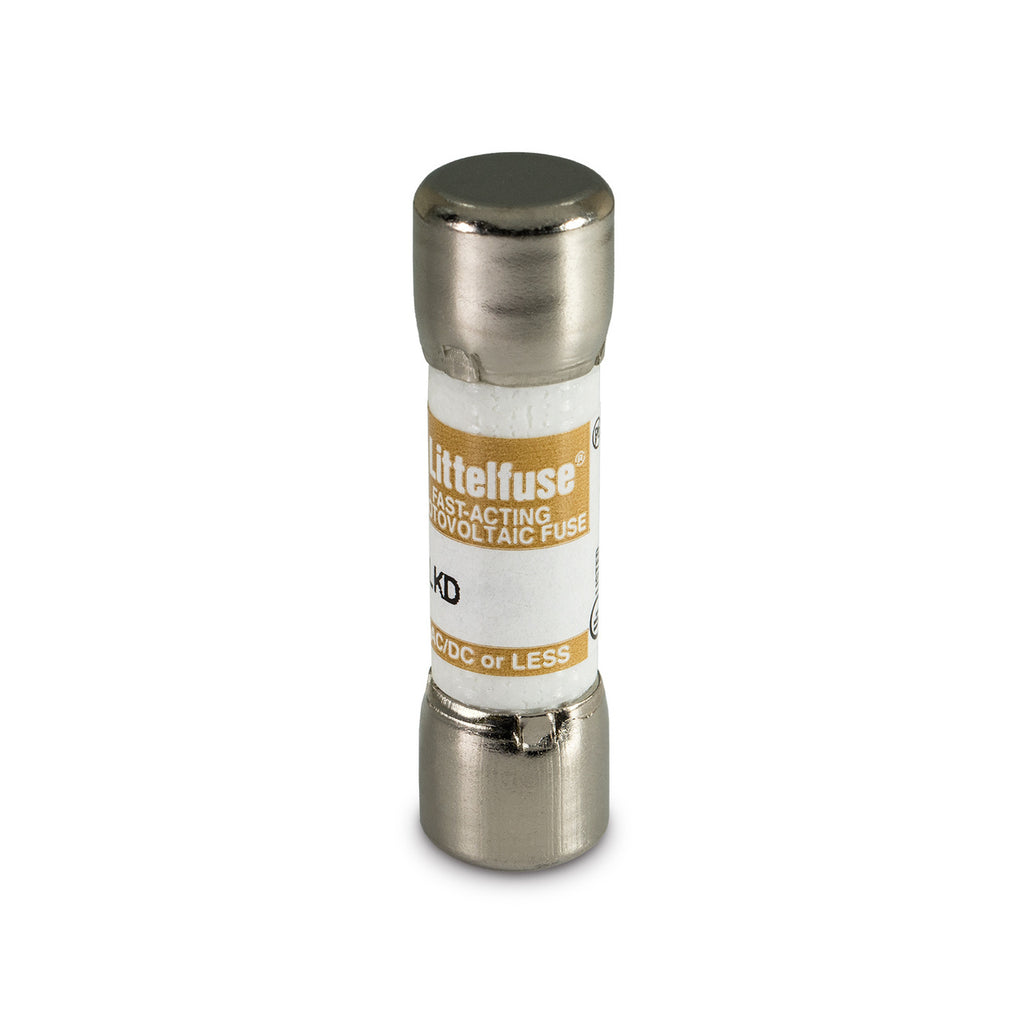

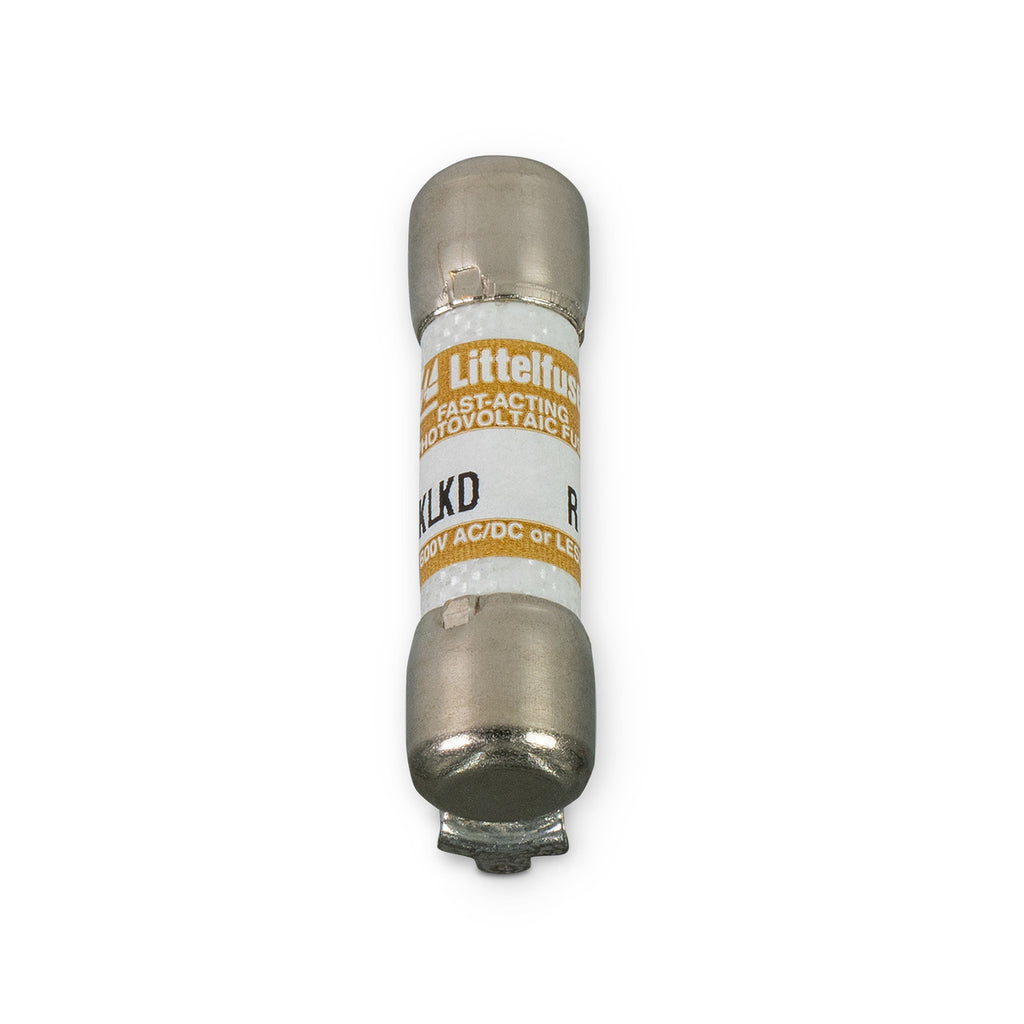

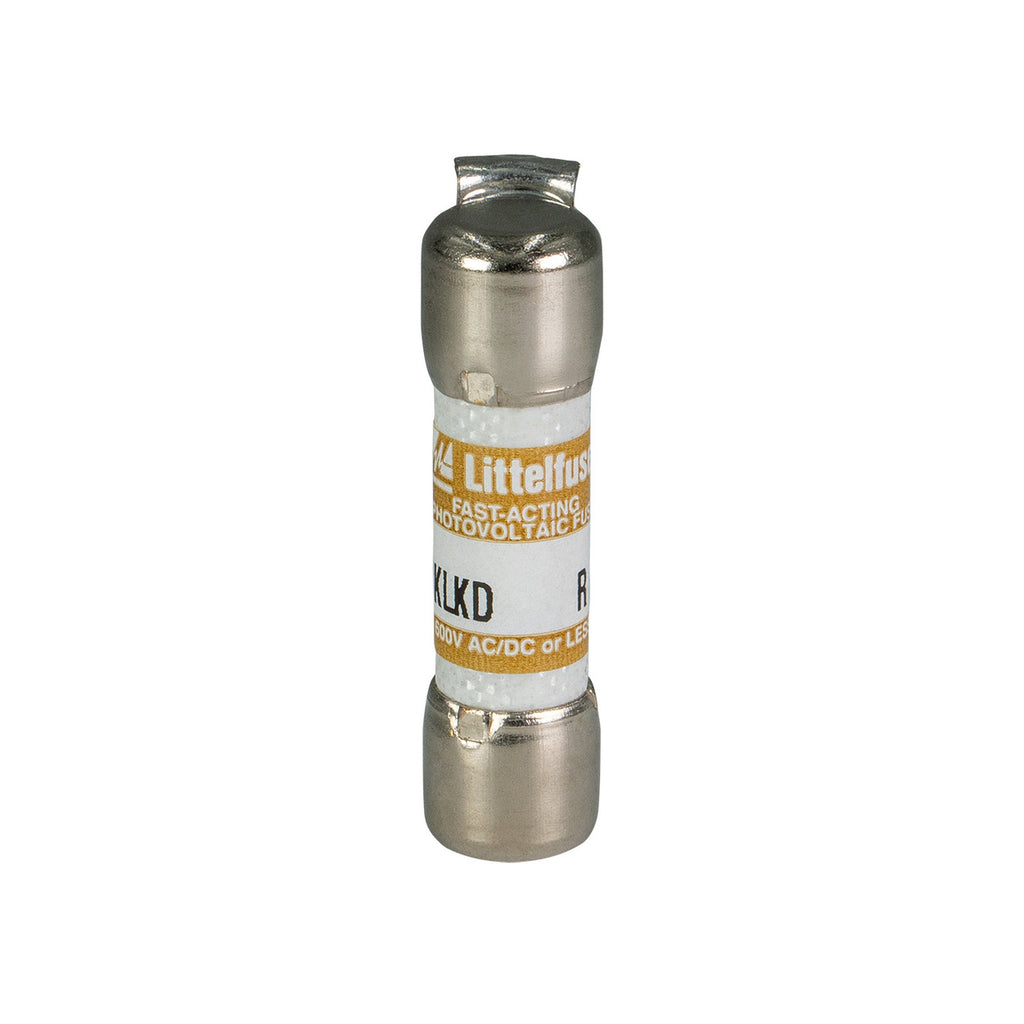

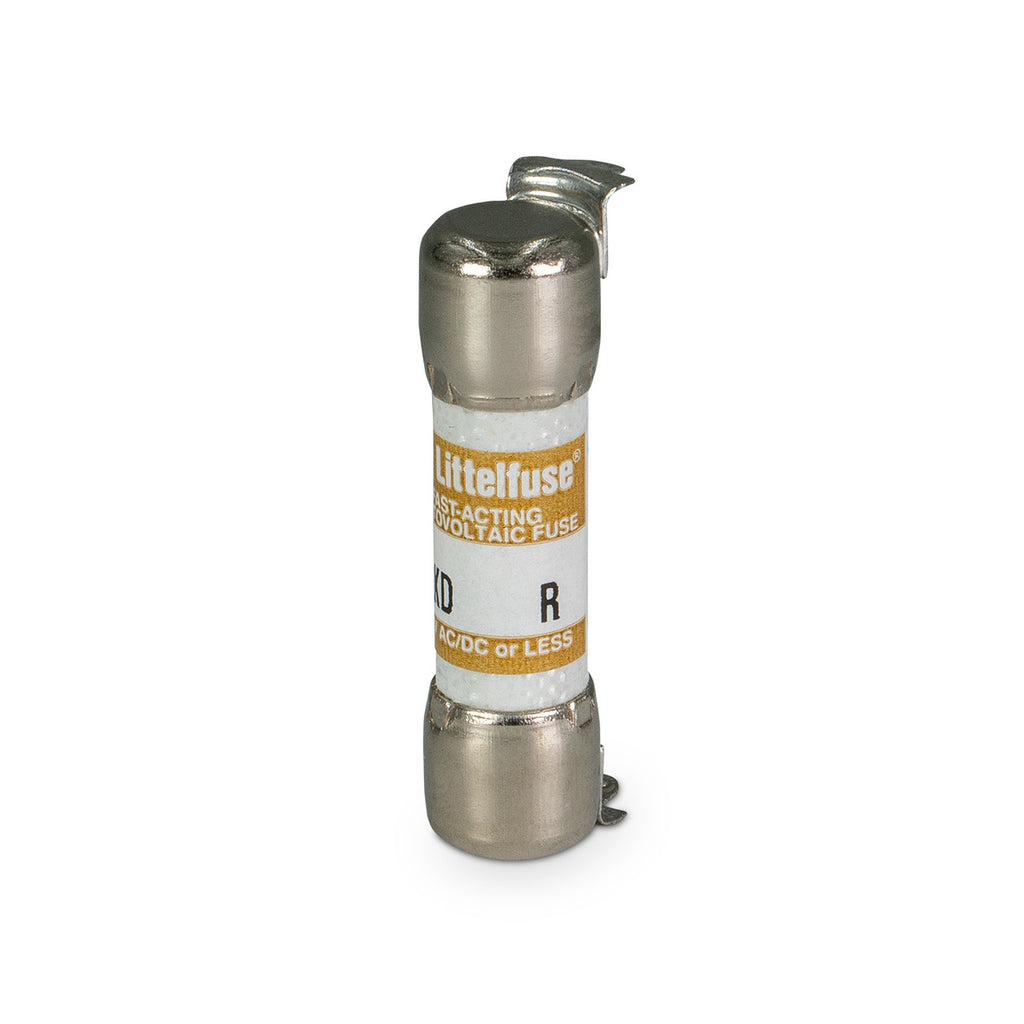

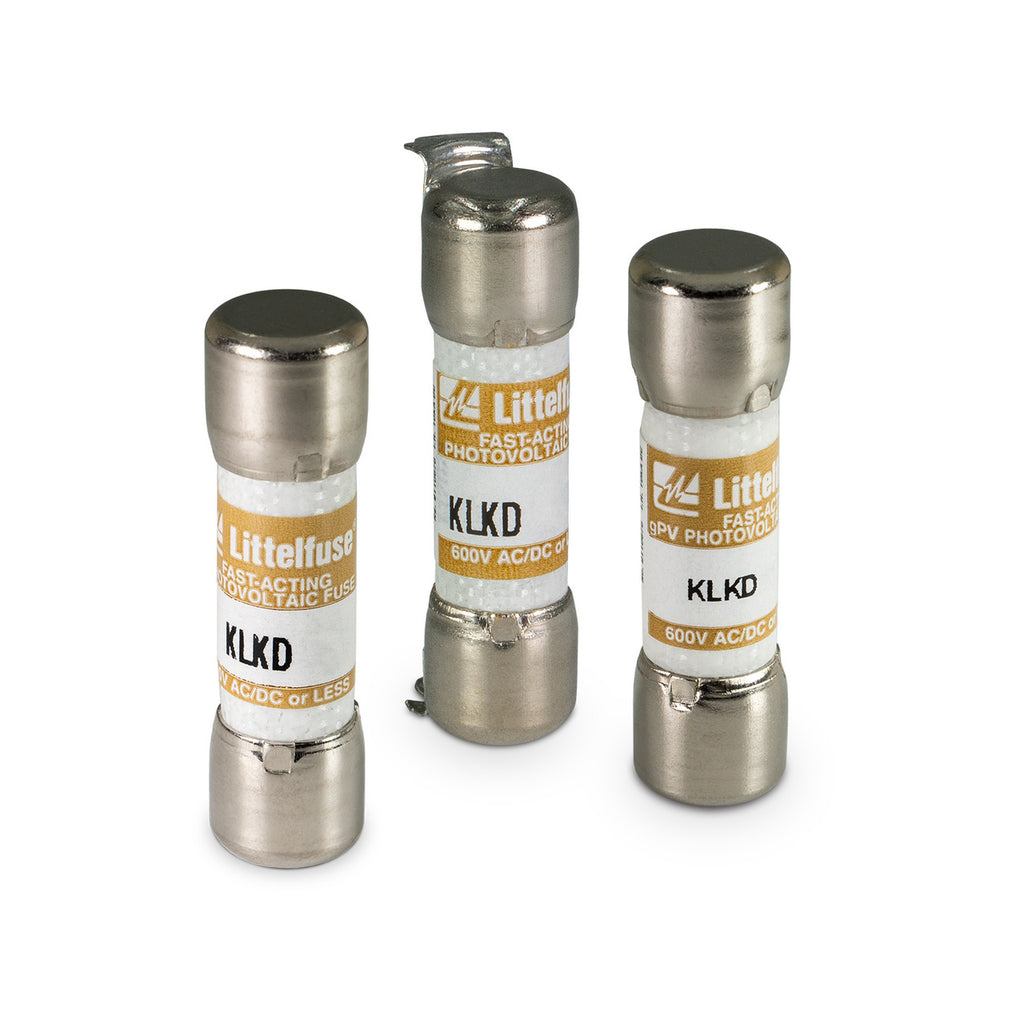

KLKD001 is a Littelfuse fast-acting, current-limiting midget fuse rated for 1 amp continuous current and 600 volts AC/DC operation.

This fuse features a high interrupting rating of 100,000 amps at 600 VAC and 50,000 amps at 600 VDC, making it suitable for DC control circuits, street lighting, HID lighting, computers, and other applications requiring reliable overcurrent protection. It has a compact midget (5AG) size with a melamine body and copper alloy end caps, designed for mounting in fuse blocks, clips, or holders.

• Current Rating: 1 Amp
• Voltage Rating: 600 Volts AC/DC
• Interrupting Rating: 100,000 A at 600 VAC
• Interrupting Rating: 50,000 A at 600 VDC
• Fuse Class: Midget (5AG)
• Fuse Type: Fast-Acting, Current Limiting
• Mounting Method: Fuse Block / Clip / Holder
• Body Material: Melamine
• End Caps: Copper Alloy
• Dimensions: Approximately 0.41" x 1.5"
• UL and CSA Approved
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLKD001
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLKD Series - AC/DC Rated Fast-Acting Midget Fuses
• Type : KLKD Series - AC/DC Rated Fast-Acting Midget Fuses
• Voltage : 600
• Amperage : 1
• AIC rating : 100kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 07945810196
• GTIN : 00079458101966
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 6.9
• Certification : CE, CSA Certified, IEC 60269-6, RoHS, UL Listed, VDE Certified
